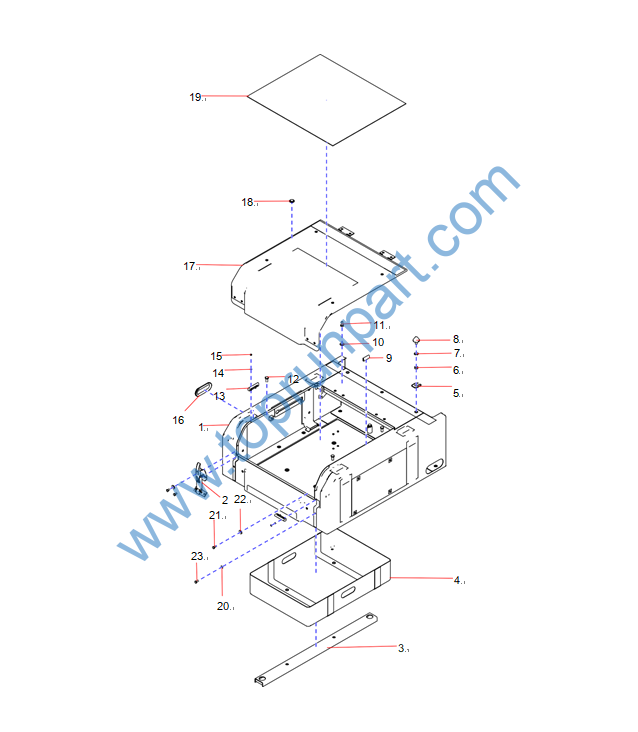

1 13915819 Tool Box 1
2 A222200000065 Hood Lock 2
3 13915825 Mounting Bracket of Tool Box 2
4 13915822 Tool Box Assembly 1
5 13305266 Spacer, Adjusting 6
6 A210307000031 Nut 2
7 A210491000121 Washer 14
8 13305172 Cushion 2
9 13305267 Sealing Strip 2
10 A210491000120 Washer 4
11 A210111000197 Bolt 4
12 A210111000101 Bolt 12
13 13305174 Buffer Block 4
14 24000630 Washer 8
15 A210307000015 Nut 8
16 13305268 Boot 2
17 13305526 Toolbox Lid Assembly 1
18 13304818 Rubber Pad 4
19 13305264 Ribband 1
20 24000633 Washer 4
21 A210111000342 Bolt 4
22 60060565 Washer 4
23 A210111000343 Bolt 4

1 A210307000036 Nut 4
2 60060546 Washer 8

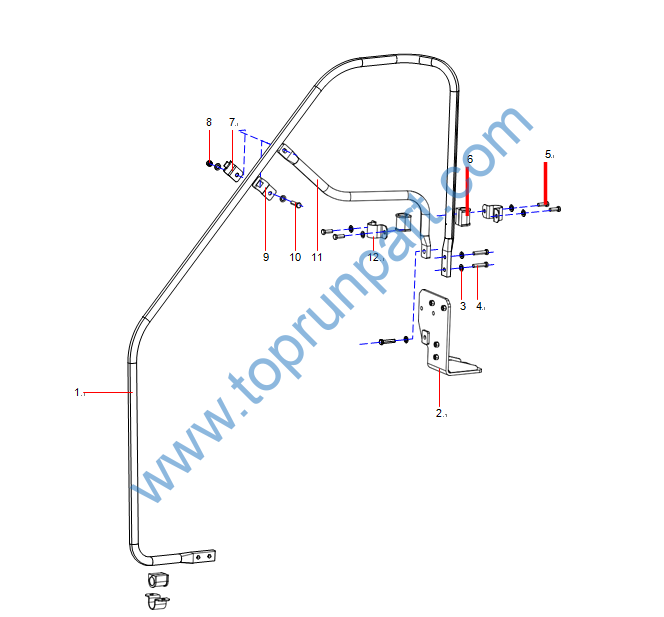

1 13488848 Handrail Main Body 1
2 14296207 Mounting Plate 1
3 A210491000121 Washer 9
4 A210111000118 Bolt 4
5 A210111000203 Bolt 4
6 13488842 Rubber Sleeve 3
7 11443480 Connecting Board 1
8 A210307000031 Nut 1
9 11443479 Connecting Board 1
10 A210111000119 Bolt 1
11 14296233 Rod, Backup 1
12 13488841 Fixed Clamp 3

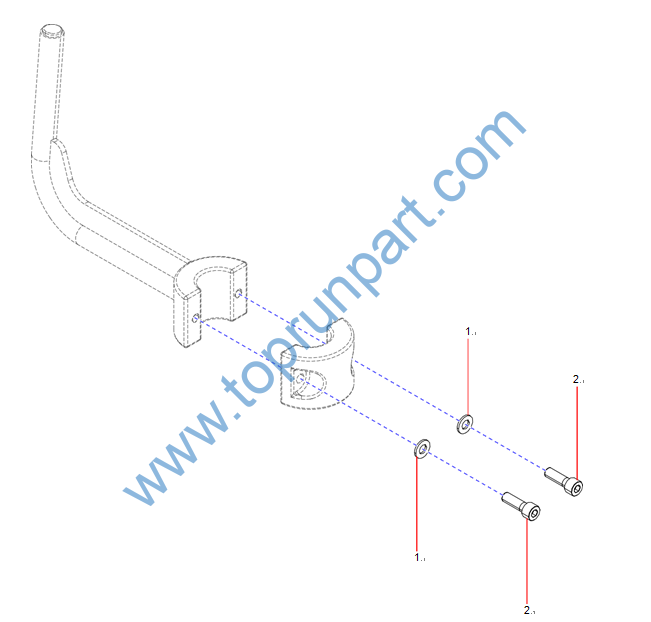

1 24000633 Washer 2
2 A210204000341 Screw 2

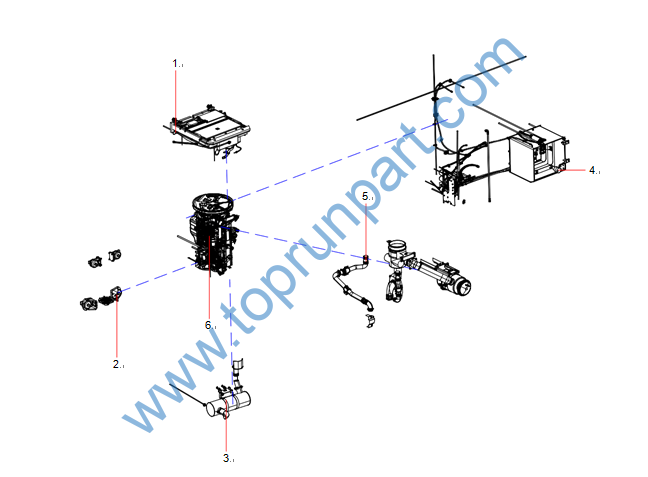

1 Cooling system 1 2-246

2 Damping and transmission system 1 2-250

3 Exhaust System 1 2-252

4 fuel system 1 2-256

5 Intake System 1 2-272

6 60239999 Engine 1

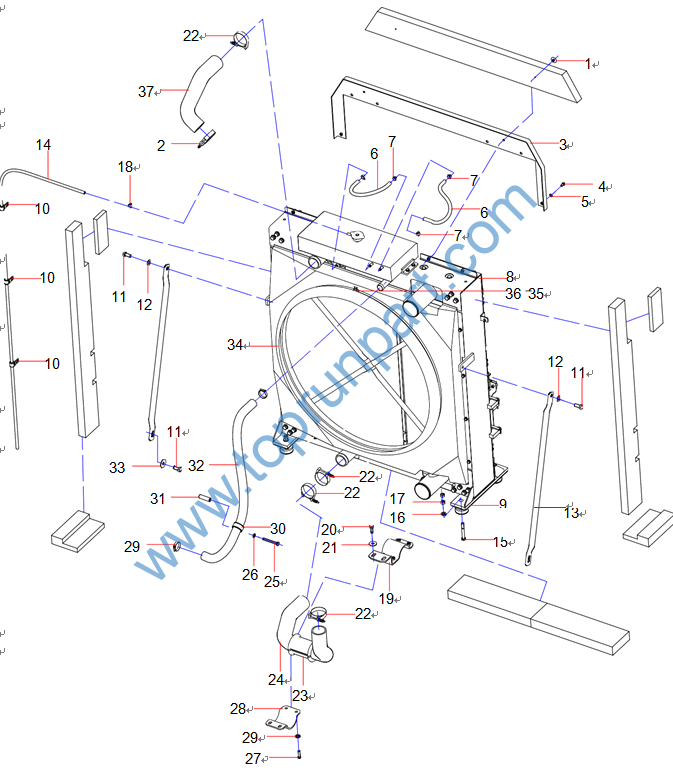

1 13282154 Cramp 2
2 60205836 T-style anchor ear 1
3 13282153 Upper Partition Plate 1
4 A210111000342 Bolt 9
5 24000633 Washer 9
6 13282140 Expansion Water Pipe 2
7 60202896 Clamp 4
8 60250328 Radiator 1 2-248

9 13297996 Adjusting Shim 2
10 60083322 Wire Clamp 3
11 A210111000205 Bolt 4
12 A210444000001 Washer 2
13 13282148 Brace Rod 2
14 A820606030493 Hose 1
15 A210110000323 Bolt 6
16 A210491000121 Washer 6
17 A210307000031 Nut 12
18 60202895 Throat Clamp 1
19 13282150 Rigid Bracket 1
20 A210111000442 Bolt 4
21 60060548 Washer 4
22 60227325 T-style spring clamp 4
23 12832059 Rubber Sleeve 1
24 13282143 Radiator outlet pipe 1
25 A210111000295 Bolt 1
26 A210491000120 Washer 5
27 A210111000024 Bolt 4
28 12832060 Plate 1
29 60210577 Clamp 2
30 60149606 Harness Fixing Clamp 1
31 11166822 Steel Pipe 1
32 13394551 Engine Water Supply Pipe 1
33 60060550 Washer 2
34 A230199000044 Rubber Cover 1
35 A229900004513 Hoop 1
36 A229900004514 Lock Buckle 1
37 13282138 Radiator Water Inlet Pipe 1

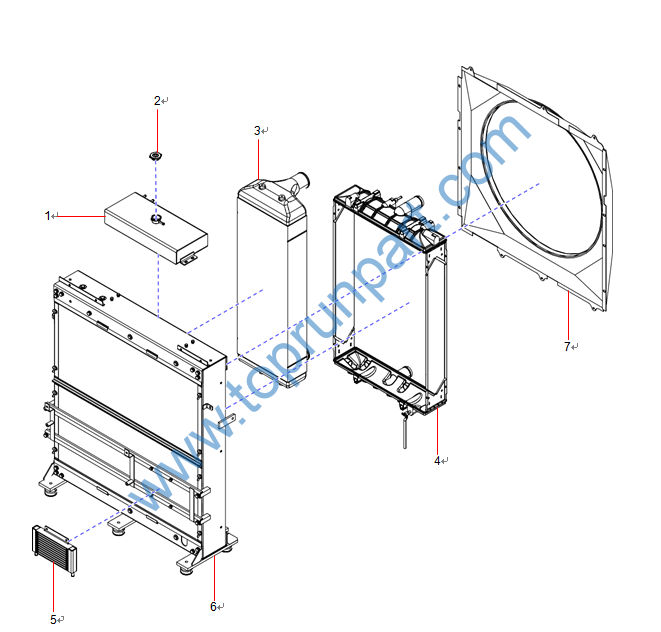

1 60305924 Expansion Water Tank 1
2 60347798 Water Tank Pressure Lid 1
3 60305927 Intercooler 1
4 60305922 Radiator 1
5 60305934 Radiator 1
6 60305933 Dust Net 1
7 60305932 Guide Cover 1
