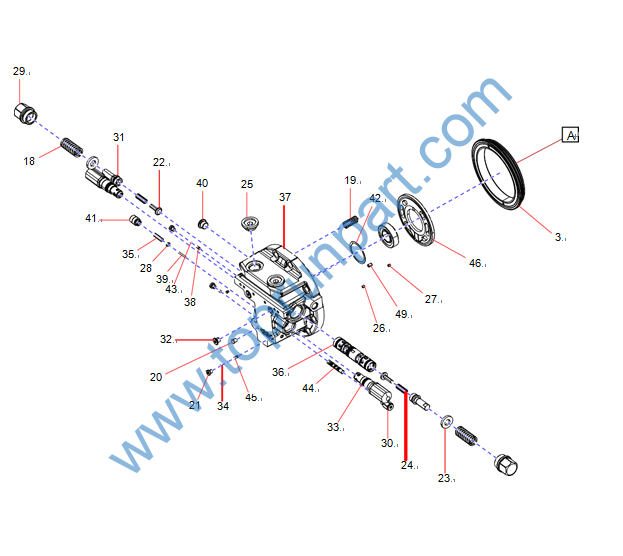

3 130101010213A026 Brake Piston 1
18 130101010213A010 Main Valve Element Spring 2
19 130101010213A023 brake spring 14
20 130101010189C079 double end plug 11
21 130101010229B004 Plug 8
22 130101010213A006 Check Spool 2
23 130101010213A009 spring washer 2 2
24 130101010213A007 Main Valve Element Spring 2 2
25 130101010189C062 dust stopper 2
26 130101010213A020 damping plug 2
27 130101010189C069 damping plug 1
28 130101010213A015 spring washer 1 1
29 130101010213A011 Main Valve Bonnet 2
30 130101010213A021 variable speed cover 1
31 130101010213A008 Main Valve Element Plug 2
32 130101010189C059 Hexagon socket head plug 3
33 130101010213A012 Overflow Valve 2
34 130101010213A018 throttle valve element 2 spring 3
35 130101010213A014 variable speed spool spring 1
36 130101010213A022 Main Valve Element 1
37 130101010213A003 rear flange 1
38 130101010213A004 throttle valve element 1 2
39 130101010213A016 variable speed inner spool 1
40 130101010189C070 Hexagon Socket Head Plug 2
41 130101010213A013 variable speed valve plug 1
42 130101010213A024 bearing spacer 1 1
43 130101010213A005 throttle valve element 1 spring 2
44 130101010213A019 variable speed outer spool 1
45 130101010213A017 throttle valve element 2 3
46 130101010213A025 oil distribution disk 1
49 61029644 Straight Pin 1

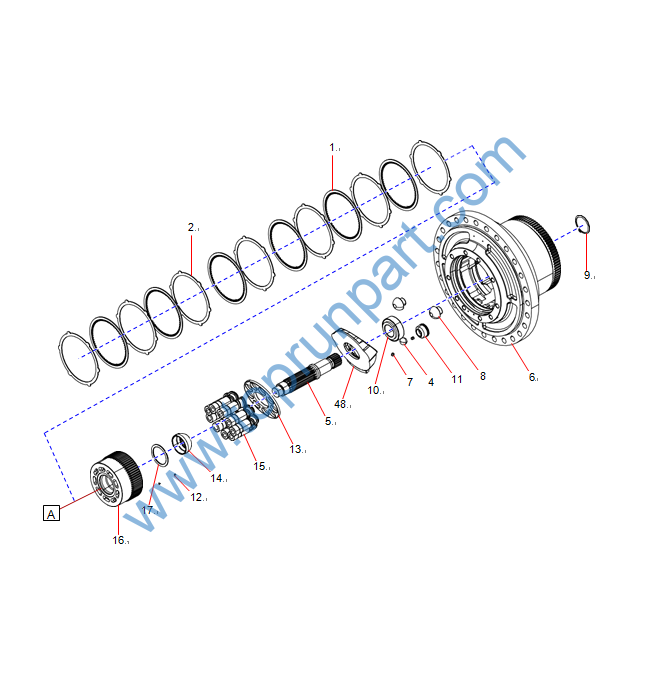

1 130101010213A028 friction disc 6
2 130101010213A027 separating plate 7
4 130101010213A038 steel ball 1
5 130101010213A035 drive shaft 1
6 130101010213A040 Motor Case Body 1
7 130101010189C033 Double svrew plug 2
8 130101010213A037 pivot 2
9 130101010213A041 hole retaining ring 1
10 130101010189C052 Conical Roller Bearing 2
11 130101010213A039 shift plunger 1
12 130101010213A032 cylinder body spring 1
13 130101010213A033 pressure plate 1
14 130101010213A031 ball hinge 1
15 130101010213A034 Plunger & Slipper Assembly 9
16 130101010213A029 Cylider Block 1
17 130101010213A030 ball hinge gasket 1
48 130101010213A036 oblique disk 1

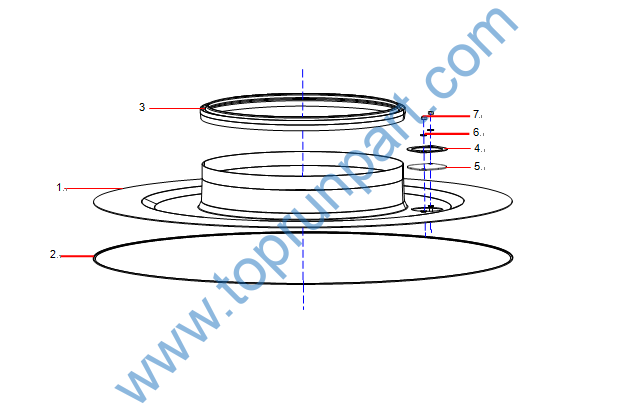

1 11163609 Guard Ring 1
2 11163606 Lower Sealing Ring 1
3 A820606020168 Upper seal ring 1
4 A820606020170 Block, rubber 1
5 A820101210192 Plate, sealing 1
6 A210405000011 Washer 2
7 A210307000017 Nut 2

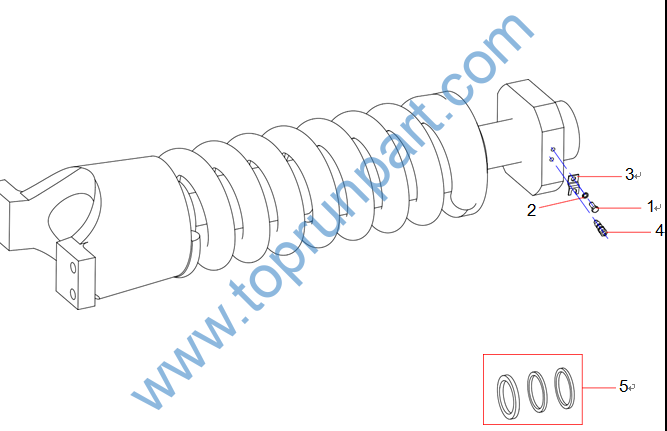

1 A210111000101 Bolt 1
2 24000639 Washer 1
3 A820101010372 Support Plate 1
4 B229900000862 Grease Valve 1
5 61030950 Tension Repair Kit 1

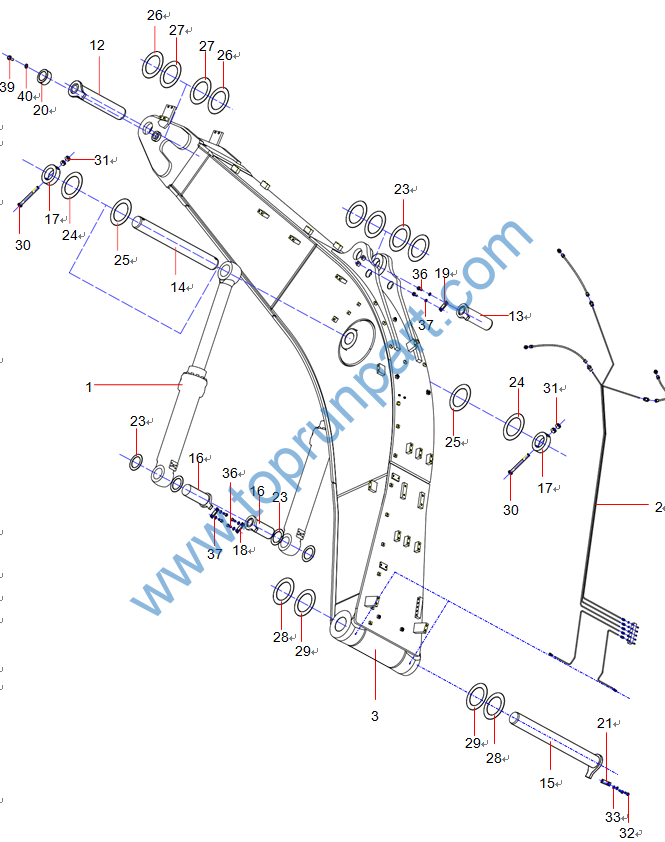

1 Working device pipeline 1 4-6

2 Lubricating circuit 1 4-24

3 SSY004894921 Boom (7m) subassembly assembly 1 4-26

12 SSY004894353 Pin 1
13 11347590 Pin 1
14 13264722 Pin Shaft 1
15 SSY004701201 Pin Shaft 1
16 11347581 Pin 2
17 13304058 Fixed Sleeve 2
18 13619666 Cover Plate 2
19 13702857 Cover Plate 3
20 14173466 Clamp Plate 1
21 14179296 Pressure Plate 1
23 A820102010676 Shim 30
24 10254335 Gasket 4
25 A820102010678 Gasket 10
26 10254241 Gasket 2
27 10254242 Gasket 2
28 13914039 Gasket 4
29 13914038 Gasket 2
30 A210110000108 Bolt 2
31 A210307000007 Nut 4
32 A210111000289 Bolt 2
33 A210491000132 Washer 2
36 A210111000212 Bolt 10
37 A210491000118 Washer 10
39 A210111000362 Bolt 1
40 A210491000122 High Strength Washer For Steel Structure 1
