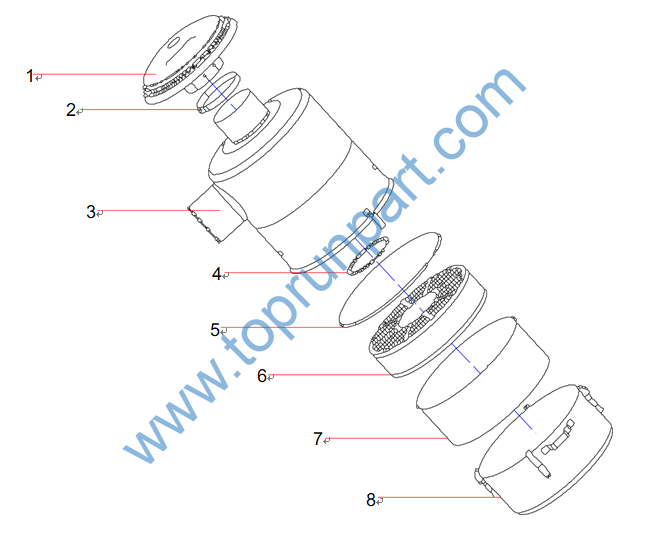

1 160699000119A Rain Cap Assembly 1
2 160699000125A Clamp 1
3 160699000120A Upper Cylinder Assembly 1
4 160699000121A U-style Ring 1
5 160699000122A O-ring 1
6 160699000123A Lower Oil Pan Inner Barrel Assembly 1
7 160699000124A Lower Oil Pan Outer Barrel Assembly 1
8 160699000126A Lower Barrel Assembly 1

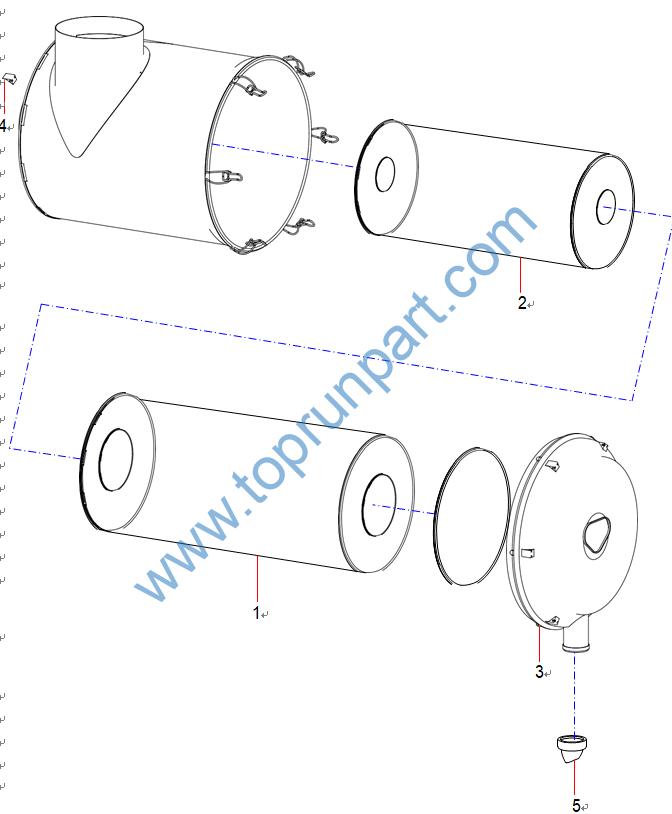

1 B222100000641 Air Filter Primary Filter Element 1
2 B222100000640 Air Filter Safety Filter Element 1
3 60176264 Cover 1
4 60176026 Plug 1
5 60213978 Dust Collection Nozzle 1

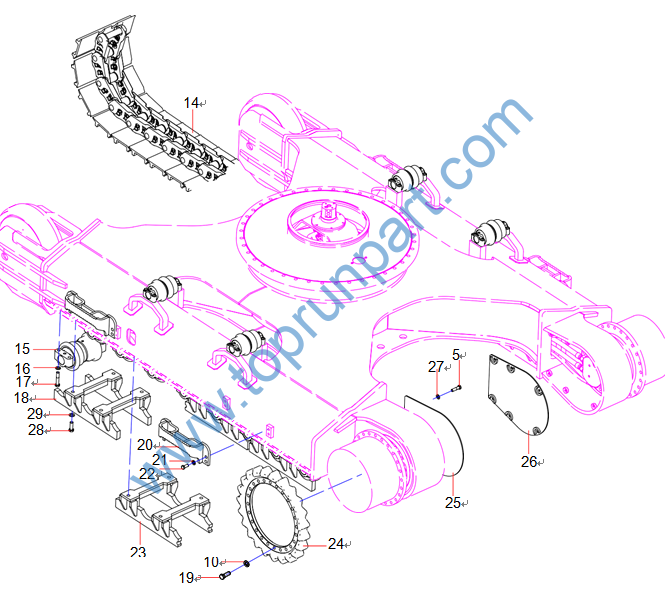

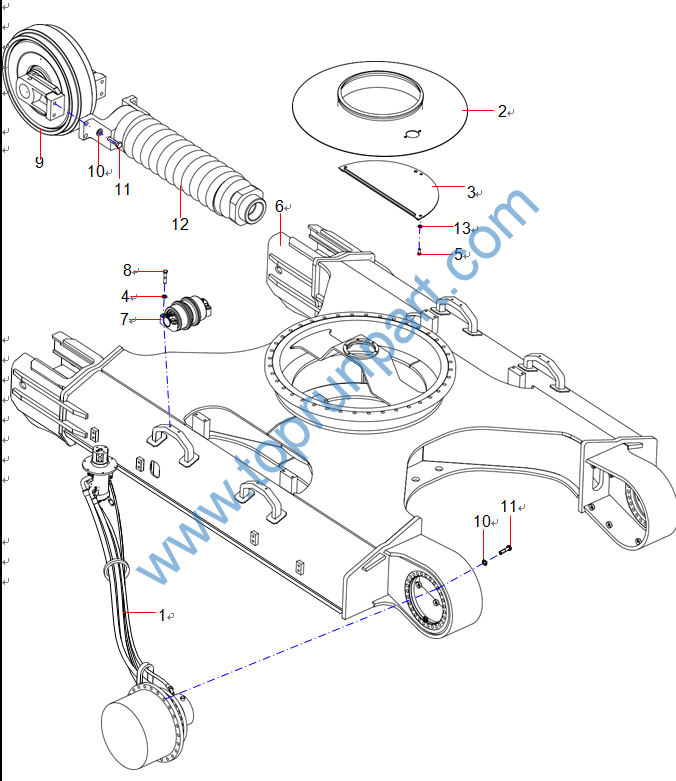

1 Carrier Hydraulic System 1 3-6

2 11163607 Seal Module 1 3-20

3 13305995 Cover Plate 2
4 A210491000118 Washer 16
5 A210111000212 Bolt 20
6 13947764 Running Carrier 1
7 13227207 Carrier Roller 4
8 A210110000272 Bolt 16
9 60247185 Idler 2
10 A210491000122 High Strength Washer For Steel Structure 48
11 A210110000427 Bolt 62
12 60332169 Tension Device 2 3-22

13 13587109 Thickening Washer 8

5 A210111000212 Bolt 20
10 A210491000122 High Strength Washer For Steel Structure 48
14 13734866 Track Assembly 2 3-24

15 13465919 Track Roller Assembly 18
16 A210444000002 High Strength Washer For Steel Structure 72
17 A210110000434 Bolt 72
18 SSY005231118 Track Shield 4
19 A210111000321 Bolt 48
20 13474999 Pedal 4
21 A210491000132 Washer 16
22 A210111000289 Bolt 16
23 SSY005231121 Track Shield 4
24 14023005 Driving Wheel 2
25 13291120 Left Motor Cover Plate 1
26 13291121 Right Motor Cover Plate 1
27 24000514 Spring Washer 12
28 A210111000114 Bolt 32
29 A210444000003 Washer 32

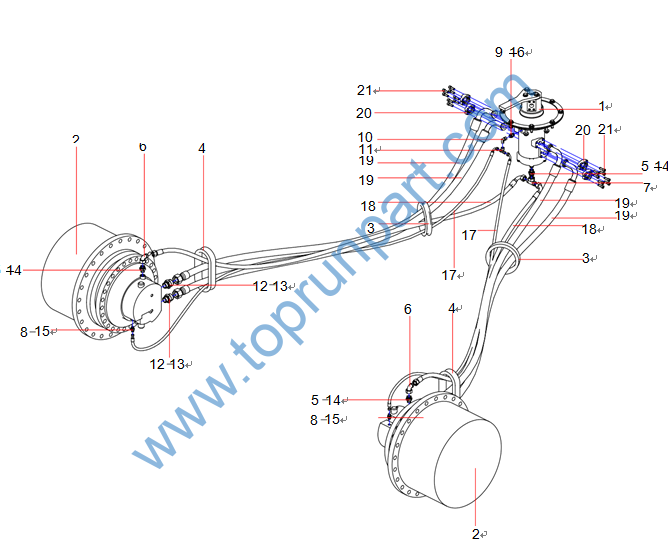

1 Swing joint Assembly 1 3-8

2 130101010213A Reducer Drive Assembly 2 3-12

3 A820606030424 Boot 2
4 13299342 Rubber Protective Sleeve 2
5 A820205002385 Connector 3
6 B210780001310 Elbow Combination Joint 2
7 B210780001363 Tee Group Connector 1
8 A820205000844 Fitting 2
9 13131456 G3/8-M14 Connector 1
10 B210780000418 Elbow Combination Joint 1
11 B210780000172 Tee Group Connector 1
12 A820205001334 Adapter Fitting 4
13 B230101000050 O-ring 4
14 B230101000090 O-ring 3
15 A210608000022 O-ring 2
16 B230101000049 O-ring 1
17 B230103002035 Rubber Hose Assembly 2
18 B230103004698 Hose 2
19 60253580 Rubber Hose 4
20 B210780000244 Flange Joint 8
21 A210204000354 Screw 16

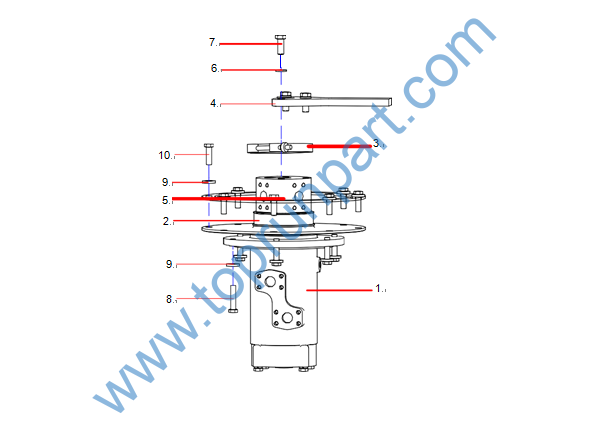

1 60249405 Slewing Joint 1 3-10

2 13282913 Rubber Cushion Assembly 1
3 60258935 T-Style Spring Clamp 1
4 13299433 Shift Fork 1
5 13299434 Clamp Plate 1
6 A210444000001 Washer 3
7 A210111000442 Bolt 3
8 A210111000118 Bolt 6
9 13300896 Thickened Shim 14
10 A210111000204 Bolt 8

1 60306104 Slewing Joint Service Kit 1

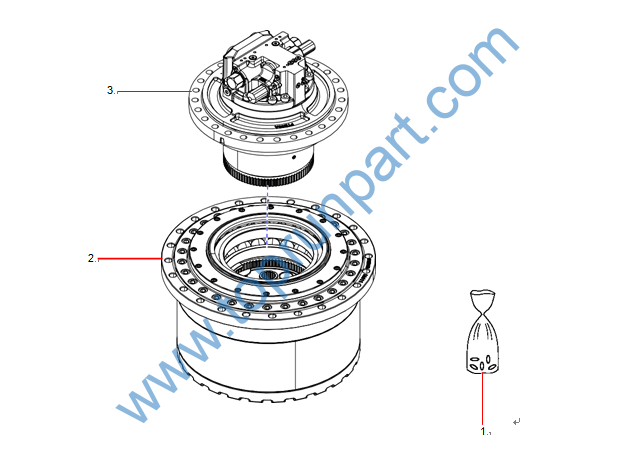

1 150202010025A001 Oil Seal Pack 1
2 130101010213A001 Gearbox 1 3-14

3 130101010213A002 Hydraulic Motor 1 3-16

1 130101010189C057 Bolt, Socket Head Cap 16
2 130101010213A047 angular contact ball bearing 2
3 130101010213A044 Floating Seal 2
4 130101010213A045 flange 1 1
5 130101010213A049 spline sleeve 1
6 130101010213A048 flange 2 1
7 130101010189C002 Hexagon Socket Head Plug 2
8 130101010213A064 Ring gear 1
9 130101010213A065 Reducer Cover 1
10 130101010213A063 Gear Cover Plate 1
11 130101010213A046 bearing spacer 2 1
12 130101010213A062 sun gear 1 1
13 130101010213A041 hole retaining ring 7
14 130101010213A058 bearing spacer 3 6
15 130101010213A056 sun gear 2 1
16 130101010189C007 heavy rolled elastic pin 3
17 130101010213A061 planet shaft 1 3
18 130101010213A060 planet gear 1 3
19 130101010213A057 Planet Carrier 1
20 130101010213A059 nylon retaining ring bearing 2
21 130101010213A051 flat end elastic pin 3
22 130101010213A052 self-aligning roller bearing 6
23 130101010213A050 Planet Carrier 1
24 130101010213A055 gear cover plate 2 1
25 130101010213A053 planet gear 2 3
26 130101010213A054 planet shaft 2 3
27 130101010213A042 half ring 1
28 130101010213A043 half ring retaining ring 1
