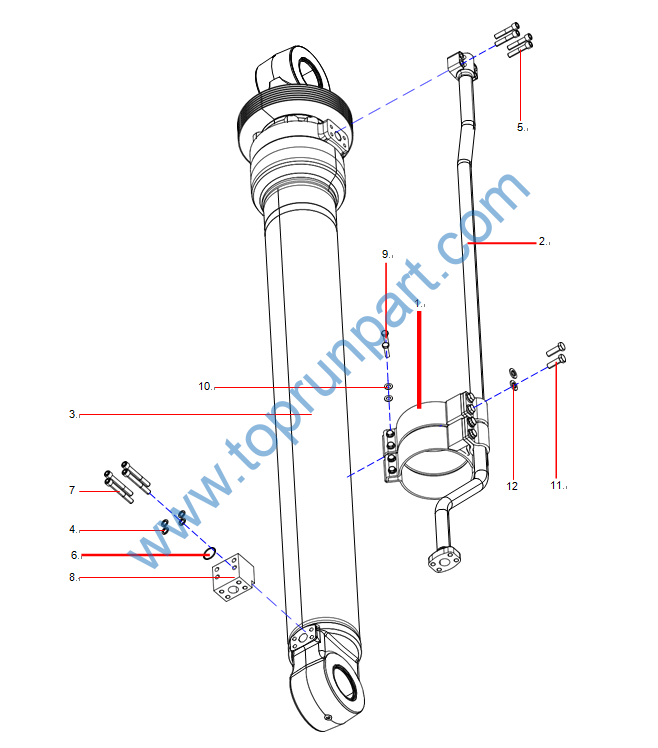

1 13422592 Pipe Clamp Assembly 2
2 SSY005146519 Arm Cylinder Steel Pipe 1
3 150901040650B Oil Cylinder 1 4-18
4 A210444000001 Washer 4
5 21050781 Screw 4
6 B230101000578 O-ring 2
7 23000431 Screw 4
8 13303436 Block, Manifold 1
9 A210111000119 Bolt 8
10 A210491000121 Washer 8
11 A210111000243 Bolt 4
12 A210491000118 Washer 4
INDEX PART NO. DESCRIPTION Remark QTY SEE PAGE

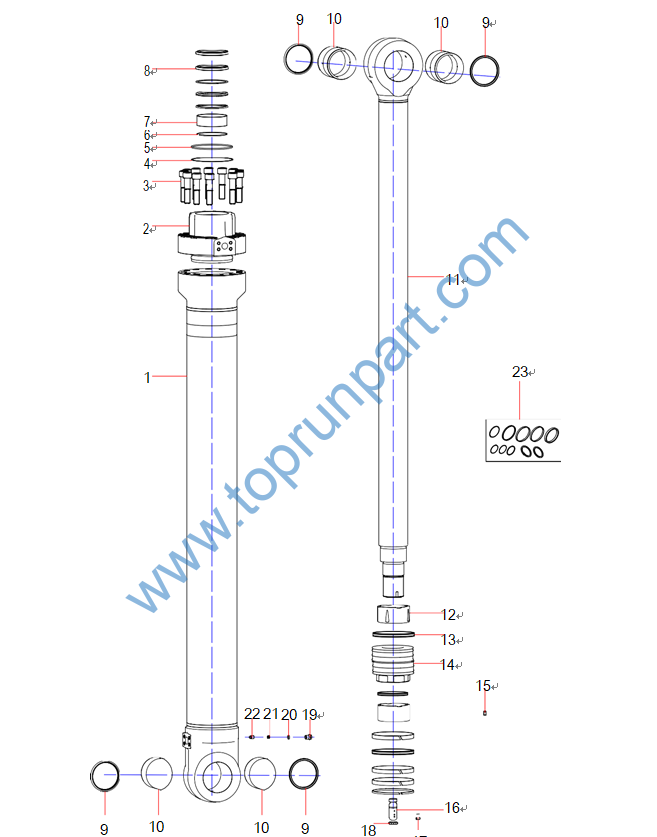

1 60348506 cylinder body 1
2 150902030089B001 End Cover 1
3 A210204000476 Screw 8
4 60197846 O-ring Seal 1
5 150902030089B005 Snap Ring for O-ring 1
6 60169585 Retainer Ring 1
7 60325549 Sliding Shaft Sleeve 1
8 60169581 Dust Seal Ring 1
9 150902030089B007 Dust Ring 4
10 150902030089B008 C-shaft Sleeve 4
11 60348504 Rod, Cylinder 1
12 150902030089B002 Bumper Sleeve 1
13 60169617 Buffer Ring 1
14 150902030089B003 Piston 1
15 60325553 Hexagon Socket Set Screws With Flat Point 1
16 60287024 Buffer Column 1
17 60325552 Cylinderical Pin 1
18 60305774 Steel Ball 11
19 60325547 Screw Plug 1
20 60197851 O-ring 1
21 60325546 Spring 1
22 60325545 Spool, Valve 1
23 60217496 Arm Cylinder K Repair Kit 1
1 150901040654B Oil Cylinder 1 4-22
2 21050781 Screw 8
3 B230101000578 O-ring 2
4 SSY005146517 Bucket Rodless Chamber Steel Pipe 1
5 13422086 Pipe Clamp Assembly 4
6 SSY005148392 Small Cavity Steel Pipe Assembly 1
7 A210111000119 Bolt 16
8 A210491000121 Washer 16
9 A210111000243 Bolt 8
10 A210491000118 Washer 8

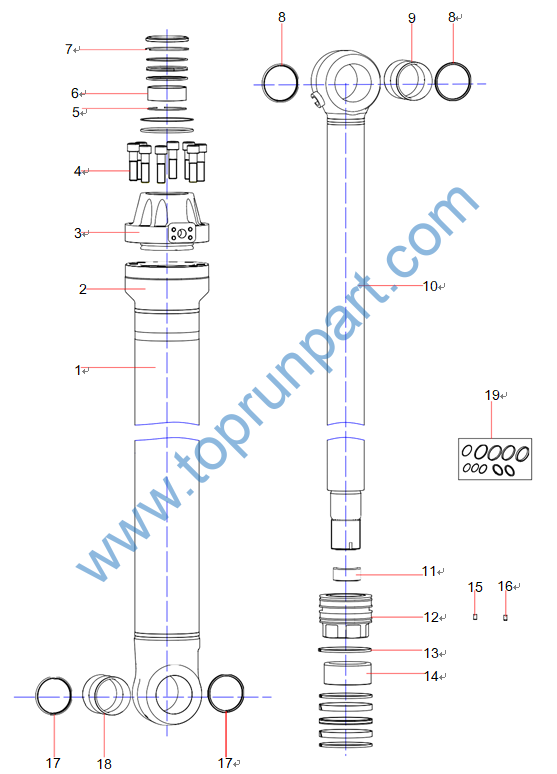

1 61023437 Oil Cylinder Barrel 1
2 60305756 Straight Through Grease Cup 1
3 60325537 Oil Cylinder End Plate 1
4 60224239 Screw 12
5 60169585 Retainer Ring 1
6 60193823 Sliding Shaft Sleeve 1
7 60169581 Dust Seal Ring 1
8 60046231 Dust Ring 2
9 60065359 Bucket Cylinder Bushing 1 1
10 61023438 Rod, Cylinder 1
11 60169560 Bucket Buffer Sleeve 1
12 60169590 Piston 1
13 60169576 Spacer 1
14 60169601 Nut 1
15 60305757 Steel Ball 1
16 60322611 Hexagon Socket Set Screws With Flat Point 1
17 60044360 Dust Ring 2
18 60065360 Bucket Cylinder Bushing 2 1
19 60149564 Bucket Cylinder Seal Pack 1

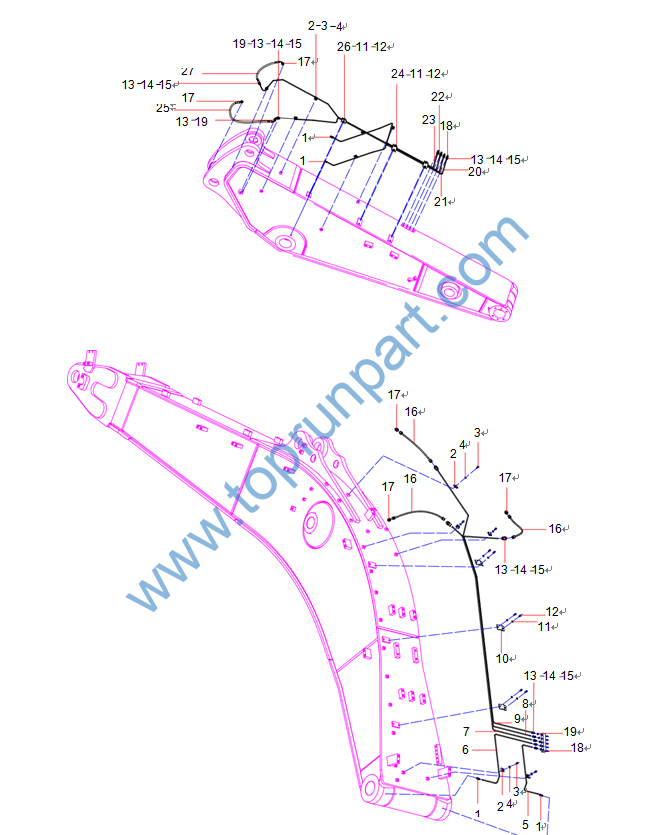

1 A229900006985 Pipe Connector 4
2 A820101211947 Pipe Clip 11
3 A210111000195 Bolt 11
4 A210491000120 Washer 11
5 13299809 Pipe 1
6 13299810 Pipe 1
7 13299811 Pipe 1
8 13299812 Pipe 1
9 13299813 Pipe 1
10 A820101211948 Pipe Clip 3
11 24000633 Washer 12
12 A210111000348 Bolt 12
13 A820205001235 Connector 15
14 B210780000191 Nut 14
15 B229900001092 Special Card Sleeve 14
16 23905413 Rubber Hose 3
17 A820205000858 Fitting 5
18 A210804000002 Oil Cup 9
19 A210434000007 Washer 11
20 SSY004586765 Pipe 1
21 SSY004586767 Pipe 1
22 SSY004586768 Pipe 1
23 SSY004586766 Pipe 1
24 13741037 Pipe Clip 2
25 A831213083000 Rubber Hose 1
26 11156457 Board 1
27 A831213050000 Rubber Hose 1

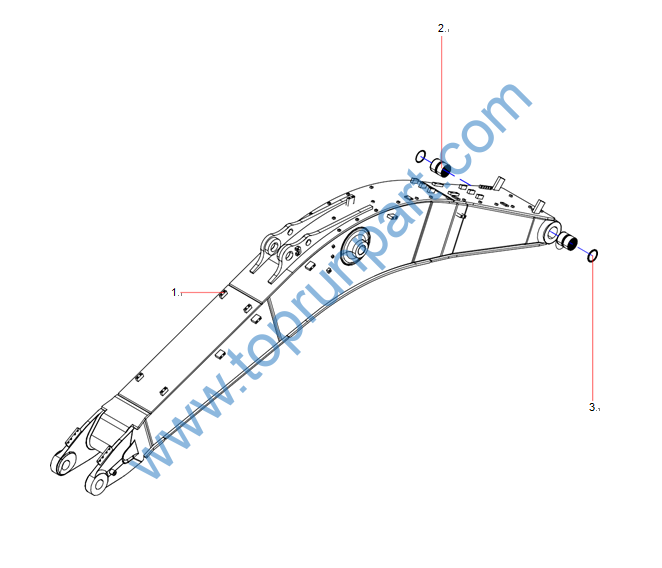

1 SSY004894507 Boom assembly (6.5m) 1
2 SSY004699835 Shaft Sleeve 130×150×175 2
3 B230101001657 DLI Dust Ring 2

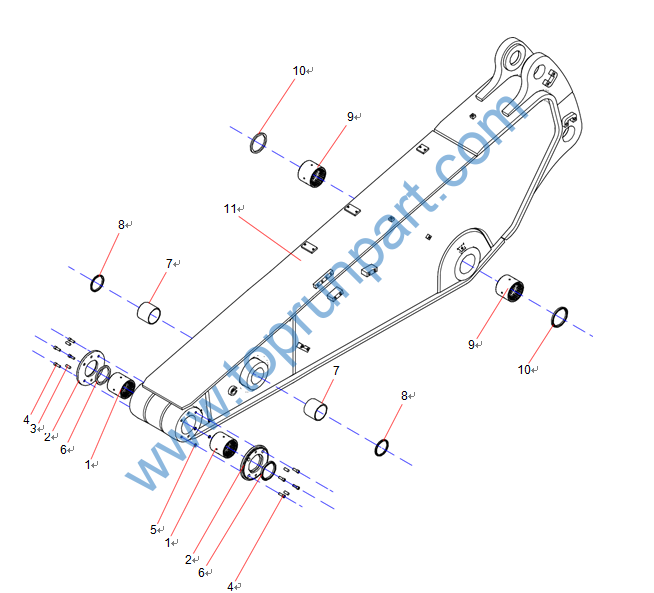

1 14039206 Shaft Sleeve 110×130×120 2
2 13268512 Wear Resistant Ring 2
3 13124496 Lockpin 4
4 A210204000206 Screw 8
5 24000513 Spring Shim 8
6 60044258 MCS Dust Ring 2
7 A820208000360 Shaft Sleeve 2
8 14265154 Grease Ring 2
9 13915180 Shaft Sleeve 120×140×110 2
10 60350655 MCS Dust Ring 2
11 SSY004592495 Arm 1

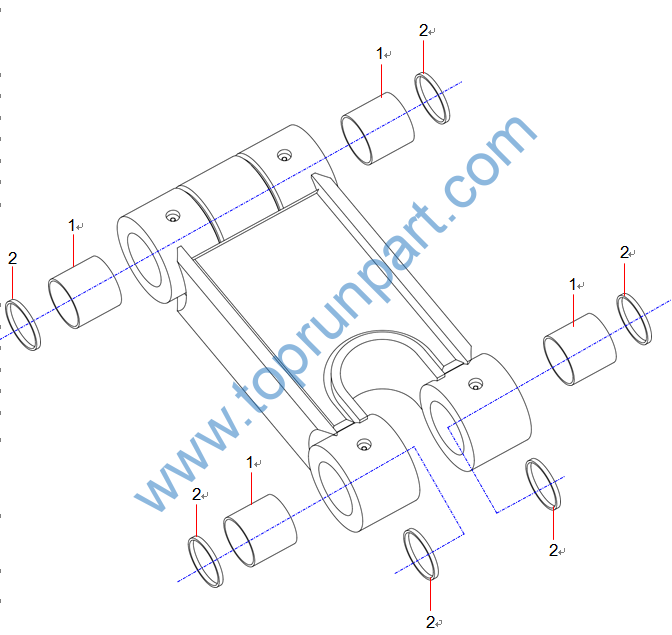

1 13264726 Connecting Rod Bushing 4
2 60044258 MCS Dust Ring 6
