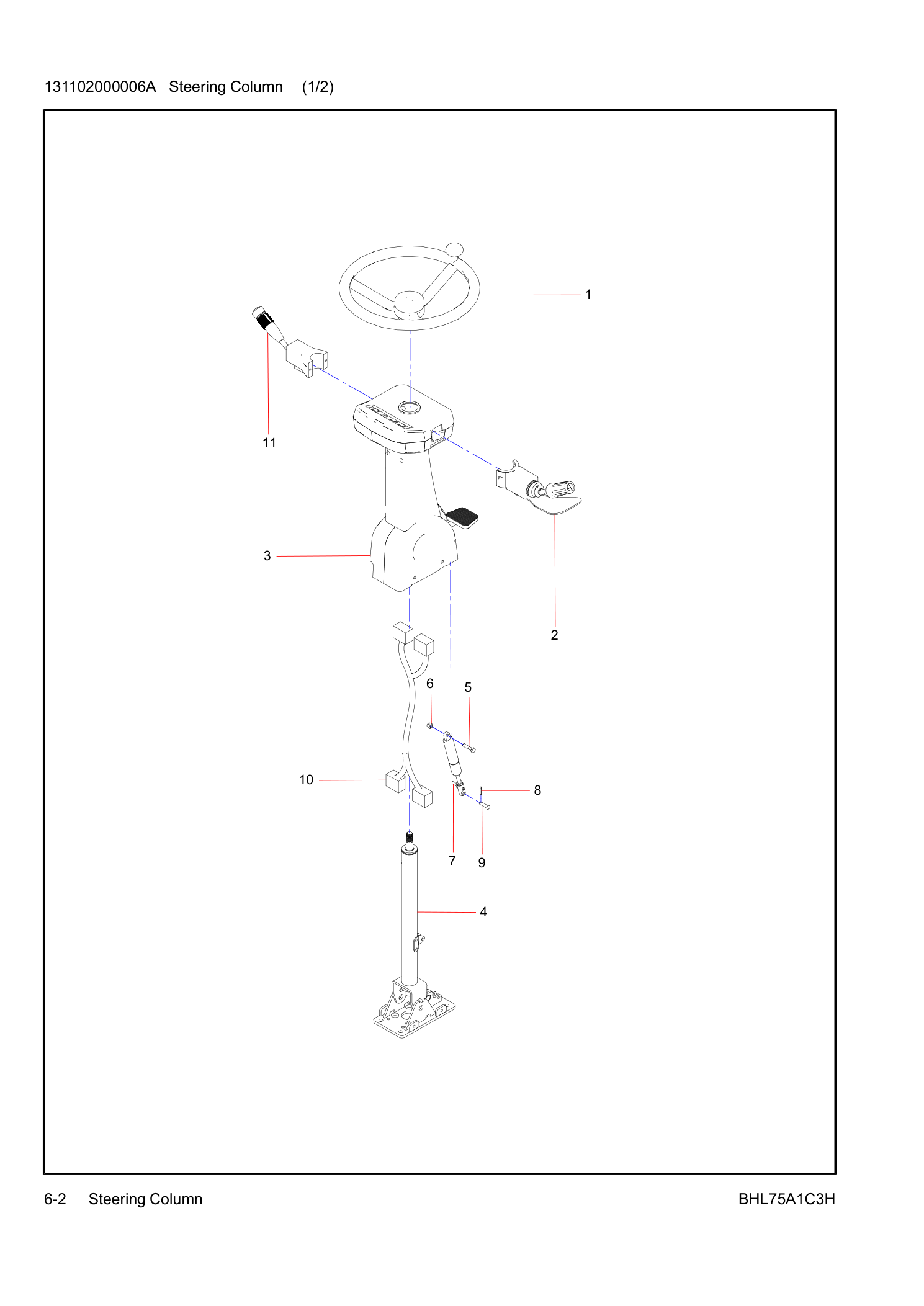

BHL75A1C3H Backhoe Loader Steering Column – Parts Catalog (131102000006A)

Part Number: 131102000006A
Machine Model: BHL75A1C3H Backhoe Loader
Equipment No.: SSY100000222
Catalog Section: Group 6

61010179 Steering
131102000006B002 selector switch
61010180 Steering Shell AS
61010193 steering bracket as
A210111000092 Bolt
A210307000055 Nut
61010181 Air Spring
A210501000026 Pin
A210508000079 Pin
61010182 Steering Column Wring AS
131102000006B001 dimmer switch
61010187 Right Turning Indicator Light
61010186 4WD Indicator Light
61010185 Parking Indicator Light
61010184 Left Turning Indicator Light
61010188 Top Steering Shell
A210210000006 Screw
61010189 Left-hand Steering Shell
61010190 Left Bottom Steering Shell
61010191 Right Bottom Steering Shell
61010192 Right-hand Steering Shell
60220103 Screw
131102000006B003 Foot rest
A210204000483 Screw
131102000006B004 Connecting rod
131102000006B005 Pedal shaft
131102000006B006 Pedal shaft sleeve
131102000006B007 Spring
131102000006B008 Cylinder connecting rod
131102000006B009 Cylinder coupling sleeve
131102000006B010 Metal base
