BHL75A1C3H Backhoe Loader air conditioning – Parts Catalog (SSY006095637)
BHL75A1C3H Backhoe Loader air conditioning – Parts Catalog (SSY006095637)
Part Number: SSY006095637
Machine Model: BHL75A1C3H Backhoe Loader
Equipment No.: SSY100000222
Catalog Section: Group 7

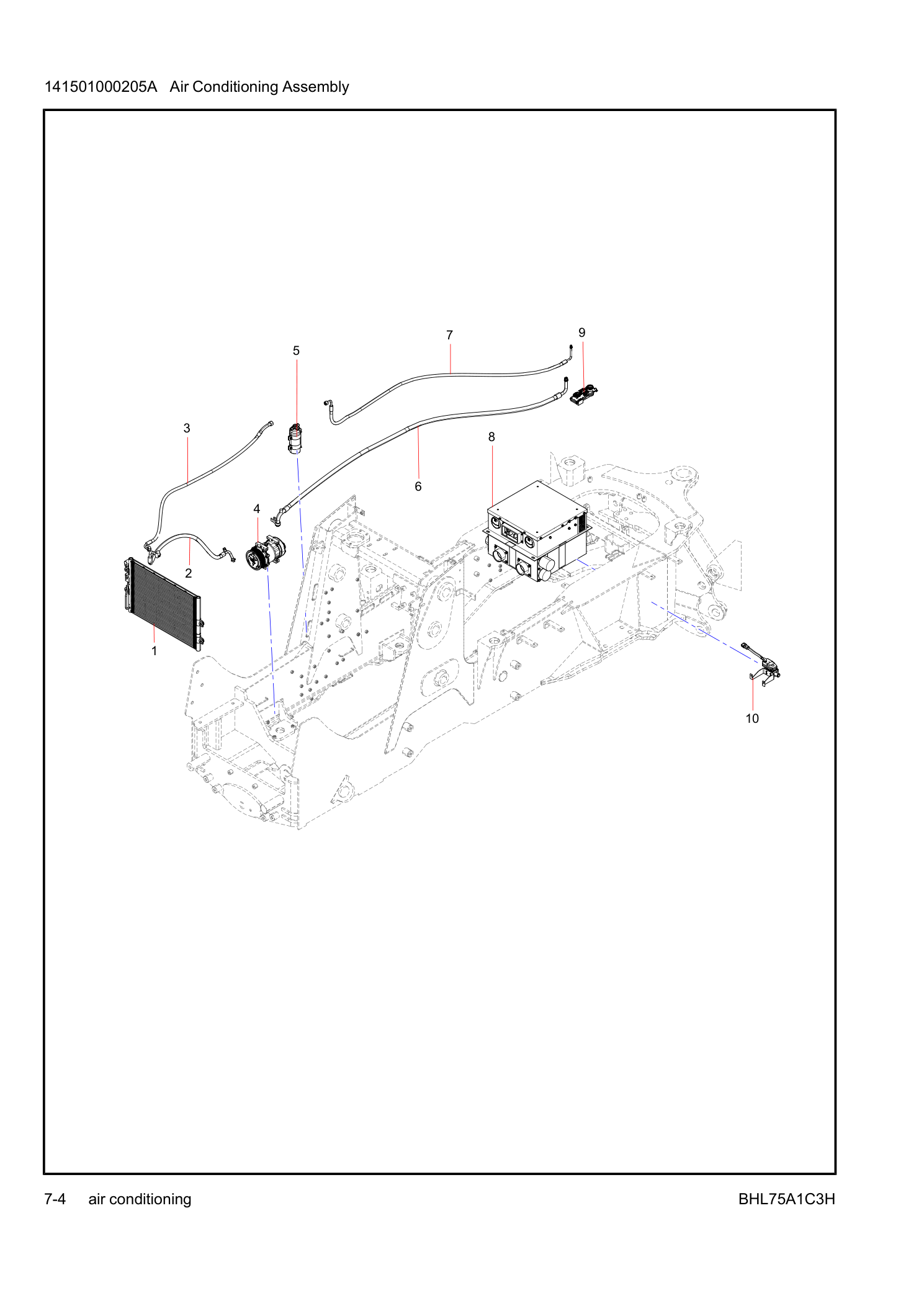

141501000205A Air Conditioning Assembly
24000632 Washer
24000633 Washer
24000637 Washer
60060564 Spring Shim
60060565 Washer
13326062 Pipe, cold pipe, air conditioner
13982387 Hot Pipe of Air Conditioner
60166393 Steel Band Elastic Clamp
A210111000082 Bolt
A210111000092 Bolt
A210111000293 Bolt
A210111000342 Bolt
A210111000343 Bolt
13928915 water pipe
141502000361A Filter
A210110000367 Bolt
141502000701A Condenser Assembly
141502000710A The Pipe of Compressor to Condenser
141502000696A The Pipe of Condenser to Liquid Storage
4 141502000702A
60293702 Desiccator
141502000700A HOSE ASS’Y-SUCTION
141502000709A The Pipe of Liquid Storage Reservoir to
8 141502000697A
61024309 Control Panel
141502000712A Electronic Water Valve
141501000205A014 Air Heater Assembly
141501000205A009 Fan Fixing Plate
141501000205A001 Evaporator Core Sponge Assembly
141501000205A010 Evaporation Fan Seal Sponge
141502000697A001 Air Conditioning Evaporator
141501000205A006 Filter Screen
141501000205A012 Expansion Valve Inlet and Outlet Pipeline
141501000205A013 Shell (Right Out Trend)
141501000205A011 Out of Trend
141501000205A002 Single Out Trend
141501000205A003 Shell (Left Out Trend)
141501000205A007 Core Pressure Plate Sealing Sponge
141501000205A015 Core Pressure Plate
141501000205A008 Housing ( Upper Cover)
141501000205A005 Drainage Pipe
141502000697A002 Evaporator Harness
141501000205A016 Defrost Sensor
141501000205A004 Shell (Lower)
141501000205A018 Outlet Pipe
141501000205A017 Inlet Pipe
141501000205A019 Warm Air Core Sponge Assembly
141501000205A023 Inlet and Outlet Pipe Assembly
141501000205A021 Evaporator Core Expansion Valve Assembly
141501000205A022 Evaporator Core Assembly
141301000045A021 O-ring
141502000886A006 Valve, Expansion
141502000773B010 O-ring
