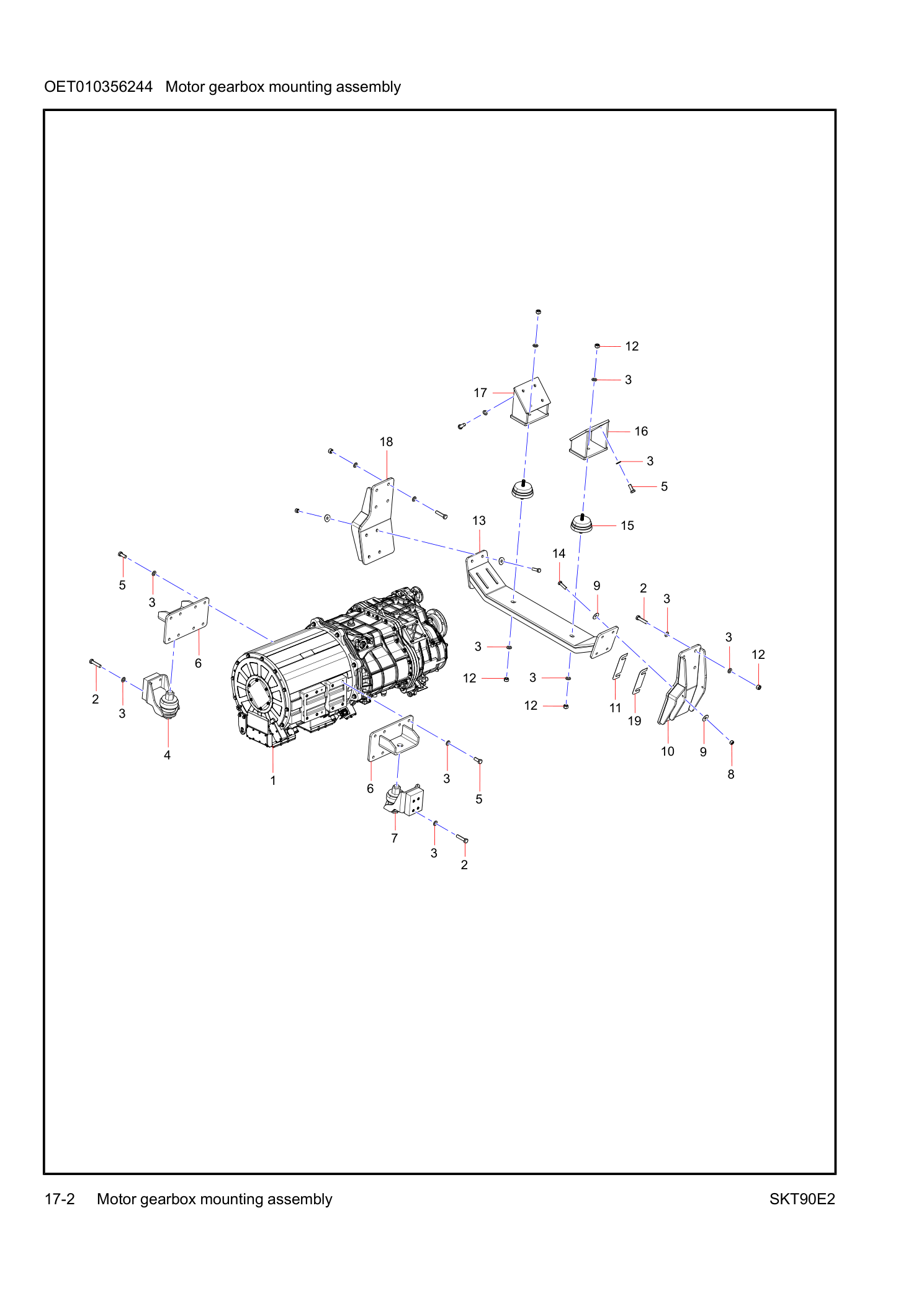

SANY Motor Gearbox Mounting Assembly – Parts Catalog (OET010356244)

Part Number: OET010356244
Machine Model: SKT90E2EH Pure Electric Mining Wide-Body Dump Truck
Equipment No.: ODT100000286
Catalog Section: Group 17

149900000730A Pure Electric Powertrain
A210111000291 Bolt
131602000168A Front Suspension Right Support Assembly
131602000170A Front Suspension Left Support Assembly
A210307000002 Nut
A210404000012 Washer
131602000169A Rear Suspension Positioning Shock Absorber
149900000730A001 Drive Motor
130299000033A014 External Hexagon Flange Face Bolt
130299000033A010 Gearbox
140699000165A Whole Vehicle Controller
140599000201A Angle Sensor
130299000033A011 Selector Shift Actuator
130299000033A008 Vehicle Speed Sensor
130201000039A128 Oil Pipe
130201000039A129 Front Cover Gasket
130299000014A097 front housing
130299000014A098 Partition Plate Sealing Gasket
130202000093A408 countershaft sub-assembly 1
130202000093A410 fourth-sixth gear shift fork assembly
130202000093A411 2nd/5th gear shift fork assembly
130202000093A396 1st/3rd gear shift fork assembly
130202000093A407 Partition Plate
130201000066B057 Lockpin
130299000014A096 rear housing
130201000040A162 countershaft rear bearing cap
130201000040A163 Output Shaft Combined Oil Seal
130201000040A164 Ring Gear of Speed Sensor
130201000040A165 Output Flange Of Auxiliary Transmission Box
130201000040A166 Flange O-Ring
130201000040A167 output flange locking nut
130201000040A168 Heat Exchanger
130201000040A169 Combined Box Bolt
130201000040A170 Shaft 1 Sub-Assembly
130201000040A171 subassembly of shaft 2
130201000040A172 idler end cap
130202000093A412 Idler End Cap Gasket
130202000093A413 Reverse Gear Needle Bearing K35×47×40
130202000093A414 Idler Shaft O-Ring
130202000093A415 output shaft bearing cover plate
130202000093A398 J4S240 power takeoff assembly
