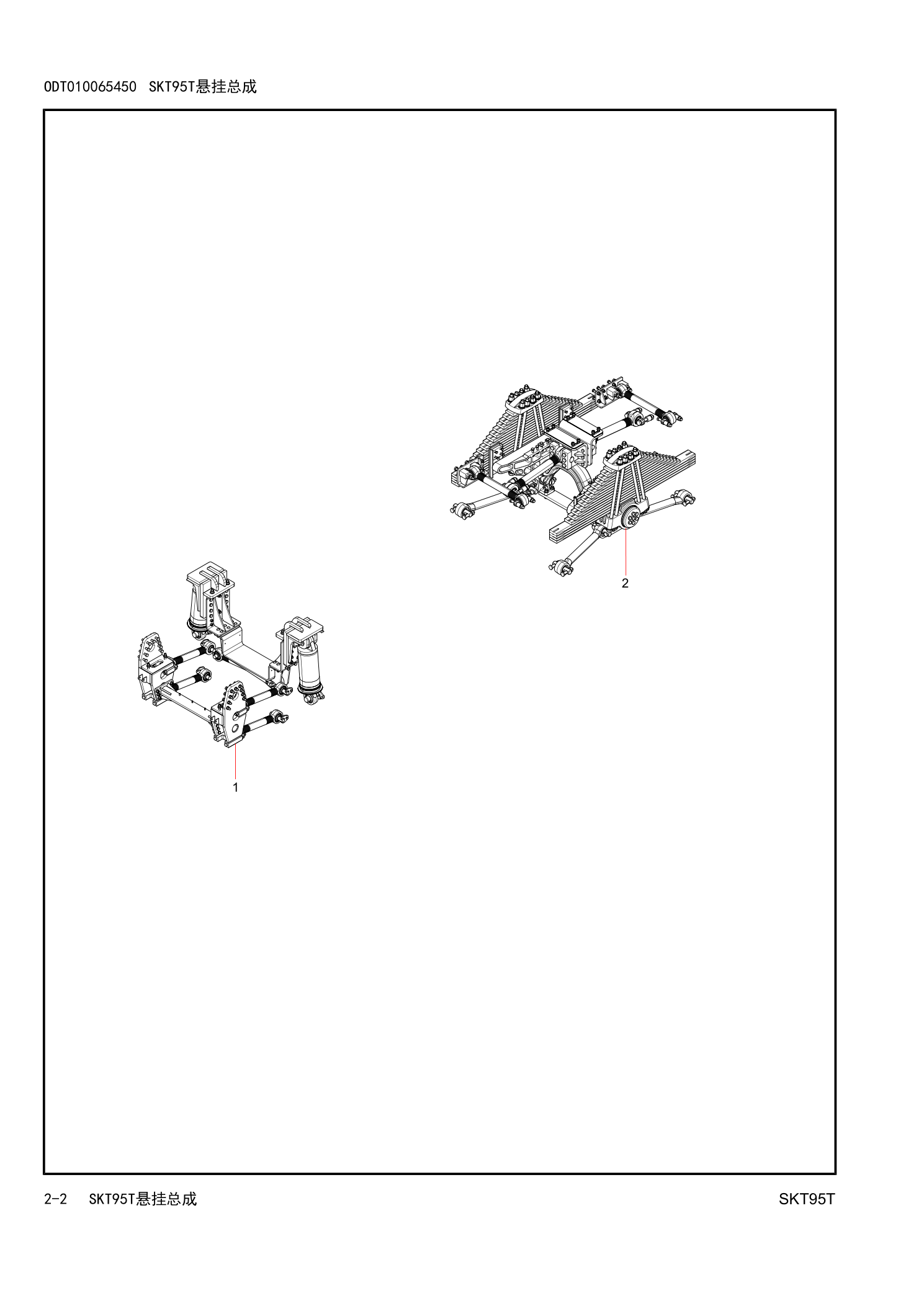

SANY SKT95T Suspension Assembly – Parts Catalog (ODT010065450)

Part Number: ODT010065450
Machine Model: SKT95H Mining Wide-Body Dump Truck
Equipment No.: ODT100000249
Catalog Section: Chapter 2

ODT007715530 60销轴
150901020602A Front悬Cylinder
A210110000083 Bolt
ODT009648650 定位销
ODT008603008 60销轴限位板
A210111000208 Bolt
120102090011A Nut
120101030097A Bolt
ODT007559569 40销轴-190
ODT007594428 40销轴连板
ODT010064159 LeftFront悬Thrust Rod焊接BracketAssembly
131503010026A Thrust RodAssembly
ODT010064162 RightFront悬Thrust Rod焊接BracketAssembly
A210307000028 Nut
120101030131A Bolt
A210110000360 Bolt
A210110000281 Bolt
A210113000261 Bolt
A210416000036 挡圈
152504990217A 充气Valve
A210204000206 螺钉
13746708 JT导向环
151403010340A O形圈
A210417000108 挡圈
151401020865A 2K型斯特封120×135.1×6.3
151499000099A GBRT2挡圈
60009400 挡圈
A210204000362 螺钉
60122620 钢球
131503010027A Thrust RodAssembly
131503010027A001 Front悬横向Thrust Rod杆体
131503010026A001 Front悬纵向Thrust Rod杆体
131503010026A003 关节球销修理包
120101030101A Bolt
131502000036A Rear悬LowerThrust Rod
ODT010052729 板簧长Bolt-820
14376868 定位销
120102270003A Nut
A210403000003 Washer
131502000071A Balance AxleAssembly
A210110000307 Bolt
A210307000035 Nut
A210113000016 Bolt
ODT008948313 Rear悬横推Bracket
120101030104A Bolt
120102990054A Nut
ODT005874638 φ25厚Washer
ODT008951726 Gasket
ODT008491025 Rear悬Upper推支座
131503010096A Thrust RodAssembly
A210307000004 Nut
ODT008571138 调整Gasket2
120101030106A Bolt
120102990068A Nut
ODT008958827 φ31厚Washer
ODT008788395 导向板Assembly
131502000036A001 Rear悬LowerThrust Rod杆体
131502000025A005 Balance Axle紧固件
131605000033A RearSteel PlateSpringAssembly
131605000033A001 板簧第一片
131503010096A001 关节球销Assembly修理包
131503010030A Thrust RodAssembly
131503010030A002 Rear悬横Thrust Rod杆体
