SANY Drive System Installation Assembly – Parts Catalog (ODT009853400)

Part Number: ODT009853400
Machine Model: SKT95H Mining Wide-Body Dump Truck
Equipment No.: ODT100000249
Catalog Section: Chapter 3

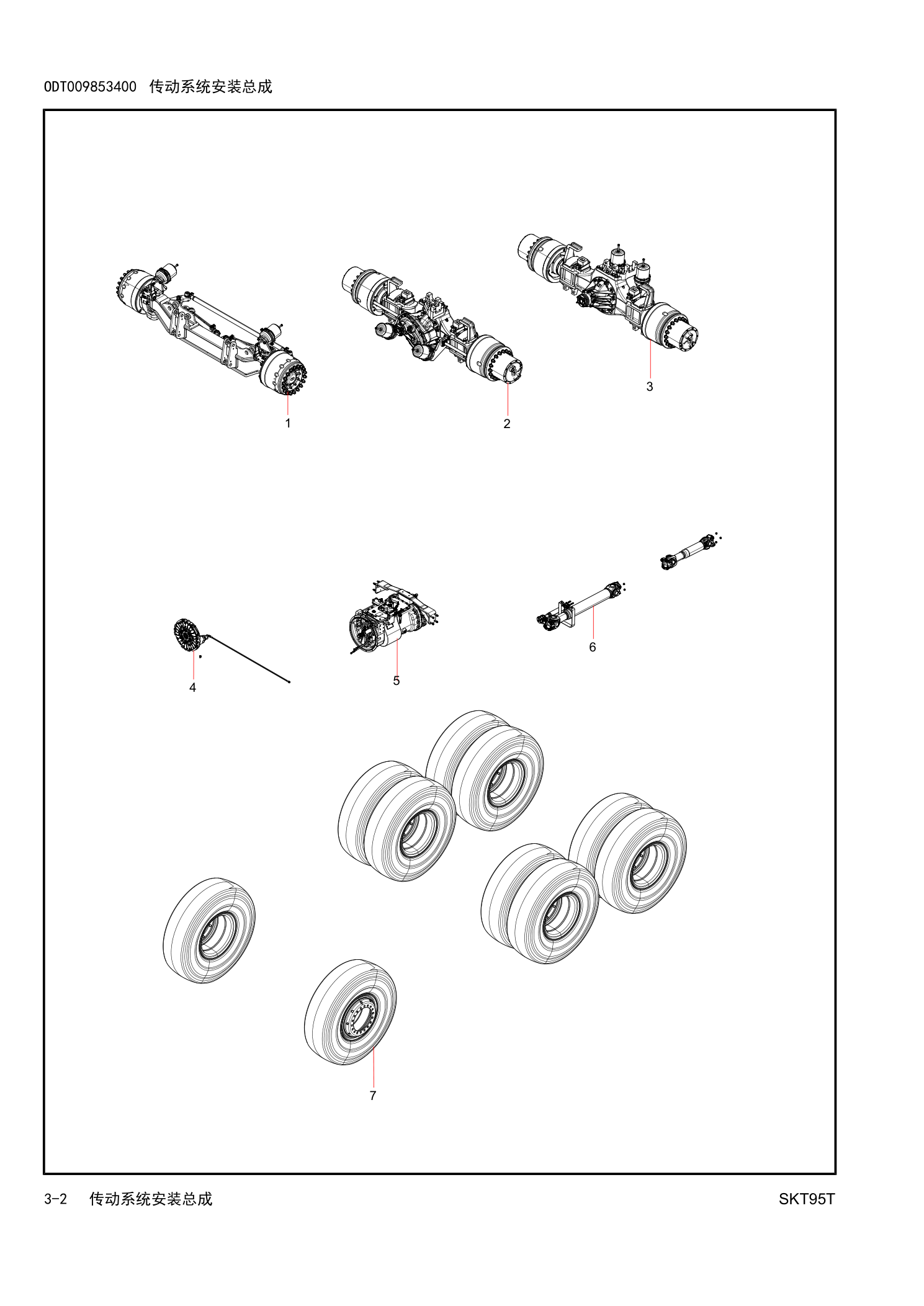

ODT009853400 DriveSystem安装Assembly
ODT007295970 Front Axle安装Assembly
ODT009853359 Rear Axle安装Assembly
ODT009168642 Transmission安装Assembly
ODT008950801 Tire安装Assembly
131402010344A Front Axle
A210804000002 油杯
A210401000001 SpringWasher
14354490 销轴Assembly
A210416000021 挡圈
131402010257A002 Brake鼓
131402010013A011 六角头Bolt
131401020106A102 十字槽沉头螺钉
131402010257A005 止推Washer
131402010257A007 止推Washer
131401020083A006 车轮组合Nut
131402010257A009 车轮Bolt
131402010257A010 HubOil Seal
60314560 密封塞
131402010257A013 BrakeCamshaft(Right)
131402010257A015 Gasket
131402010257A017 过渡Connector
60335078 保护罩
60107132 轴用弹性挡圈
131402010257A020 BrakeBottom Plate(Right)
131402010257A022 回位Spring
131402010257A024 衬套
131402010257A026 Washer
131402010257A027 防尘罩
131402010257A028 轴头
60335096 密封堵
131402010257A031 摩擦片(Lower)
131402010257A033 Brake蹄销
131402010257A035 铆钉
131402010257A037 调整Washer
131402010257A039 调整Washer
131402010257A041 手动间隙调整臂
61025752 滑脂嘴
131402010013A068 六角头Bolt
131402010257A047 调整Gasket
131402010257A049 调整Gasket
131402010257A051 调整Gasket
131402010257A053 调整Gasket
131402010257A055 调整Gasket
131402010257A056 防护片
131402010257A058 Washer
131402010257A060 Steering横拉杆臂(Left)
131402010257A045 六角头Bolt-细牙
131402010257A063 衬套
131402010013A041 调整螺钉
131402010257A064 Steering节(Left)
131402010257A066 Upper主销
130201000040A106 平Washer
131402010257A068 Piston式SpringBrake气室(36/30)
131402010257A070 Cover Plate
131402010257A071 气室Bracket(Left)
131401020742A011 六角头细牙Bolt
250901040643A Steering油Cylinder
12355725 螺塞
A210612000000 关节Bearing
A210855000011 孔型喉箍
ODT009852881 Middle Axle安装Assembly
131401021617A Middle Axle
A210204000158 螺钉
A210111000023 Bolt
A210405000003 Washer
131401021193A002 贯通驱动桥桥壳Assembly
131401021616A Rear Axle
131401021193A022 六角Flange面承面带齿Bolt
ODT004610309 Clutch安装Assembly
130601000007A Clutch从动盘
130601000008A 分离Bearing
A210401000017 SpringWasher
ODT007438199 HoseAssembly
A210111000011 Bolt
14431759 ClutchPower Assist器Assembly
130606000011A 离合Power Assist器
ODT009078738 Transmission悬置Assembly
130201000260A Transmission
131699000133A Transmission辅助支撑加强板
A210319000019 Nut
21005240 Bolt
ODT006717900 调整垫板
ODT006717904 调整垫板
ODT008374357 选换挡机构安装Assembly
21005170 Bolt
ODT009368103 选挡Rocker Arm
A210307000017 Nut
A210405000011 Washer
131000000063A 软轴
A210401000016 SpringWasher
139999001902A 换档杆
A210111000025 Bolt
130201000061A113 六角头Bolt和SpringWasher组合件
ODT009168651 Drive Shaft安装Assembly
A210314000007 Nut
A210111000207 Bolt
A210307000025 Nut
A210319000001 Nut
131300000053C Drive ShaftAssembly
ODT007315116 Wheel RimAssembly
131702000165D Tire
131702000165D001 Inner胎
