SANY Cab Assembly – Parts Catalog (ODT009127292)

Part Number: ODT009127292
Machine Model: SKT105AL2 Mining Wide-Body Dump Truck
Equipment No.: ODT100000197
Catalog Section: Group 2

ODT006171502 Platform Installation Assembly
ODT006172851 Cab Mounting
ODT006171553 Driver compartment lifter installation
141603000177A Warning Light
ODT004573620 Driver Compartment Lifter Control Strut
ODT009134286 Cab Heating System Mounting ASSY
A210405000002 Washer
A210111000442 Bolt
130901001246B Cab Assembly
ODT006171569 Bumper Mounting Support
ODT005518563 Dashboard mounting assembly
ODT006184039 Air-conditioner installation
ODT007842476 Nameplate layout

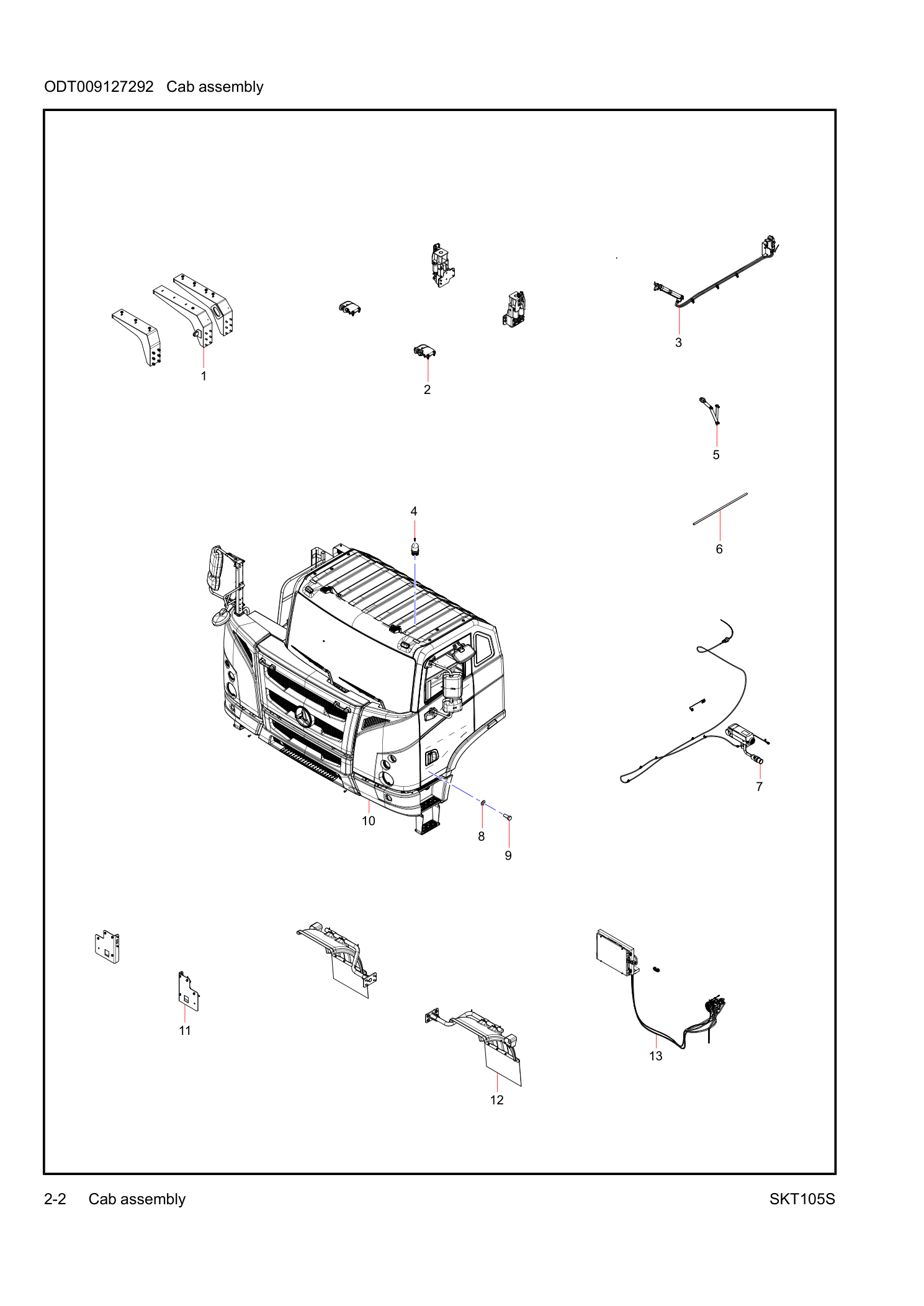

ODT009127292 Cab assembly
ODT008967923 Platform frame
A210307000001 Nut
ODT006172778 Rear suspension right
ODT006172593 Left Rear Suspension
A210804000001 Oil Cup
A210501000010 Pin
ODT005490076 Driver’s Cab Right Front Suspension
ODT010121427 Adjusting Gasket
ODT005490049 Driver’s Cab Left Front Suspension
131601000008A Shock Absorber
A210401000003 Spring Washer
ODT006172743 Connecting Seat
ODT006172588 Guide Mount
ODT006172548 Guide Plate Assembly
ODT005931363 Connecting Plate
ODT006255800 Damping Pad
130999000112A Cab Lifting
A229900006641 Tube Clamp
130999000112A004 Oil Pump Oil Cylinder Connection Pipe B
130999000112A005 Oil Pump Oil Cylinder Connection Pipe A
130988000565A Manual Hydraulic Pump Assembly
130999000112A006 Lifting Cylinder Assembly (With Cable)
A210204000131 Screw
A229900006639 Clamp
130907001218A Cab Heating System Assembly
ODT009355448 Protectiver Cover
130901001247B Driver’s Cab Sub-Assembly
JSS008162141 Left Vehicle Door With Hinge Assembly Assy
JSS009233407 Extreme Cold Right Platform Assembly
JSS009233116 Extreme Cold Assembly Of Cab Body
JSS006672626 Accessories Group, Driver’s Cab
JSS009219590 Right Mirror Asm
JSS007315745 Exterior Trim Assembly Of Right Platform
JSS009667997 Right Platform Assembly Welding
JSS005879988 Attachment Assembly Of Right Platform
JSS005824459 Front Lower Mirror Assembly
JSS009199084 Platform Electrical Assembly
130907001217A Rearview Mirror
130907001219A001 Main Exterior View Mirror
130907001219A002 Wide Angle View Mirror
JSS005786257 mirror support
JSS009197532 Harness
JSS005985002 Air Horn Assembly
JSS010333303 right lamp asm
151208000070A Quick Coupler
JSS010333577 Front Lamp
JSS005873962 Right Steering Assembly
JSS005873961 Platform Outline Light Assembly
141601010095A Headlight
141601990088A Front Steering Position Lamp
JSS005858765 Low-beam Headlight Trimming Strip
JSS005858779 High-beam Headlight Trimming Strip
JSS005858784 Turn Lamp Trimming Strip
60148618 Side Light
A241100000435 Side Turn Bulb
141601990096A Front Outline Marker Lamp
JSS005656402 Right Second Step Assembly
JSS005697600 Rear Sealing Plate Assembly Of Right Deflector
JSS005865413 Right Fairing Assembly
JSS005697531 Right Two Step Pedal
JSS005656403 Right Secondary Step Body
JSS005858798 Right Rearview Mirror Vertical Column Trimming
JSS005695792 Rear Sealing Plate Body Of Right Deflector
JSS005865412 Welding Assembly Of Upper Mounting Bracket Of
JSS005792907 Right Rearview Mirror Mounting Rod Trim Strip
JSS005656413 Right Deflector Sub-assembly
JSS005952081 Middle Side Plate Assembly Of Right Platform
JSS005872825 Right pedal upper mounting assembly
JSS005872566 Right Platform Condenser Tank Rear Cover Plate
JSS005952083 Right-hand Platform Center Installation Plate
JSS005872830 Right Secondary Pedal Mounting Assembly
JSS005872824 Right Upper Pedal Mounting Frame Assembly
JSS005872567 Right Platform Condenser Rear Cover Plate
JSS005786306 Mirror Assembly, Underneath Vision, Driver’s Cab
JSS005786277 Mirror Support
JSS006388866 Body in white
JSS009139170 Inner-decoration assembly
JSS009200028 Electrical Equipment Assembly
JSS009232839 Extreme Cold Exterior Trimming Assembly Of Cab
JSS009233088 Extreme Cold Accessory Assembly Of Cab Body
JSS006388552 Body Welding Assembly
JSS005877873 Left Door With Hinge Assembly
JSS005814572 Left Door Sheet Metal Assembly
130907000477A Hinge
JSS009139146 Plate Installation
JSS005755983 Leftdoor sealing assembly
JSS006664293 Central controlling plate assembly
JSS005655727 Carpet assembly
JSS005655557 Dashboard Air Duct Assembly
JSS005655434 Dashboard Assembly
JSS008627800 Left Back Side Brattice Body
JSS006158237 Blue Cab Plug Cover
JSS005859251 Cap Assem.
JSS005655733 Ceiling Trim Assy.
JSS005655730 Right A Pole Plaque Assembly
JSS005655725 Rear internal decoration plate assembly
JSS005655724 Left door railing trim Assy
JSS005655718 Right back decorating part assembly
JSS005655717 Left A Pole Plaque Assembly
JSS005655509 Door guard plate assy.
JSS005655497 Right front side brattice assembly
JSS005655723 Ceiling Trim Body
JSS005655715 Horn Cover
JSS005655728 Rear Top Internal Decoration Plate Body
JSS005655716 Rear Lower Internal Decoration Plate Body
JSS010273546 Cab φ25 Board
JSS005655732 Left Door Railing Trim Body
JSS005655729 Right Back Decorating Part Body
JSS006317267 Left Door Inner Handle Inner Panel
JSS006316042 Left Door Inner Handle Outer Panel
JSS005767705 Outer Handle Cover Plate
JSS005655513 Door Guard Plate assy.
JSS006317081 Right Door Inner Handle Inner Panel
JSS006316377 Right Door Inner Handle Outer Panel
JSS005655498 Overhaul Cap Assembly
JSS005655493 Right Front Side Wall Sub-Assembly
JSS005655497 Right front side brattice assembly (1/2)
JSS005655494 Right Side Window Defrosting Wind Tube
JSS005614893 Right Face Blowing Air Duct
A210264000005 Self-tapping Screw
JSS005655497 Right front side brattice assembly (2/2)
JSS005959738 Auto-rod Cover Plate Decorative Strip
JSS005694226 Central Controlling Plate subAssembly
JSS005694225 Automatic Shift Lever Cover Plate
JSS005694221 Central Controlling Cover Plate
130907001471A Ash Tray
JSS005873271 End cap assembly
JSS005827839 Seat Air Pipe Protective Sleeve
JSS005797241 Waterproof Seal, Inner
JSS005792910 Manual Brake Decorative Strip
JSS005792909 Right-top waterproOf curtain
JSS005792908 Lifting Valve Decorative Strip
JSS005774034 Right-hand Decorative Strip
JSS005774033 Decorative Strip, Rear Window
JSS005756030 Left Door Waterproof Curtain
JSS005755982 Doorframe sealing Strip
JSS005755980 Mud tank & waterproOf seal
JSS005755979 Headway Sealing Strip
JSS006369461 Blanking Cover
60114173 Blanking Cap
60042057 Plug Component
JSS005655734 Right Carpet
JSS005655726 Left Carpet
JSS005655565 Left Face-Level Main Air Pipe
JSS005655563 Middle Face Air Main Duct
JSS005655562 Foot Air Main Duct
JSS005655561 Air Outlet Plug Cap Of Right Blowing Foot
JSS005655560 Middle Left Face-Level Air Duct
JSS005655559 Main Air Duct Of Right Blowing Face
JSS005655555 Driver Left Feet-Level Air Duct Sub-Assembly
JSS005655554 Driver Right Feet-Level Air Duct Sub-Assembly
JSS005745187 Right Dash Board Cover Plate Assembly
JSS005745163 Dash Board Assembly
JSS005655449 Dash Board Body Assembly
JSS005655447 Front Cover For Sreering String Assembly
JSS005655446 Pipe Column Upper Cover Assembly
JSS005655442 accessories assembly of dash board
JSS005655440 Dash Board Middle Lower Body Assembly
JSS005655437 left lower backplate left body assembly
JSS005655436 Right Lower Backplate Body Assembly
JSS005655432 left End Plate Assembly
JSS005614814 Leather Holder
JSS010310651 COVER
JSS005570973 Centra Container Board Assembly
JSS005570927 Right Decoration Assembly
JSS005570869 Right Air Loutlet Assembly
JSS005570773 Instrument Panel Upper Right Access Cover
JSS007206683 Seal sponge
JSS005569841 Strip 4
JSS005569823 Strip 3
JSS005745186 Right dash board cover plate body
JSS005570962 Middle Left Air Outlet Assembly
JSS005570540 Palstic Clip
JSS005655441 Top Cover For Sreering String
JSS005570832 Right Air Outlet Board
JSS005570858 Middle Area Right Air Outlet
JSS005570860 Right Air Outlet
JSS009199998 switch assembly
JSS009199939 harness assembly
JSS010060232 wiper and water pipeassembly
JSS005873305 Air Conditioning Assembly
JSS005873281 Media assembly assy
JSS005873272 electrical accessories
JSS010337796 Light Asm
JSS005873195 Door lamp switch
60105072 Switch, Glass Lift
JSS009202218 Rocker Switch Assembly
JSS005893358 Ignition Lock Assembly
JSS005873199 Combination Switch Assembly
HQ3792090SQ01 Double Flashing Switch
142507000031A Ignition Switch
142599000134A Combination Switch
142599000134A003 Right Multipurpose Switch
142599000134A004 Left Multipurpose Switch
60118244 Button Switch
130907000496A Front Wiper Assembly
A241400000007 Corrugated Tube
JSS005849724 Water Pipe Of Front Window
130907000496A001 Front Motor And Connecting Rod Mechanism
130907000496A003 Left wiper arm
130907000496A004 Rigth wiper arm
130907000496A005 Front Wiper Brush
130907000496A002 Front Motor Assembly
130907000496A001 Front Motor And Connecting Rod Mechanism Assembly
HQ8101068SQ01 Face-level Side Defrost Motor With Swing Arm
141502000504A Air Conditioning Control Panel
141502000502A Evaporator
A229900002961 Throat Clamp
141502000502A001 Evaporator Fresh Air Filter
141502000502A020 Warm Air Heater Body Assembly
141502000502A011 Warm Air Heater Shell Assembly
141502000502A013 Mode Motor
141502000502A007 Warm Air Core Assembly
141502000502A010 Blower
141502000502A009 Speed Control Module
141502000502A012 Wiring Harness
141502000502A015 Evaporator Shell Assembly I
141502000502A014 Fresh Air Filter
141502000502A016 Evaporator Shell Assembly Ii
141502000502A021 Core, Evaporator
141502000502A017 Valve, Expansion
141502000502A019 Evaporation Temperature Sensor
141502000502A022 Fresh Air Servo Motor
141502000693A Water Valve Motor
141502000235A Core, Warm Air
JSS005873278 Speaker Assembly
60126164 Antenna
60006476 Speaker
HQ3725000SQ01 cigarette lighter
JSS005873203 Electric horn
HQ3725005SQ01 24V power outlet
146399000003A Electric Horn
JSS005873959 Left Side Turn Signal Assembly
JSS005824448 Inter Lamp
JSS005824444 front end-outline marker lamp
141604000286A Work Lamp
141601990080A Marker Light
JSS009232797 Extreme Cold Glass Asm
JSS006908366 Front Cover Assembly
JSS005862809 Engine Room Soundproof Pad Assembly
JSS005860202 Left Guide Plate Cover Assembly
JSS005697597 Left Guide Plate Cover Rear Sealing Plate
JSS005656426 Front Cover Upper Cover Plate Assembly
JSS005656404 Left Side Two-step Assembly
JSS009179405 Rear Windows Glass
130907001599A Right Sliding Window
JSS005774947 Glass, Windshield
JSS005774076 Vehicle Door Glass
JSS006774906 Front Cover Sub-assembly
JSS005890261 Front Cover Window Cleaning Armrest Assembly
JSS005885101 Front Cover Gas Strut Assembly
JSS005881133 Front Cover Hinge Assembly
JSS005856733 Left Window Cleanning Armrest Reinforcing
JSS005856730 Right Window Cleanning Armrest Reinforcing
JSS005856729 Front Cover Air Strut Bracket Welding Assembly
JSS005546531 Buffer Block
JSS005746854 Front Cover Window Cleaning Armrest
JSS005695433 Engine Room AdiAbatic Mattress Body
JSS005881807 Guide Cover Hinge Assembly
JSS005860204 Left Deflectot Hinge Mounting Bracket Assembly
JSS005656418 Left Deflector Sub-assembly
130907000478A Guide Cover Hinge
JSS005695784 Rear Sealing Plate Body Of Left Deflector
JSS005697597 Left Guide Plate Cover Rear Sealing Plate Assembly
JSS005656425 Upper Cover Body Of Front Cover
JSS005881711 Step Handle Assembly
JSS005697535 Two Step Pedal
JSS005656405 Left Secondary Step Body
60354488 Door Handle
JSS009219559 Left Mirror Asm
JSS006761910 Front Cover Cylinder Lock Assembly
JSS005885467 Door Lower Section Glass Guide Rail Assembly
JSS005875344 Door Limiter Assembly
JSS005875055 Locking Device
JSS005873964 Blind Spot Mirror Assembly
JSS005873529 Safety hammer assem.
JSS005856789 Glass Lifting System Assembly
JSS005856717 High Beam Light Mounting Plate Assembly
JSS005874027 vehicle handrail assembly
JSS005873957 Sunshade Assembly
JSS005873492 left step upper mounting assembly
JSS005856296 Left Front Mask Upper Mounting Bracket
JSS006656445 fire extinguisher mounting assembly
JSS005864751 Instrument panel beam device assembly
JSS005858103 Steering column adapter mounting plate assembly
JSS006673024 Brake system Assembly
JSS005858001 Steering Control System Assembly
JSS009233075 Extreme Cold Auxiliary Seat Installation
JSS008531919 Seat assembly
JSS008476790 Double Special Shift Handle Mounting Bracket
JSS006389247 Guard assembly of shift
JSS009945538 Bracket Assem.
JSS005858179 Drive seat frame assembly
JSS005771300 SleePing Berth Backup Plate
JSS006649285 Auxiliary Seat Box body assembly
A290000000354 Gas Spring
130907000548A Sleeper Box Hinge Assembly
JSS005785681 Lower Bracket Cover
130903000089A Driver Seat
JSS006634189 air pipe
130903000103A002 Safety Harness, Safety Belt
JSS010619713 Welding Assembly Of Front Mask Cylindrical Lock
JSS010619471 Assembly Of Front Cover Cylinder Lock 1
130907000772A Front Cover Lock
B229900001277 Bracket, Fire Extinguisher
A229900004007 ABC Dry-powder fire extinguisher, MFZL-2
JSS006336466 Shift Assembly Side Guard I
JSS006336465 Shift Assembly Side Guard II
JSS006336464 Shift Assembly Lower Guard
JSS005815028 Left Door Front Lower Segment Glass Guide Rail
JSS005815011 Left Front Door Rear Lower End Guide Rail
130907000479A Door Limiter
130907000547A Limit Block Assembly
130907000700A Door Inner Handle
130907000568A Door Outer Handle
130907000699A Door Lock Body
JSS008511647 Left-rear Superstructure Handrail
JSS008511206 Handrail, Grab, Front Left
130907000526A Front Window Shade
JSS007669111 abat vent u-shaped bar
60001291 Luxury Safety Hammer
JSS005873487 left Upperstep Mountingframe Assembly
JSS005873486 Left Two-stage Step Mounting Support Assembly
JSS005751498 CCB
JSS006768529 GBOX Antenna Mounting Bracket
JSS005858180 Drive Seat Welding Assembly
JSS005858102 Steering Column Adapter Mounting Plate
130907000510A Hand Brake Valve Assembly
130907000666A Brake Pedal Assembly
130907001156A001 Proximity Switch
130907001827A Steering Column Assembly
130907000512A Steering Column Adapter
130907001284A Steering Wheel
130907001284A001 Steering Wheel Cover
130907000467A Left Door Glass Lift Assembly
JSS005856719 Welding Of High Beam Mounting Plate
JSS005856294 Left Front Mask Upper Mounting Bracket Welding
JSS006672007 Left pedal mounting assembly
JSS006392402 Front Bumper Assembly
JSS005879027 Mudguard Skin Assembly
JSS005877947 Right Step Mounting Assembly
JSS006671608 Automatic Gear Driver’s Cab Washer Assembly
JSS005962407 Kettle Bracket Assembly
JSS005866904 Left Side Step Framework Assembly
JSS005755378 Left Activity Step
JSS005656410 Left Step Assembly
JSS005962408 Water Kettle Mounting Support Welding
JSS005962405 Water Kettle Cover Plate
JSS005866902 Left Pedal Lower Mounting Assembly
JSS006339340 Step Lower Connecting Assembly
JSS005697551 Left And Right Side Step Universal Pedal
JSS005697538 Left Step Pedal
JSS005656409 Left Step Body
JSS006392395 Front Guard Frame Assembly
JSS005872852 Front Bumper Right Section Assembly
JSS005872848 Front Bumper Left Section Assembly
JSS005858221 Front Middle Bumper Assembly
JSS005656422 Front Middle Bumper Sub-assembly
JSS005656421 Front Middle Bumper Pedal
60253346 Lamp Bulb
JSS005871898 Left Mud Flap Assembly
JSS005867701 Right Mudguard Assembly
JSS005871899 Left Mud Flap Welding
JSS005867703 Welding Of Mud Shield Connecting Bracket
JSS005867702 Welding of right fender
JSS005863015 Right Step Frame Assembly
JSS005755394 Panel
JSS005656406 Right Step Assembly
JSS005863017 Right pedal Lower Mounting Assembly
JSS005697539 Right Step Pedal
JSS005656407 Right Step Body
ODT010071448 Support plate assem
ODT006171564 Left Bumper Mounting Support
ODT005518123 Left mud guard plate assem.
ODT005518432 Right mud guard plate assem.
139999001073A Fender
139999001170A Left Elbow Assembly
139999001074A Batten
ODT005514317 Soft fender
139999001071A Lamp Cover
139999001072A Left and Right Lamp Cover Base Assembly
ODT009445938 Vertical plate
139999001423A Right Side Fender
139999001171A Right Elbow Assembly
ODT009262942 Support
141501000550A001 Condenser Assembly
60293702 Receiver Drier
141502000090A The Support of Condenser
141501000202A001 Compressor
141501000251A004 Compressor Suction Pipe
141501000550A002 Compressor Discharge Pipe
141502000087A Cold-storage Pipe Assembly
141501000216A002 Storage-steam Pipe Assembly
A210855000066 Hole-shaped Throat Clamp
141502000083A Bushing
141502000080A High And Low Voltage Pipeline Fixing Bracket
141502001094A001 Condenser Core Assembly
141501000192A003 Condenser Fan
141501000202A005 Valve

Email: sinoreach@yeah.net
