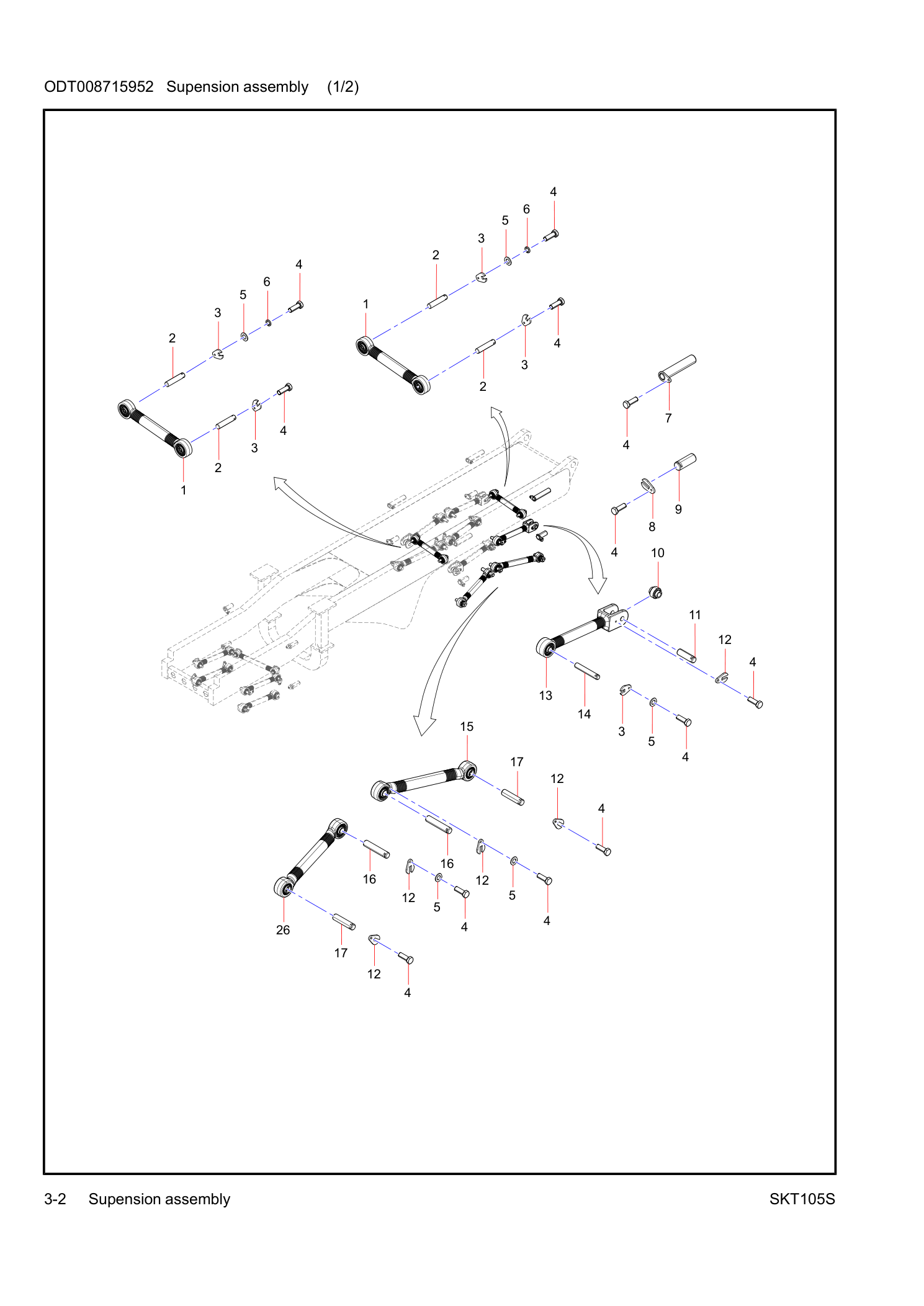

SANY Suspension Assembly – Parts Catalog (ODT008715952)

Part Number: ODT008715952
Machine Model: SKT105AL2 Mining Wide-Body Dump Truck
Equipment No.: ODT100000197
Catalog Section: Group 3

131502000044A Rear Suspension Lateral Thrust Rod
ODT007559569 Pin
ODT006883404 40 Pin Shaft Limit Plate
A210114000051 Bolt
A210405000002 Washer
A210401000003 Spring Washer
ODT005507511 70 Pin Shaft Assembly-347
ODT007559006 Plate
ODT007558979 70 Pin Shaft-180
ODT007559786 40 Pin Shaft-170
131502000043A Rear Suspension Upper Thrust Rod
ODT006883755 40 Pin Shaft-250
131502000045A Rear Suspension Lower Thrust Rod
ODT007560466 50 Pin Shaft-250
ODT007560373 50 Pin Shaft-210
131503010094A Rod Assembly
131502000048A Front Suspension Longitudinal Lower Thrust Rod
131502000046A Front Suspension Lateral Thrust Rod
131502000047A Front Suspension Longitudinal Upper Thrust Rod
131502000044A001 Rear Suspension Lateral Thrust Rod Body
131502000044A002 Joint Ball Pin Repair Kit
131502000043A001 Rear Suspension Upper Thrust Rod Body
131502000045A001 Rear Suspension Lower Thrust Rod Body
131502000046A001 Front Suspension Lateral Thrust Rod Body
