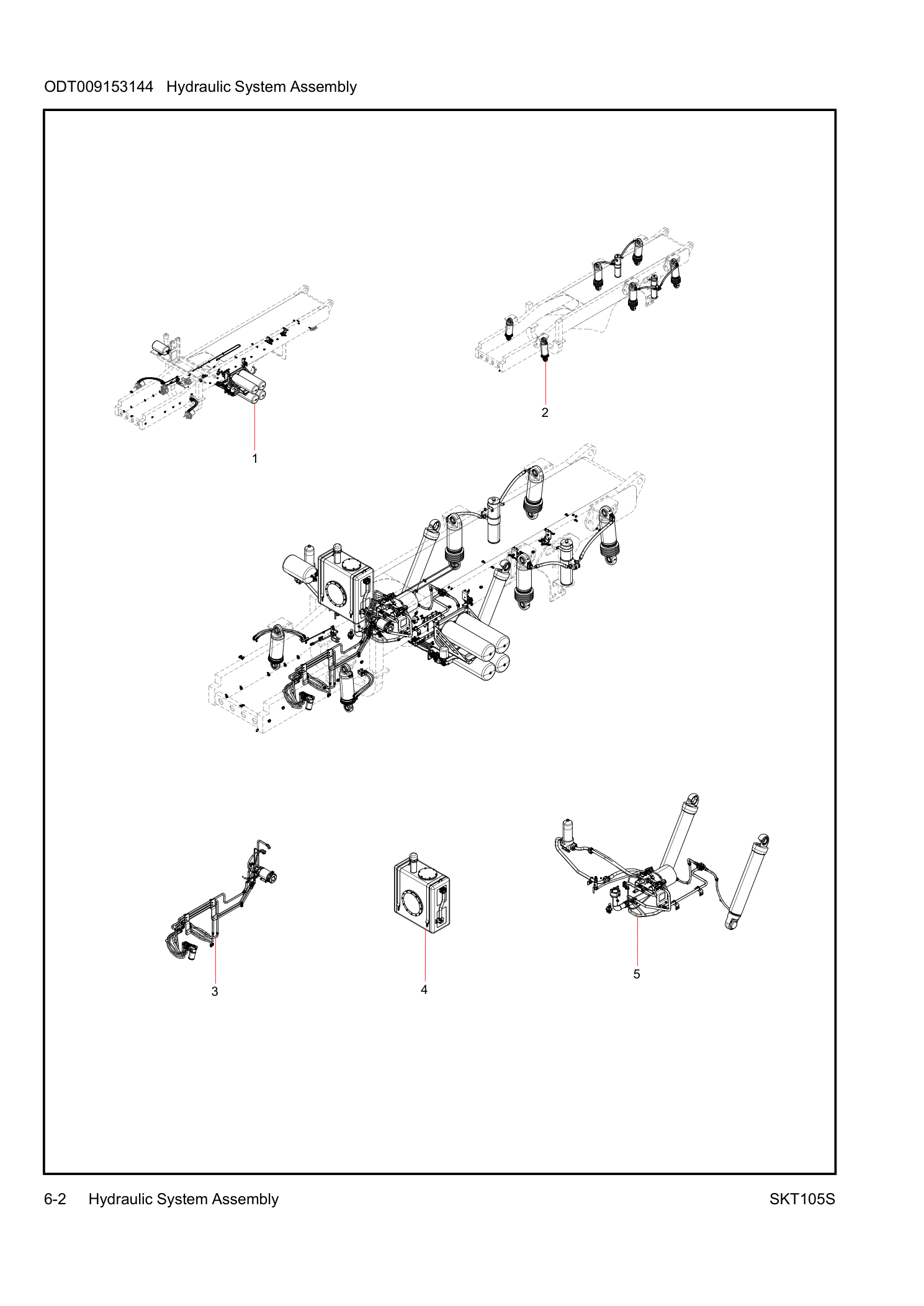

SANY Hydraulic System Assembly – Parts Catalog (ODT009153144)

Part Number: ODT009153144
Machine Model: SKT105AL2 Mining Wide-Body Dump Truck
Equipment No.: ODT100000197
Catalog Section: Group 6

ODT009152964 Brake system assembly
ODT009147714 suspension system
ODT006912609 Steering system
ODT005541397 Hydraulic oil tank installation
ODT009149679 hoist system
60016763 Clamp
A210204000131 Screw
A229900006641 Tube Clamp
152505000176A Brake Hose
B210780000024 Elbow Combination Joint
B210780000037 Fitting Adapter
B210780000115 Fitting, Adapter
152505000172A High Temperature&Hose Assembly
A210111000030 Bolt
A210401000001 Spring Washer
A210405000011 Washer
A210307000017 Nut
ODT006818291 Board
ODT008228765 Pipe
ODT006642042 Support
ODT008228769 Brake Steel Pipe Assembly
ODT005529925 Pipe Clamp Seat
ODT009287942 Steel Tube Clip
A316280273213 Gasket
ODT009151979 Auxiliary air holder
ODT005527075 Fixed Seat
B210780000015 Tee Group Connector
60114860 Gas Valve
152599000290A Two-Position Three-Way Solenoid Air Valve
ODT007232814 Fixed Plate
ODT006818277 Joint block
B210780000245 Fitting, Bulkhead Connector
ODT006531757 Steel Pipe Assembly
B210780000827 Butt Joint Variable Diameter Connector
ODT006825707 Bracket
ODT005527893 Desiccator pipe connector nstallation
B210780001227 Straight Connector
B210780000737 Right Angle Connector
B210780000746 End Straight Through Connector
ODT005526170 Gas Tank Support
ODT005531048 Gas Tank And Joint
ODT006818433 Fixed Board Of Relay Valve
ODT005529716 Relay Valve Pipe Connector Installation
60330808 Relay Valve
152599000257A Air Reservoir
B210780001028 Swivel Straight Connector
60222880 Drain Valve
151208000103A Testing Connector
152599000195A002 Bracket Pin
152599000112A Air Treatment Unit
60284040 Muffler
152599000112A001 Air Dryer
60060965 Drying Cylinder
150901042026A Cryogenic Front Suspension Cylinder
150901042027A Cryogenic Rear Suspension Cylinder
150901010505A Cryogenic Accumulator Cylinder
B210780000004 Flange Joint
151008210291A Hose Assembly
B230101002071 O-ring
152301000130A Accumulator Valve Block
B229900003283 Fitting, Connector
SYG006158303 Piston Rod
SYG004579825 Piston
SYG006158305 Cylinder Body Assembly
SYG004579822 guide sleeve
SYG004579821 Dust Cover
60183938 DKBZ3 Dust Ring
A210804000002 Oil Cup
60097633 HBY Sealing Ring
B221500000101 Joint Bearing
A210416000036 Retainer Ring
151304020014A Hole-shaped Throat Clamp
152504990191A Charging Valve
60122620 Steel Ball
SYG004579919 Buffer Washer
B230101001538 B3 Sealing Ring
A221500000416 Oil-less Bearing
A210417000108 Retaining Ring
151304030099A Throat Clamp
SYG009136140 Sealer Package
151207000039A Pressure Tap
SYG006159071 Cylinder Bottom
SYG006159076 Cylinder Asm
A221500000195 Spherical Plain Bearing
151401040560A Jt Guide Ring
60221386 Self-lubricating Bearing
60122116 Iuh Sealing Ring
60122114 Dkb Dust Ring
SYG009155402 Suspension oil cylinder
SYG006160014 Protective Cover
SYG006160013 Guide Sleeve
SYG006160017 Threaded cover
B230101001957 B7 Sealing Ring
151401030651A AQ sealing ring
151401030650A BPV sealing ring
SYG009158792 Cylinder assembly
SYG006160018 protect board
SYG006160015 Protective cushion
SYG009377865 Low-temperature Energy Storage Oil Cylinder
ODT005526423 Steering Gear Assembly
B210770000003 Pressure Gauge Connector
152402000014A Hydraulic Station
A832611100000 Rubber Hose
B230103002923 Hose
ODT006912392 Block
ODT005526421 Fixing Seat
60161381 Hydraulic Steering Gear
151902000053A001 Kit, Seal
152402000014A001 Gear Pump
ODT007400282 Hydraulic Oil Tank Assembly
ODT005534650 Steel Belt
ODT005535382 Fixing Plate
ODT007400203 Box Body Welding Assembly
60240021 Liquid Level Gauge
60101256 Return Oil Filter
ODT007399462 Cover Plate
ODT005051936 End Cover
ODT007399515 Rubber Plate
60167856 Spring
60167851 Oil Return Filter Element
60278222 High Pressure Filter
B210780000005 Flange, Split
ODT006842996 Backup Plate
ODT005565114 Angle Plate
152503010331B Directional Valve
150101040032A Open Plunger Pump
60188476 Manual Directional Valve
ODT006641864 Oil Suction Tube Welding
ODT006641914 Steel Tube Assembly
151304070043A T-style Clamp
60024155 Flange, Split&Split Flange&Butt Flange
ODT005531577 Bent Plate
ODT009999853 Steel Tube
ODT009670938 Valve Block
60008273 Clamp&Clip&Pipe Clip&(Pipe) Clamp&Hose
150901042050A Cryogenic Lift Cylinder
ODT005531559 Connecting Block
151501000100A002 Plug
60277890 Hydraulic Filter Element
151501000100A003 ED Seal Ring 18
151501000100A004 Screw Plug M18×1.5
SYG008319797 Rod head
B210780000895 Plug Screw
151403080018A Dumbbell-shaped Sealing Ring
SYG008319793 Circlip for hole
151401040611A JT guide ring
SYG008319798 Retainer pliers for axle using
SYG008319804 Cylinder drum Ⅲ
SYG008319805 Cylinder drum Ⅳ
SYG008319794 Cylinder
SYG008319799 Cylinder Drum Ⅱ
151401040606A T73 guide ring
151401020712A T671 sealing ring
151401010564A T850 dust ring
SYG008319806 Rod End
SYG008319792 Protective plate
SYG009617149 lifting oil cylinder of Truck
152301000101A Valve Assembly
ODT009313763 Steel Pipe
152301000622A Proportion Pneumatic Distributing Valve
ODT009431779 Support Welding
152301000101A001 Solenoid Directional
152301000101A002 Logic Ogic Valve
152301000101A003 Relief ValveRV08-DR-3-E-XXX-B-00
152388000001A Constant Flow Valve
