SANY Power System – Parts Catalog (ODT009134034)

Part Number: ODT009134034
Machine Model: SKT105AL2 Mining Wide-Body Dump Truck
Equipment No.: ODT100000197

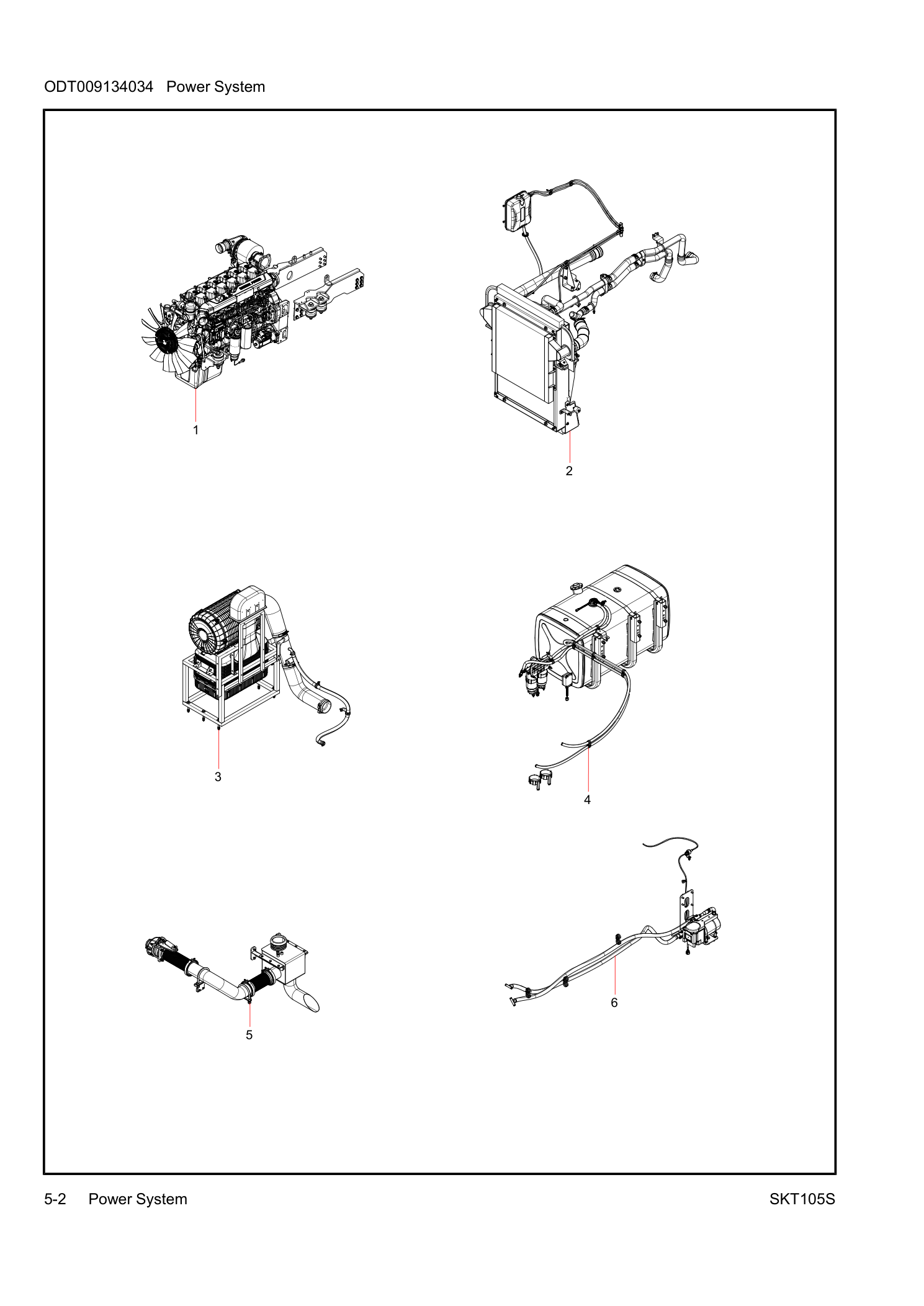

Catalog Section: Group 5

ODT009104230 Engine
ODT009133982 Radiatr and pipe Installation
ODT006822547 Air filter installation
ODT009107180 Fuel system
ODT006822865 Exhaust System
ODT009112842 Engine heating
A210110000352 Bolt
A210404000002 Washer
ODT006325752 Gasket
131602000180A Damper
ODT006644554 Left(F) bracket
A210307000029 Nut
ODT008052872 Left(B) bracket
ODT006663590 Board
60000420 Tube Clamp
A210204000131 Screw
ODT006434699 Socket
ODT008052868 Right(B) bracket
ODT006644559 Right(F) bracket
60272566 Plug, Expansion
60272464 Hexagon Socket Plug
60272558 Bushing
60326075 Inner Hexagon Socket Head Cap Screw
60033243 Crankshaft Sensor
60272600 Cylinderical Pin
60272460 Hexagon Socket Head Cap Screw
60127684 Pin
60127588 Plug
60326373 Spring Washer
60106746 Hole Retaining Ring
60272816 Shoulder Nut
60141426 Valve Rod Seal Sleeve
60352131 Fuel Injector Liner
60352172 Expansion
60326538 Rivet
60352123 Sealing Ring
60272836 Ring Screw
60326574 Hexagon Flange Bolt
60038917 Fuel Air Separator
60230354 Hex Head Bolt
60272532 Hose Clamp
60352050 Bracket Assembly
60141411 Valve Lock Clip
60352145 Valve Spring Upper Seat
60352144 Valve Spring
60352146 Valve Spring Lower Seat
60352185 Rocker Arm Seat Assembly
60352182 Rocker Arm Shaft Assembly
60352048 Evb Adjusting Screw
60352047 Evb Locking Nut
60352175 Wiring Brace
60352049 Evb Bracket
60352181 Shaft, Rocker Lever
60272589 Oil Pan Support Block
60222435 Wave Elastic Gasket
60272458 Sealing Washer
60230364 Hexagon Head Plug
60228118 Oil Pan Sealing Gasket
60186681 Flow Metering Unit
60272895 Hollow Bolt
60352152 Spherical Washer
60352132 Fuel Injector Pressplate
60352073 High Pressure Connector
60106718 Coarse Filter Hollow Bolt
60106801 Combined Sealing Ring
60326458 Pipe Clamp
60352082 Fitting
60326595 Hexagon Head Bolt
60326044 Filter Seat Assembly
60326195 Water Cup Assembly
60106694 Intake Heating Grille
60127559 Spacer
60230330 Stud
60352091 Air Intake Cover Plate
60223684 Self-locking Washer
60272904 Hexagon Flange Toothed Bolt With Bearing Face
60141428 Belt Elt
60272921 Hex Flange
60272456 Seal Gasket
60106720 Electric Lectric Control Clutch Double-end Stud
60352080 Pipe Clamp Assembly
60326364 Bushing, Sleeve
ODT006648977 Right Baffle
ODT006500911 Sponge
ODT006648981 Engine port baffle
131602000008B Radiator Lower Shock Absorber
131602000007B Radiator Upper Shock Absorber
131699000003B Radiator Shock Absorber Steel Sleeve
ODT006648973 Bracket
131602000009B Damping Pull Rod
ODT006648974 Pipe
ODT007422068 Intake pipe
ODT006648978 Air Intake Steel
60250992 T-type Spring Clamp
60016761 Clamp
ODT007511331 Protective Sleeve
A210855000003 Throat Clamp
A210855000066 Hole-shaped Throat Clamp
ODT007638330 pipe
60227325 T-style spring clamp
A229900002031 T-style Anchor Ear
ODT006648989 Tube
ODT006171912 Coupling Plate
ODT005119428 Clamp Plate
ODT005119425 Water Pipe
60250989 T-type Clamp
ODT007281258 Connecting Pipe
60250990 T-Type Clamp
ODT005505531 Air Intake Pipe
60258935 T-Style Spring Clamp
133101000013A Fuel Tank Assembly
ODT006988348 Steel Pipe Bracket
ODT009135213 Fuel hose
ODT009126212 plate
132402000105A 105 oil circuit heating system
132402000047A001 Oil Suction Plate With Heater
132402000047A002 Controller Assembly
132402000105A001 Fuel Heat Pipe
132402000047A005 Oil Temperature Sensor
132402000047A006 Filter Heater
132402000047A009 Sae Male Connector M18×1.5-φ15.82
132402000047A010 Combination Washer
ODT005505638 Connecting Rod
ODT006431140 Exhaust Pipe Welding Assembly
60279124 V-type Clamp
ODT005505640 Adjustable Gap Piece
ODT006821268 Bracket, Pipe, Exhaust
ODT006643001 Exhaust Pipe
ODT005492315 Box
ODT006988343 Frame
ODT009112658 fuel pump support
132402000106A Liquid Fuel Heater
ODT009112644 heater hose bracket
132402000023A001 Heater
132402000023A013 Rubber Elbow
132402000023A010 Rubber Reducing Straight
132402000023A011 Stainless Steel Straight
132402000023A007 Ball Valve
132402000023A009 Stainless Steel Tee
132402000106A006 Coolant Pipe
132402000106A001 Three-way Pipe
132402000106A002 Fuel Pipe
132402000106A003 Mini Clamp
132402000106A004 Fuel Pump Harness
132402000106A005 Fuel Pump Pipe
