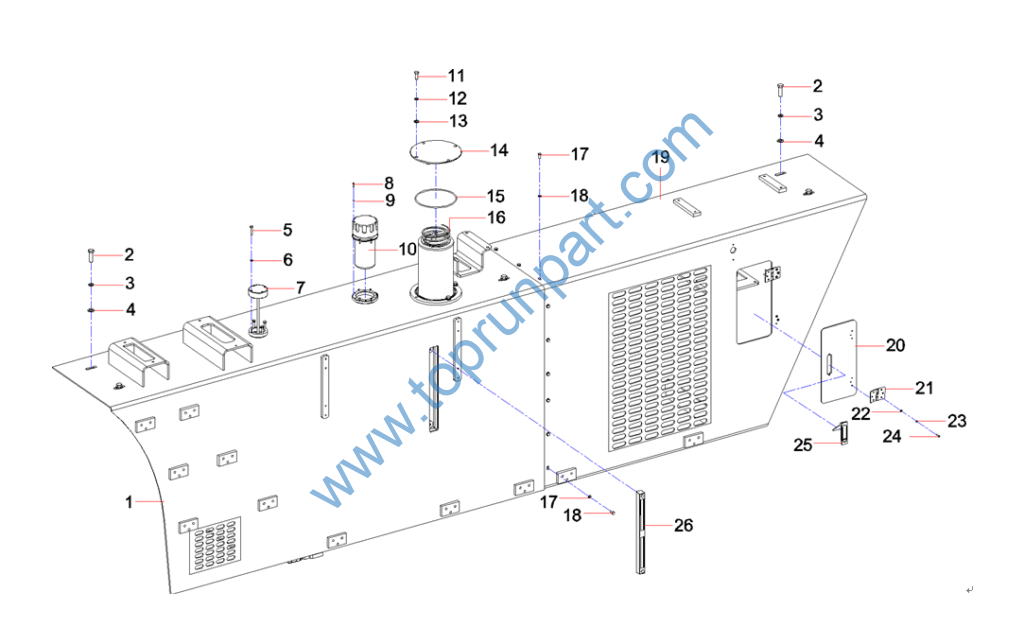

1 13441211 Body, hydraulic oil tank
2 A210111000230 Bolt
3 A210401000004 Washer
4 A210405000003 Washer
5 A210111000093 Bolt
6 A210401000017 Washer
7 13765778 Plate, cover, relay
8 A210204000258 Screw-M4×16GB70.1
9 A210401000013 Washer
10 A222100000046 Hydraulic Air Cleaner
11 A210111000038 Bolt
12 A210401000002 Washer
13 A210405000001 Washer
14 13060459 Cover, filter, oil return
15 A210609000260 O-ring
16 60193266 Assembly of returned oil filter core
17 24000529 Bolt
18 24000633 Washer
19 13441215 Cover, radiator
20 13441201 Door, feed
21 A210891000015 Hinge
22 A313180502003 Screw
23 A210401000015 Washer
24 A210405000005 Washer
25 A222200000042 Latch, Cover
26 A250100000041 Gauge, liquid level and temperature
3 A210401000004 Washer
4 A210405000003 Washer
12 A210401000002 Washer
13 A210405000001 Washer

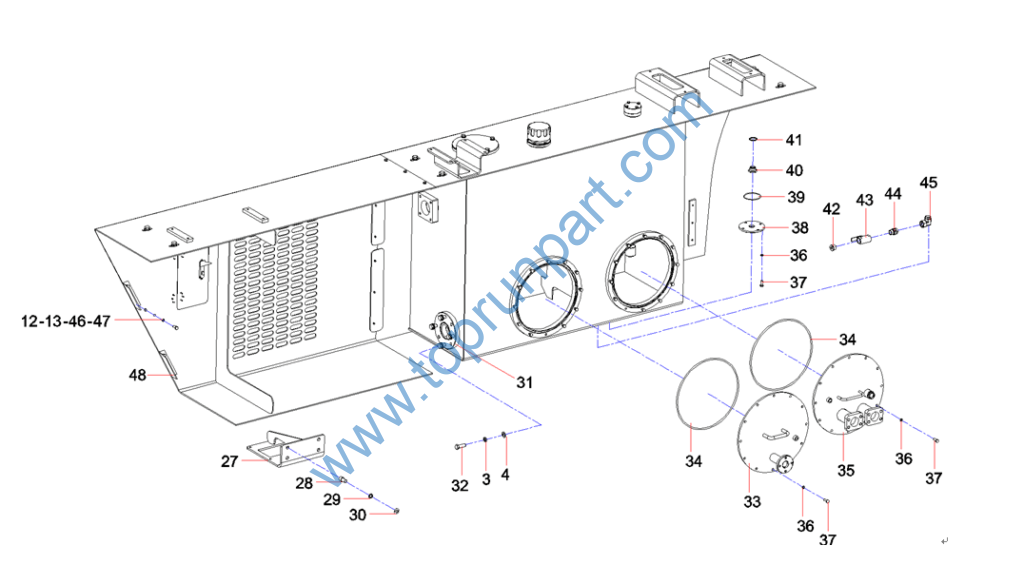

27 13441217 Components, support plate
28 24003464 Screw M16×30GB70.1 Grade 10.9
29 24000514 Washer
30 21001338 Washer
31 13766341 Washing flange
32 A210111000229 Bolt
33 10835443 plate
34 A210609000295 O-ring 387×7GB3452.1
35 10835451 plate
36 A210401000001 Washer
37 A210111000018 Bolt
38 10774636 Cover plate of washing oil hole
39 A210609000082 O-Ring-85
40 21051814 M30×2QC385
41 A210434000015 Washer
42 B210780001397 Choke plug
43 A220401000187 Ball Valve
44 B210780000421 Stud Straight Connector
45 B210780000028 Fitting, Elbow
46 A210204000206 Screw
47 24000874 Nut M12GB6170 dacrotizing
48 13499007 Connecting plate

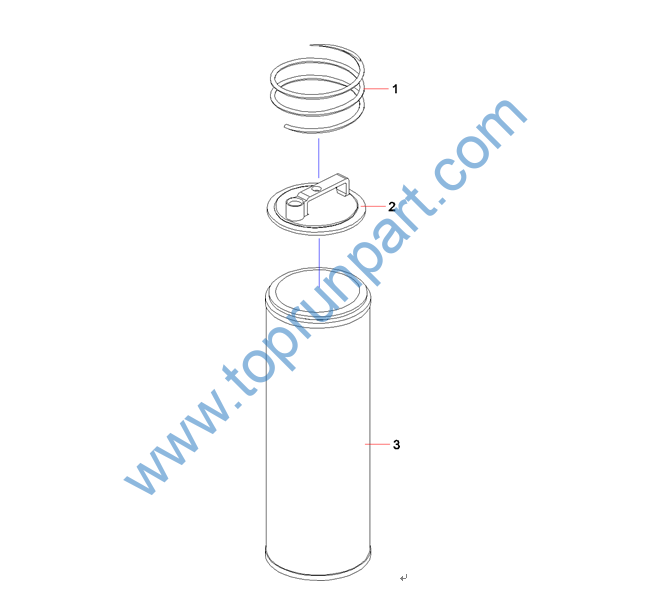

1 60222775 Spring
2 60222776 Valve, Bypass
3 60222777 Filter core

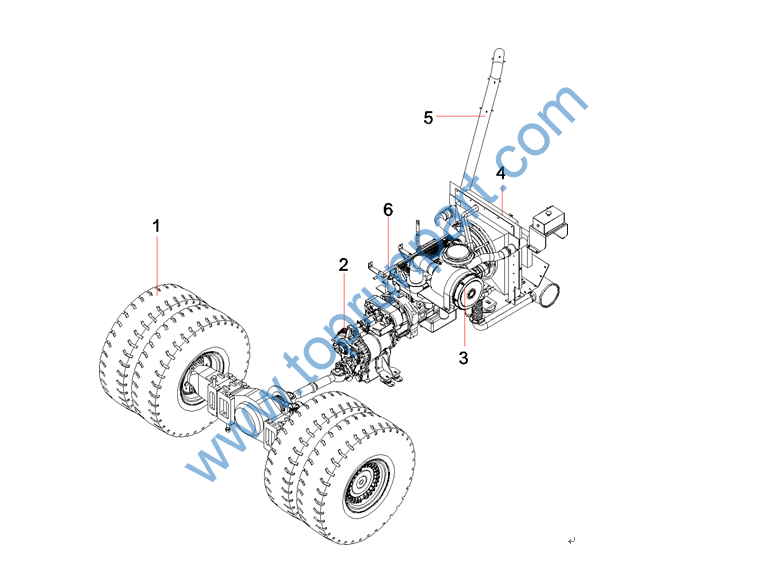

1 13740391 Drive assembly SDCY450K3C2.1.1
2 13740392 Engine and transmission assembly SDCY450
3 13740394 Air intake assembly SDCY450K3C2.1.3
4 13740395 Radiator Assy SDCY450K3C2.1.4
5 13740396 Exhaust assembly SDCY450K3C2.1.5
6 10016497 Fuel system

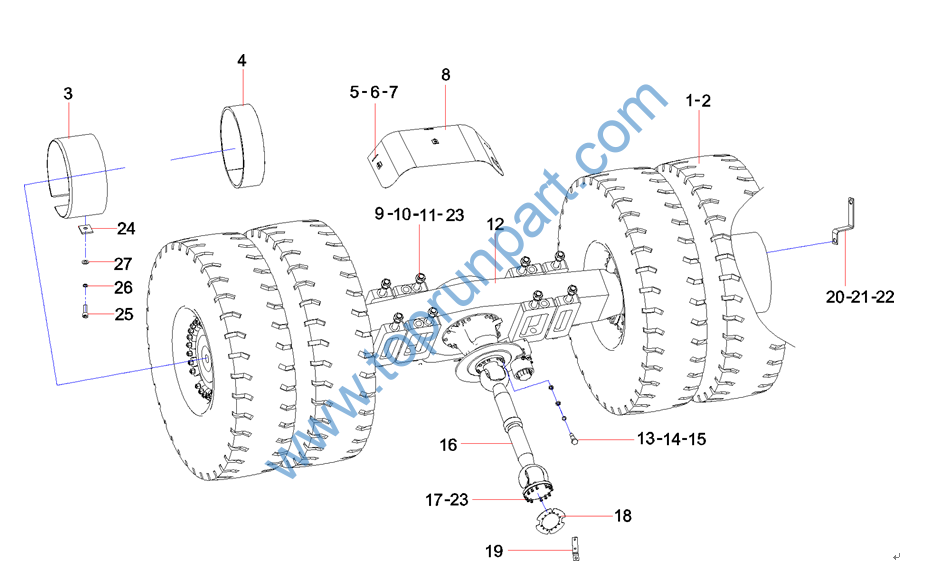

1 60200757 Rim
2 60201225 Tyre
3 13390008 Ring, sleeve
4 12938597 Ring, sleeve, middle
5 A210111000348 Bolt
6 A210405000007 Washer
7 A210401000017 Washer
8 11540981 Group, oilproof plate
9 A829900001442 BoltRSC45.12-4
10 A210401000012 Spring washer
11 A820204000388 Nut
12 B220600000011 Axle, driving
13 A829900001445 boltRSC45.12-5
14 A229900007628 Nut M10 Grade 10 Shibilao Hexagon flange
15 A210401000001 Washer
16 60282234 Shaft, transimission
17 A829900001448 boltRSC45.12-7
18 11342781 Plate, sensor
19 11342780 Support, speed sensor
20 12717873 BOARD
21 A210111000038 Bolt
22 A210401000002 Washer
