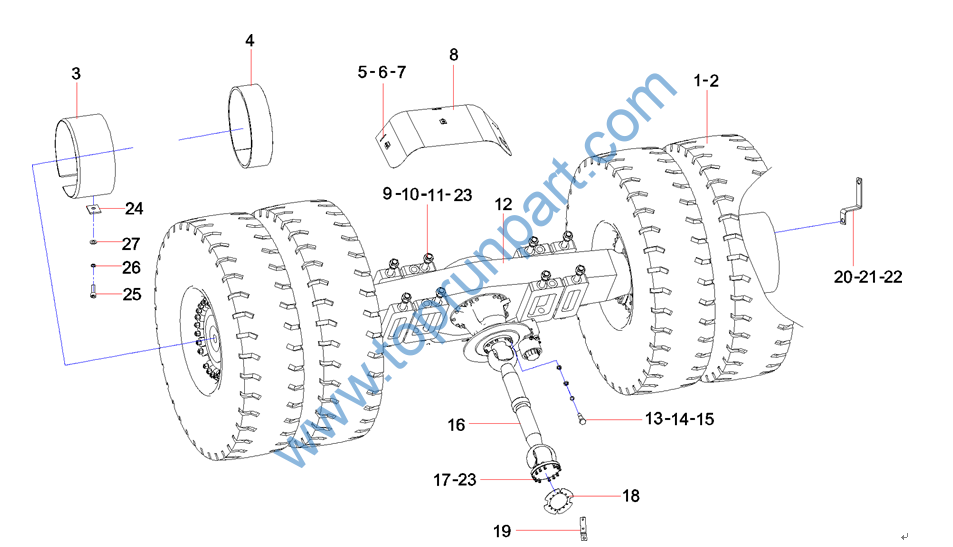

23 A210307000036 Nut
24 13390169 Plate, mounting
25 A210111000227 Bolt
26 A210401000004 Washer
27 A210401000003 Washer

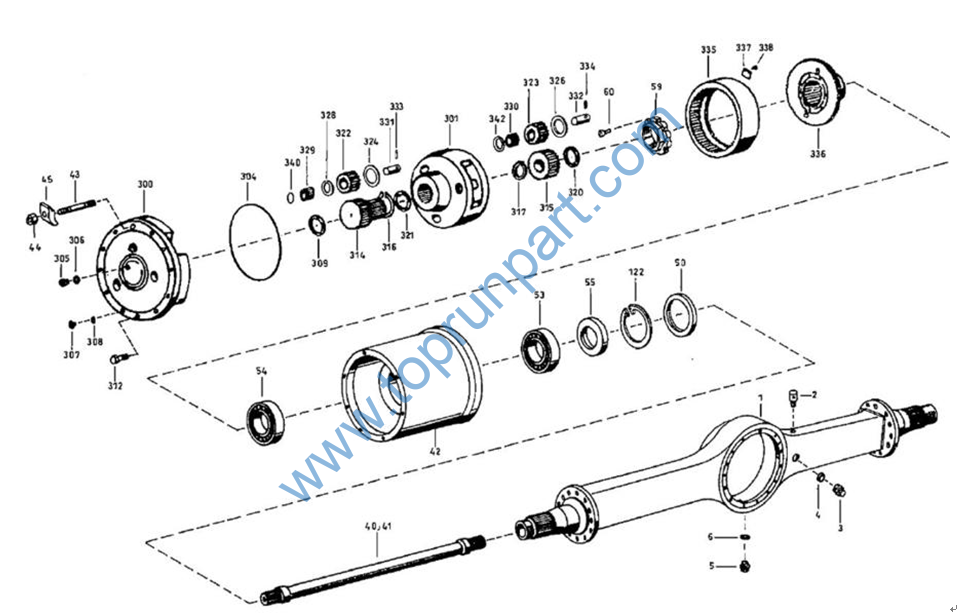

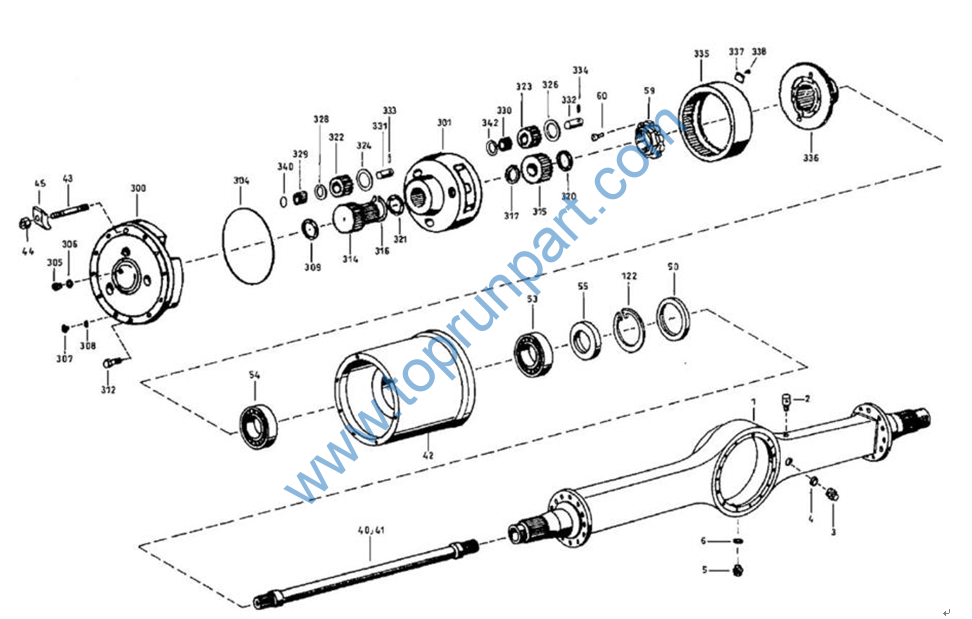

1 60121013 Shell, shaft
2 60061416 Plug, ventilation
5 60099157 Plug, Pipe
6 60099263 Ring, seal
40 60099180 Axle, driving
42 60054025 Hub
43 B229900002716 Stud
50 60099258 Ring, seal
53 60099167 Bearing, roller, tapered
54 60099167 Bearing, roller, tapered
55 60099195 Sleeve, separating
59 60099179 Nut
60 60099214 Screw, hexagon, inner
122 60121071 Ring, retaining, elastic
300 60099175 Chamber, planet gear
301 60120996 Bracket, planet gear
304 60099253 O-ring
305 60099157 Plug, Pipe
306 60099263 Ring, seal
307 60099155 Plug
308 60121015 Ring, seal
309 60099231 Ring, thrust

312 60099219 Bolt, hexagon
314 60099171 Gear, central
315 60099172 Gear, central
316 60099199 Ring, retaining, elastic
317 60121005 Ring, retaining, elastic
320 60099233 Washer, thrusting
321 60099231 Ring, thrust
322 60099174 Gear, planet
323 60099173 Gear, planet
324 60099230 Washer, Thrust
326 60099232 Washer, Thrust
329 60099163 Bearing, needle
330 60099162 Bearing, needle
331 60099235 Pin, planet
332 60099236 Pin, planet
333 60099226 Pin, lock
334 60099225 Pin, lock
335 60099183 Ring, gear
336 60121003 Support, toothed ring
337 60099178 Bracket
338 60099210 Bolt, hexagon
340 60099252 O-ring

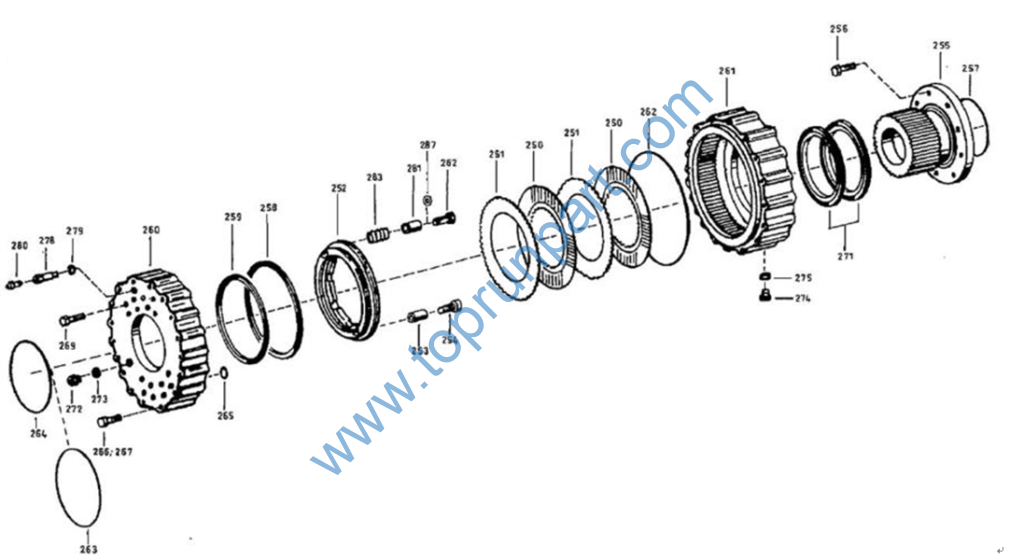

250 60062647 Disc, friction plate, brake
251 60062646 Blade, steel, brake
252 60121008 Piston
253 60099227 Bushing
254 60099215 Bolt, hexagon
255 60099241 Bearer, brake
256 60099206 Screw, Cap
257 60099251 O-ring
258 60099257 Seal, oil, piston
259 60099256 Seal, oil, piston
260 60099240 Housing, axle
261 60099239 Housing, axle
262 60099254 O-ring
263 60099250 O-ring
264 60099249 O-ring
265 60099248 O-ring
266 60099218 Screw, hexagon, inner
267 60099217 Bolt, hexagon
269 60099211 Bolt, hexagon
271 60062648 Seal, mirror surface
272 60099156 Plug, pipe
273 60099262 Ring, seal

274 60099154 Screw
275 60099260 Ring, seal
278 60099198 Connector
279 60099260 Ring, seal
280 60099160 Valve, exhaust
281 60099228 Pipe
282 60099193 Screw, flange
283 60099185 Spring, compressed

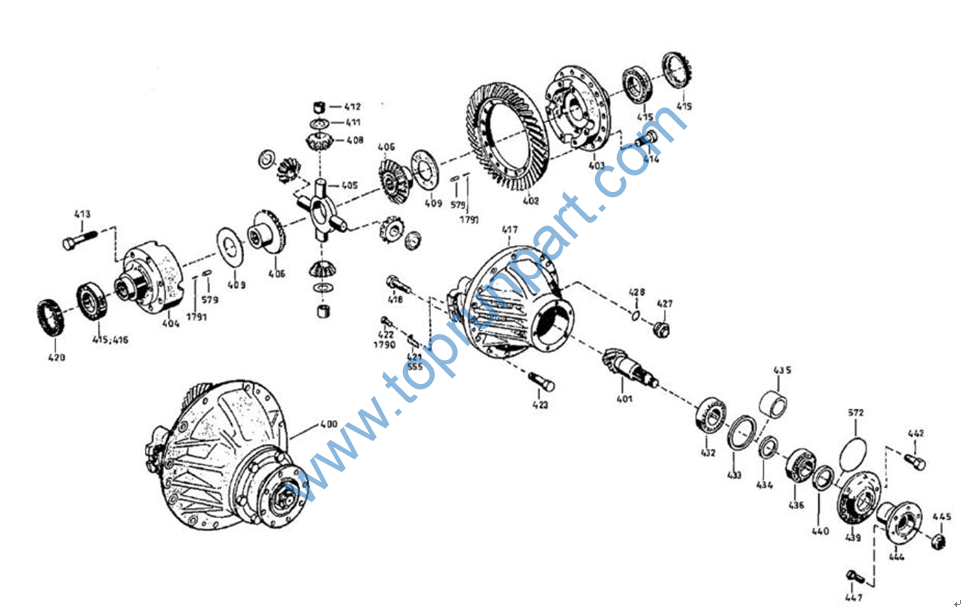

400 60120998 Components, differential and bracket
401 60120995 Pinion, transmission
402 60121002 Ring, gear
403 60120986 Chamber, differential
404 60120985 Chamber, differential
405 60120999 Joint, differential
406 60120994 Gear, half-shaft, differential
408 60120993 Gear, differential
409 60121007 Disc, flange
412 60121012 Bushing, bearing
413 60121009 Bolt, hexagon
414 60121010 Bolt, hexagon
415 60121070 Bearing, roller, tapered
416 60121702 Bearing, roller, tapered
417 60121000 Bracket, differential
418 60099205 Bolt, screw
419 60099190 Nut
420 60099190 Nut
421 60099177 Lock Plate
422 60099210 Bolt, hexagon
423 60099208 Bolt, screw
427 60099158 Plug, Pipe

428 60099264 Ring, seal
432 60120992 Bearing, roller, tapered
433 60099187 Disc
434 60099187 Disc
435 60121001 Bushing
436 60120991 Bearing, roller, tapered
439 60120987 Cover
440 60120989 Ring, sleeve
442 60099220 Bolt, hexagon
444 60121004 Disc, flange, transmission
445 60006495 Nut, Adjusting
572 60099246 O-ring
579 60099224 Pin, lock
1791 60099223 Pin, lock

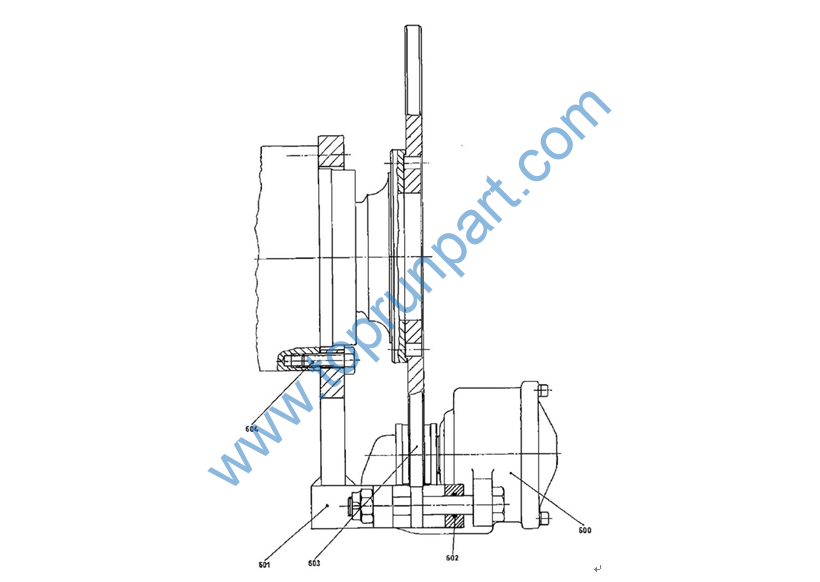

600 60006493 Brake
601 60006497 Support, brake
602 60099247 O-ring
603 60006496 Disc, brake
604 60099207 Bolt, hexagon

605 60016914 Blade, brake
606 60099161 Valve, Exhaust
608 60099201 Ring, retaining, elastic
609 60099151 Spring, butterfly
610 60099212 Bolt, nut
611 60099188 Screw, adjusting
612 60099213 Cap, nut
615 60099238 Bolt, pressure
616 60099204 Bolt, hexagon
617 60099192 Nut
618 60099203 Pin, Cotter
619 60099265 Seal, oil
623 60099266 Magnet
624 60099194 Ring, separating
625 60099244 O-ring
626 60099245 O-ring
629 60121011 Seat, threaded
630 60099259 Seal

1 B230103003567 Hose Assembly
2 A820205001462 Oil-out tube adaptor
3 B230101000348 O-ring
4 A829900001449 Bolt
5 A210401000001 Washer
6 A210204000161 Screw
7 A810102060047 Oil filter bracket
8 B210780000671 Connector, pipe
9 A229900005971 Bolt
10 A210401000003 Washer
11 B230103004784 Hose, rubber
12 A820205001862 Pressure Sensor Joint
13 A210434000006 Washer
14 10514234 Nipple
15 A229900002838 Throat collar
16 13737755 Engine oil steel tube SDCY450K3C2.1.2-1
17 13737756 Tube SDCY450K3C2.1.2-2
18 11325602 Filler, oil
19 60165343 Body, pipe clamp
20 A210608000067 O-ring
21 10514233 Cap filling
22 B220801000002 Gearbox

23 A829900001453 Bolt
24 A210401000006 Washer
25 A210110000058 Bolt
26 A210401000005 Washer
27 A229900001360 Washer
28 A210307000004 Nut
29 B210780000030 Fitting, Elbow
30 A210434000015 Washer
31 60032045 Hose, rubber
32 60013088 Hose, rubber
33 B220200000104 Engine

34 A210111000038 Bolt
35 A210405000001 Washer
36 A210401000002 Washer
37 11540995 Bracket 1 group
38 11540256 Hose 3 rubber
39 A210111000011 Bolt
40 11055423 pipe clamp support abutment
41 12323830 Gearbox support
42 10223499 pipe clamp support abutment
43 11597856 Engine oil dipstick
44 60014672 Tube clamp body
