45 A210401000002 Washer
46 B210299000026 Inner hexagon screw 7/16-14UNC×45 12.9
47 A210113000266 Bolt
48 10016471 Fan bolt
49 A210405000011 Washer
50 A210401000001 Washer
51 B229900003113 Fan
52 60100352 Absorber, shock
53 A210111000301 Bolt M22×60GB5783 Grade 10.9
54 A210401000007 Spring washer
55 A820102010510 Washer
56 10181681 Engine support
57 A210110000083 Bolt
58 A210401000006 Washer
59 A210405000008 Washer
60 A210307000029 Nut
61 A210110000058 Bolt
62 A210401000005 Washer
63 A229900001360 Washer
64 A210307000004 Nut

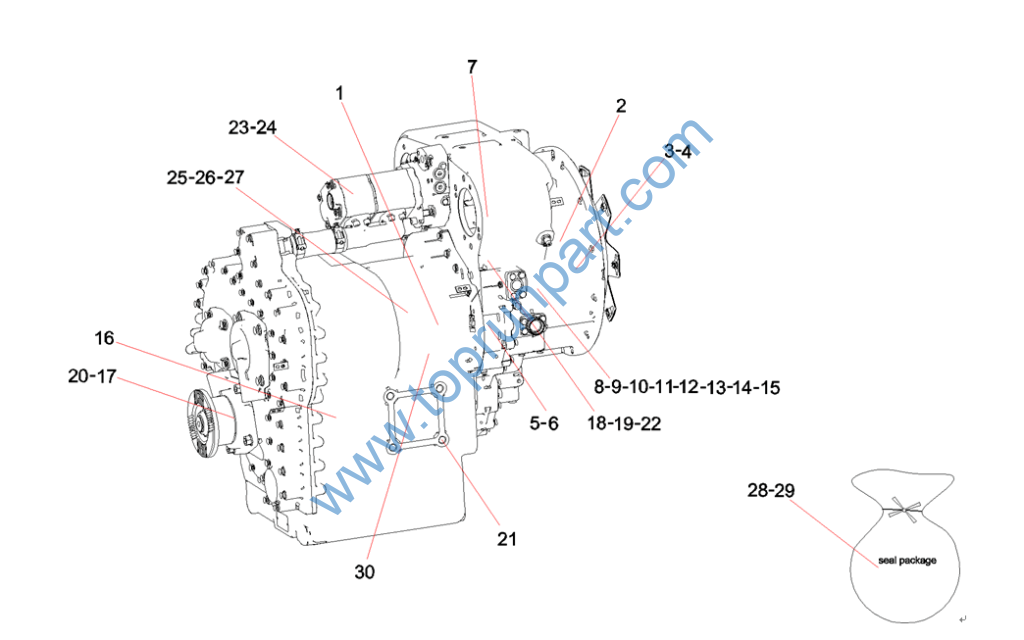

1 60138966 Components, housing, gearbox
2 60138967 Components, rear cover, gearbox
3 60140031 Shaft, turbine
4 60138822 Group, gear, power input end
5 60139513 Components, hub
6 60138447 Components, transmission plate
7 60139867 Components, drive pump support
8 60139839 Shaft, transmission, grade 2 3 4, front wheel driving
9 60138844 Group, gear, speed-change, grade 1
10 60139838 Shaft, clutch, forward gear
11 60139893 Shaft, clutch, speed-change, grade 3
12 60138840 Group, gear, speed-change, grade 3
13 60139319 Components, shaft, backward gear
14 60138916 Components, clutch, speed-change, grade 1
15 60138934 Components, clutch shaft, grade 3 4
16 60139145 Components, idler shaft
17 60139925 Components, output shaft
18 60138682 Components, pressure adjusting valve and feeding pump
19 60138721 Components, electric adjusting valve
20 60139923 Components, flange, output end
21 60138442 Components, transporting cover
22 60138738 Valve, pressure adjusting
23 60138654 Pump, prefill
24 60138719 Valve, adjusting, prefill pump
25 60138733 Components, cover, control valve box
26 60138722 Components, electric control valve
27 60138891 Filter, dual
28 60036527 Kit, repair, transmission case
29 60140286 Package, sealing parts, converter
30 60034280 Sensor, Speed (Gearbox Part)
1 60099583 Body, shell, torque converter
2 60099675 Pipe, oil, forward gear
3 60099692 Pipe, oil, 4th gear
4 60099728 Clamp, Tube
5 60099742 O-ring
6 60099632 Screw, Cap
7 60099698 Washer, Lock
8 60099645 Pipe, oil supply, control valve
9 60099727 Bushing
10 60099683 Pipe, oil, 3rd gear
11 60099584 Sleeve, Converter Housing
12 60099586 Tube, Sleeve, Converter Housing, 4th Gear Shaft
13 60099585 Tube, Sleeve, Converter Housing, Forward Gear
14 60099607 Washer
15 60099632 Screw, Cap
16 60099698 Washer, Lock
17 60099508 Plug
18 60099780 Plug
19 60099750 O-ring
20 60099617 Pin, Dowel
21 60099587 Screw, Cap
22 60099635 Screw
23 60099700 Washer, Lock
24 60099588 Gasket
25 60121044 Sleeve, shaft
26 60099702 Breather
28 60099680 Plug
29 60099752 O-ring
30 60099492 Plug
31 60099630 Gasket
32 60099695 Bushing, Speed Sensor
33 60099589 Shim
34 60099666 Plug, Threaded
35 60099743 O-ring
40 60099571 Pin
1 B229900002896 Body, shell
2 60099717 Pipe, oil, 1st gear clutch
3 60099722 Pipe, lubrication oil pipe, rear bearing, 1st gear shaft
4 60099682 Pipe, oil, 3rd gear
5 60099727 Bushing
6 60099697 Bushing, Lock
7 60099607 Washer
8 60099632 Screw, Cap
9 60099698 Washer, Lock
10 60099744 O-ring
11 60099779 Tube
12 60099747 O-ring
13 60099634 Cover, rear
14 60099571 Pin
15 60099751 O-ring
16 60099617 Pin, Dowel
17 60099637 Screw, fixing, rear cover
18 60099636 Screw
19 60099635 Screw
20 60121041 Stud
21 60099640 Nut
22 60099700 Washer, Lock
23 60099638 Pad, sealing, rear cover to shell body
24 60099781 Plug, Oil Level
25 60099669 Plug, oil exhaust
26 60099660 Assembly, filter screen
27 60099661 Plug, assembly, filter screen
28 60099571 Pin
29 60099751 O-ring
30 60099743 O-ring
31 60099666 Plug, Threaded
32 60099695 Bushing, Speed Sensor
33 60099589 Shim
34 60099777 Assembly, air intake pipe
35 60099745 O-ring
36 60099662 Screw
37 60099699 Washer, Lock
38 60099597 Baffle
39 60099598 Screw, retainer plate
40 60099726 Plug, dipstick hole
41 60099501 Pipe, dipstick
42 60099659 Clamp, Dipstick
43 60099699 Washer, Lock
44 60099662 Screw

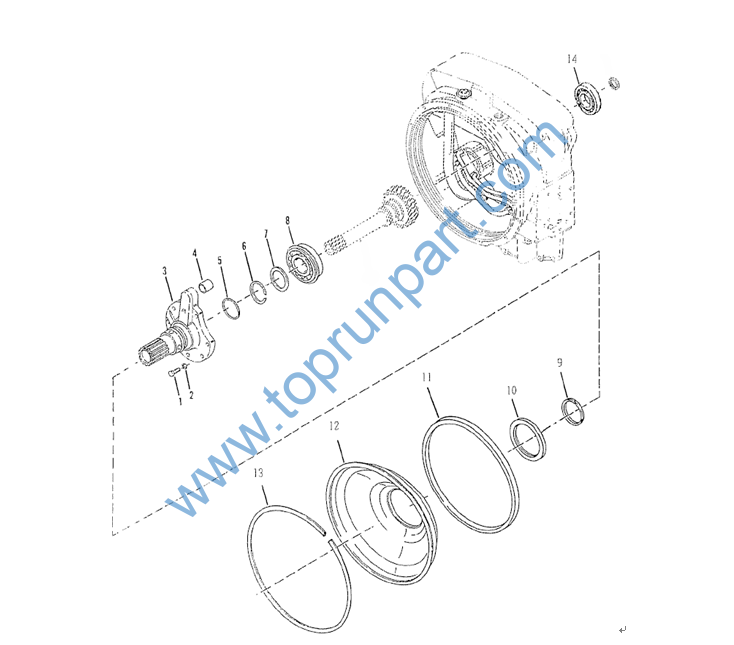

1 60099603 Screw, guide wheel seat
2 60099701 Washer, Lock
3 60099604 Assembly, guide wheel seat
4 60099582 Pipe, oil intake, torque converter
5 60099773 Seal, oil, turbine shaft
6 60099730 Ring, Locating, Bearing
7 60099729 Washer, Bearing
8 60121019 Bearing
9 60099760 Ring, Piston
10 60099759 Seal, Oil Retainer Disc
11 60099758 Seal
12 60099490 Disc, Oil Retainer
13 60099599 Ring, Snap
14 60099546 Bearing

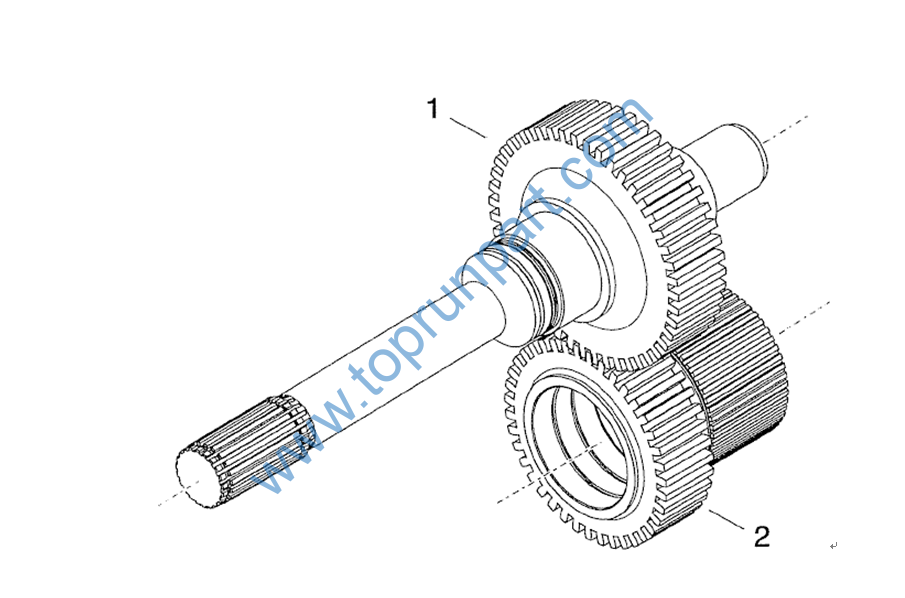

1 60099707 Shaft, turbine
2 60099561 Gear, driving, oil pump

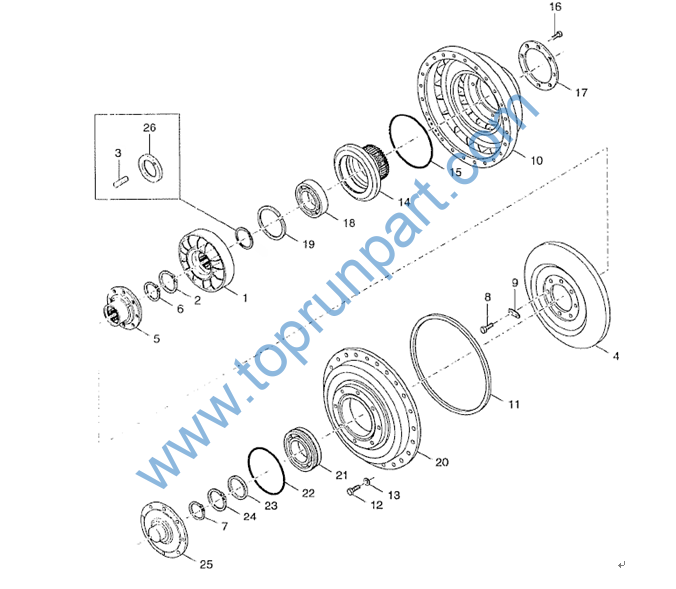

1 60099600 Wheel, guide
2 60099730 Ring, Locating, Bearing
3 60099602 Pin
4 60099510 Turbine
5 60099704 Hub, Turbine
6 60099705 Ring, Locating, Rear, Turbine Hub
7 60099677 Ring, Locating, Front Bearing
8 60099706 Screw, turbine hub
9 60099563 Blade, lock, screw, turbine hub
10 60099511 Impeller, pump
11 60099753 O-ring, pump impeller cover to pump impeller
12 60099574 Screw
13 60099700 Washer, Lock
14 60099576 Hub, pump impeller
15 60099755 O-ring, hub, pump impeller
16 60099578 Screw, hub, pump impeller
17 60099579 Ring, bushing, screw, hub, pump impeller
18 60099533 Bearing, hub, pump impeller
19 60099580 Ring, clamp, bearing, hub, pump impeller
20 60099512 Cover, pump impeller
21 60099545 Bearing, turbine hub
22 60099754 O-ring
23 60099729 Washer, Bearing
24 60099730 Ring, Locating, Bearing
25 60099575 Cover, bearing, pump impeller cover
26 60099601 Spacer Ring
