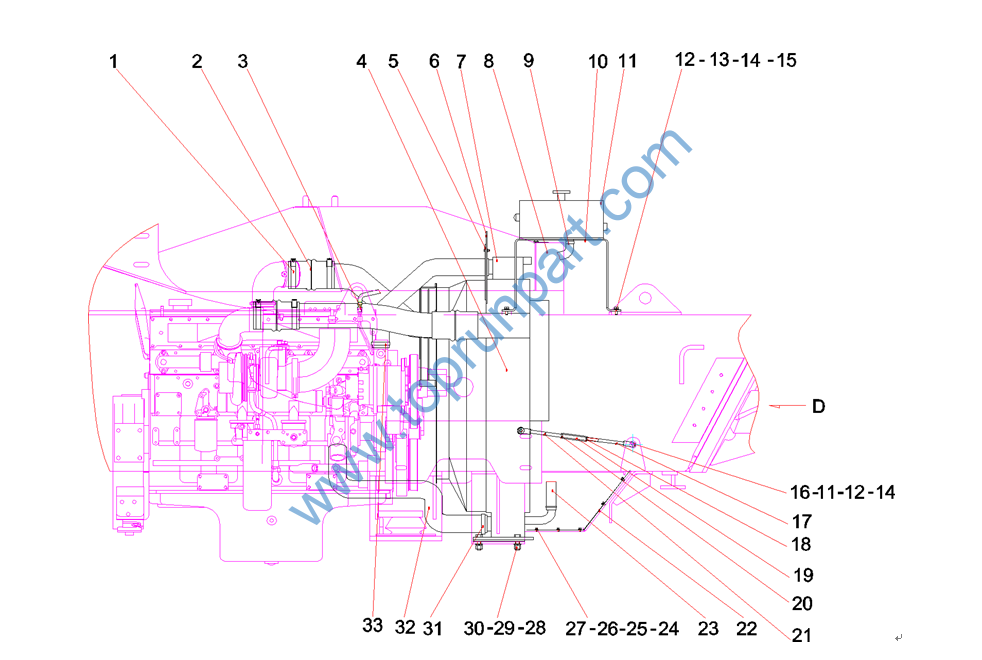

1 21004594 T-type anchor ear
2 13324628 Silicon rubber hose SCP460C2.1.4-5
3 10016466 Air tube adaptor
4 A229900009730 Radiator
5 13739887 Plate SDCY450K3C2.1.4-1
6 13739916 Rubber wind plate SDCY450K3C2.1.4-6
7 13739461 Tube SDCY450K3C2.1.4-3
8 13739456 Tube SDCY450K3C2.1.4-2
9 A210855000008 Throat collar-φ22-φ32JB8870
10 13437529 Plate
11 60198298 Tank, expansion
12 A210405000007 Washer
13 A210401000017 Washer
14 A210111000018 Bolt
15 A210307000012 Nut
16 A210111000025 Bolt
17 A820301017320 Rod, support
18 A210308000007 Nut
19 A820202005885 Rod, adjusting
20 A820302010400 Left rotating nut
21 A820301018012 Supporting Lever(1)
22 13739984 Lower sealing board SDCY450K3C2.1.4-4

23 13739471 rubber tube SDCY450K3C2.1.4-5
24 21005327 Bolt
25 A210401000016 Washer
26 A210405000006 Washer
27 A210401000004 Washer
28 A210405000003 Washer
29 A210111000283 Bolt
30 A210307000040 Nut
31 A229900006067 T-type anchor ear
32 10016467 Pipe, water-in
33 A229900003104 Clamp

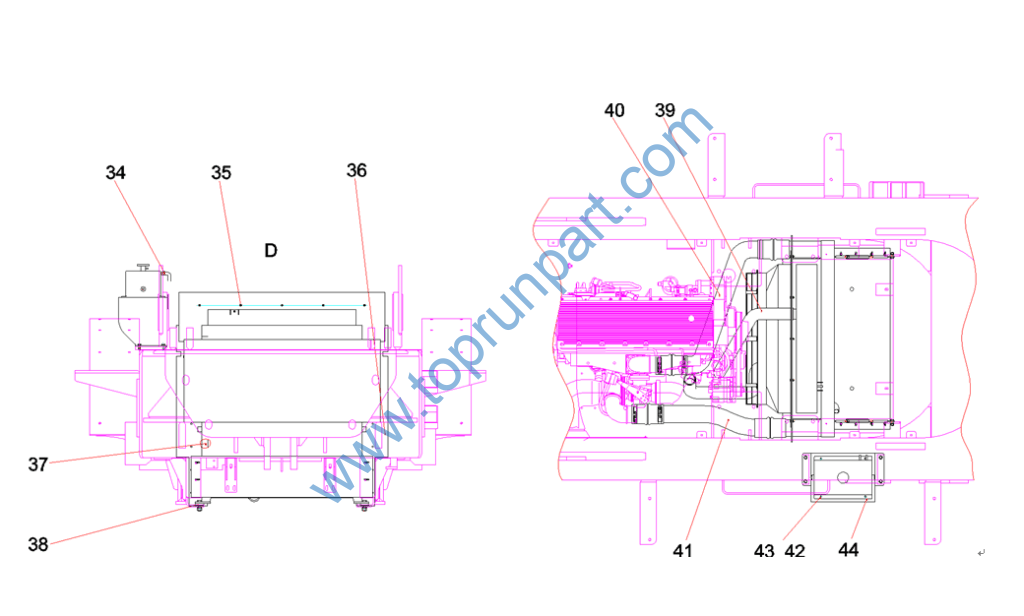

34 A210855000003 Clamp
35 A210111000080 Bolt
36 13338468 Rubber plate SCP460C2.1.4-15
37 11345560 Plate, pressure
38 A820606010610 Pad, damping, water tank
39 10016470 Tube, outflow
40 10016469 Pipe, connection (2)
41 10053234 Connecting Pipe1
42 A210111000081 Bolt
43 A210307000016 Nut
44 13572948 Pad, rubber

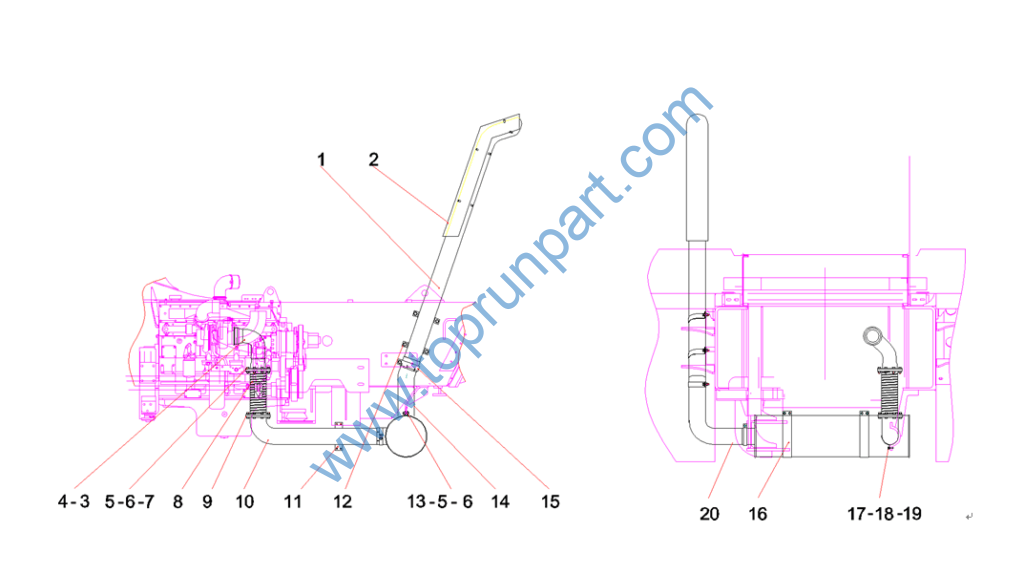

1 12688905 Exhaust Tail Pipe
2 11541079 Protective cover of exhaust tube
3 13326009 Exhaust tube I assembly SCP460C2.1.5.1
4 12698291 elbow thermal insulation sponge
5 A210111000204 Bolt
6 A210401000002 Washer
7 A210307000001 Nut
8 B229900001197 Hose, metal, exhaust
9 A820603000140 Pad, seal
10 12689471 Exhaust tube II assembly
11 A829900001456 Clamp, exhaust pipe,
12 11540555 Pipe Clip
13 A210405000001 Washer
14 11540572 Tail Pipe anchor Ear
15 A220202000050 Muffler
16 12688928 Fixed clip of muffler
17 A210204000262 Screw-M10
18 A210401000001 Washer
19 A210405000011 Washer
20 13740322 Tube SDCY450K3C2.1.5-1

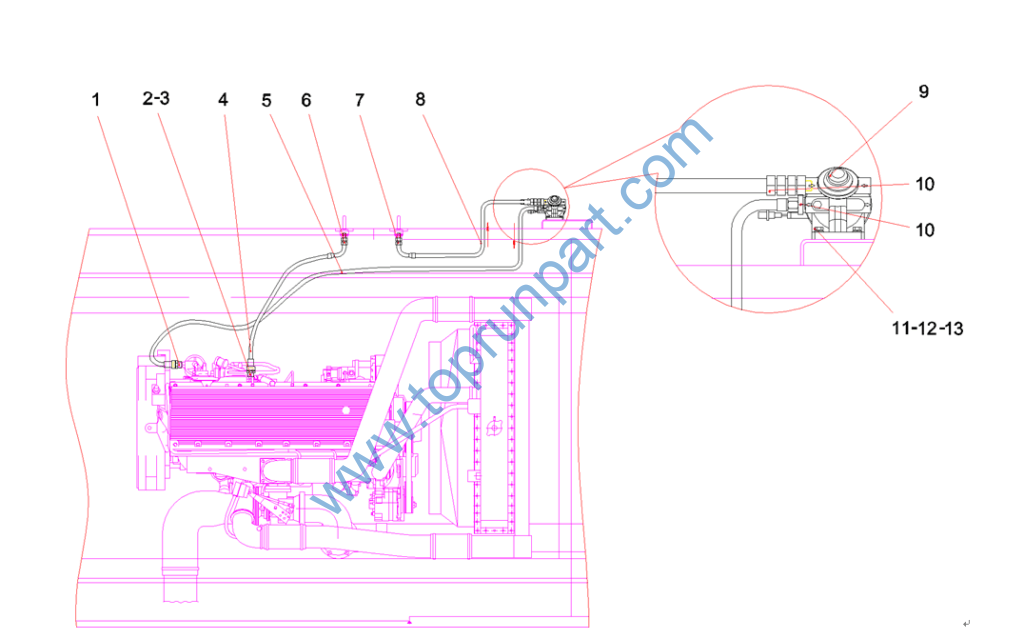

1 B210780000143 Stud Straight Connector
2 13185236 Connector, oil-return 1
3 13185782 Connector, oil-return 2
4 B230103000076 Hose Assembly
5 B230103005874 Rubber Hose
6 B210780000036 Fitting, adapter
7 B210780000232 Fitting, Adapter
8 B230103004613 Rubber Hose
9 B222100000335 Oil Water Separator
10 B210780000037 Fitting, adapter
11 A210204000320 Screw
12 A210401000017 Washer
13 A210405000007 Washer

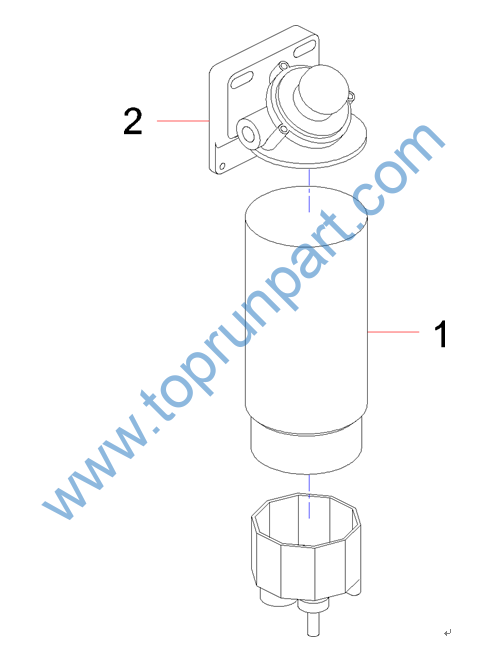

1 B222100000302 Oil-Water separator filter core
2 B229900001207 Seat,strainer,diesel

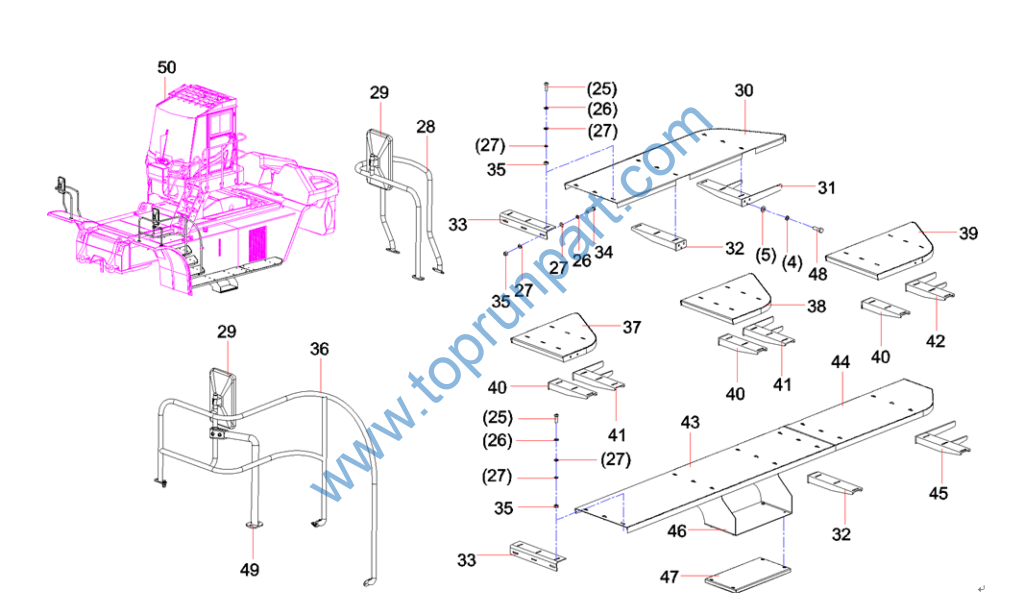

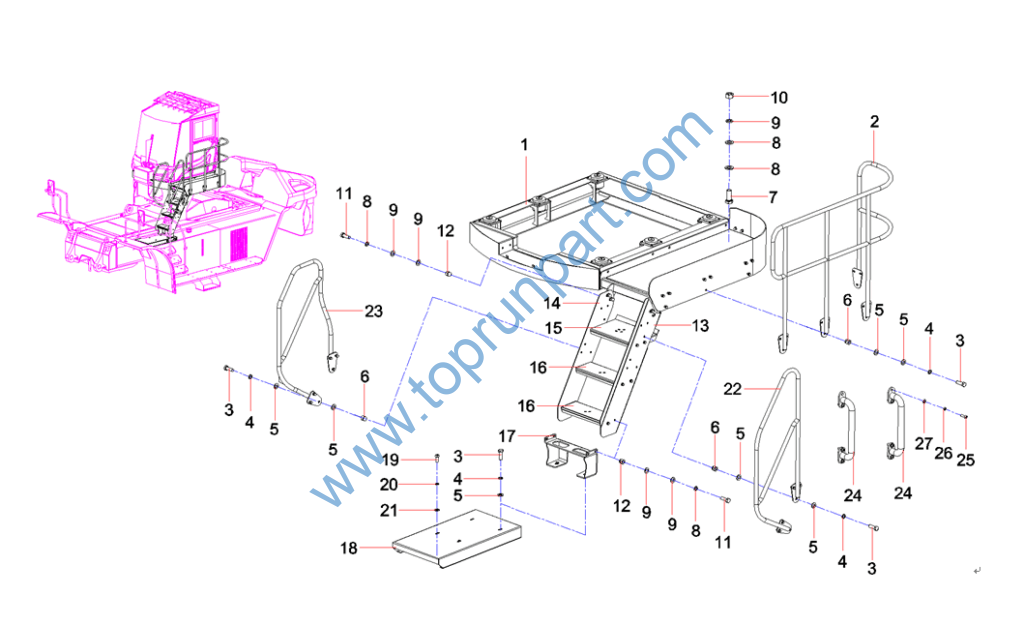

1 13443609 Assembly, platform
2 13443409 Railing, left
3 A210111000040 Bolt
4 A210405000001 Washer
5 A210401000002 Washer
6 A210336000001 Nut
7 A210110000324 Bolt, socket head
8 A210405000003 Washer
9 A210401000004 Washer
10 A210307000040 Nut
11 A210111000230 Bolt
12 A210336000003 Nut
13 13443081 Support, stair, (1)
14 13443579 Support, stair, (2)
15 11359399 Footplate(1)
16 10122502 Footplate 1
17 13443487 Support, leg
18 13443595 Plate, perforated, left platform
19 23002299 Screw
20 A210401000001 Washer
21 A210405000011 Washer
22 13443334 Handrail, ladder, left

23 11335891 Left handrail
24 12514765 Handle
25 23002290 Screw
26 A210401000017 Washer
27 A210405000007 Washer

26 A210401000017 Washer
27 A210405000007 Washer
28 13439799 Handrail, front, right
29 A229900002197 Mirror, Hoist
30 13443528 Pedal, right
31 12997674 Support, right plate, 1
32 12117194 Support, pedal, left
33 12117187 Board, supporting, side
34 A210111000293 Bolt
35 A210307000012 Nut
36 13438940 Handrail, front, left
37 12629940 left footplate 4
38 12629934 left footplate 3
39 12629931 left footplate 2
40 12116918 Support, pedal, left
41 12630669 Support, pedal, left
42 12630660 Support, pedal, left
43 13438801 Pedal, left
44 13443568 Pedal, lower, left
45 12630653 Support, pedal, left
46 13438425 Support, pedal, left
47 11672511 Perforated plate 5

48 A210204000167 Screw
49 14014290 handrail
50 11087254 Assembly, water kettle

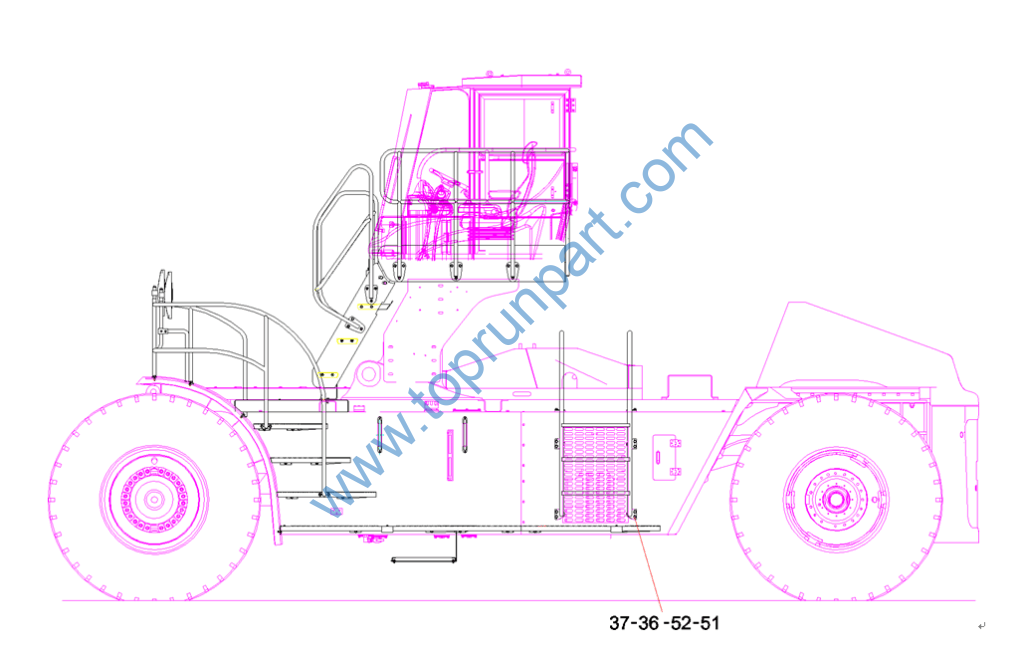

36 13438940 Handrail, front, left
37 12629940 left footplate 4
51 A210111000037 Bolt
52 14344484 Master bearing

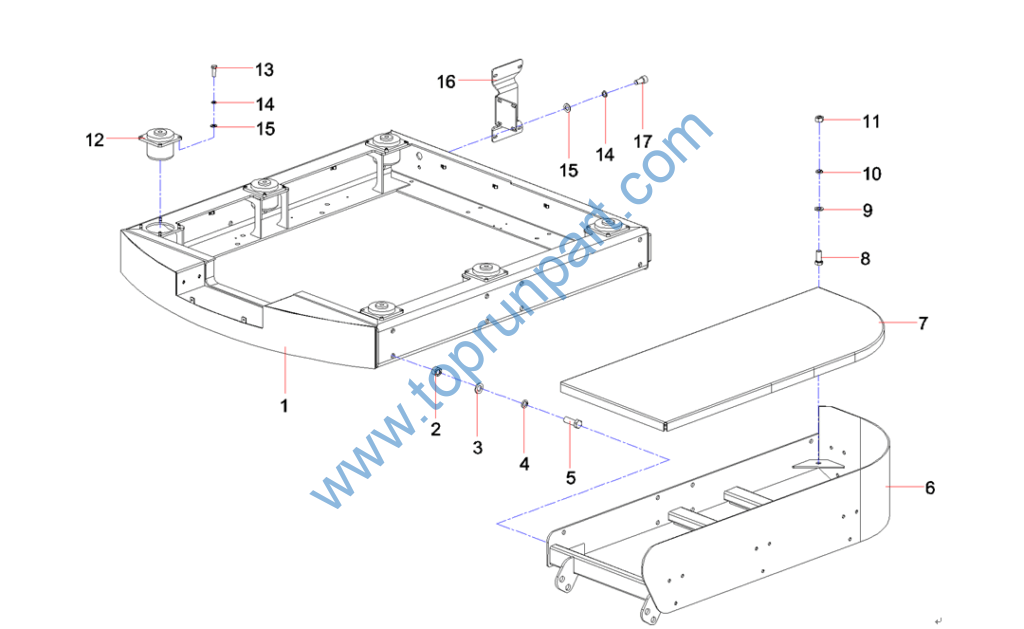

1 13443246 Platform, left
2 A210307000040 Nut
3 A210491000118 High-strength steel washer
4 A210401000004 Washer
5 A210111000230 Bolt
6 11171382 Platform support
7 13443101 Pedal, left platform
8 A210111000040 Bolt
9 A210401000002 Washer
10 A210404000004 Washer
11 A210307000001 Nut
12 60100351 Absorber, shock
13 A210111000023 Bolt
14 A210401000001 Washer
15 A210405000011 Washer
16 10196225 Exhaust tube support
17 A210204000196 Screw
