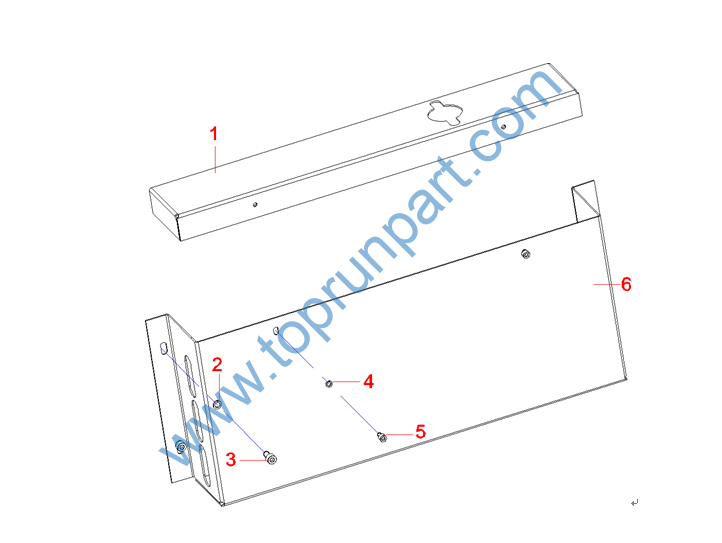

1 11087277 mounting case
2 A210401000017 Washer
3 A210204000146 Screw
4 A210401000016 Washer
5 A210204000172 Screw
6 11087305 mounting base

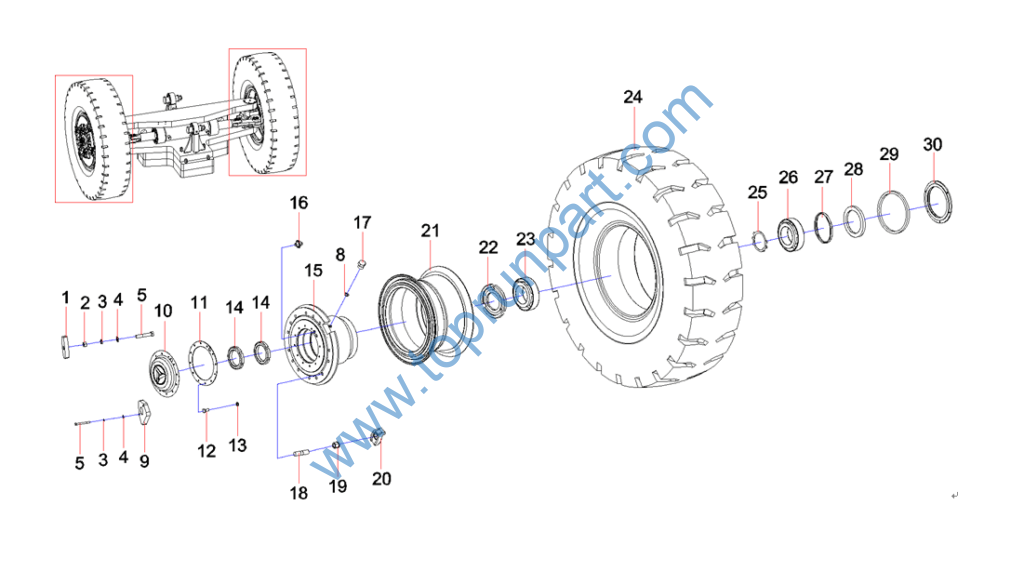

1 13146776 Plate, pressure, long
2 A210307000029 Nut
3 A210405000008 Washer
4 A210401000006 Washer
5 A210110000233 Bolt
8 A210405000011 Washer
9 13146773 Plate, pressure, wide
10 10038314 Cover
11 A820606020254 combined seal pad
12 A210111000088 Bolt
13 A210401000017 Washer
14 A210304000025 nut
15 10195270 Hub
16 A229900010158 Grease cup
17 A210332000004 Screw Plug
18 10075009 Stud
19 10075008 Hub nut
20 10023808 plate
21 60200757 Rim
22 12994678 Gasket, bearing
23 A210604002226 Rolling bearing
24 60201225 Tyre

25 A210412000137 Locking washer
26 A210604002227 Bearing, rolling
27 A230101000029 Seal, oil
28 A820102010514 Ring, retaining
29 A820199003228 Ring, felt
30 A820101314668 Cover, pressure, oil seal

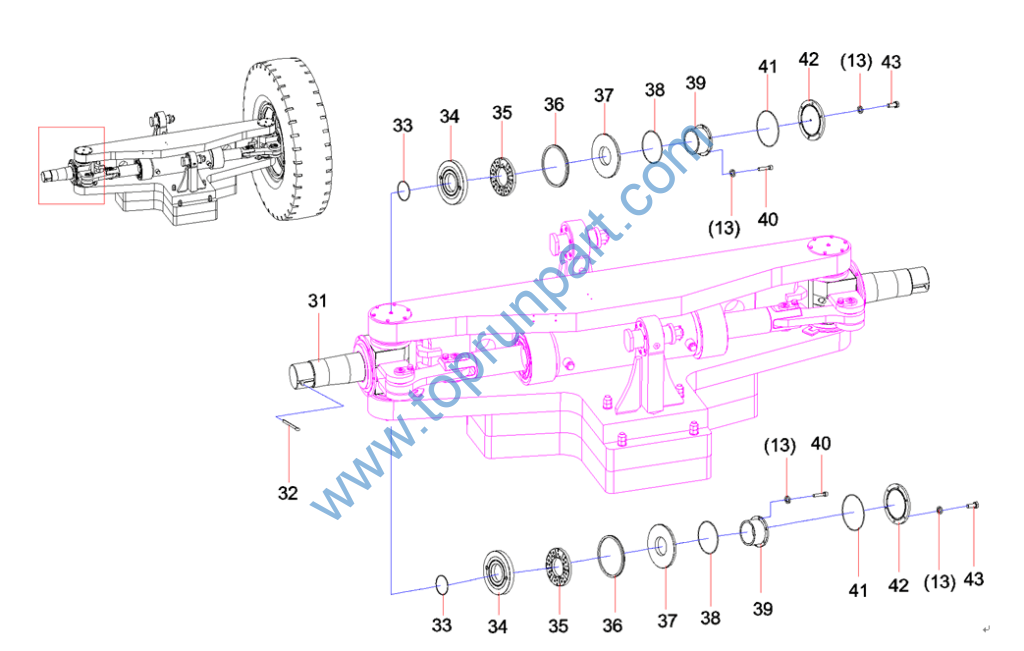

31 10614439 steering knuckle
32 21012612 Pin
33 A210609000007 O-ring
34 10423038 palte
35 10351520 Gasket, sliding bearing
36 A230101000674 Seal, oil, VDA
37 10863275 plate
38 A210609000174 O-ring
39 10764188 Bush
40 24000431 Bolt, socket head
41 A210609000014 O-ring
42 10825203 Cover, pin, shaft
43 A210111000089 Bolt

14 A210304000025 nut

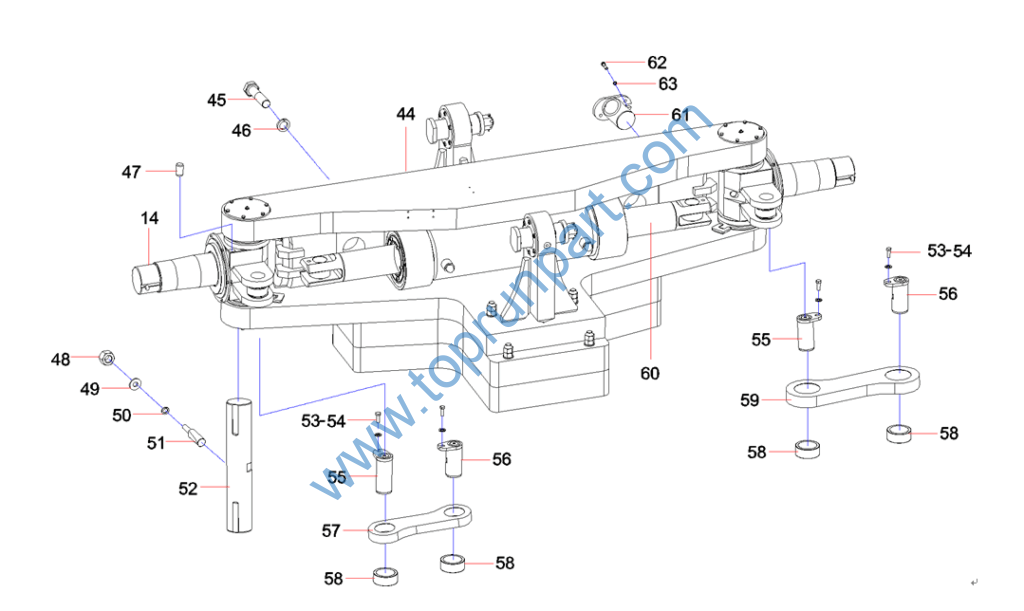

44 13443061 Beam, steering axle
45 A210113000274 Bolt-M30×2×130
46 A210401000011 Washer
47 A210503000024 shaft
48 A210307000028 Nut
49 A210401000004 Washer
50 A820102010535 Washer, pin, oblique
51 10506526 angle pin
52 10892015 shaft
53 A210111000212 Bolt
54 A210405000003 Washer
55 10507656 Connecting rod axial pin
56 10423036 GP, shaft and pin, connection rod
57 10612860 Left connecting rod
58 A210612000011 Bearing, joint
59 10611642 Right connecting rod
60 10421960 Cylinder, steering
61 10431415 Position pin GP, cylinder
62 A210111000203 Bolt
63 A210401000002 Washer

59 10611642 Right connecting rod

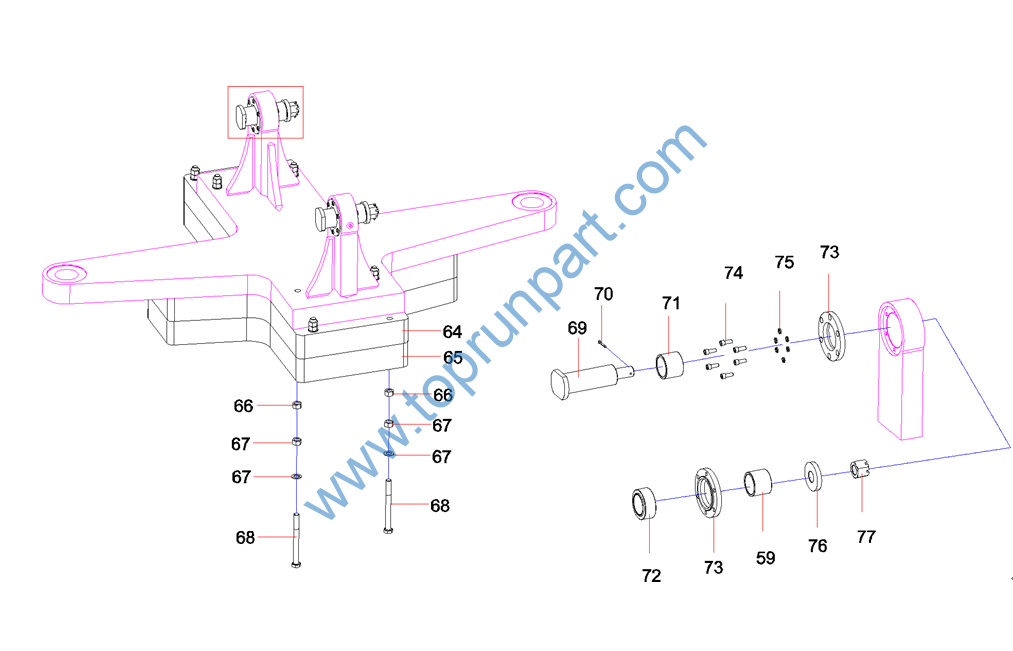

64 13443066 Counterweight rear steering axle,
65 13443068 Counterweight rear steering axle,
66 A210307000030 Nut
67 A210405000009 Washer
68 A210110000109 Bolt
69 A820301020689 Rotating shaft
70 A210491000023 Pin, Cotter
71 A820202003384 shaft sleeve
72 A221500000195 Joint bearing
73 A820201000724 Cover, end, bearing
74 A210204000021 Screw
75 A210405000001 Washer
76 A820102010533 Washer
77 A210356000006 Nut

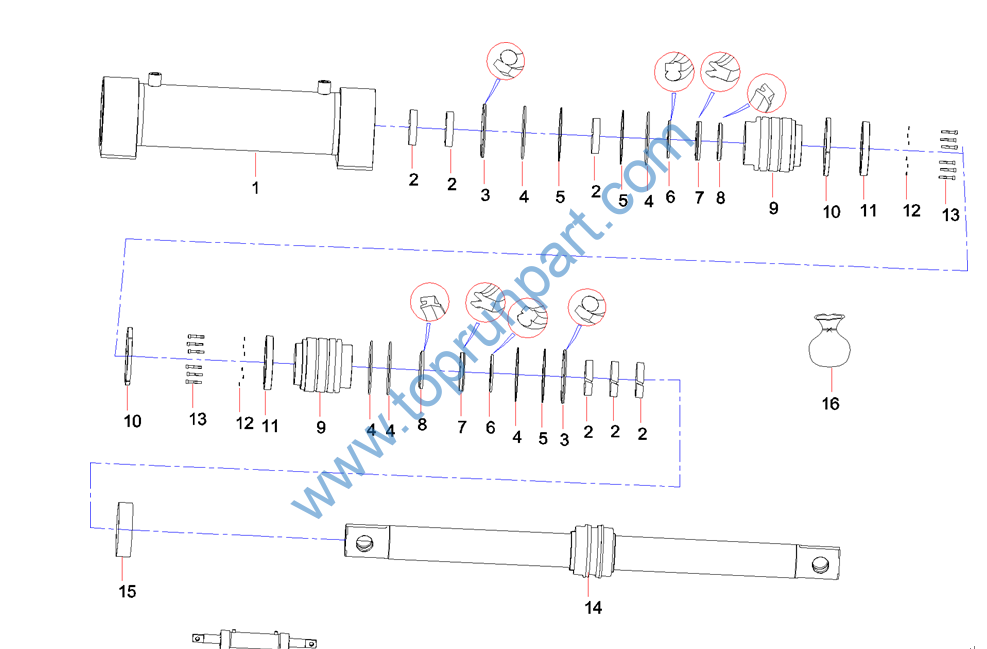

1 10421964 Components of cylinder drum
2 A880803040012 Ring, guide, UP
3 60124157 Ring, seal
4 60011161 O-ring
5 10250757 Ring, Back-up
6 13599577 Seal ring 125×140.1×6.3
7 B230101002134 Seal, ZBR
8 60000474 Ring, dustproof, PWD
9 10421956 Guide sleeve
10 10421958 Clipping Key
11 10421959 Board
12 A210401000017 Washer
13 24002398 Screw M8×50GB70.1 Grade 12.9
14 10421967 Piston Rod Component
15 A880806030154 Seal, MD
16 14155964 seal package

1 B230101002134 Seal, ZBR
2 13599577 Seal ring 125×140.1×6.3
3 A880803040012 Ring, guide, UP
4 60011161 O-ring
5 10250757 Ring, Back-up
6 60000474 Ring, dustproof, PWD
7 A880806030154 Seal, MD
8 60124157 Ring, seal

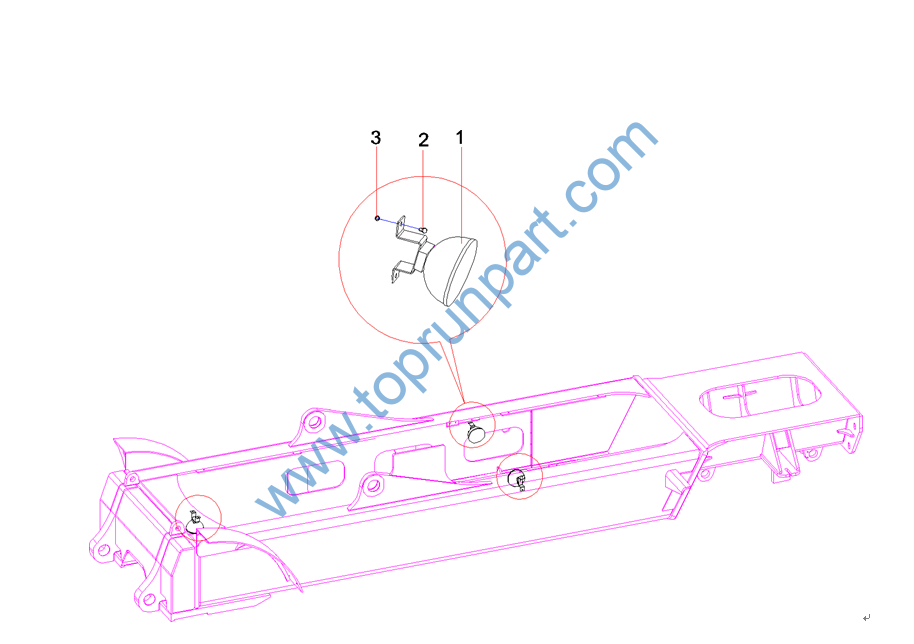

1 60009847 Device, fire extinguisher, dry powder, superfine, pressureless
2 24000529 Bolt
3 A210401000017 Washer

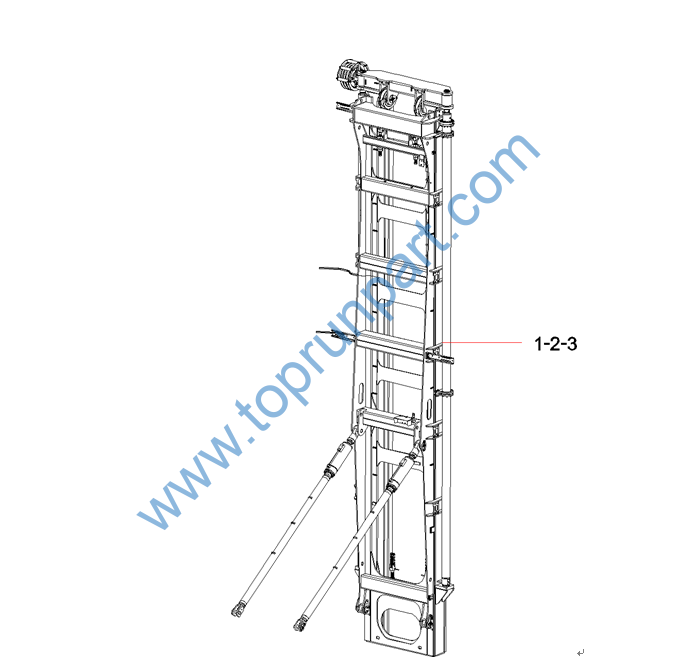

1 14482419 Door bracket assembly
2 14474239 Mast electrical installation
3 14470144 Layout of door bracket pipeline
