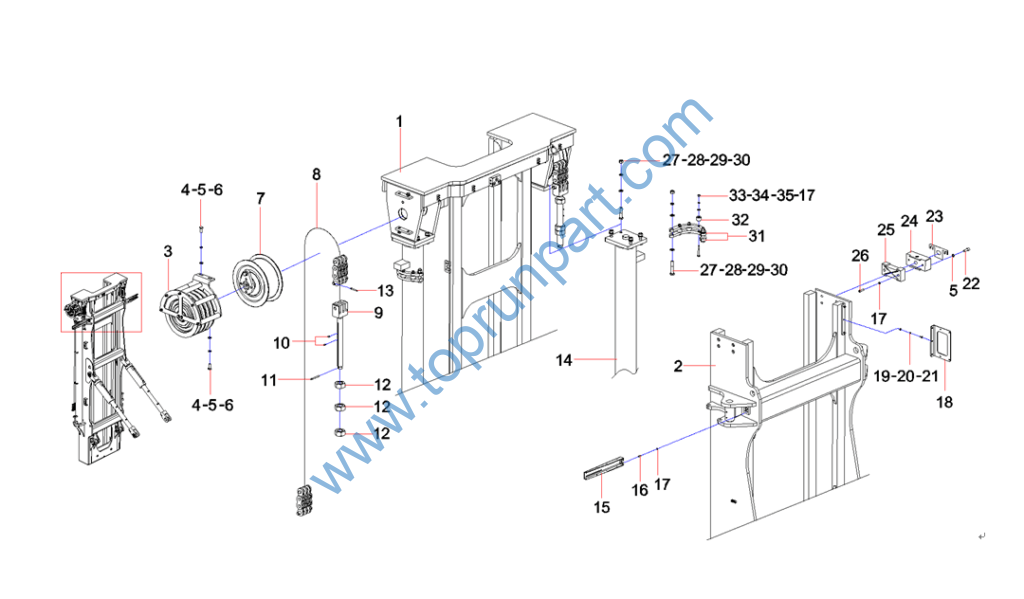

1 14472469 Gantry inner
2 14472196 Gantry external
3 11719780 Assembly, roller, rubber hose
4 A210111000112 Bolt
5 A210401000004 Washer
6 A210405000003 Washer
7 13441019 Assembly, chain wheel
8 120603010011A Leaf chains
9 11648834 chain joint
10 A210208000007 Screw
11 A210491000028 Pin-8×80GB91
12 A210307000039 Nut M48GB6170 Grade 10
13 A210501000008 Pin, Cotter
14 14475232 Lifting oil cylinder
15 11720086 Bracket, oil pipe
16 A210204000020 Screw
17 A210401000002 Washer
18 12901796 Plate, support, sensor
19 A210111000089 Bolt
20 A210401000017 Washer
21 A210405000007 Washer
22 A210204000304 Screw

23 11549701 Adjusting spacer
24 11549699 Upper slide block seat
25 11534139 sliding bock
26 A210204000023 Screw
27 A210110000062 Bolt M20×100GB5782-00
28 A210405000008 Washer
29 A210401000006 Washer
30 A210319000014 Nut
31 12677972 Plate, anchor ear
32 10973101 Block, bufferring
33 A210110000015 Bolt
34 A210405000001 Washer
35 A210319000006 Nut

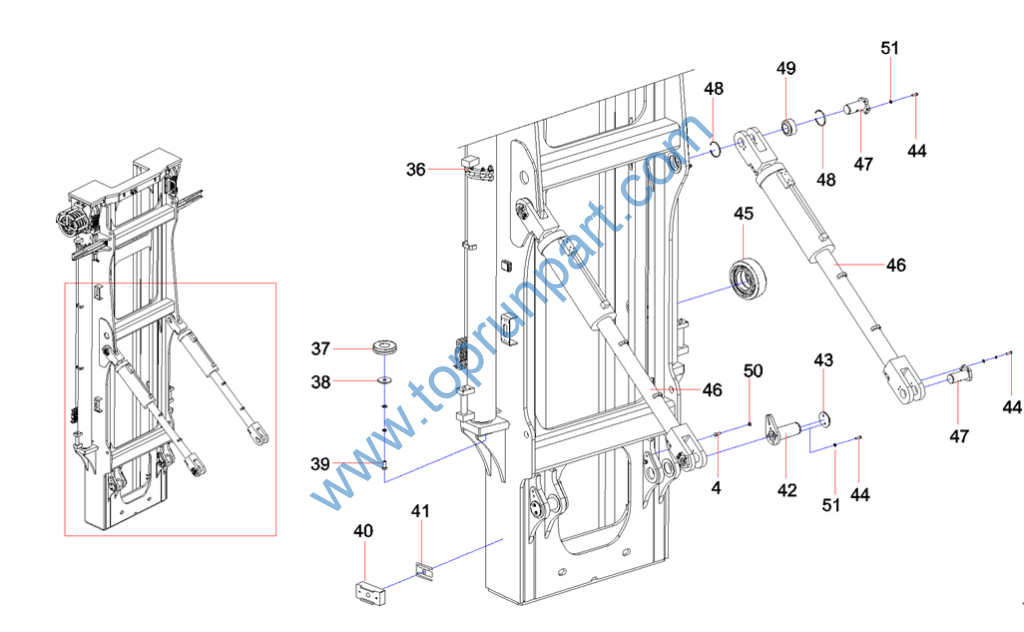

4 A210111000112 Bolt
36 13531622 Anchor ear plate
37 60044619 Bearing, joint
38 A820199330002 Washer
39 A210111000231 Bolt
40 11549710 Lower slide block
41 12842976 Adjusting spacer
42 11547964 Shaft,connecting,frame
43 A820102010693 Buffle
44 A210111000040 Bolt
45 11537980 Contact roller assembly
46 13447371 Swing oil cylinder assem ZX
47 13441012 Shaft, connecting, cylinder
48 A210416000047 Retainer Ring
49 A221500000195 Joint bearing
50 60013684 Washer
51 60013683 locking washer 12 105-01

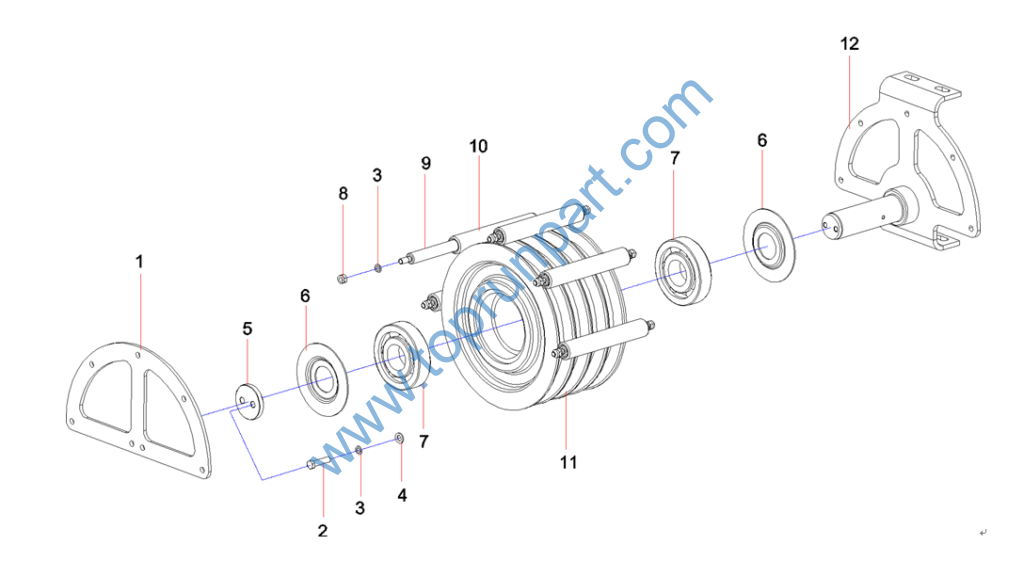

1 12243052 Arc Plate
2 A210111000042 Bolt
3 A210401000002 Washer
4 A210405000001 Washer
5 12000821 Baffle
6 A820101331375 Ringdustproof
7 A210651000160 Bearing, rolling
8 A210314000010 Nut
9 12000820 Guard axis
10 12000818 Nylon Sleeve
11 11719655 Pulley, rubber hose
12 11719180 Pulley wheel shaft of rubber hose

1 A210111000108 Bolt
2 A210401000006 Washer
3 A210405000008 Washer
4 11550032 Rotating Shaft
5 11550117 Ringdustproof
6 A210416000017 Retainer Ring
7 60083277 Bearing, rolling
8 13441015 Wheel, chain
9 11550118 Bush, spacer

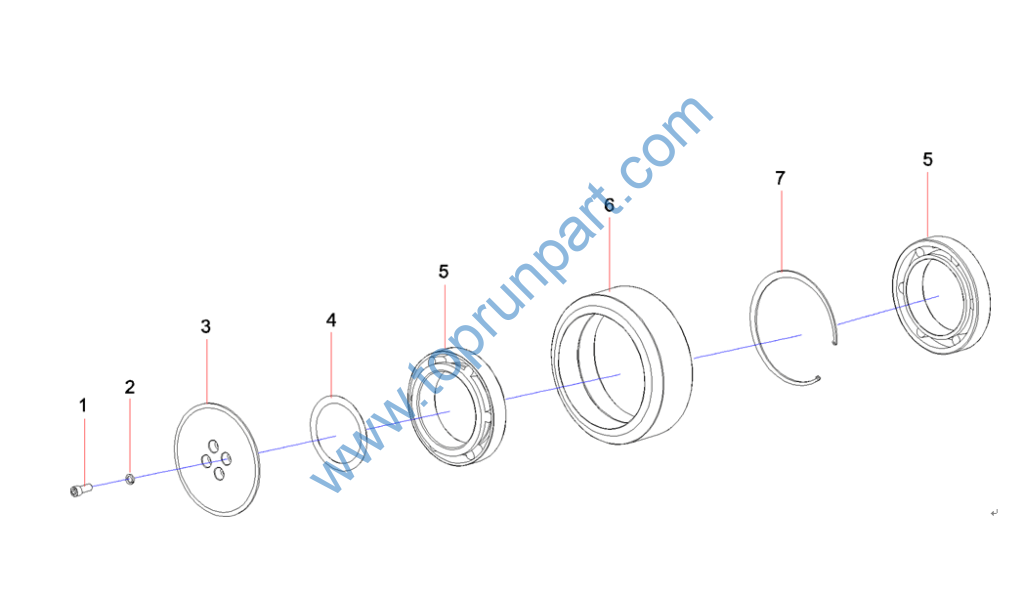

1 A210204000337 Bolt
2 A210401000002 Washer
3 11534137 End cover of contact roller
4 11534440 Adjusting Gasket
5 60083160 Bearing, rolling
6 11534326 Roller Wheel
7 A210416000050 Retainer Ring

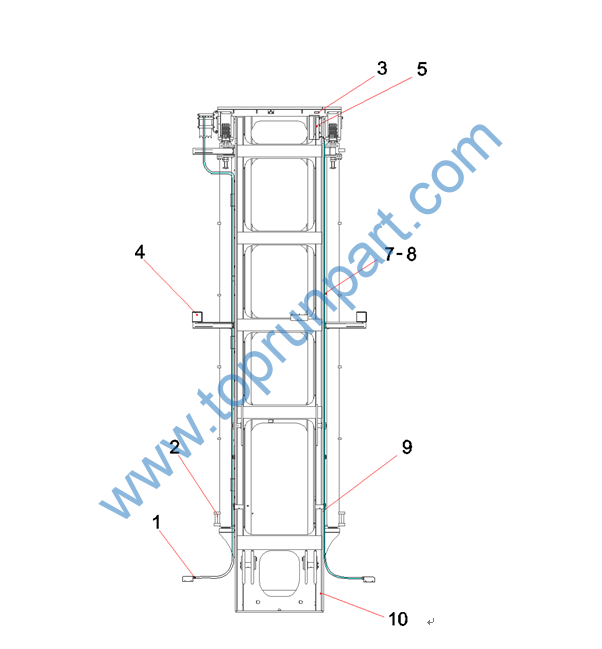

1 14472990 Mast harness
2 12912754 Sensor, pressure
3 14213798 Length and Angle Sensor
4 12895513 Working lamp
5 12889986 Length and angle sensor
7 13275831 Clamp, fastening
8 13275833 Clamp, fastening
9 14472506 Door frame signal harness
10 14473078 Mast welding diagram

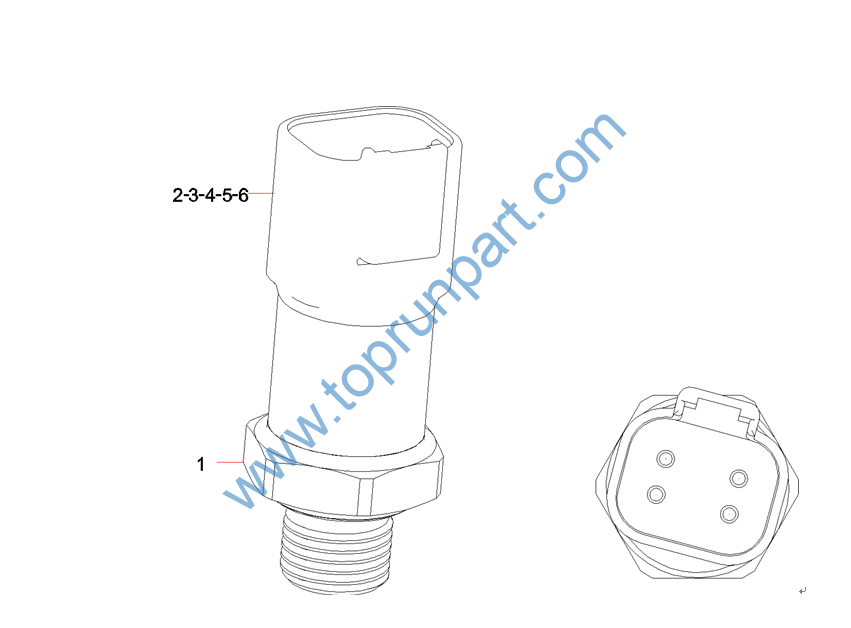

1 60205857 Pressure Sensor
2 60145084 Lock head, plug, 3-wire
3 A249900000970 Joint, cable, nylon
4 B241200000585 Lock, 3-position Plug
5 B229900001093 Socket
6 B241200000602 Plug, 3-position

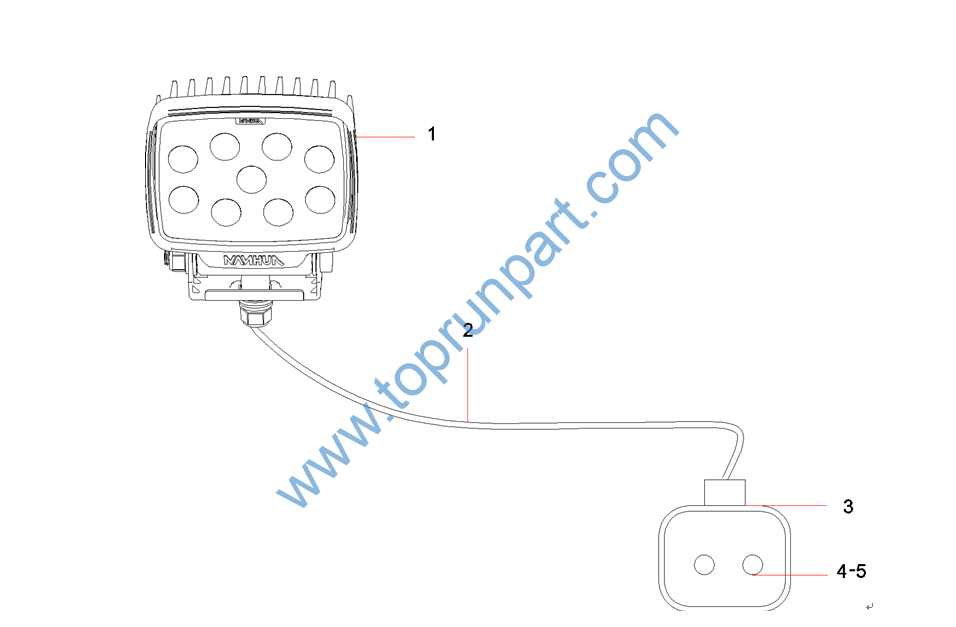

1 60232826 Working light
2 A240900000016 Sleeve, plastic (Black)
3 B241200000582 Receptacle, 2-position
4 B249900000288 Pin
5 A249900001139 Lock, 2-position Receptacle

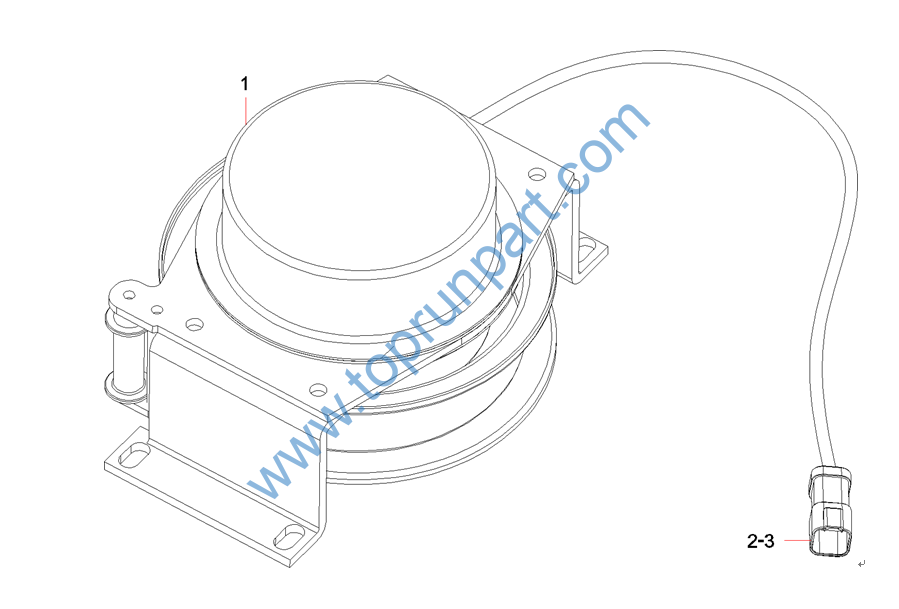

1 60337893 Length & angle sensor
2 13479678 Socket, 6 core
3 B241200000461 Plug, Water-proof

1 B241200000606 Receptacle, 6-position
2 A249900001140 Lock, 6-position Receptacle
3 B249900000288 Pin
4 60120499 Tail, socket, 6-wire

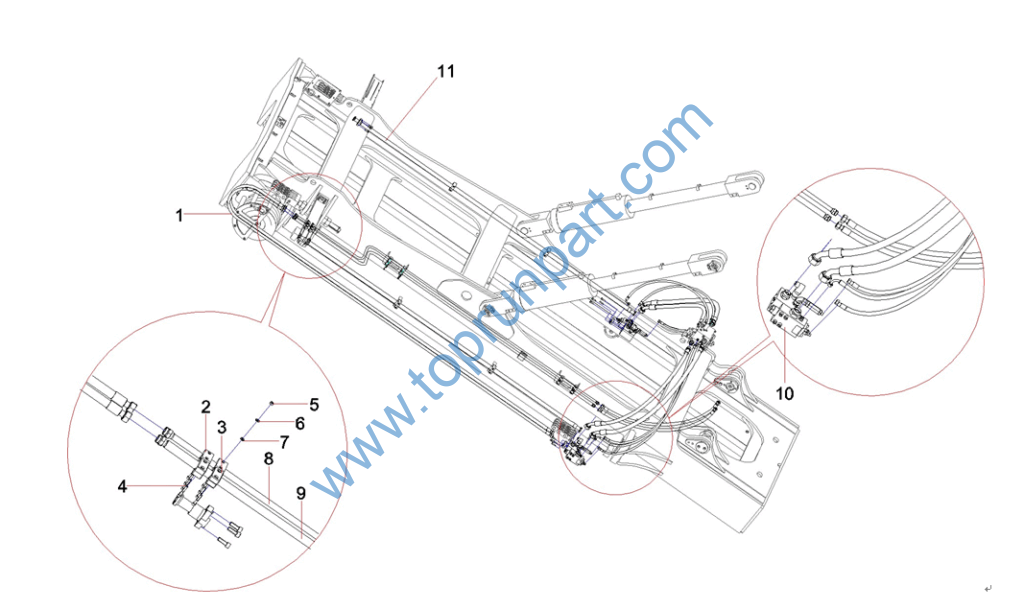

1 60033593 Hose, rubber
2 60165334 Clamp, Tube, Single
3 60014676 Tube clamp body
4 21005334 Bolt
5 A210307000016 Nut
6 A210401000016 Washer
7 A210405000006 Washer
8 14470598 Steel tueb
9 14470602 Steel tube
10 13454049 Group, valve, lifting, left
11 151008210052A Rubber hose
