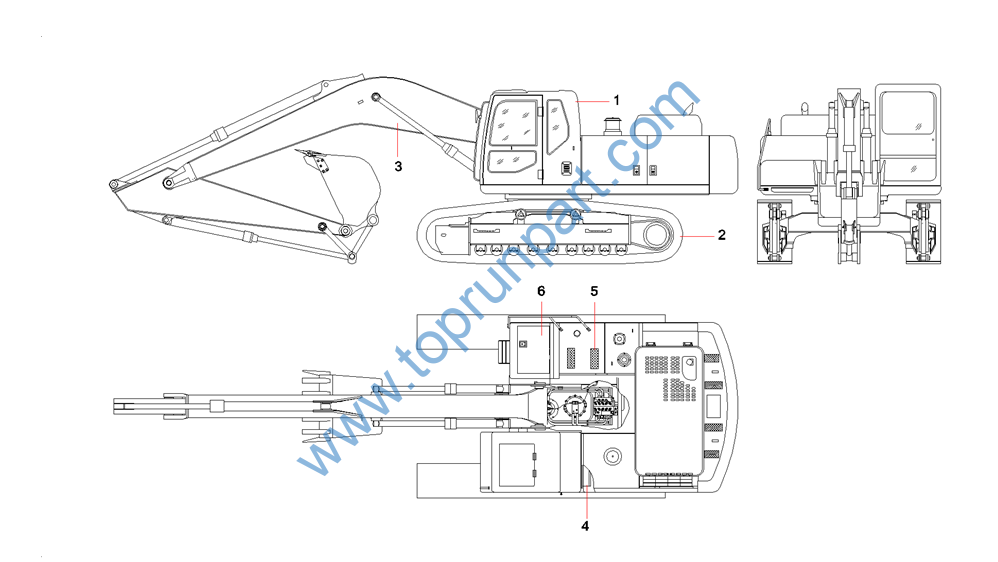

1 12753368 1 回转装置 Slewing device
2 12745013 1 行走装置 Travel device SY335C9H.2
3 12745917 1 工作装置 Work Device SY335C9I2KH.3A
4 12751750 1 电气系统 electrical system SY305C9I2KH.5
5 12368205 1 涂装 Coating
6 12745195 1 随机附件 SY335C9 hydraulic excavator
7 13852709 1 电源开关 power switch SY335C9M2KS.8A
8 14191189 1 沙特版破碎锤管路 Quartering hammer pipeline

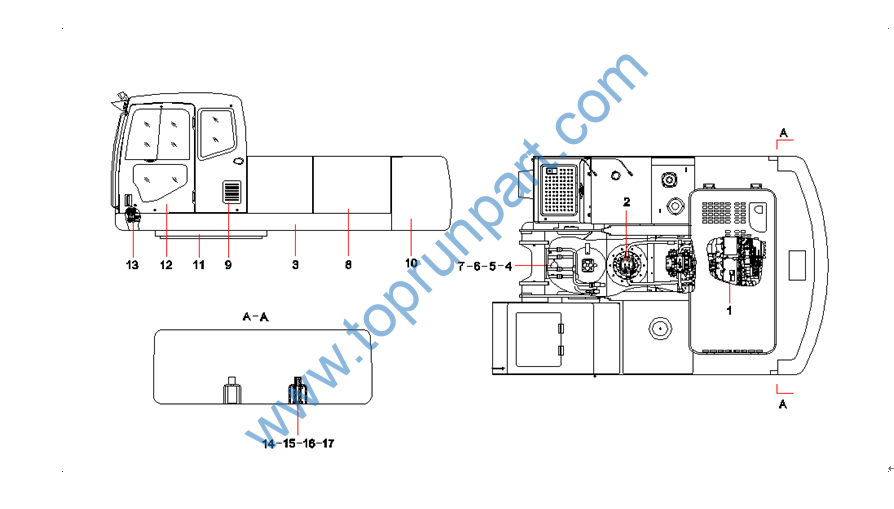

1 12744702 1 动力系统 Power systemSY335C9I2KH.1.3
2 12745962 1 液压主管路 Hydraulic main pipeline
3 12740468 1 回转平台 Revolving Frame
4 A820606030364 1 密封垫 Gasket
5 A820101117871 1 盖 Cover
6 A210111000202 2 螺栓 Bolt
7 24000639 2 垫圈12GB97.1 达克锈 Washer
8 12739185 1 覆盖件总装 General assembly of covering parts
9 12405266 1 空调系统 Air conditioning
10 11598248 1 配重总成 Counterweight assembly
11 13253628 1 回转支承总成 Rotary bearing assy
12 12736989 1 驾驶室总成 Cab SY305C9.1.5
13 12757278 1 先导管路 Pilot Pipeline SY335C9I2KH.1.4A
14 60013102 4 垫圈 Washer
15 60112963 4 螺栓 M33×320GB5782 10.9级 Bolt
16 A820101326339 2 垫片 Spacer
17 14080418 2 垫片 Spacer

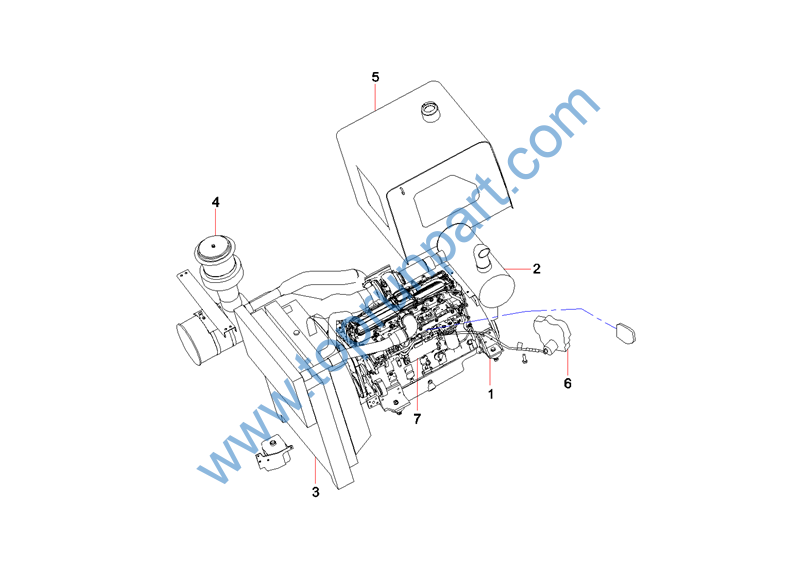

1	A810102060101	1	减震及传动系统	Damping and transmission system
2	A810102070197	1	排气系统	Exhaust systemSY310C1.1.3.2
3	12338949	1	冷却系统	Cooling system SY335C9I2K.1.3.3
4	12341400	1	进气系统	Intake System SY335C9I2K.1.3.4
5	12754013	1	燃油系统	Fuel System SY335C9I2KH.1.3.5
6	13182792	1	油门控制系统	Throttle control
7	B220200000072	1	发动机	Engine

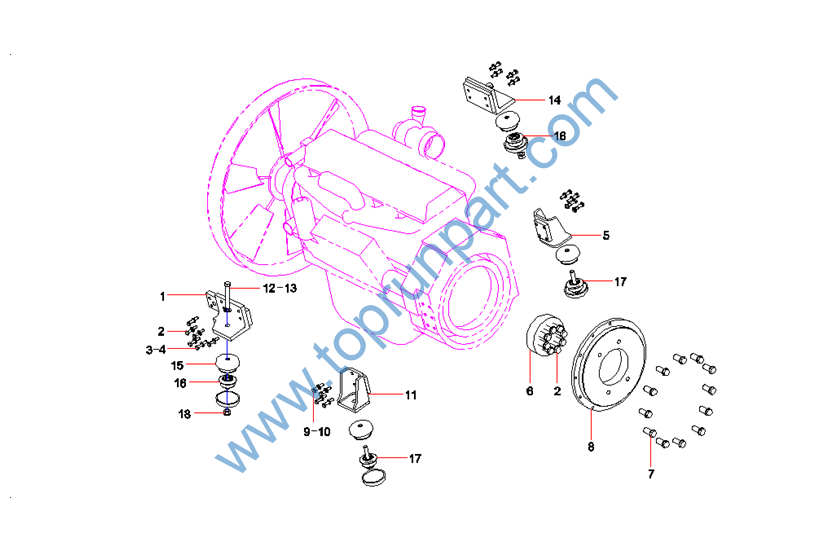

1 A810102060108 1 发动机支架 Engine support
2 A210111000026 6 螺栓 Bolt
3 A210110000447 8 螺栓M10×55GB5782 10.9级 Bolt
4 A210491000120 26 垫圈 washer
5 A810102060111 1 发动机支架 Engine support
6 60051280 1 法兰联轴器 Flanging coupling
7 A210111000120 12 螺栓M10×45GB5783 10.9级 Bolt
8 A820201001245 1 端盖 End cover SY310C1.1.3.1-1
9 A210110000009 8 螺栓 Bolt
10 A210491000121 8 垫圈 Washer
11 A810102060109 1 发动机支架 Engine support
12 A820301021297 4 螺栓 Bolt
13 A210491000144 8 垫圈 washer
14 A810102060110 1 发动机支架 Engine support
15 A820101341529 8 碗垫 Coaster, Bowl
16 A230199000043 4 橡胶件 rubber parts 4256314
17 A230199000042 4 橡胶件 rubber parts 4188649
18 A820204000534 4 螺母 Nut

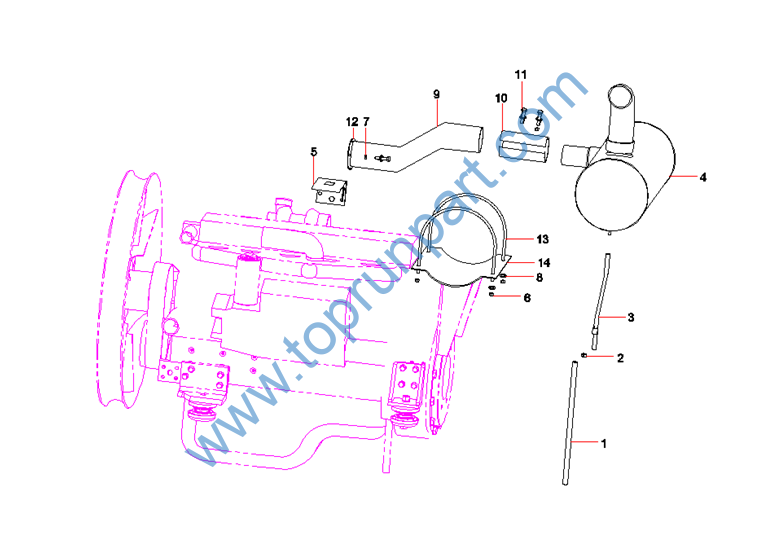

1 A820606030837 1 引水胶管 Water Plastic Tube
2 A229900001347 1 软管环箍 Clamp
3 A810102079062 1 引水管 Tube
4 A220202000028 1 消声器总成 Muffler assembly
5 A810102072198 1 隔热盖 Thermal insulation cover
6 A210307000036 6 螺母 Nut
7 A210346000007 4 螺母 Nut
8 A210491000120 10 垫圈 washer
9 A810102071260 1 排气接管 exhaust assistant pipe
10 11761299 1 抱箍 Anchor Ear
11 21005186 2 螺栓 Bolt
12 60101678 1 垫圈 Washer
13 A820301017053 2 U型螺杆 U-type threaded rod
14 A810102072199 1 消音器支架 Silencer Bracket

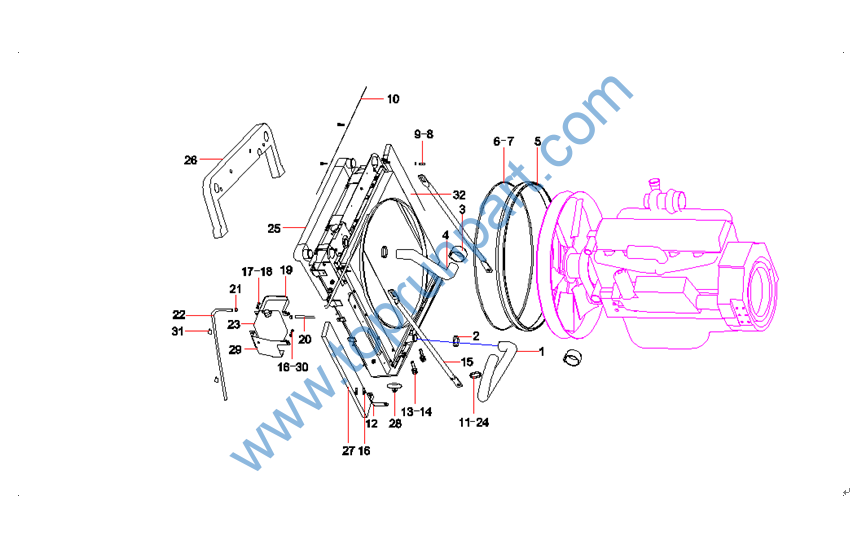

1 11944887 1 进水胶管 Oil-in rubber hose
2 60202886 1 喉箍 CLAMP
3 60219321 3 喉箍φ58-φ71 W型内衬 Clamp, hose
4 12119616 1 回水胶管 Return rubber hose
5 A230199000044 1 橡胶罩 Rubber Cover
6 A229900004513 1 环箍 Hoop
7 A229900004514 1 锁扣 Lock
8 A210111000263 4 螺栓 Bolt
9 A210491000118 4 垫圈 High-strength steel washer
10 A820606030560 2 密封条 Sealing strip
11 12016797 1 管夹 Pipe Clamp
12 12010877 1 板 plate
13 A210204000337 4 螺钉M12×30GB70.1 10.9级 Bolt
14 60060548 8 垫圈12GB96.1 达克锈 Washer
15 A820301017054 2 支撑 Support
16 A210491000120 7 垫圈 washer
17 A210204000220 2 螺钉M8×20GB70.1 10.9级 Screw
18 24000633 2 垫圈8GB97.1 达克锈 Washer
19 A810102099060 1 支架 Bracket
20 A820606030367 1 软管 hose

21 A229900001345 3 软管环箍 Clamp
22 12957673 1 水管 hose
23 A229900001590 1 储液箱 Tank, coolant
24 A820606030450 1 护套 Grommet
25 60173254 1 散热器 Cooler Assembly
26 12259061 1 顶部海绵 Top sponge
27 11857942 1 左侧海绵 Left-hand sponge
28 11961759 11 扣钉 Cramp
29 A810102099162 1 支架 Bracket
30 A210111000012 7 螺栓 M10×20GB5783 10.9级 Bolt
31 60083322 2 线夹 Clamp
32 11858836 1 右侧海绵 Right-hand sponge

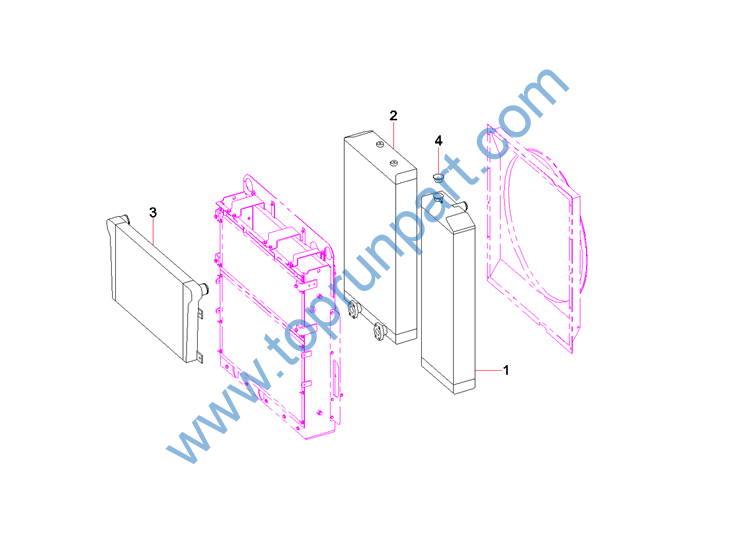

1 60180527 1 散热器 Radiator
2 60122956 1 散热器 Radiator
3 60122957 1 散热器 Radiator
4 60125365 1 水箱盖 Cap, coolant tank
