1 B229900001059 7 T型抱箍 Clamp
2 A820606030826 2 短胶管 Short rubber tube
3 12119618 1 中冷钢管 Intercooled steel tube
4 A820606030824 1 中冷进气胶管 Intercooled air-intake hose
5 13295570 1 中冷进气钢管 Inter-Cooler Intake Pipe
6 12119617 1 中冷排气胶管 Intercooled air-intake hose
7 A229900003759 1 T型抱箍 Clamp
8 A210491000120 10 垫圈 washer
9 24000633 8 垫圈8GB97.1 达克锈 Washer
10 A210204000334 4 螺钉M10×16GB70.1 10.9级 Bolt, socket head
11 A810102072216 1 固定架 Fixed frame
12 A810102072217 1 固定架 Fixed frame
13 A820101345946 2 管箍 Tube collar
14 13354676 1 短胶管 Short rubber tube
15 11856750 1 进气接管 Air inlet connecting tube
16 A210111000202 12 螺栓 Bolt
17 A210491000121 12 垫圈 Washer
18 11856353 1 空滤固定架 Fixed frame SY365C8I2KS.1.3.4.2
19 A210111000270 2 螺栓M10×90 GB5783 10.9级 Bolt M10×90GB5783 Grade 10.9
20 A210204000220 8 螺钉M8×20GB70.1 10.9级 Screw

21 10131920 2 空滤卡箍 Clamp assembly
22 60125399 1 空气滤清器 Air cleaner
23 A229900002262 1 T型抱箍 T-type anchor ear
24 11856555 1 前进气胶管 Front air intake rubber hose
25 A229900002220 1 T型抱箍 Clamp
26 10120823 1 进气钢管 Air intake steel tube
27 A222100000384 1 空气预滤器 Air Pre-Filter
28 A229900002734 1 T型抱箍 Clamp
29 10120819 1 后进气胶管 Rear air inlet rubber hose
30 A229900001659 1 T型抱箍 Clamp
31 60262508 4 螺栓M12×30GB5783 10.9级 锌镍 Bolt
32 60262511 4 垫圈12GB96.1 锌镍合金 Washer

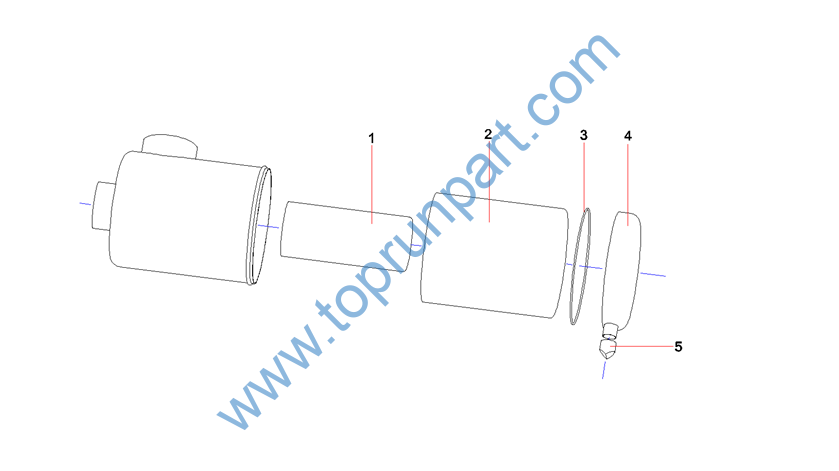

1 B222100000640 1 空气滤清器安全滤芯 Auxiliary cartridge of air cleaner
2 B222100000641 1 空气滤清器主滤芯 Main cartridge of air cleaner
3 60176285 1 密封圈 Seal ring
4 60176264 1 盖 CAP
5 60176270 1 排尘阀 Dust Exhaust Valve

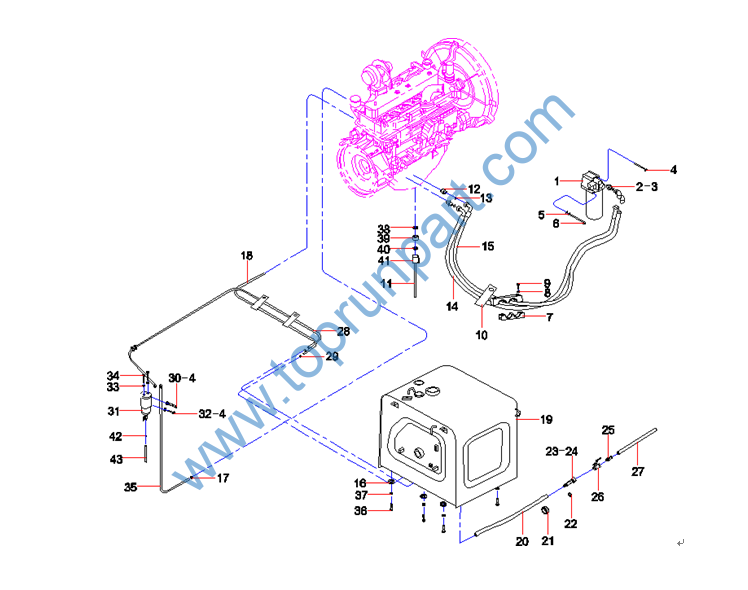

B222100000398 Oil filter
A820205000942 Fitting
B210780000028 Fitting, Elbow
A210204000477 Bolt
24000637 Washer
21008534 Screw
12020025 Pipe Clamp
24000639 Washer
A210111000199 Bolt
60149606 Clamp
12213205 Oil drain
11609465 joint
B230101000356 O-Ring-23.7
60148699 Rubber Hose
60148700 Rubber Hose
12931354 Gasket
A210855000003 Clamp
12957641 fuel return tube SY200B.1.3A.5-2C
13372661 Fuel Tank Assy.
12019940 soft pipe

11348391 Grommet
24000514 Washer
A210307000028 Nut
11251714 Adapter
11331654 Adapter
60046622 Switch, fuel
11273607 Hose
12957788 Oil-out tube of fuel tank
A229900001347 Clamp
A210204000358 Bolt
60018743 Diesel Fuel Cleaner
A210204000355 Bolt, socket head
A210459000002 Washer
A210199000016 bolt
12786627 Oil-out tube of fuel tank
A210204000198 Bolt, socket head
A210491000118 High-strength steel washer
60006362 Washer
11604207 adapter
60006360 Washer, copper

B220401000916 1 放油阀 Valve AS, drain
A229900001345 1 软管环箍 Clamp
A820606030088 1 粗滤水管 Coarse Water filter tube-

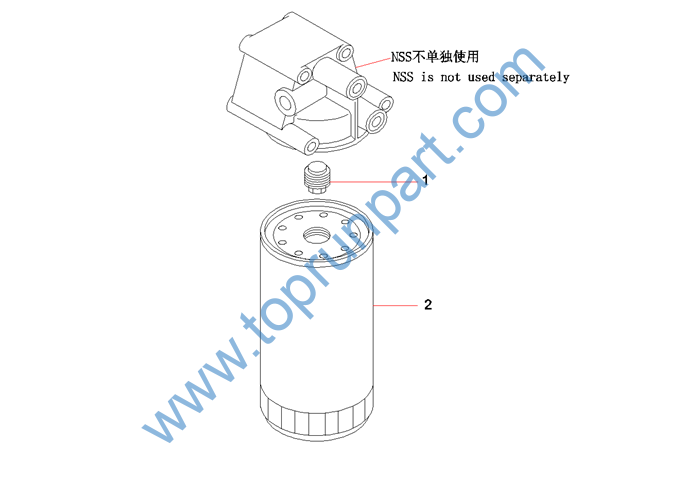

1 B229900004781 1 连接螺塞 Connecting screw plug
2 B222100000494 1 机油滤清器 Oil filter

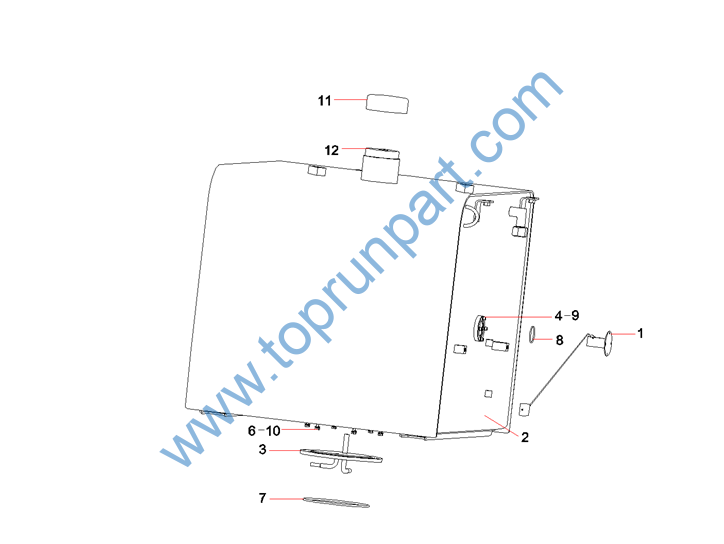

1 60029642 1 液位传感器 Sensor GP, fuel level
2 13372660 1 燃油箱 Fuel Tank SY335C9I2K.1.3.5.4.1A
3 13733747 1 底盖总成 Pickup AS, fuel
4 A210405000006 4 垫圈 Washer
6 A210405000007 6 垫圈 Washer
7 B230101000934 1 形圈 O-ring
8 B230101000457 1 O形圈 O-ring
9 A210204000129 4 螺钉 Screw-M6×12GB70.1
10 A210111000090 6 螺栓 Bolt
11 60312034 1 燃油箱防盗锁盖 COVER OF FUEL TANK
12 60117826 1 燃油箱滤网 Strainer AS, fuel

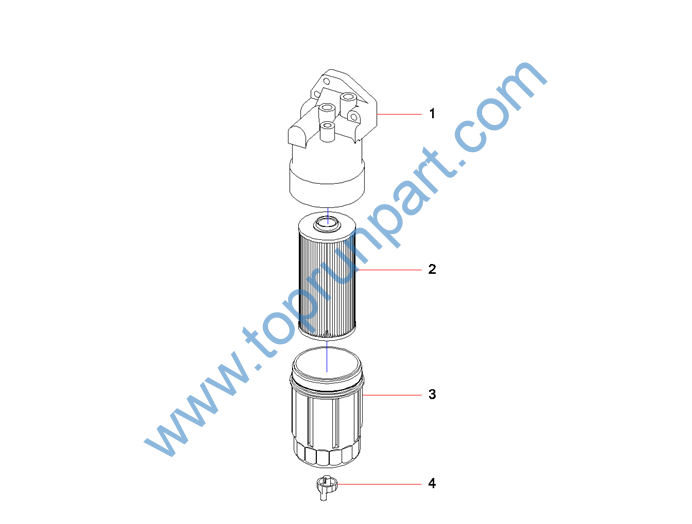

1 60078250 1 座 Fuel Filter Seat
2 60201220 1 燃油粗滤芯 Fuel Strainer Element
3 60180565 1 集水杯 Water Cup
4 60078244 1 塞 PLUG

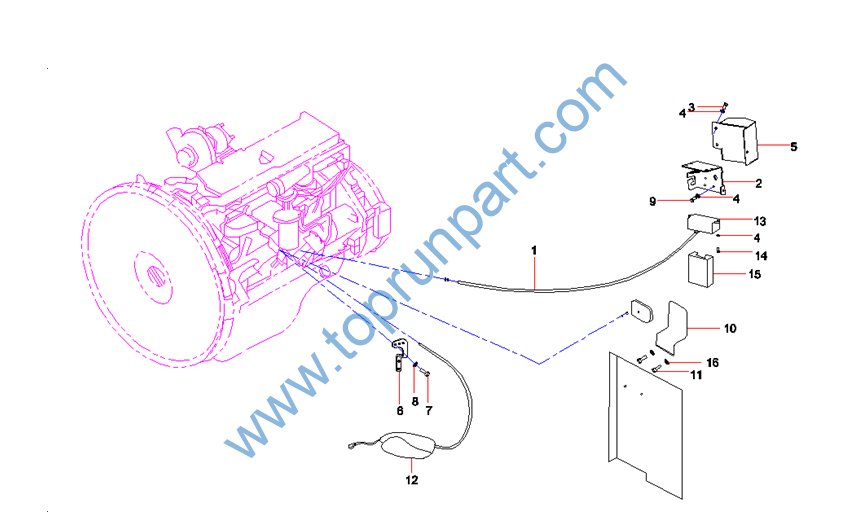

1 60240318 1 推拉软轴 Sliding soft shaft
2 13134903 1 马达支架 motor
3 A210204000196 3 螺钉 Screw
4 A210491000120 10 垫圈 washer
5 13134718 1 防水罩 waterproof
6 11626828 1 油门电机拐臂 Throttle connecting lever
7 A210204000220 1 螺钉M8×20GB70.1 10.9级 Screw
8 24000633 1 垫圈8GB97.1 达克锈 Washer
9 A210111000012 4 螺栓 M10×20GB5783 10.9级 Bolt
10 10145126 1 停止器支架 Stopper support
11 A210111000092 2 螺栓 Bolt
12 B229900002662 1 电机Z0.06-24-3带拉线 Stopper GP, electric
13 60099069 1 电机TB0.25-24-1.5步进角1.8度 accelerograph motor
14 A210204000357 3 螺钉M10×60GB70.1 10.9级 Bolt
15 13161805 1 护套 Protective sleeve
16 60060565 4 垫圈8GB96.1 达克锈 Washer
