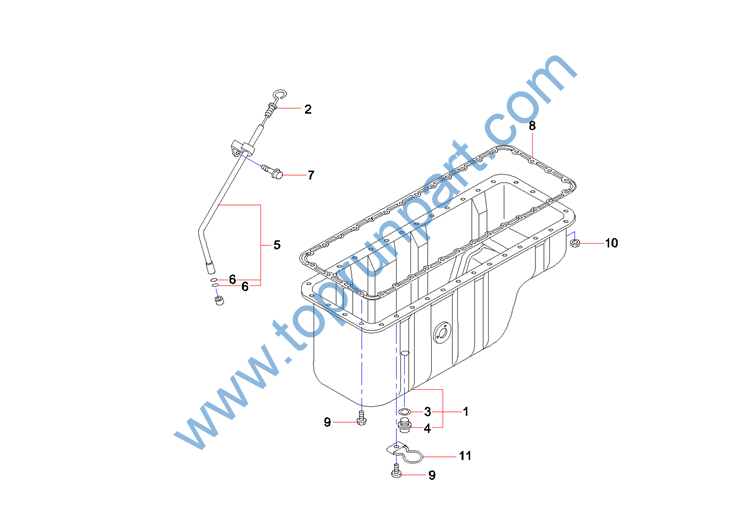

1 B229900004446 1 油底壳 Pan, oil
2 B229900005113 1 油标尺 Gauge, Oil Lever(Engine)
3 B229900004520 1 垫片 Gasket
4 B229900003258 1 放油螺塞 Plug
5 B229900004489 1 标尺导管 Measuring scale conduit
6 B229900004546 2 垫片 Shim
7 B229900004850 1 螺栓 Bolt 028050-8160 M8×16 flange
8 B229900004448 1 油底壳垫 Gasket
9 B229900004871 30 螺栓 Bolt 028080-8180 M8×18 flange
10 B229900004799 4 螺母 Nut 091180-1080 M8 flange
11 B229900004707 1 管夹 Clip

1 B229900004431 1 凸轮轴 Camshaft
2 B229900004349 12 进气门 Valve, Inlet
3 B229900004386 12 排气门 Valve, Exhaust
4 B229900004949 1 螺栓 Bolt
5 B229900004632 1 垫圈 Washer
6 B221801000032 1 齿轮 Gear
7 B229900005048 4 上轴瓦 Bearing, Upper
8 B229900005051 4 下轴瓦 Lower bearing bush
9 B229900005058 1 销 shaft
10 B229900004440 1 摇臂轴 Rock arm shaft
11 B229900004792 12 螺杆 Threaded rod
12 B229900004824 12 螺母 Nut 909844-5740 M8 flange
13 B229900004442 12 摇臂座 Swing Arm Seat
14 B222200000044 48 锁扣 Locker
15 B229900004749 12 进气门弹簧 Inlet valve spring
16 B229900005021 12 排气门弹簧 Exhaust valve spring
17 B229900005041 24 气门弹簧座 Air valve spring seat
18 B229900005042 24 气门弹簧座 Air valve spring seat
19 B229900004395 24 气门密封 Washer
20 B229900004855 2 螺栓 M8×40凸缘 Bolt

21 B229900004945 5 螺栓 Bolt 894393-1310 M10×62 flange
22 B229900004437 6 摇臂 Rock Arm
23 B229900004438 6 摇臂 Rock Arm
24 B229900005070 12 摇臂螺钉 Rock arm screw
25 B229900004795 12 螺母 Nut
26 B229900005076 5 摇臂轴支架 Rock arm shaft support
27 B229900005075 6 摇臂轴弹簧 Rock arm shaft spring
28 B229900004943 1 螺栓 Bolt
29 B229900004258 12 盖 Cover

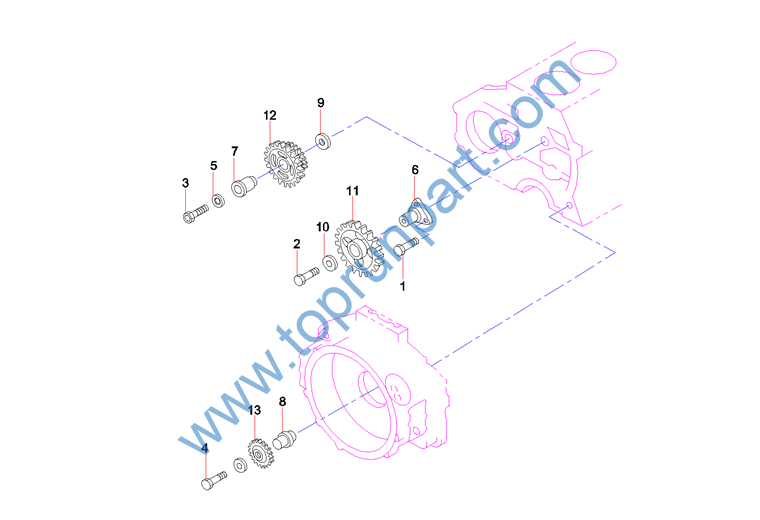

1 B229900004865 3 螺栓 M8×16凸缘 Bolt 028060-8160 M8×16 flange
2 B229900004846 1 螺栓 Bolt
3 B229900004947 1 螺栓 Bolt
4 B229900004953 1 螺栓 Bolt
5 B229900004585 2 垫圈 Washer
6 B229900004232 1 惰轮轴 Idler wheel axle
7 B229900004233 1 惰轮轴 Idler wheel axle
8 B229900004230 1 惰轮轴 Shaft, Idler
9 B229900004228 1 惰轮圈 Gear Ring, Idler
10 B229900004229 1 惰轮圈 Idler rim
11 B221801000038 1 惰齿轮 Gear, Idler
12 B221801000039 1 惰齿轮 Idler gear
13 B221801000040 1 惰齿轮 Gear, Idler

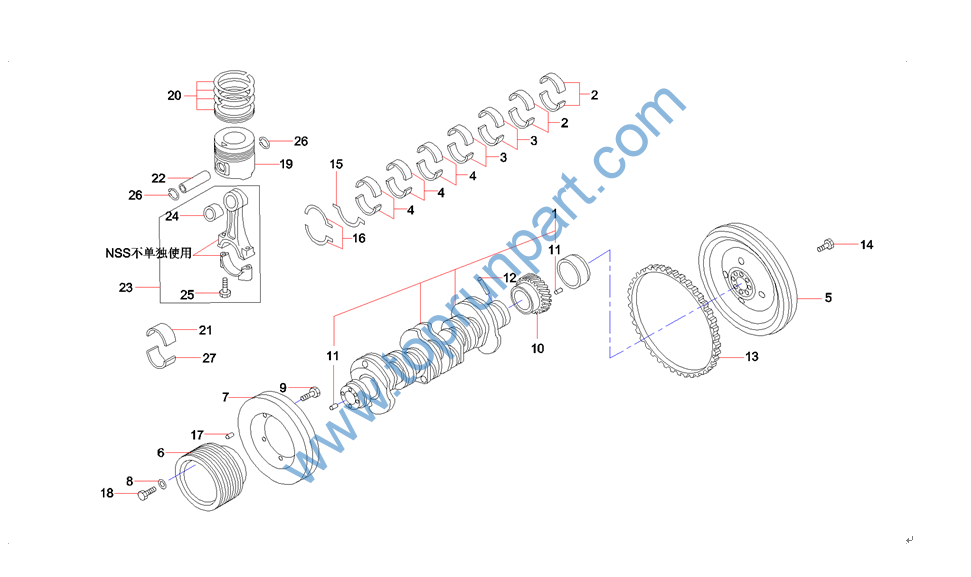

1 B229900004401 1 曲轴 Crankshaft
2 B229900005044 7 曲轴瓦 蓝 Crank shaft bush 897372-0761
3 B229900005045 7 曲轴瓦 黑 Crank shaft bush 897372-0771
4 B229900005046 7 曲轴瓦 棕 Bearing, Crankshaft (brown)
5 B229900004238 1 飞轮 Flywheel
6 B229900005128 1 皮带轮 Pulley
7 B229900004337 1 减震盘 Damper
8 B229900004633 4 垫圈 Washer
9 B229900004885 6 螺栓 Bolt 028151-0160 M10×16 flange
10 B229900004402 1 曲轴齿轮 Crank shaft gear
11 B229900005064 2 销 shaft
12 B229900005067 1 销 Dowel
13 B229900004199 1 齿圈 Toothed Ring
14 B229900004944 8 螺栓 Bolt
15 B229900004202 1 挡垫 Gasket , Retaining
16 B229900004203 2 挡垫 Gasket , Retaining
17 B229900005057 1 销 shaft
18 B229900004843 4 螺栓 Bolt
19 B229900003259 6 活塞 Piston
20 B229900003261 6 活塞环 Ring, Piston

21 B229900004361 6 连杆瓦 绿 Bearing, Connecting Rod (Green)
22 B229900003262 6 活塞销 Pin, Piston
23 B229900003267 6 连杆总成 Connecting rod GP
24 B229900004780 6 连杆轴套 Sleeve
25 B229900004778 12 连杆螺栓 Bolt, connecting rod
26 B229900004516 12 挡圈 Retainer Ring
27 B229900004362 6 连杆瓦 黄 Bearing, Connecting Rod (Yellow)

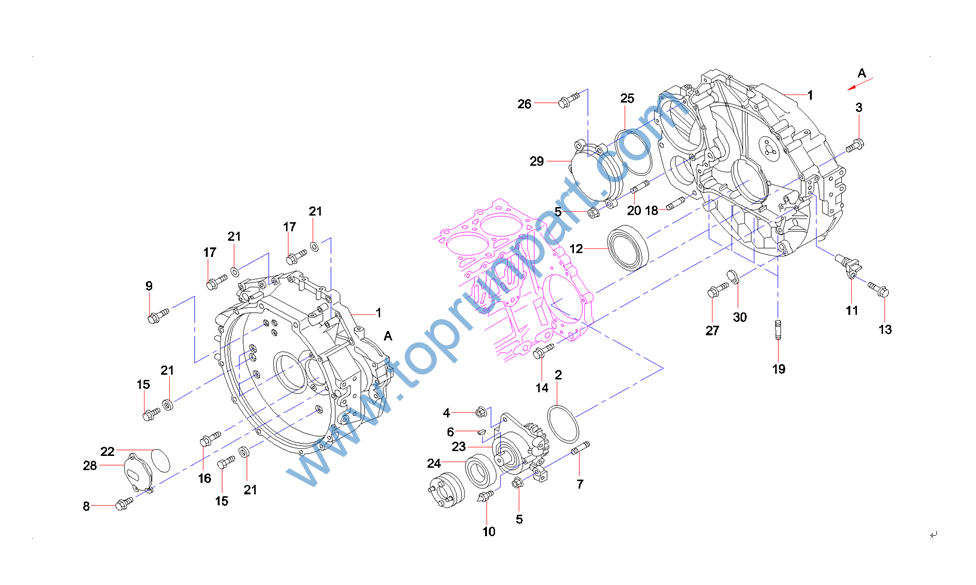

1 B229900004241 1 飞轮壳 Flywheel Housing
2 B229900004523 1 垫片 Spacer
3 B229900004893 1 螺栓 Bolt 028151-2000 M12×100
4 B229900004800 2 螺母 M10凸缘 Nut 091180-1100 M10 flange
5 B229900004804 2 螺母 M12凸缘 Nut 091180-2120 M12 flange
6 B229900004340 1 键 Key
7 B229900005010 1 螺柱 Threaded stud
8 B229900004869 3 螺栓 M8×14凸缘 Bolt 028080-8140 M8×14 flange
9 B229900004851 3 螺栓 Bolt 028050-8200 M8×20 flange
10 B229900005110 1 指示器 Pointer
11 B240600000330 1 传感器 Sensor
12 B230101001796 1 油封 Seal, Crankshaft (Rear)
13 B229900004848 1 螺栓 M6×16凸缘 Bolt 028050-6160 M6×16 flange
14 B229900004844 1 螺栓 M12×60凸缘 Bolt 016856-2600 M12×60 flange
15 B229900004890 2 螺栓 M10×50凸缘 Bolt 028151-0500 M10×50 flange
16 B229900004946 1 螺栓 M14×27凸缘 Bolt 894393-9950 M14×27 flange
17 B229900004845 2 螺栓 Bolt
18 B229900005007 2 螺柱 Stud
19 B229900005012 4 螺柱 Threaded stud
20 B229900005006 1 螺柱 Stud

21 B229900004600 12 垫圈 Washer
22 B229900004601 1 垫圈 Washer
23 B220301000575 1 油泵连接盘 Oil pump connecting disc
24 B230101001793 1 油封 Seal, Crankshaft (Front)
25 B229900004526 1 垫片 Gasket
26 B229900004894 3 螺栓 M12×70凸缘 Bolt
27 B229900004847 1 螺栓 Bolt 028050-6120 M6×12 flange
28 B229900004257 1 盖 Cover
29 B229900004261 1 盖 Cover Plate
30 B229900004250 1 盖 Cover

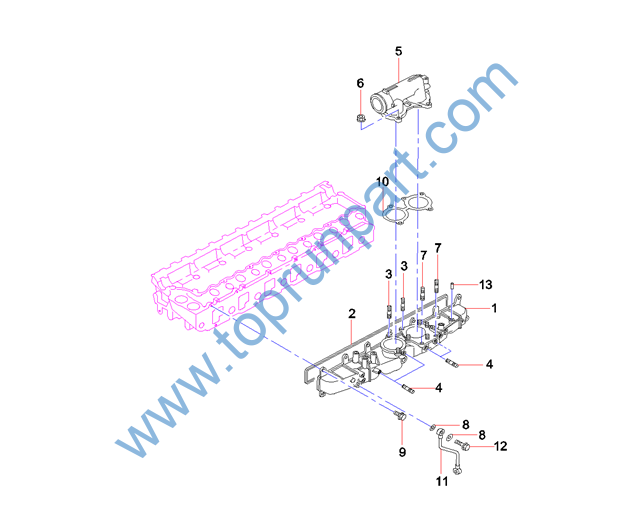

1 B229900004347 1 进气管 Pipe, air inlet
2 B229900004348 1 进气管垫 Intake Pipe Gasket
3 B229900005001 5 螺柱 Threaded stud
4 B229900005000 5 螺柱 Threaded stud
5 B229900004353 1 进气歧管 Manifold, Air Inlet
6 B229900004799 5 螺母 Nut 091180-1080 M8 flange
7 B229900005005 2 螺柱 Stud
8 B229900004569 2 垫片 Shim
9 B229900004897 14 螺栓 M8×25凸缘 Bolt 028650-8250 M8×25 flange
10 B229900004561 1 垫片 Gasket
11 B229900004293 1 管 Pipe
12 B229900004739 1 铰接螺栓 Articulating Bolt
13 B229900005066 1 销 Dowel

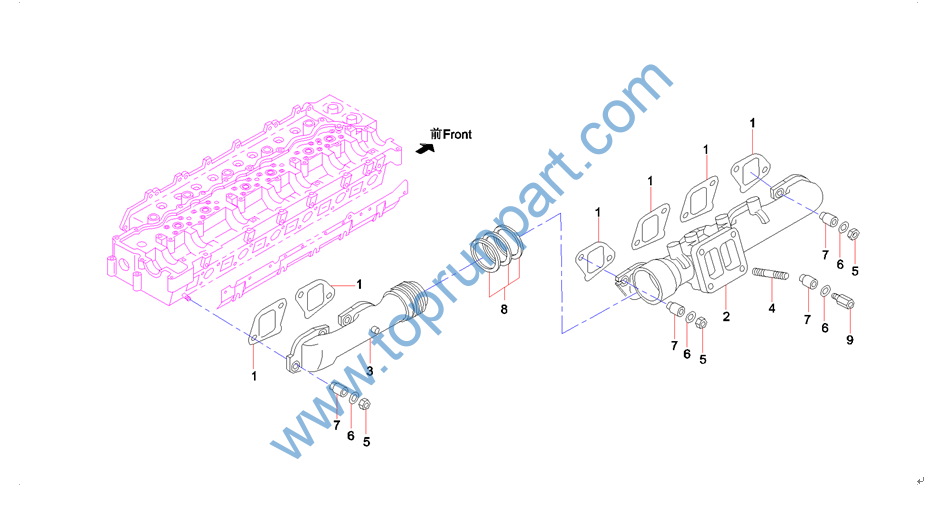

1 B229900004385 6 排气管垫 Exhaust tube pad
2 B229900003269 1 排气管(前) Manifold, Exhaust (Front)
3 B229900003268 1 排气管(后) Manifold, Exhaust (Rear)
4 B229900003744 1 排气歧管双头螺栓 五十铃 Stud
5 B229900004803 11 螺母 M10凸缘 Nut 091180-2100 M10 flange
6 B229900004590 12 垫圈 Washer
7 B229900004313 12 过渡套 Joint bushing
8 B230101001779 1 密封环 Ring, Seal
9 B229900004721 1 管螺母 Nut, Pipe
