1 B229900004358 1 空气呼吸管 Pipe, breather
2 B229900004711 3 管夹 Clip
3 B229900004708 2 管夹 pipe nip
4 B230103007487 1 橡胶管 Hose, Rubber
1 B220302000013 1 水泵 Pump, Water
2 B230106000122 1 水泵皮带轮 Water Pump pulley
3 B229900004858 5 螺栓 M8×10凸缘 Bolt 028050-8800 M8×10 flange
4 B229900005003 1 螺柱 Stud
5 B229900004862 6 螺栓 M10×60凸缘 Bolt 028051-0600 M10×60 flange
6 B229900004799 1 螺母 Nut 091180-1080 M8 flange

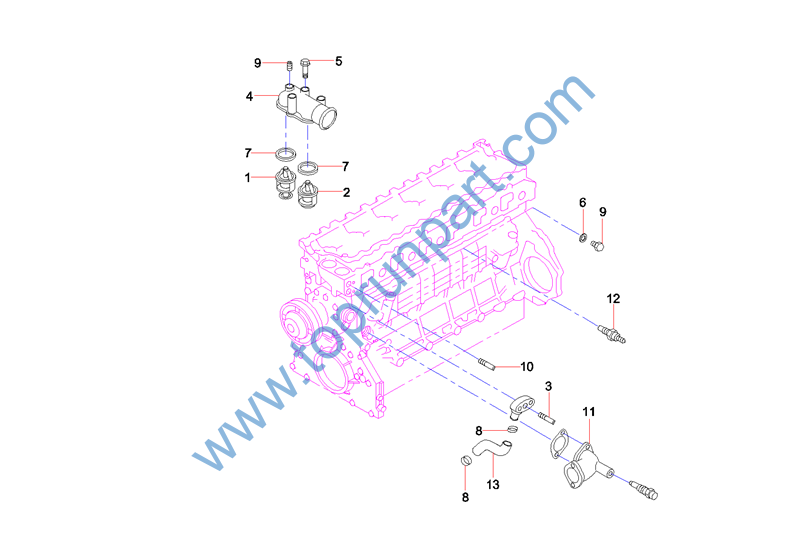

1 B229900003263 1 节温器 Thermostat
2 B229900003264 1 节温器 Thermostat
3 B229900004300 1 管 Tube
4 B229900004201 1 出水管 Tube, Outlet
5 B229900004859 3 螺栓 M8×80凸缘 Bolt
6 B229900004534 1 垫片 Spacer
7 B229900004599 2 垫圈 Washer
8 B229900004753 2 卡箍 Clip
9 B229900004675 2 堵头 Screw Plug
10 B229900004276 1 管 Pipe
11 B229900004413 1 水管 Tube
12 B241200001054 1 过热报警开关 Switch, water temperature
13 B229900004392 1 旁通管 Hose, Bypass

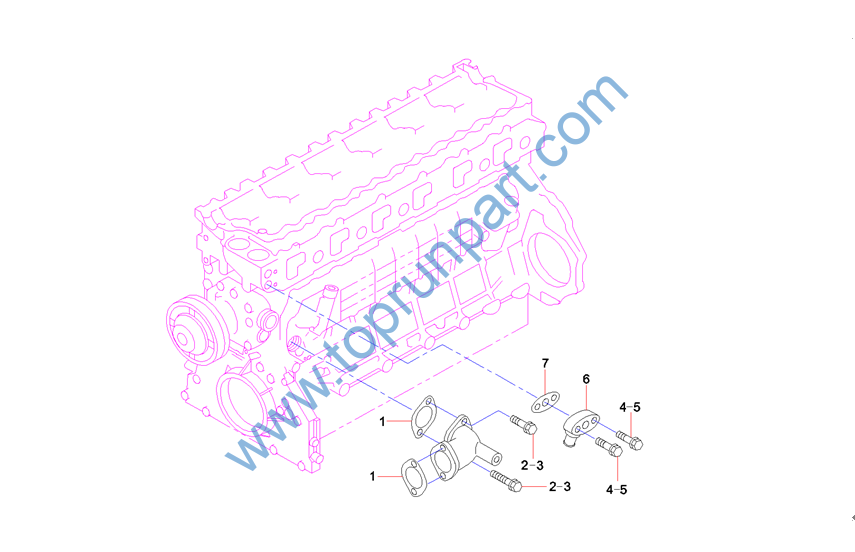

1 60008981 2 垫片 gasket
2 60003567 2 螺栓 Bolt
3 B229900004897 2 螺栓 M8×25凸缘 Bolt 028650-8250 M8×25 flange
4 B229900004857 2 螺栓 M8×70凸缘 Bolt 028050-8700 M8×70 flange
5 60008999 2 螺栓 Bolt
6 B229900004394 1 旁通水管 Tube, Water (Bypass)
7 B229900004541 1 垫片 Spacer

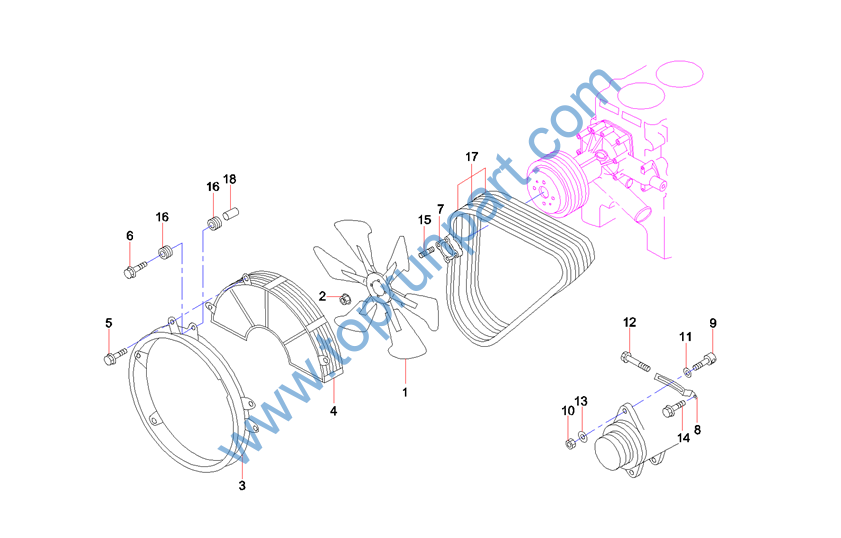

1 B249900001066 1 风扇 Fan
2 B229900004800 4 螺母 M10凸缘 Nut 091180-1100 M10 flange
3 B229900004325 1 护罩 Guard AS, Fan
4 B229900004326 1 护罩 Guard AS, Fan
5 B229900004901 3 螺栓 M8×25凸缘 Bolt 028651-0250 M8×25 flange
6 B229900004861 3 螺栓 M10×45凸缘 Bolt 028051-0450 M10×45 flange
7 B229900004311 1 过渡块 Sleeve, Spacer
8 B229900004593 1 支架 Shim
9 B229900004786 1 螺钉 Screw
10 B229900004801 1 螺母 Nut
11 B229900004598 1 垫圈 Washer
12 B229900004925 1 螺栓 M10×155凸缘 Bolt 109009-1141 M10×155
13 B229900004625 1 垫圈 Washer
14 B229900004889 1 螺栓 M10×45凸缘 Bolt 028151-0450 M10×45 flange
15 B229900005004 4 螺柱 Stud
16 B230102000041 6 橡胶垫 Block, Rubber
17 B230106000095 1 冷却风扇皮带(3根/套) Belt
18 B229900004306 3 管套 Sleeve, Spacer

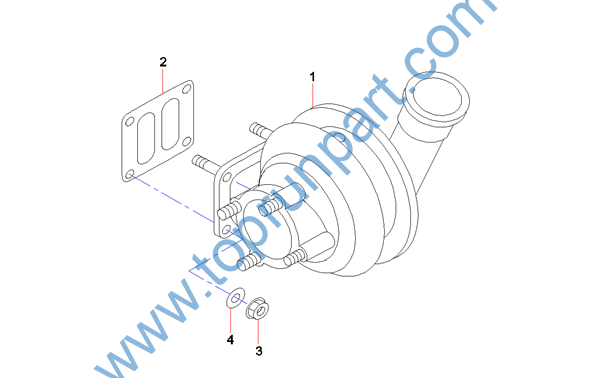

1 B220299000217 1 增压器 Turbocharger
2 B220299000218 1 增压器垫 Supercharger pad
3 B229900004807 4 螺母 Nut
4 B229900004587 4 垫圈 Washer

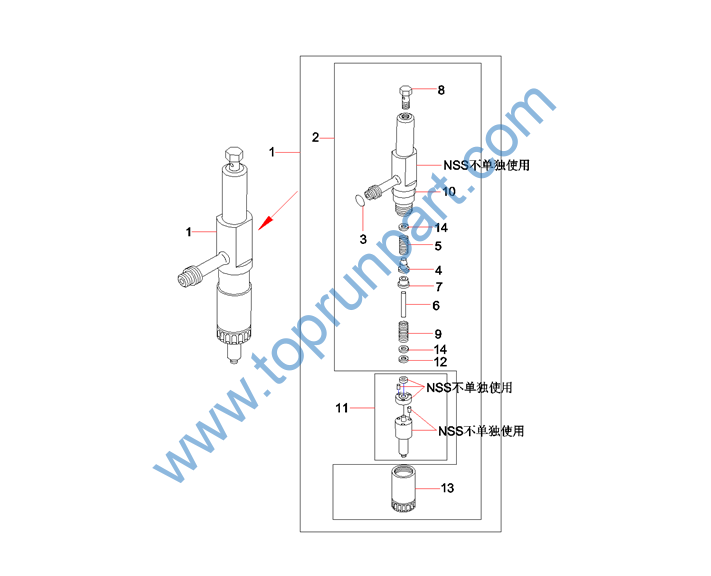

1 B220299000207 6 喷油器 Injector
2 B229900005031 1 喷油嘴固定架 Fixed frame of fuel nozzle
3 B229900004626 6 垫圈 Washer
4 B229900004475 6 座 Seat
5 B229900004502 6 弹簧 Spring
6 B229900004473 6 柱塞 Rod
7 B229900004701 6 隔套 Spacer Sleeve
8 B229900004931 6 螺栓 Bolt
9 B229900004503 6 弹簧 Spring
10 B229900004555 6 垫片 Shim
11 B229900005120 6 喷嘴柱塞 Nozzle AS
12 B229900004476 6 座 Seat
13 B229900005032 6 喷油嘴固定套 Fixed sleeve of fuel nozzle
14 B229900004220 2 调整垫 Shim
