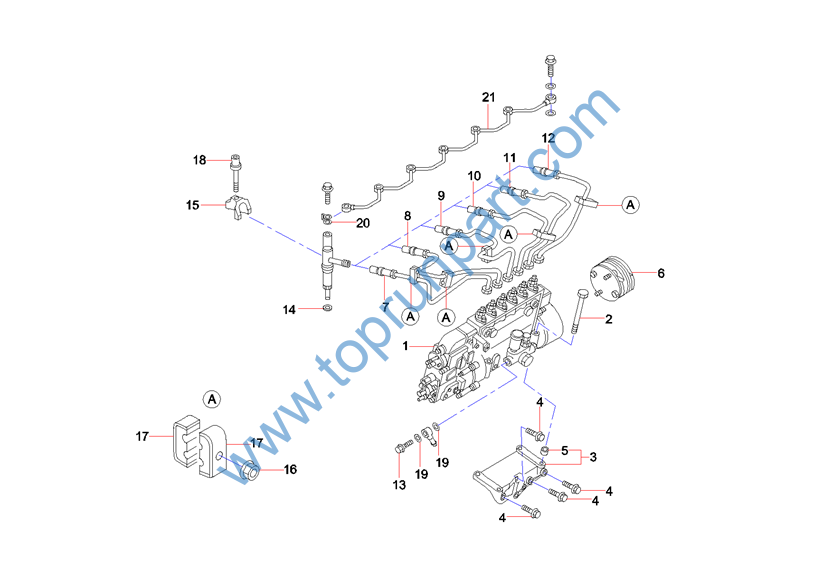

1 B220301000458 1 喷油泵总成 Pump GP, Fuel Injection
2 B229900004891 1 螺栓 M10×80凸缘 Bolt 028151-0800 M10×80 flange
3 B229900005099 3 支架 Bracket
4 B229900004888 4 螺栓 M10×40凸缘 Bolt 028151-0400 M10×40 flange
5 B229900005069 2 销子 Pin
6 B229900004372 1 连接盘 Plate, Coupling
7 B229900004271 1 高压管 Tube, Fuel Injection
8 B229900004267 1 高压管 Tube, Fuel Injection
9 B229900004272 1 高压管 Tube, Fuel Injection
10 B229900004268 1 高压管 Tube, Fuel Injection
11 B229900004269 1 高压管 Tube, Fuel Injection
12 B229900004270 1 高压管 Tube, Fuel Injection
13 B210199000024 1 螺栓 Bolt
14 B229900005100 6 垫片 Bracket
15 B229900005101 6 支架 Bracket
16 B229900004798 6 螺母 M6凸缘 Nut 091180-1060 M6 flange
17 B229900004706 12 管夹 pipe nip
18 B229900004955 6 螺栓 Bolt
19 B229900002619 2 垫圈 Shim
20 B229900004568 6 垫片 Spacer

21 B229900004297 1 管 Tube AS

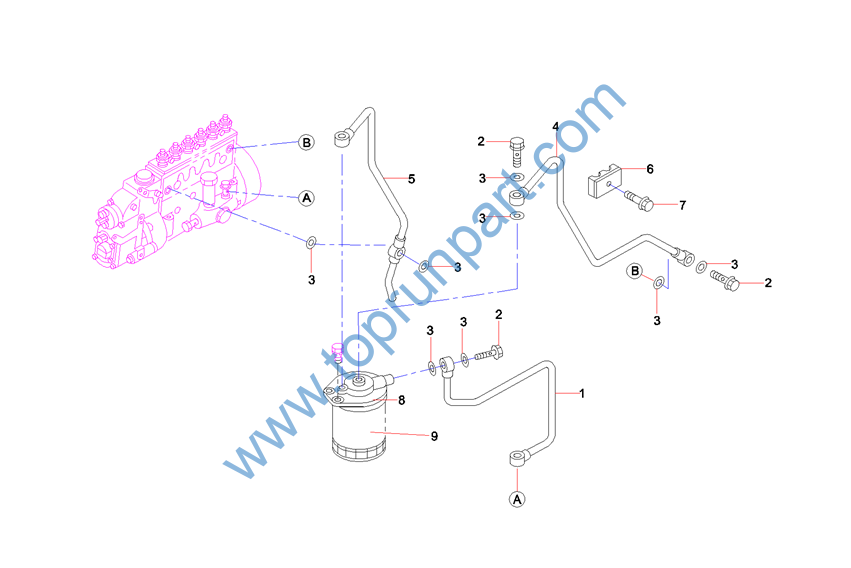

1 B229900005088 1 支架 Bracket
2 B229900004850 1 螺栓 Bolt 028050-8160 M8×16 flange
3 B229900004530 4 垫片 Shim
4 B229900002620 1 燃油管 Tube
5 B230199000038 1 燃油回油管密封垫 五十铃 Shim
6 B229900004290 1 管 Tube
7 B229900005089 1 支架 Bracket
8 B229900004800 2 螺母 M10凸缘 Nut 091180-1100 M10 flange
9 B229900004950 1 螺栓 M10×21凸缘 Bolt 894396-7110 M10×21 flange
10 B229900004932 4 螺栓 M8×18凸缘 Bolt 109675-0371 M8×18 flange

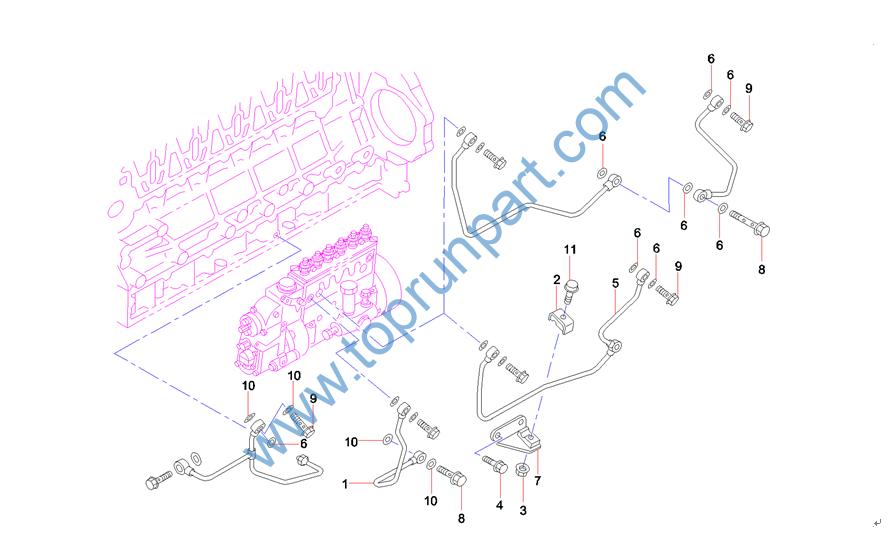

1 B229900004288 1 管 Tube AS
2 B210199000025 3 螺栓 Bolt
3 B229900002619 9 垫圈 Shim
4 B229900004289 1 管 Tube AS
5 B229900004291 1 管 Tube AS
6 B229900004709 2 管夹 pipe nip
7 B229900004920 2 螺栓 Bolt 050540-6300 M6×30 flange
8 B222100000655 1 滤清器座 Cover Fuel filter
9 B222100000492 1 柴油滤清器 Diesel Fuel Cleaner

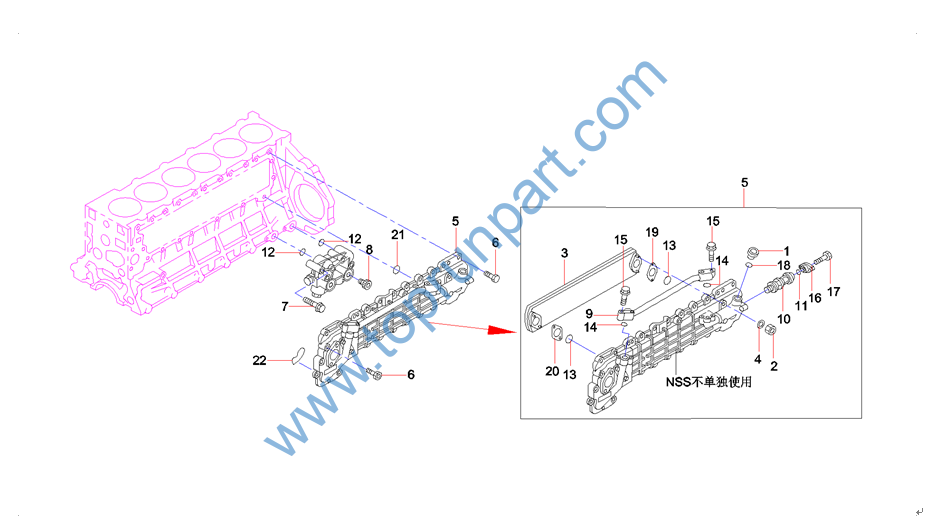

1 B229900004656 1 堵塞 Plug
2 B229900004809 4 螺母 M10凸缘 Nut 113219-3240 M10 flange
3 B220700000033 1 机油冷却器 Cooler, Oil
4 B229900004621 4 垫圈 Washer
5 B229900005125 1 机油冷却架总成 Cooler rack of engine oil assembly
6 B229900004873 24 螺栓 M8×22 凸缘 Bolt
7 B229900004892 4 螺栓 M10×90凸缘 Bolt 028151-0900 M10×90 flange
8 B229900004660 2 堵塞 Plug
9 B229900004296 1 管 Pipe
10 B229900004474 1 自动调温器 Regulator, Temperature
11 B229900004605 1 垫圈 Washer
12 B229900004607 2 垫圈 Washer
13 B229900004564 2 垫片 Shim
14 B229900004527 2 垫片 Spacer
15 B229900004853 4 螺栓 Bolt 028050-8300 M8×30 flange
16 B229900004374 1 连接塞 Connecting plug
17 B229900004850 2 螺栓 Bolt 028050-8160 M8×16 flange
18 B229900004602 1 垫圈 Washer
19 B229900004545 1 垫片 Spacer
20 B229900004563 1 垫片 Spacer

21 B229900004609 1 垫圈 Washer
22 B229900004604 1 垫圈 Washer

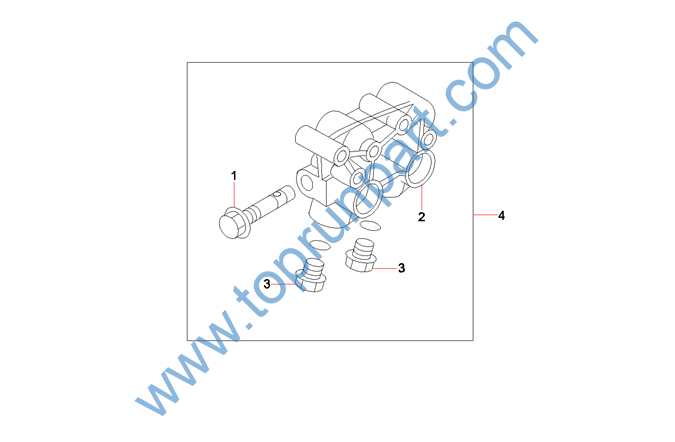

1 B229900004737 1 铰接螺栓 Articulating Bolt
2 B229900004331 1 机滤座 Machine filtration seat
3 B229900003258 2 放油螺塞 Plug
4 B229900004332 1 机滤座 Machine filtration seat

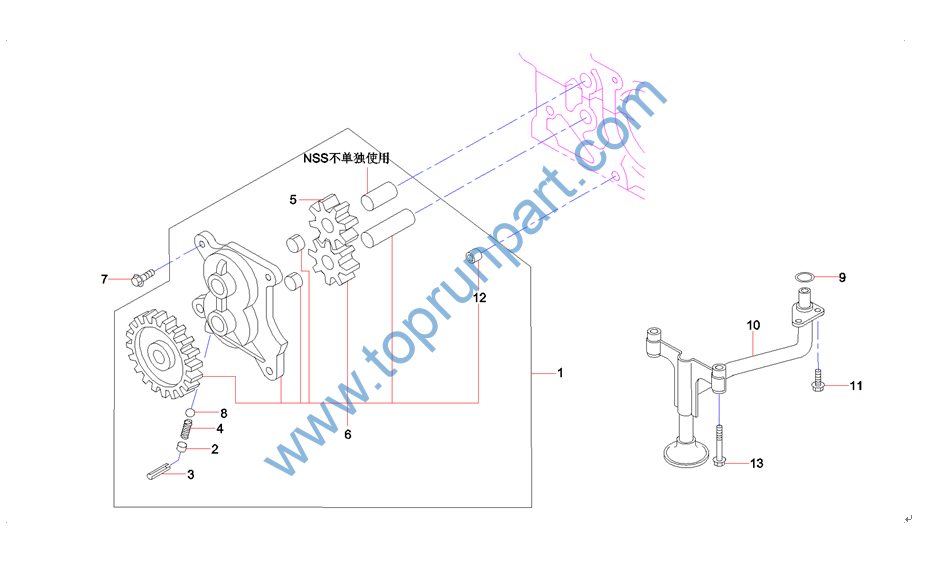

1 B220301000572 1 机油泵 Pump GP, Oil
2 B229900004514 1 弹簧座 Spring Seat
3 B229900005063 1 销 shaft
4 B229900004504 1 弹簧 Spring
5 B221801000034 1 齿轮 Gear
6 B220301000573 1 机油泵齿轮 Engine oil pump gear
7 B229900004852 4 螺栓 Bolt 028050-8250 M8×25 flange
8 B229900004399 1 球 Ball Valve
9 B229900004606 1 垫圈 Washer
10 B229900004784 1 滤网架 Bracket, Strainer
11 B229900004869 2 螺栓 M8×14凸缘 Bolt 028080-8140 M8×14 flange
12 B229900004495 2 衬套 Sleeve
13 B229900004895 2 螺栓 M10×150凸缘 Bolt 028156-0150 M10×150

1 B229900005083 1 油管 Tube AS, Oil
2 B229900004705 1 管夹 Clip
3 B229900004803 1 螺母 M10凸缘 Nut 091180-2100 M10 flange
4 B229900004850 2 螺栓 Bolt 028050-8160 M8×16 flange
5 B229900005081 1 油管 Tube AS, Oil
6 B229900004530 8 垫片 Shim
7 B229900005087 1 油管架 Bracket
8 B229900004936 2 螺栓 M12×27凸缘 Bolt 109675-0850 M12×27 flange
9 B229900004933 3 螺栓 M10×21 凸缘 Bolt 109675-0770 M10×21 flange
10 B229900004532 4 垫片 Shim
11 B229900004866 1 螺栓 M6×22凸缘 Bolt
