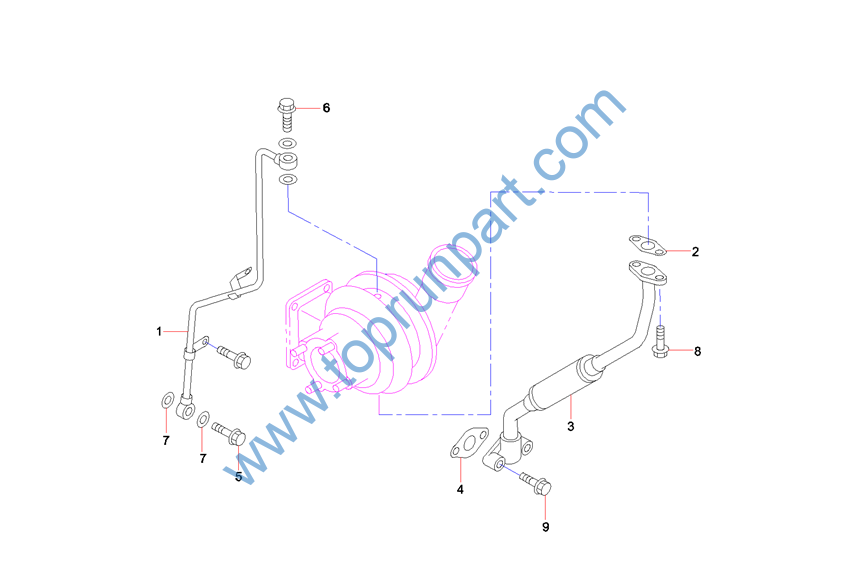

1 B229900005082 1 油管 Tube AS, Oil
2 B229900004559 1 垫片 Gasket
3 B229900005080 1 油管 Tube AS, Oil
4 B229900004562 1 垫片 Gasket
5 B210199000025 1 螺栓 Bolt
6 B229900004937 1 螺栓 Bolt
7 B229900002619 2 垫圈 Shim
8 B229900004897 2 螺栓 M8×25凸缘 Bolt 028650-8250 M8×25 flange
9 B229900004855 2 螺栓 M8×40凸缘 Bolt

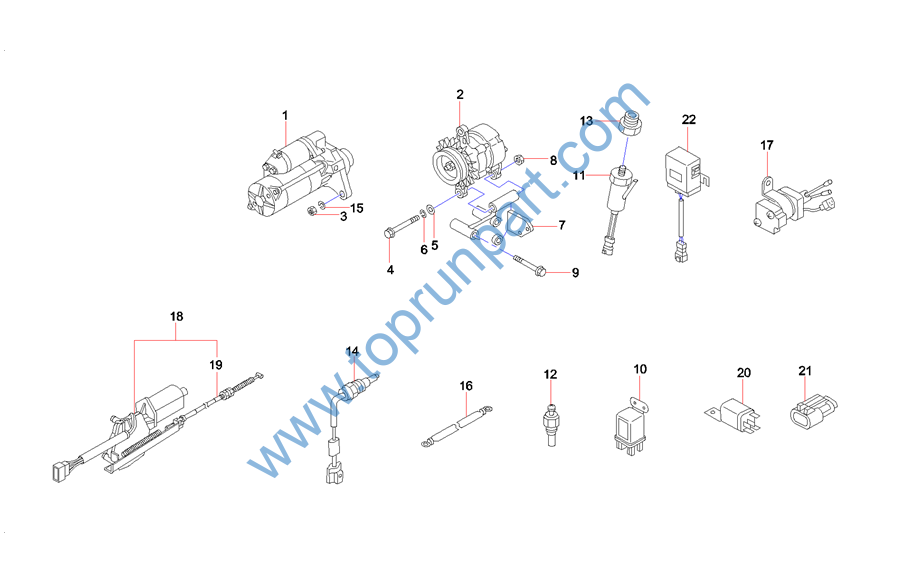

1 B220501000293 1 起动马达 Starting Motor
2 60136798 1 交流发电机 GENERATOR ASM
3 B229900004794 2 螺母 Nut
4 B229900004922 1 螺栓 Bolt
5 B229900004582 1 垫圈 Washer
6 B229900004581 1 垫圈 Washer
7 B229900004685 1 发电机支架 Bracket, Alternator
8 B229900004813 1 螺母 Nut
9 B229900004891 3 螺栓 M10×80凸缘 Bolt 028151-0800 M10×80 flange
10 B249900001038 1 预热继电器 Glow Relay
11 B241200001057 1 关 Switch
12 B240600000267 1 水温传感器 Coolant Temperature Sensor
13 B240600000332 1 传感器 Sensor
14 B241200001055 1 开关 Sensor, water temperature
15 B229900004614 2 垫圈 Washer
16 B241300000087 1 电缆 Cable
17 B240700000382 1 安全继电器 Safety relay
18 B229900002662 1 电机Z0.06-24-3带拉线 Stopper GP, electric
19 B241300000086 1 电缆 Cable
20 B249900001039 1 发动机停车续电器 Relay, Stopper (Engine)
21 B249900001339 1 连接器 Connector
22 B229900002661 1 急速预热装置控制器 Controller, Preheater (Rapid)

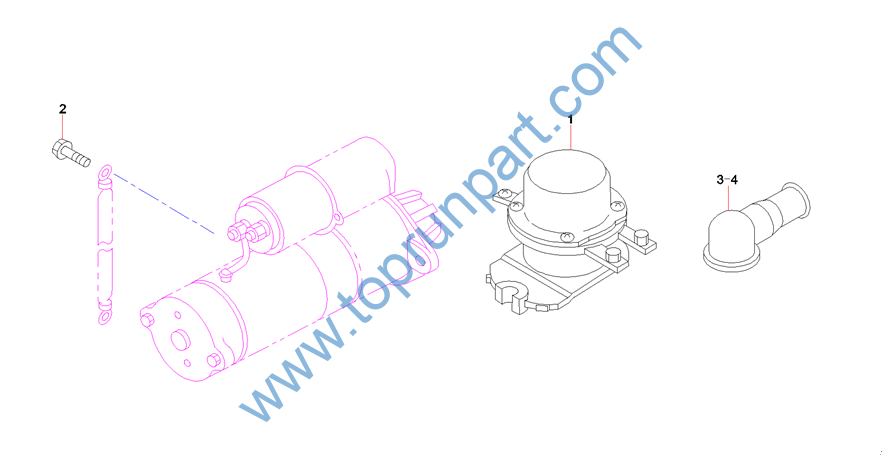

1 B240700000383 1 直流接触器 Battery relay
2 B229900004860 1 螺栓 M10×20凸缘 Bolt 028051-0200 M10×20 flange
3 B229900004320 2 护套 Sleeve, Wire
4 B229900004324 3 护套 Sleeve, Wire

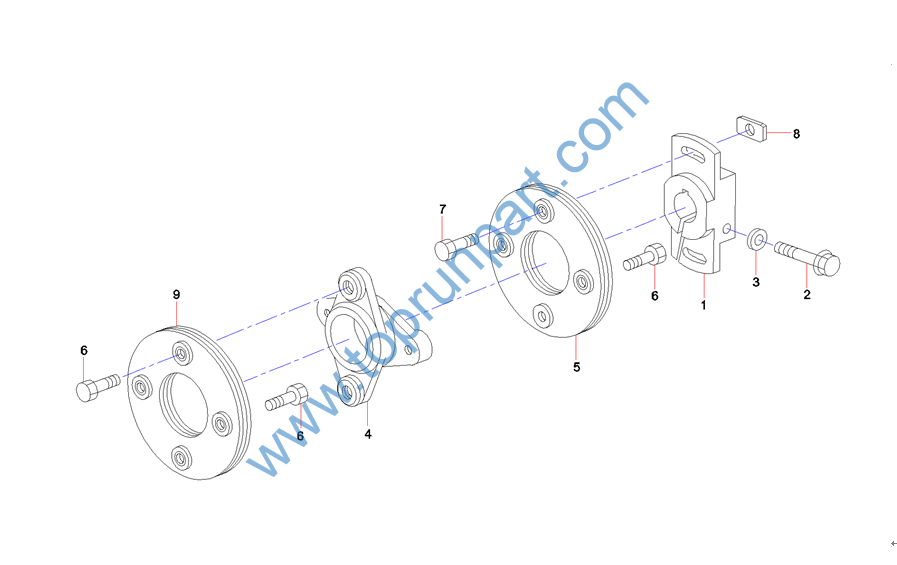

1 B229900004376 1 联结法兰 Coupler AS
2 B229900004940 1 螺栓 Bolt
3 B229900004596 1 垫圈 Washer
4 B229900004377 1 联结法兰 Connecting flange
5 B229900004236 1 法兰盘 Plate, Connecting
6 B229900004939 6 螺栓 Bolt
7 B229900004941 2 螺栓 Bolt
8 B229900004210 2 垫 Plate
9 B229900004235 1 法兰盘 Flange Shaft
1 B229900004897 2 螺栓 M8×25凸缘 Bolt 028650-8250 M8×25 flange
2 B229900005096 1 支架 Bracket

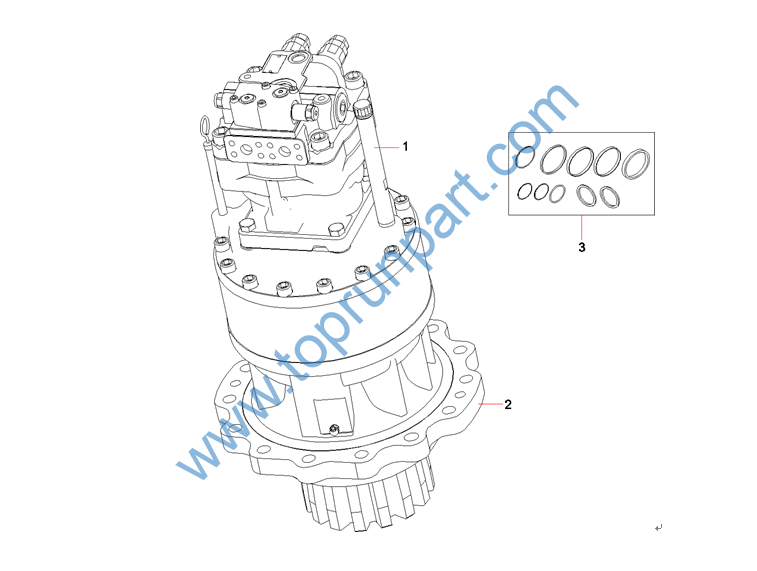

1 60180837 1 回转马达 Rotary motor
2 60042755 1 减速机 Gearbox
3 60204228 1 回转机构维修包 Maintenance bag of slewing gear

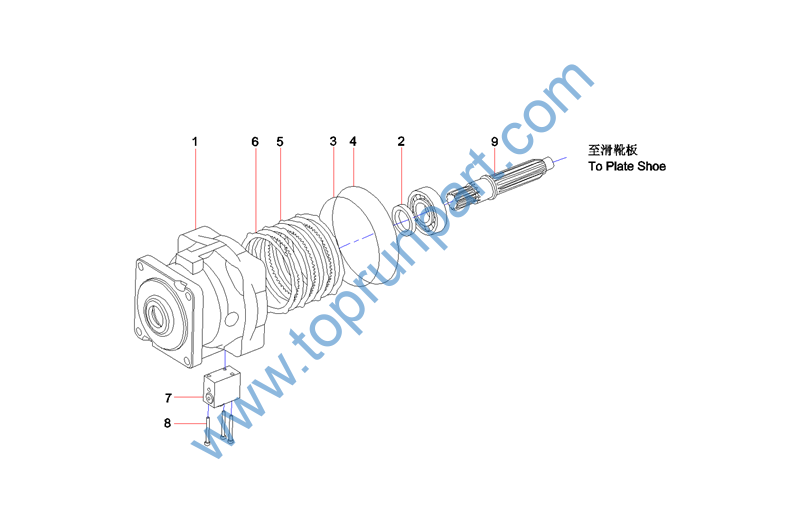

1 60081480 1 座 Seat
2 60039294 1 油密封 Seal, oil
3 60039425 1 O形圈 O-RING
4 60039426 1 O形圈 O-ring
5 B229900003195 3 30T回转制动主动片 Driven piece, swing brake
6 B229900003194 4 30T回转制动从动片 Driven piece, swing brake
7 B220401000688 1 回转马达延时阀 Valve,brake,delay
8 60038566 3 内六角螺栓 Screw, socket head
9 60081466 1 驱动轴 Shaft drive
