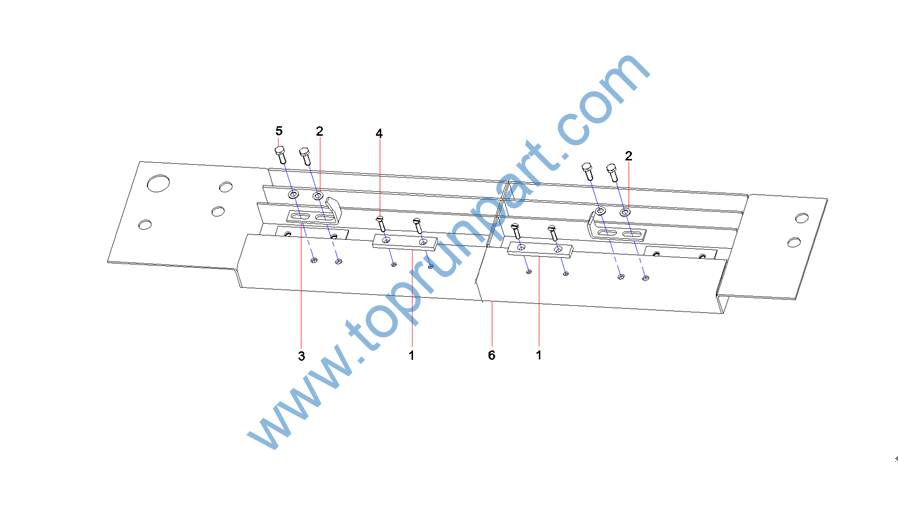

1 A820606010409 2 橡胶块 plaste
2 24000633 4 垫圈8GB97.1 达克锈 Washer
3 A820101213532 2 防摆座 Antiswing seat
4 A210203000008 4 螺钉 Screw-M6
5 A210111000323 4 螺栓 Bolt
6 A810502012228 1 左上后盖板 CoverSY310C1.1.6.4.1

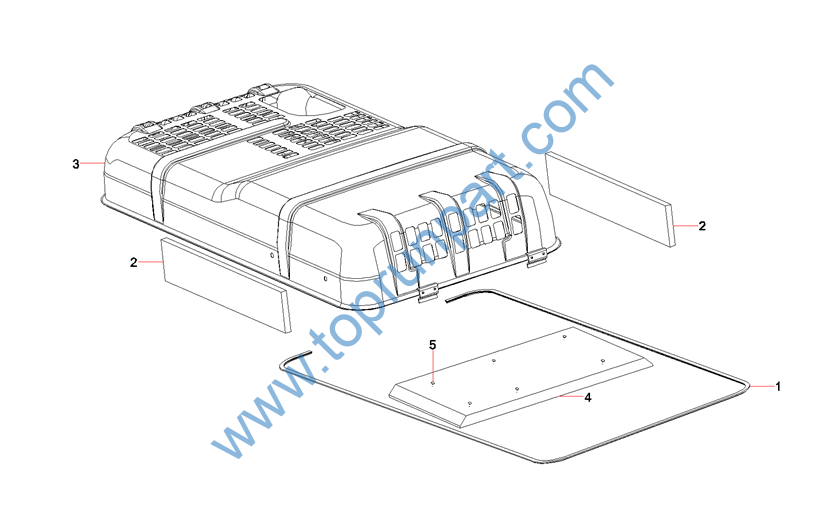

1 11348911 1 密封条 Sealing strip
2 A820699001228 2 侧面海绵 Side sponge
3 11255413 1 机顶罩总成 Bonnet Assy.
4 A820699000947 1 顶部海绵 Top sponge
5 11961759 10 扣钉 Cramp

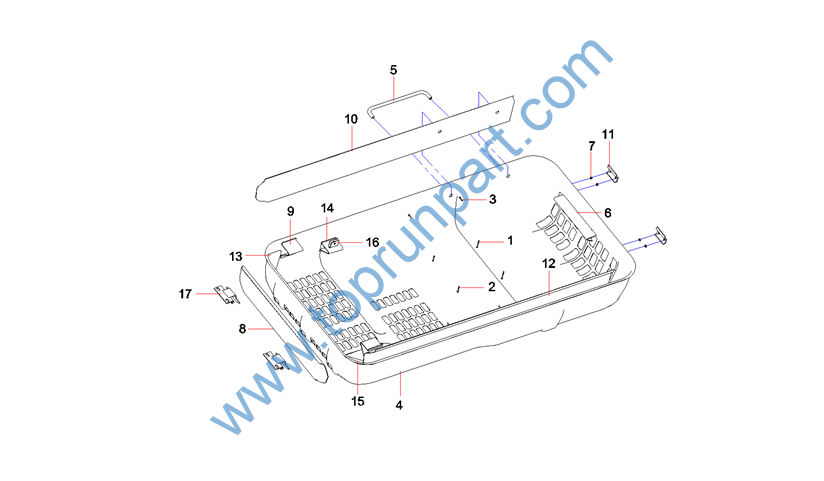

1 60168508 3 螺柱 Threadedstud
2 60166959 3 螺柱 Threadedstud
3 60166958 4 螺柱 Threadedstud
4 11250346 1 机顶罩主壳体 Engine cover main frame
5 A820299000358 1 机罩拉手 Hood handle
6 A820101346644 1 防摆罩 Antiswing cover
7 A210307000012 4 螺母 Nut
8 11254803 1 后部加强筋 Rear reinforced
9 11254559 2 弹簧支承座 Support seat
10 11254541 1 右侧加强筋 Right-hand reinforced rib
11 A820101342394 2 机罩锁安装座 Mounting plate for hood lock
12 11254192 1 左侧加强筋 Left-hand reinforced rib
13 11254652 1 拐角加强筋 Cape Reinforced bar
14 A820101330217 1 支撑板 Supporting Plate
15 11255109 1 拐角加强筋 Cape Reinforced bar
16 A820101213425 1 支撑座 Support stay
17 A810599000264 2 铰链 Hinge

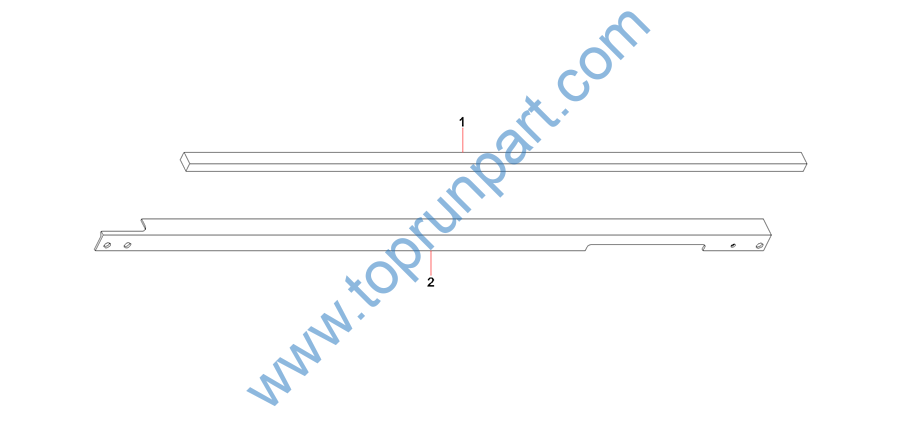

1 A820699000953 1 海绵 Sponge
2 A810502015203 1 横梁杆 Rear beam

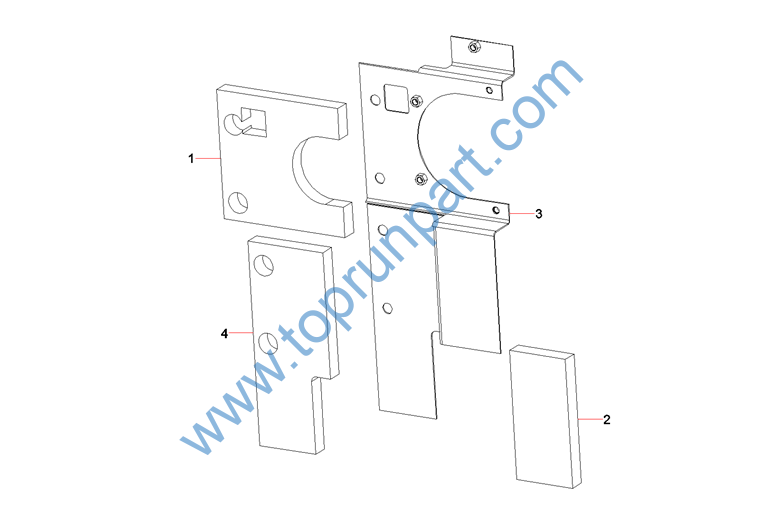

1 A820699001116 1 上部海绵 Upper sponge
2 A820699001117 1 右下海绵 Right lower sponge
3 A810502012223 1 下隔板组焊件 Welds of lower baffle plate
4 A820699001118 1 左下海绵 Left lower sponge

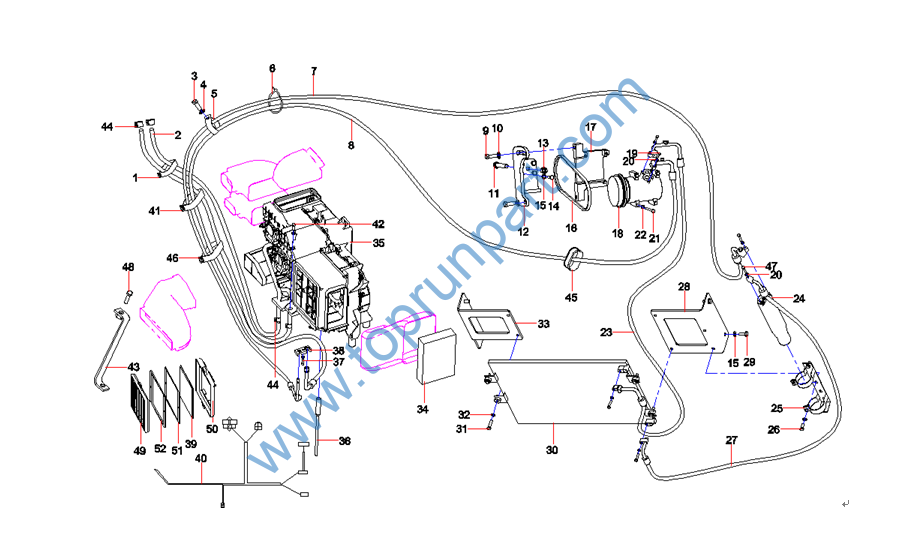

1 60086355 1 线束固定夹 the fixity of line
2 13255673 2 蒸汽胶管 Hose
3 A210111000199 10 螺栓M12×20GB5783 10.9级 Bolt
4 A210491000121 10 垫圈 Washer
5 60149606 4 线束固定夹 Clamp
6 A239900000066 105 尼龙扎带 Strap, nylon
7 60006323 1 液体胶管 Liquid rubber hose B
8 60001235 1 吸气胶管 Suction rubber tube
9 A210111000208 2 螺栓 Bolt
10 A210444000001 2 垫圈 Washer
11 A210110000304 1 螺栓M20×120GB5782 10.9级 bolt
12 A810505011071 1 压缩机支架 CompressorBracketSY310C1.1.8.1
13 A210307000029 1 螺母 Nut
14 A210111000026 4 螺栓 Bolt
15 A210491000120 8 垫圈 washer
16 A230106000403 1 V带 Type A Triangular Belt
17 10144193 1 调整座 Adjusting seatSY310C1.1.8.2A
18 B220203000007 1 压缩机 Compressor
19 A210111000082 2 螺栓 Bolt
20 24000632 7 垫圈6GB97.1 达克锈 washer
21 A210111000097 4 螺栓 Bolt
22 24000633 6 垫圈8GB97.1 达克锈 Washer
23 60001233 1 排气胶管 Hose, discharge
24 B229900005141 1 储液器 Dryer
25 A229900008784 1 储液器支架 Bracker, dryer clamp
26 A210111000343 2 螺栓M8×20GB5783 10.9级 Bolt
27 60001238 1 液体胶管 Hose
28 10368412 1 冷凝器右支架 Right support of
29 A210111000197 4 螺栓 Bolt
30 A220700000028 1 冷凝器总成 Condenser
31 A210111000092 4 螺栓 Bolt
32 60060565 4 垫圈8GB96.1 达克锈 Washer
33 10368413 1 冷凝器左支架 Left support of condenser
34 60250669 1 外气过滤器 Filter
35 60168171 1 空调单元总成 Assembly, air conditioner
36 A229900009481 1 排水管 Hose, drain
37 24002251 1 螺钉M6×25GB70.1 10.9级 Screw M6×25GB70.1 Grade 10.9
38 60250668 1 压板接头 Plate
39 B222100000711 1 内气过滤器 Inner air filter
40 10473304 1 空调电气系统 Electric system of air conditioner
41 60119587 1 线束固定夹 the fixity of line
42 A210111000323 7 螺栓 Bolt
43 A810505990026 1 管支夹 Pipe Bracket
44 60166393 4 单联管夹 Split Flow Gear Pump
45 11779657 1 胶套 Grommet
46 60086357 5 线束固定夹 Clamp
47 A210111000081 4 螺栓 Bolt
48 A210111000012 1 螺栓 M10×20GB5783 10.9级 Bolt
49 13626490 1 前盖板 front cover plate
50 13626481 1 后盖板组件 rear cover plate component
51 11908118 1 内气滤芯密封垫 Combined seal pad of Air filter core
52 11907017 1 内气滤芯压盖 Filter core cover plate

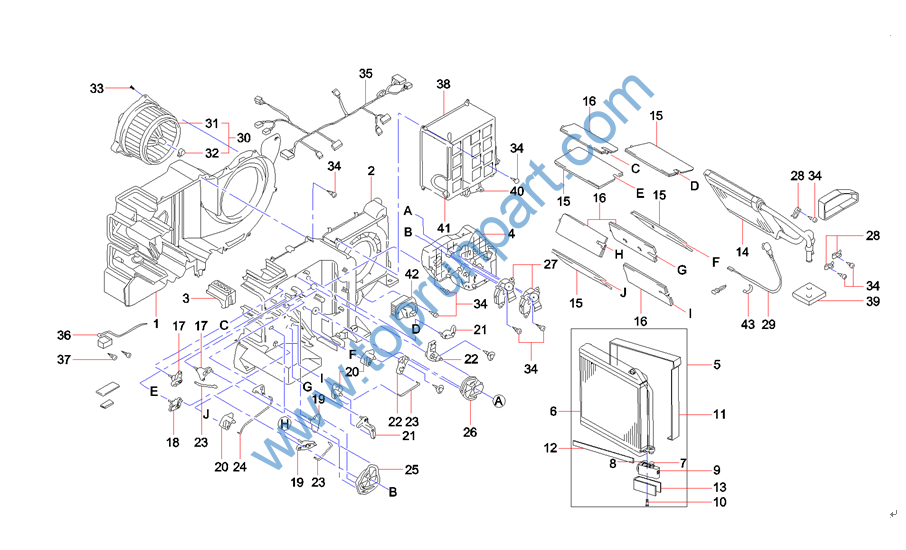

1 60153212 1 冷却机组外壳 Housing, main, rear
2 60153213 1 冷却机组外壳 Housing, main, front
3 60153195 1 片 Acuators
4 60153196 1 片 Acuators
5 60153202 1 带部件蒸发器总成 Evaporator AS
6 60153218 1 蒸发器分总成 Evaporator
7 60153192 1 O型环 O-ring
8 60153193 1 O型环 O-ring
9 60153197 1 膨胀阀 Valve, expansion
10 60153215 2 螺栓 Bolt
11 60153203 1 隔热密封垫 Seal, insulation
12 60153205 3 隔热密封垫 Seal, insulation
13 60153204 1 隔热密封垫 Seal, insulation
14 60153242 1 加热器芯分总成 Core, heater
15 60049962 4 门分总成 Damper
16 60153216 4 门分总成 Damper
17 60049956 2 连杆分总成 Linkage, cam
18 60049957 1 连杆分总成 Linkage, cam
19 60049958 2 连杆分总成 Linkage, cam
20 60049959 3 连杆分总成 Linkage, cam
21 60049941 2 杆 Linkage, lever
22 60049960 2 连杆分总成 Linkage, cam
23 60049963 3 轴 Linkage, lever
24 60049964 1 轴 Linkage, lever
25 60049943 1 片 Acuators
26 60049944 1 片 Acuators
27 60049947 2 伺服电机总成 Motor AS, servo
28 60049955 3 夹具 Clamp
29 60033039 1 水温传感器 Sensor, coolant temperature
30 60153199 1 鼓风电机 Motor AS
31 60049951 1 风扇叶 Fan
32 60049954 1 夹具 Clamp
33 60049950 3 带垫圈自攻螺钉 Screw, self tapping with washer
34 60049965 32 自攻螺钉 Screw, self-tapping
35 60049948 1 空调机电束总成 Harness AS, blower housing
36 60049966 1 防结霜传感器 Sensor, anti-frost
37 60049949 2 带垫圈螺钉 Screw, with washer
38 60049942 1 盒分总成 Cover
39 60049953 1 隔热密封垫 Seal, insulation
40 60049945 1 带附件伺服电机总成 Motor AS, servo
41 60153240 1 内气传感器 Sensor, fresh air temperature
42 60049968 1 调速电阻 Transistor AS
43 60049952 1 感温包零件支架 Bracket
