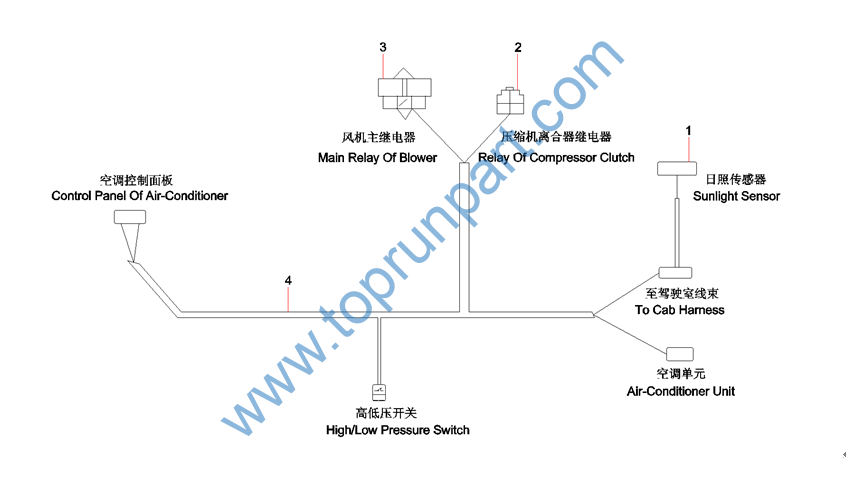

1 B240600000334 1 日照传感器 Sensor, sunlight
2 B240700000473 1 继电器 Relay
3 B240700000472 1 继电器 Relay
4 10448933 1 空调连接线 Harness, air conditioner

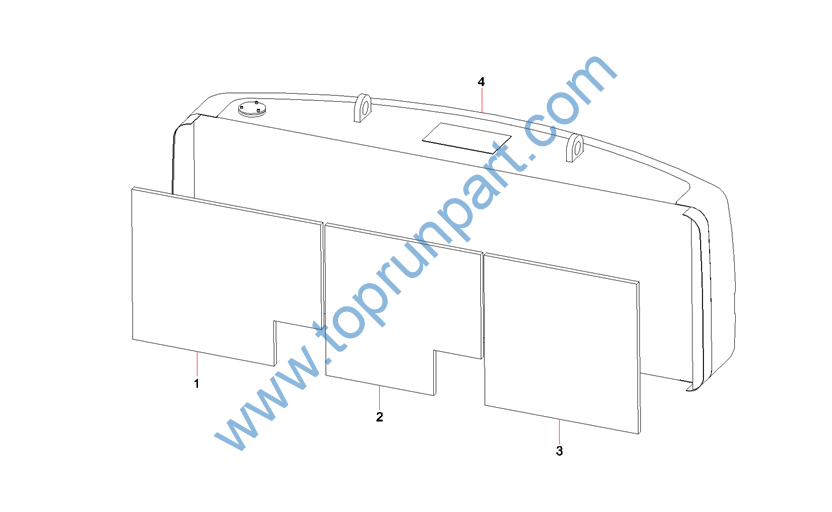

1 11287548 1 配重降噪海绵 Counterweight sound reducing
2 11287549 1 配重降噪海绵 Counterweight sound reducing
3 11287547 1 配重降噪海绵 Counterweight sound reducing
4 11598223 1 配重主体 counterweight SY335C.1.9A.1

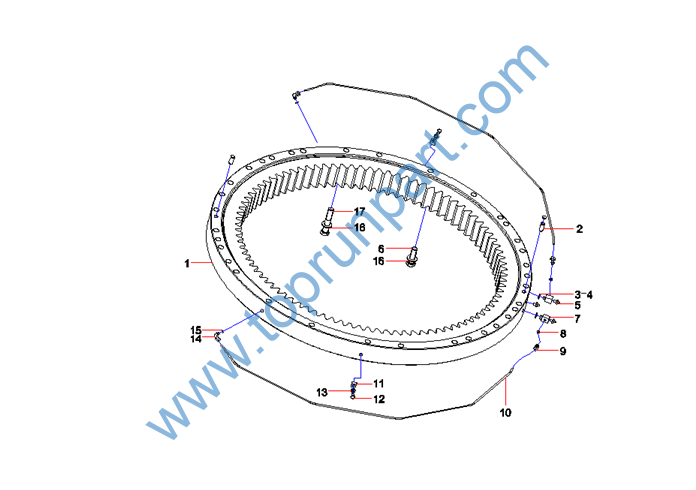

1 13484728 1 回转支承 Slewing ring SSf1405/50CWHⅡ
2 A820301012418 2 销 pin SY200B.1.7-2
3 A820102010428 2 密封垫 Seal Washer
4 10668938 2 密封垫 Combined seal pad
5 B229900000686 3 黄油嘴 Grease nipple
6 60199488 40 螺栓M24×85DIN931 10.9级 Bolt
7 A820205000954 2 方接头 Square joint
8 A820102010474 4 垫圈 WasherSY200A.1.7-1
9 A210711000010 2 管接头 Pipe connector
10 A820207010441 2 硬管 Pipe
11 A820101118370 2 管夹 Clamp
12 A210204000334 2 螺钉M10×16GB70.1 10.9级 Bolt, socket head
13 A210491000120 2 垫圈 washer
14 A210770000195 2 管接头 Pipe connector
15 10668937 4 垫圈 Washer
16 A210491000122 75 垫圈 Washer
17 60238692 35 螺栓M24×145DIN931 10.9级 Bolt

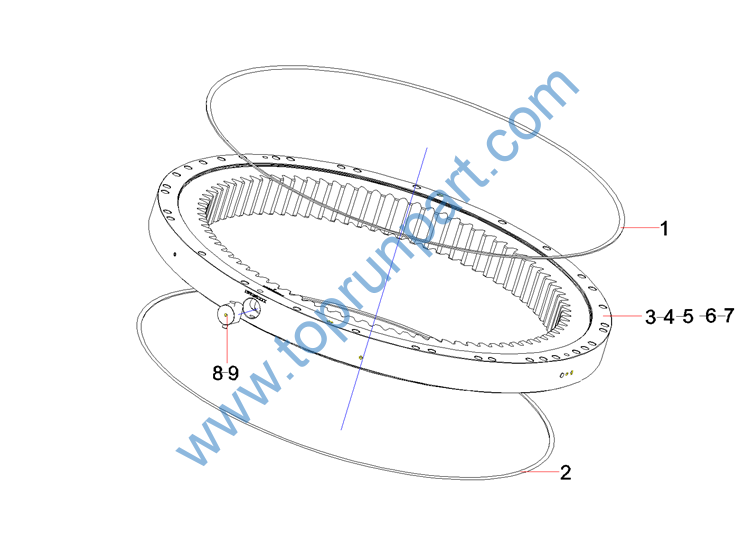

1 12791140 1 外圈密封条 Outer seals
2 12791139 1 内圈密封条 Seal Profile
3 13484726 1 内圈 Inner Ring SSf1405/50CWHⅡ-1
4 13484727 1 外圈 Outer ring SSf1405/50CWHⅡ-2
5 A210661000041 75 钢球 Ball
6 A229900010025 75 隔离块 尼龙 Spacers
7 60012591 1 销 Springiness columniform pin
8 11217895 1 堵塞 Plug
9 A210551000025 1 销 Taper pins

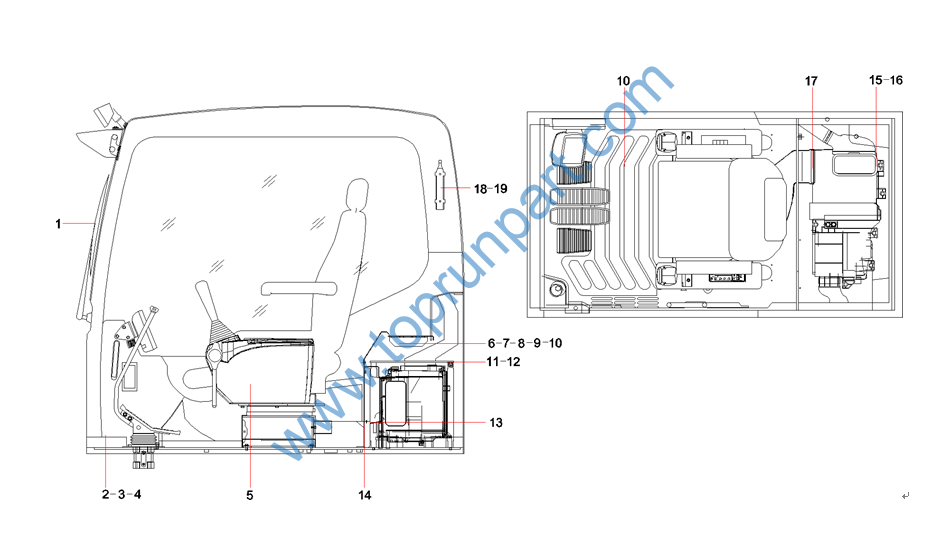

1 60211180 1 扬子驾驶室 Yangzi Cab
2 12076176 1 行走操纵机构 Running control mechanism
3 A210111000204 2 螺栓 Bolt
4 A210111000104 3 螺栓M12×70GB5783 10.9级 Bolt
5 12773451 1 座椅及操纵箱 Seat and controlbox
6 60060548 5 垫圈12GB96.1 达克锈 Washer
7 A210111000343 17 螺栓M8×20GB5783 10.9级 Bolt
8 A210111000342 2 螺栓M8×16GB5783 10.9级 Bolt
9 60060565 19 垫圈8GB96.1 达克锈 Washer
10 12777161 19 底板架 Floor SY335C9.1.5.6A
11 13288272 1 电气安装板 Installation plate for electrical
12 12752753 3 支撑杆 New supporting Lever
13 13687728 1 立板 frame
14 A229900010630 1 吹脚风道 Duct, lower air
15 A210210000030 1 螺钉 Bolt, socket head
16 60060562 1 垫圈4GB97.1 达克锈 Washer
17 10567493 1 吹脚风道密封海绵 Sealing sponge of Foot-Blowing
18 60312104 1 简易式干粉灭火器 Simple dry-chemical fire
19 A210211000007 2 螺钉 Bolt

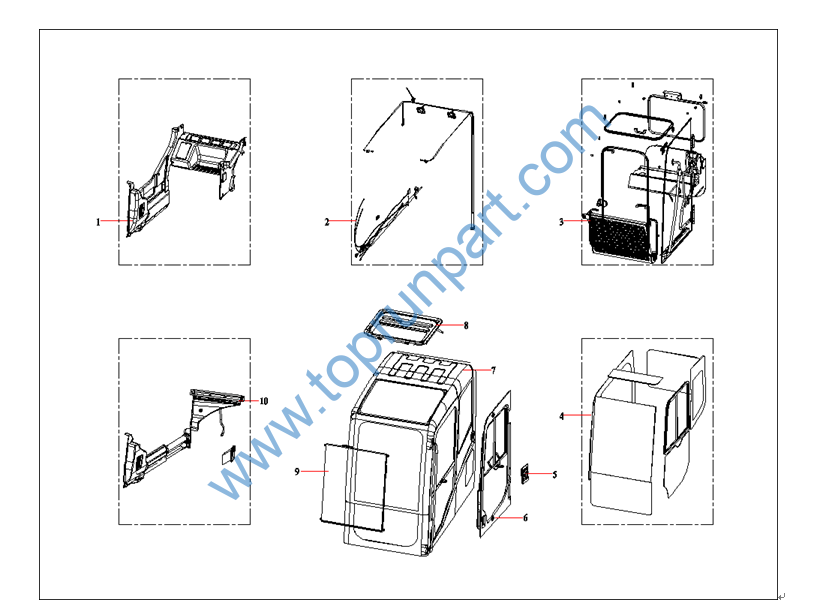

1 A229900003660 1 内饰件总成 Plate GP,protect,decoration,inner
2 61019348 1 电气总成 Electric AS
3 61022830 1 附属件总成 Accessory AS
4 61019350 1 玻璃总成 Glass AS
5 60238725 1 风门EMC0512.3.1 扬子钣金 Air floor
6 A229900009414 1 驾驶室门总成 Cab door hinge
7 61022831 1 驾驶室焊合总成 Cab weldment AS
8 A229900009424 1 天窗总成 Skylight AS
9 61020327 1 前窗总成 Front window AS
10 61019352 1 风道总成 Duct AS

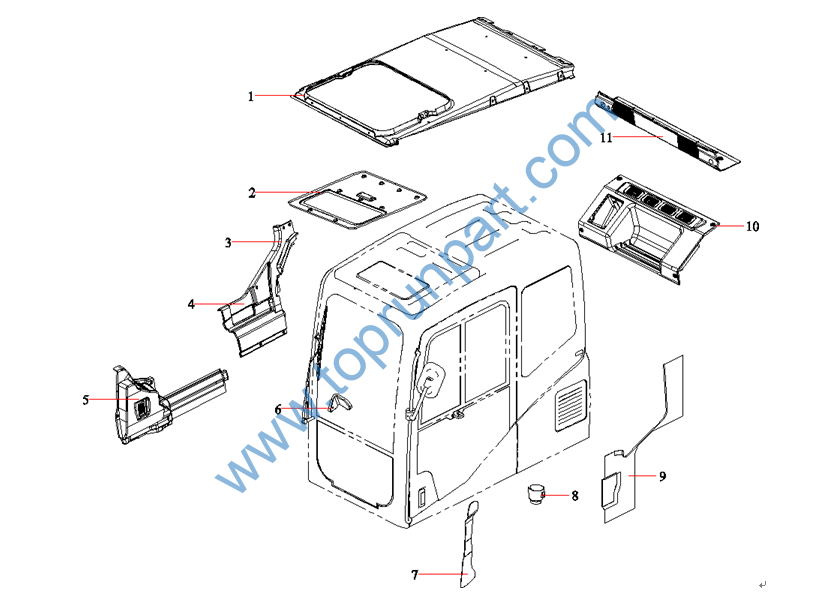

1 60067994 1 顶内装饰件 Trim, upper
2 A229900007688 1 天窗顶板 TR012-2-针织面料 Plate,top,skylight
3 60067380 1 右侧内装饰件(后) Cover, interior
4 60067382 1 右侧内装饰件(中) Cover, interior
5 60015520 1 前控箱总成
6 A229900007315 1 底座罩总成 Base Cover Assy. EMC0512.18
7 60036511 1 驾驶室门锁塑料护板 Protective board of door lock
8 61019387 1 水杯座 Holder,cup
9 60067996 1 左侧装饰件 Trim, left
10 60015519 1 空调罩总成 A/C Cover Assy
11 60067998 1 喇叭罩 Horn cover
