1 60008879 1 弹簧销 Pin, roll
2 60008604 1 调整螺母 Nut, adjusting
3 60008809 1 圆板 Plate, circular
4 60008602 1 接头 Shaft
5 60008603 4 密封圈 Ring, seal
6 60008595 4 堵头 Plug
7 B230101000363 4 O形圈 O-ring
8 60008599 4 推动杆 Rod
9 60008811 1 板 Plate
10 60008758 4 弹簧座 Seat, spring
11 60008775 4 弹簧 Spring
12 60008597 4 垫圈 Washer
13 60008774 4 弹簧 Spring, large
14 60008760 4 滑轴 SPOOL
15 60008795 1 壳体 Housing
16 60008799 1 O形圈 O-ring
17 60008810 1 油口接板 Plate, connecting
18 60008786 2 内六角螺钉 Bolt, socket head
19 60008598 2 密封垫圈 Washer, seal
20 60008806 1 衬套 Sleeve
21 60331163 1 手动先导阀维修包 Kit, seal
1 A820205000836 2 M24-M26接头 Connector
2 A229900001581 2 O形圈 O-ring 21.7×3.5(JISB2401)
3 A820205000839 3 接头 Fitting
4 A230101000247 3 O形圈 O-ring 10.9×2.3(JISB2401)
5 60000307 1 胶管 Rubber hose
6 B230103002135 1 胶管 Rubber Hose
7 A820205000945 1 G1-M30接头 Connector
8 B230101000050 1 O形圈 O-ring
9 A820205000962 1 接头 Connector
10 B230101000090 1 O形圈 B230101000090
11 B230103000975 1 胶管 Hose Assembly
12 A820205000940 5 接头 Fitting
13 B230101000047 9 O形圈 O-Ring-10.8
14 B230103001258 1 胶管 Rubber hose
15 B230103001022 1 胶管 Rubber Hose
16 B210780000024 4 直角组合接头 Fitting, Elbow
17 A820205000961 3 G3/8-M18接头 Connector
18 B230101000049 1 O形圈 O-ring
19 A820205000947 1 堵头 G3/8 jam-SY200A.1.4.3-5
20 A820205001771 2 堵头 Screw Plug
21 B230103004375 1 胶管 Rubber Hose
22 60136331 1 六联电磁换向阀组 Solenoid valve group
23 A210204000345 2 螺钉M10×70GB70.1 10.9级 Bolt
24 A210491000120 2 垫圈 washer
25 B210780000028 2 直角组合接头 Fitting, Elbow
26 60265303 1 隔膜式蓄能器 Accumulator
27 B210780000170 1 管接头 Fitting
28 B210780000827 1 管接头 Fitting
29 B210780000016 1 三通组合L型接头 Fitting, Tee
30 B210780001310 2 直角组合接头 Fitting, Elbow
31 B210780001007 1 三通组合L型接头 Fitting, Tee
32 A820205000838 2 接头 Fitting
33 A230101000243 3 O形圈 O-ring 16.7×3.5(JISB2401)
34 10077549 1 接头 Fitting
35 A820205001144 1 M33-M30接头 Connector
36 B230101000036 1 O形圈 O-ring
37 B210780000018 1 三通组合L型接头 Fitting, Tee
1 60065224 3 电磁切换阀 Solenoid, valve on/off
2 60065222 3 减压阀KDRDE5K-31/30C50-122( Solenoid, proportional
1 B230103000914 1 胶管 Rubber hose 1SN6-DKOL-
2 B230103001359 1 胶管 Hy hose 1SN6-DKOL-DKOL90-
3 B230103000808 1 胶管 Tube
4 A210110000437 4 螺栓M12×65GB5782 10.9级 Bolt M12×65GB5782 Grade 10.9
5 B230103000992 1 胶管 Rubber Hose
6 B230103000993 3 胶管 Hose AS
7 A831213050000 3 胶管 Hose AS
8 B230103000977 3 胶管 Hose AS
9 B230103002045 1 胶管 Hose AS
10 10237402 1 继电器防护板 Protective plate of relay
11 10077269 1 过渡块 Transitional block
12 B210780000172 1 管接头 Fitting
13 11415538 1 过渡块板 Transitional Plate
14 B230103004133 6 胶管 Hose AS
15 B210780000170 10 管接头 Fitting
16 A820205000940 1 接头 Fitting
17 B230103001947 1 胶管 Hy hose 1SN6-/SY1102
1 B230103002657 3 胶管 Hose AS
2 A820205001061 1 负流量传感器接头 Negative Flowrate Sensor
3 B220400000169 1 三通梭阀 Valve, shuttle, tee
4 B210780001045 2 管接头 Fitting
5 A820205000947 11 堵头 G3/8 jam-SY200A.1.4.3-5
6 B230103003046 1 胶管 Rubber Hose
7 A831213035000 2 胶管 Rubber hose
8 A820205000940 14 接头 Fitting
9 B230101000047 18 O形圈 O-Ring-10.8
10 B230101000049 49 O形圈 O-ring
11 A820205000946 36 接头 Fitting
12 B210780000418 17 管接头 Fitting
13 A820205001771 1 堵头 Screw Plug
1 A820205000942 2 接头 Fitting
2 B230101000356 2 O形圈 O-Ring-23.7
3 A820205000941 1 接头 Connector, straight
4 B230101000090 1 O形圈 B230101000090
5 A820205000940 2 接头 Fitting
6 B230101000047 2 O形圈 O-Ring-10.8
7 B210780000170 1 管接头 Fitting
8 B230103001239 1 胶管 Rubber hose
9 B230103002446 1 胶管 Hydraulic Hose Assembly
10 21033030 1 胶管 Hydraulic Hose Assembly2SN10-
11 A831213035000 1 胶管 Rubber hose
12 21018549 1 胶管 Rubber Hose
13 B210780000418 2 管接头 Fitting
14 B210780000016 1 三通组合L型接头 Fitting, Tee
15 B210780000827 1 管接头 Fitting
16 11213443 1 先导滤支架 Pilot filter bracket
17 24000511 4 垫圈8GB93 达克锈 Washer
18 A210204000340 4 螺钉M8×16GB70.1 10.9级 Bolt, socket head
19 B229900000063 1 液压油过滤器 Filter, pilot AS
20 23000066 2 螺钉 Screw
21 A210491000120 2 垫圈 washer

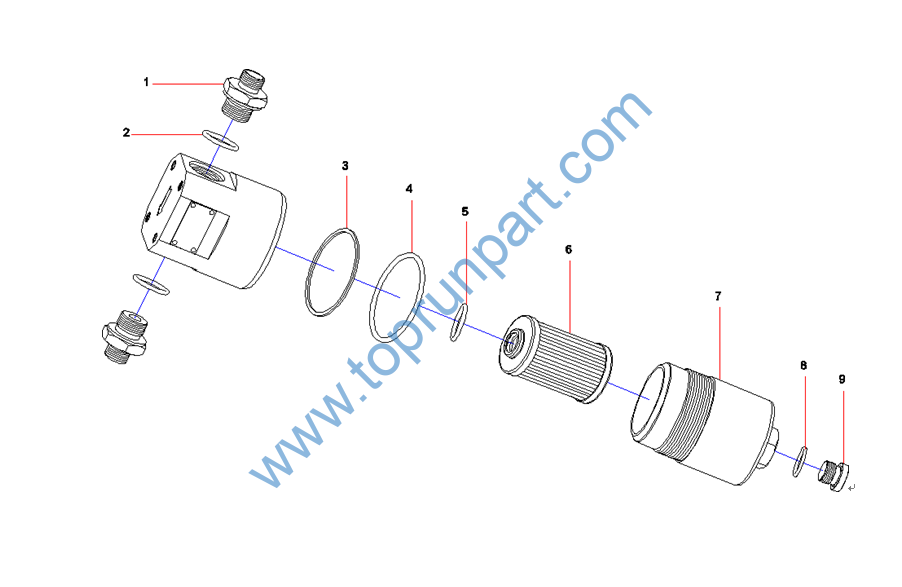

1 60294881 2 管接头 Fitting
2 29010015 2 O形圈 O-ring
3 60294882 1 密封垫 Ring, back up
4 A230101000563 1 O形密封圈 O-ring
5 24002612 1 O形圈 O-ring
6 A222100000119 1 先导滤芯 Filter, pilot
7 60294883 1 壳体 Housing
8 21000077 1 O形圈 O-ring
9 60294884 1 螺塞 Plug
