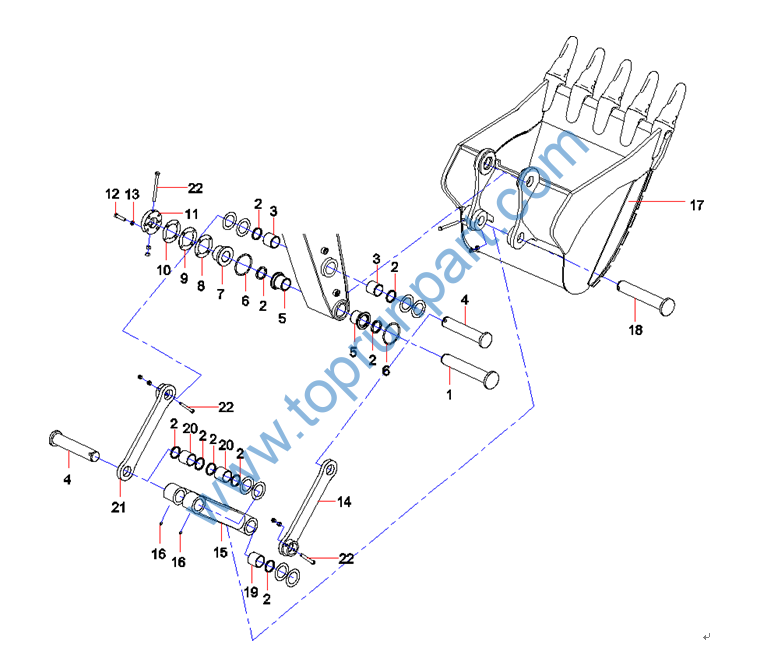

1 11945933 1 销轴 Lock pin
2 60055872 10 DLI防尘圈 O-ring
3 A820202003323 2 轴套 Bushing
4 A810303990032 2 销轴 PinSY300.3.10
5 13840151 2 斗杆前端轴套 Bushing SY305.3-2
6 A210608000108 2 O形圈 O-Ring-149.5
7 A820403000465 1 压紧套 Bush
8 11945936 4 调整垫片 Adjusting spacer
9 11945934 4 调整垫片 Adjusting spacer
10 11945935 4 调整垫片 Adjusting spacer
11 11904436 1 板 Plate
12 A210110000172 4 螺栓M20×70GB5782 10.9级 Bolt
13 24000515 4 垫圈20GB93 达克锈 Washer
14 11267311 1 左摇杆 Left jiggle bar
15 11789611 1 连杆 Connecting bar SY335C.3.6A
16 B229900000686 6 黄油嘴 Grease nipple
17 12002883 1 铲斗 Bucket
18 A810303990031 1 销轴 PinSY300.3.9
19 A820202003320 2 轴套 Bushing
20 A820202003321 2 轴套 Bushing
21 11267298 1 右摇杆 Right jiggle bar
22 A210110000352 3 螺栓 M20×180GB5782 10.9级 Bolt-M20×180

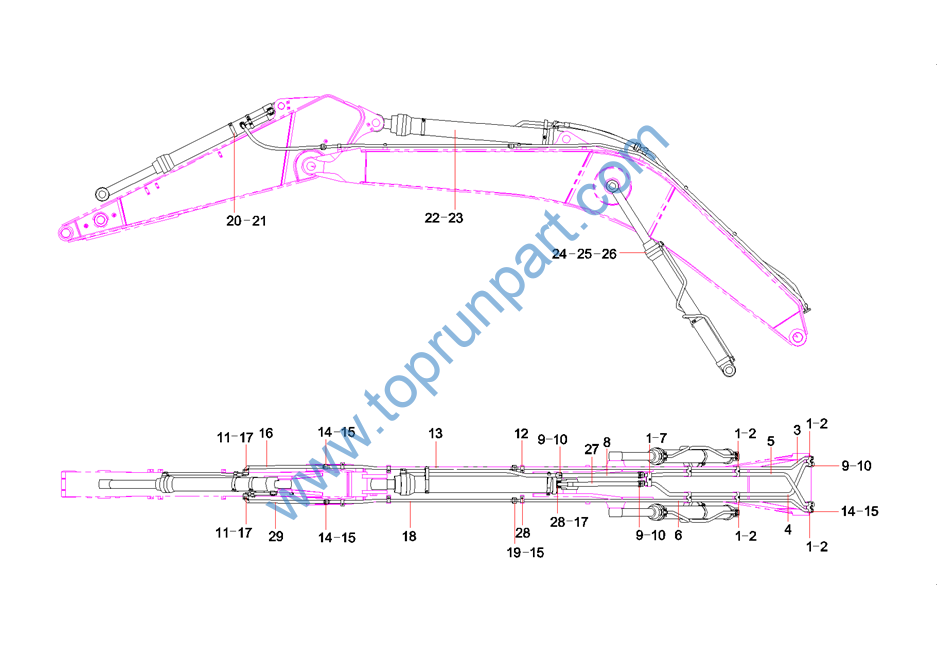

1 A210204000366 7 螺钉 Screw
2 11881916 6 管夹 Clamp, tube
3 12175241 1 钢管总成 Steel Pipe
4 12709039 1 斗杆无杆腔钢管总成 Steel Pipe
5 12709037 1 斗杆有杆腔钢管总成 SY335C9I2K.3.1D.2A
6 12934846 1 钢管总成 Steel Pipe
7 11859784 1 管夹 Clamp, tube
8 11836087 1 胶管 hose
9 B210780000693 10 对开法兰 Flange, Split
10 A210204000353 20 螺钉M14×50GB70.1 10.9级 Screw
11 21027533 8 螺钉M12×55GB70.1 10.9级 Screw
12 11881917 6 管夹 Clamp, tube
13 12904729 1 钢管总成 Steel Pipe
14 B210780000244 8 对开法兰 Flange, Split
15 A210204000355 24 螺钉M10×40GB70.1 10.9级 Bolt, socket head
16 60171395 1 胶管 Rubber Hose
17 B210780000004 6 对开法兰 Flange, Split
18 12904578 1 钢管总成 Steel Pipe
19 B230101000456 2 O形圈 O-ring
20 60011434 1 铲斗油缸 Bucket Oil Cylinder
21 12182683 1 铲斗油缸管路 Bucket cylinder pipeline
22 12261944 1 斗杆油缸管路 Bucket rod cylinder pipeline
23 60011436 1 斗杆油缸 Arm cylinder
24 60011435 2 动臂油缸 Boom Cylinder
25 11219750 1 右动臂油缸管路 Right derrick oil cylinder pipeline
26 11219749 1 左动臂油缸管路 Left derrick oil cylinder pipeline
27 60159782 1 胶管 RubberHose
28 A210204000351 10 螺钉M12×50GB70.1 12.9级 Screw
29 60171396 1 胶管 Rubber Hose

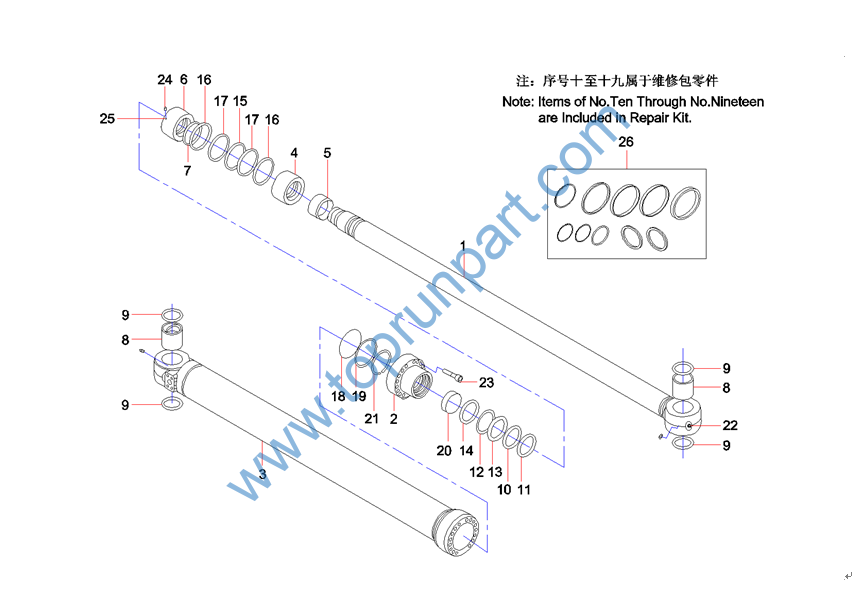

1 60193825 1 活塞杆 ROD – PISTON
2 60193826 1 端盖 Cover, end
3 60193827 1 缸体 Cylinder block
4 60193828 1 活塞 Piston
5 60065206 1 缓冲套 Sleeve, buffer
6 60154028 1 螺母 Nut
7 60174451 1 垫片 Gasket
8 60044359 2 轴套 Sleeve, shaft
9 60044361 4 防尘圈 Ring, dust
10 60065342 1 防尘圈 Ring, dust
11 60065242 1 挡圈 Ring, retaining
12 60154049 1 轴用密封圈 Seal Ring
13 60154022 1 开口挡圈 Retaining Ring
14 60065204 1 缓冲圈 Buffer ring
15 60174503 1 孔用密封圈 Ring, seal
16 60065218 2 纳污环 Ring, contaminant
17 60174497 2 成型导向环 Ring, guide
18 60174489 1 O形密封圈 Ring, seal
19 60065236 1 O形圈挡圈 Retainer Ring
20 60154009 1 滑动轴套 Sleeve, sliding
21 60153990 1 挡圈 Ring, retaining
22 60169622 2 油杯 Grease Cup
23 60022043 12 螺钉
24 60174438 1 凹端螺钉 Screw, socket head
25 21010039 1 钢球 Steel Ball
26 60140865 1 30T铲斗油缸维修包 Repair kit, cylinder, bucket

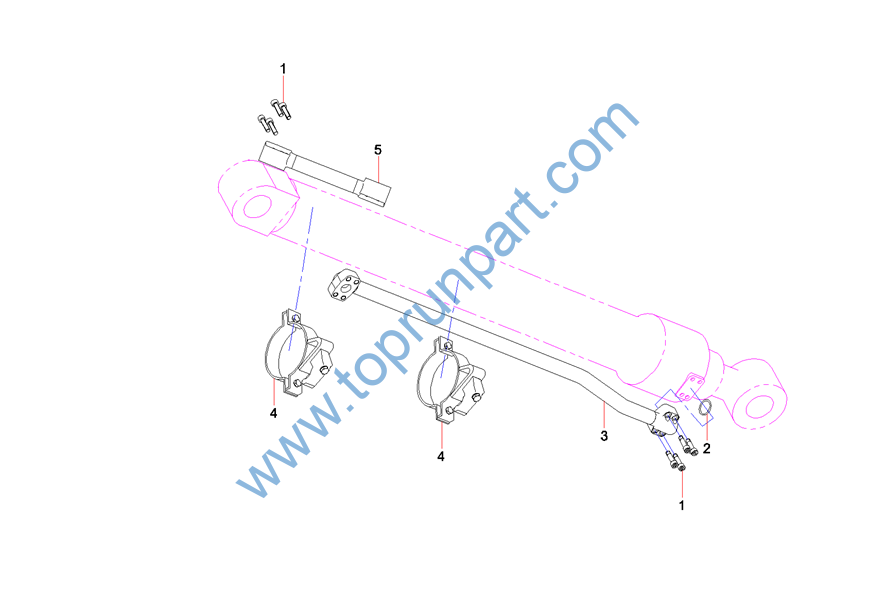

1 A210204000462 8 螺钉M12×45GB70.1 10.9级 Bolt
2 B230101000456 2 O形圈 O-ring
3 A810201022142 1 钢管总成 Steel Pipe Assy.
4 11162112 2 管卡组合 pipe clip combination
5 A810201022143 1 钢管总成 Steel Pipe Assy.

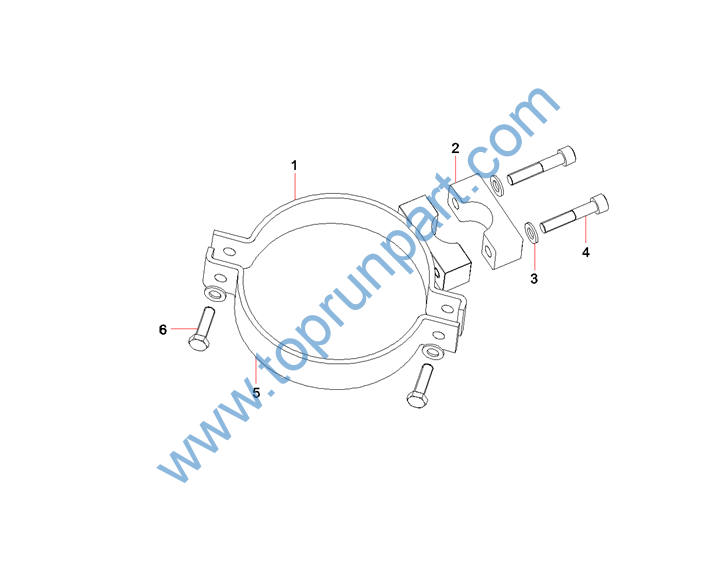

1 11162101 1 管卡焊接 Tube clamp weldment
2 A820403000560 1 管夹 Clamp
3 A210405000011 4 垫圈 Washer
4 A210204000011 2 螺钉 Screw
5 11160686 1 管卡 tube clamp
6 A210111000025 2 螺栓 Bolt

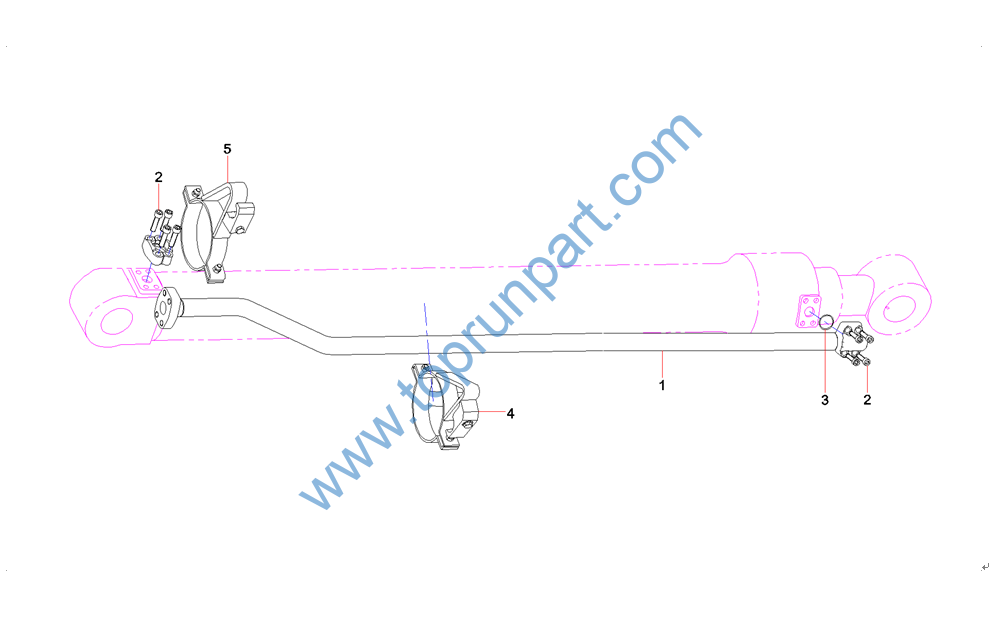

1 12709045 1 斗杆油缸有杆腔钢管总成 Steel Pipe Assy.
2 A210204000462 4 螺钉M12×45GB70.1 10.9级 Bolt
3 B230101000456 1 O形圈 O-ring
4 12204196 1 管夹总成 tube clamp assembly
5 12203289 1 管夹总成 tube clamp assembly
1 60193814 1 活塞杆 ROD – PISTON
2 60193815 1 端盖 Cover, end
3 60193816 1 缸体 Cylinder block
4 60193817 1 缓冲套 Sleeve, buffer
5 60065195 1 后缓冲套 Sleeve, buffer, rear
6 60153983 1 卡圈 Ring, retainer
7 60153986 2 纳污环 Ring, contaminant
8 60087462 1 SPGW密封圈 Ring, seal
9 60193818 1 DKBI防尘圈 Ring, dust
10 60193819 1 防尘圈用挡圈 Ring, dust
11 60097634 1 IUH密封圈 Ring, seal
12 60193820 1 开口挡圈 Ring, retainer, switch
13 60097633 1 HBY密封圈 HBY seal ring
14 60193822 1 O形密封圈 Ring, seal
15 60153989 1 O形圈挡圈 Ring, retaining
16 60154039 2 成型导向环 Ring, guide
17 60046231 4 防尘圈 Ring, dust
18 60046228 2 B型轴套 Sleeve, shaft
19 60193821 1 挡圈 Ring, retaining
20 60174501 1 缓冲环 Ring, buffer
21 60193823 1 滑动轴套 Sleeve, sliding
22 60193824 1 活塞 Piston
23 A210204000267 12 螺钉M20×100GB70.1 12.9级 Screw M20×100
24 60169622 2 油杯 Grease Cup
25 21010039 1 钢球 Steel Ball
26 60154027 1 螺钉 Screw
27 60217494 1 斗杆油缸K维修包 Arm maintenance package
