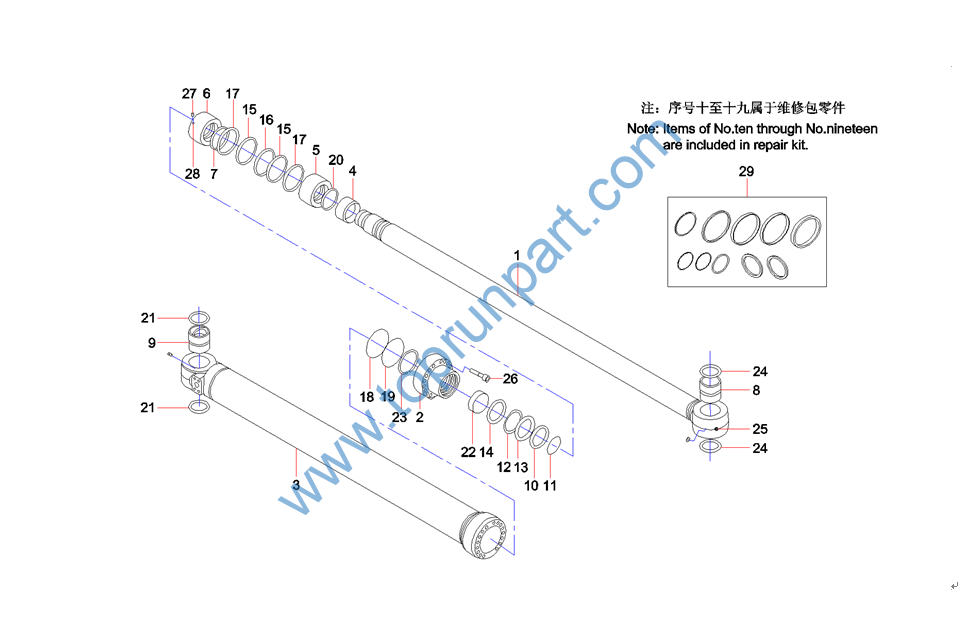

1 60193829 1 活塞杆 Rod, piston
2 60193830 1 端盖 Cover, end
3 60193831 1 缸体 Cylinder block
4 60193832 1 活塞 Piston
5 60065206 1 缓冲套 Sleeve, buffer
6 60154028 1 螺母 Nut
7 60174451 1 垫片 Gasket
8 60044357 1 B型轴套 Sleeve, shaft
9 60044359 1 轴套 Sleeve, shaft
10 60065342 1 防尘圈 Ring, dust
11 60065242 1 挡圈 Ring, retaining
12 60154049 1 轴用密封圈 Seal Ring
13 60154022 1 开口挡圈 Retaining Ring
14 60065204 1 缓冲圈 Buffer ring
15 60174498 2 成型导向环 Ring, guide
16 60174503 1 孔用密封圈 Ring, seal
17 60065218 2 纳污环 Ring, contaminant
18 60174489 1 O形密封圈 Ring, seal
19 60065236 1 O形圈挡圈 Retainer Ring
20 60065346 1 缓冲环 Ring, buffer
21 60044361 2 防尘圈 Ring, dust
22 60154009 1 滑动轴套 Sleeve, sliding
23 60153990 1 挡圈 Ring, retaining
24 60044360 2 防尘圈 Ring, dust
25 60169622 2 油杯 Grease Cup
26 60022043 12 螺钉
27 60174438 1 凹端螺钉 Screw, socket head
28 21010039 1 钢球 Steel Ball
29 60140866 1 30T动臂油缸维修包 Repair kit, cylinder, boom

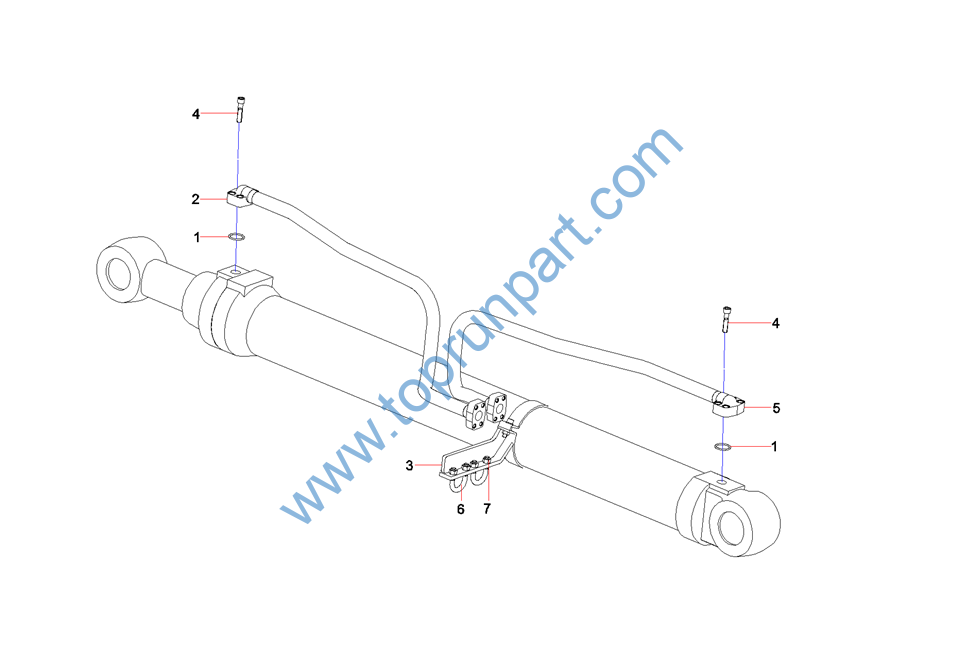

1 B230101000456 2 O形圈 O-ring
2 12809824 1 右小腔钢管总成 Right locular steel tube assembly
3 A810312990198 1 管卡组合 pipe clip combination
4 A210204000462 8 螺钉M12×45GB70.1 10.9级 Bolt
5 12809826 1 右大腔钢管总成 Right large-lumen steel
6 A820301013877 2 U型螺栓 U type bolt
7 A210307000031 4 螺母M12GB6170 10级 Nut M12

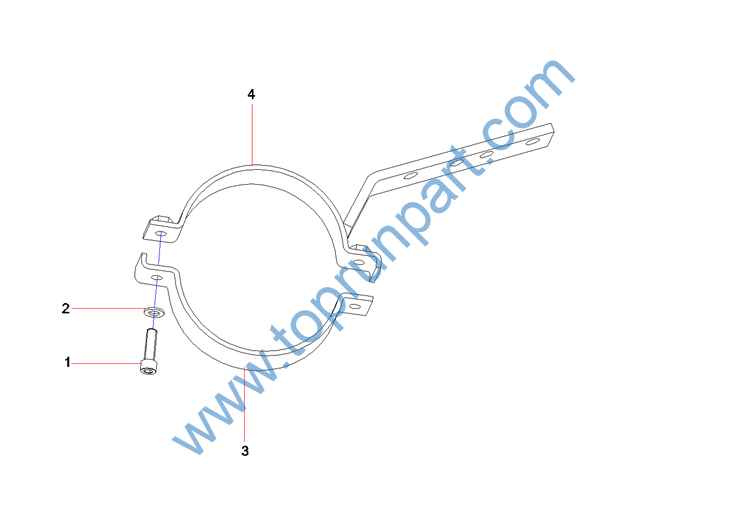

1 A210204000355 2 螺钉M10×40GB70.1 10.9级 Bolt, socket head
2 A210405000011 2 垫圈 Washer
3 A820101311191 1 管卡 Clamp, pipe
4 A810312990199 1 管卡焊接 Tube clamp weldment
1 B230101000456 2 O形圈 O-ring
2 12809821 1 左小腔钢管总成 Left locular steel tube
3 A810201000218 1 管卡组合 pipe clip combination
4 A210204000462 8 螺钉M12×45GB70.1 10.9级 Bolt
5 12809822 1 左大腔钢管总成 Left large-lumen steel
6 A820301013877 2 U型螺栓 U type bolt
7 A210307000031 4 螺母M12GB6170 10级 Nut M12

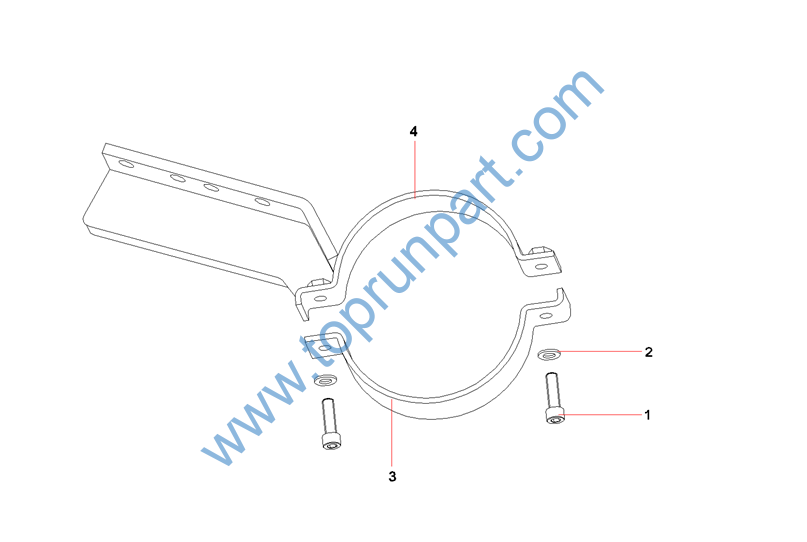

1 A210204000355 2 螺钉M10×40GB70.1 10.9级 Bolt, socket head
2 A210405000011 2 垫圈 Washer
3 A820101311191 1 管卡 Clamp, pipe
4 A810201000219 1 管卡焊接 Tube clamp weldment

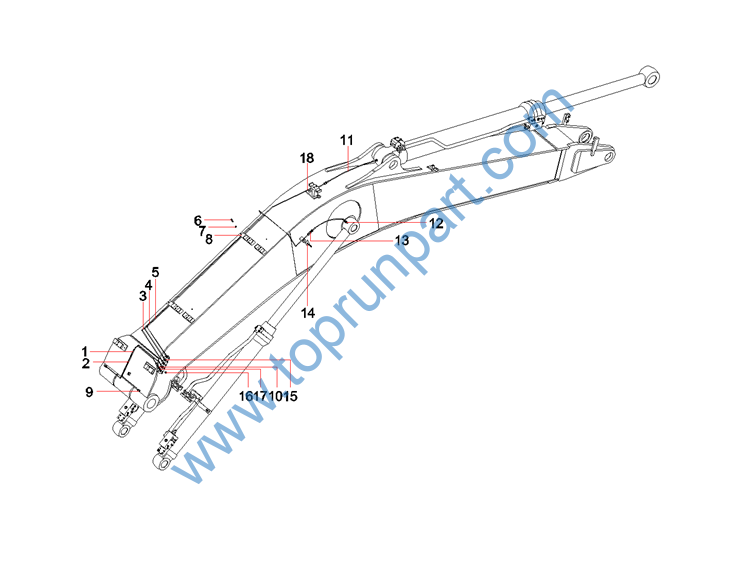

1 12109881 1 黄油管组件 butter pipe assemble
2 12109905 1 黄油管组件 butter pipe assemble
3 12109322 1 黄油管组件 butter pipe assemble
4 12109786 1 黄油管组件 butter pipe assemble
5 12109664 1 黄油管组件 butter pipe assemble
6 A210111000348 7 螺栓 Bolt
7 24000633 7 垫圈8GB97.1 达克锈 Washer
8 A820101211948 2 管夹 Pipe Clip
9 11102369 2 接头 Fitting
10 11102367 2 接头 Fitting
11 B230103000815 3 胶管 Hose AS
12 A820205000858 3 管接头 Fitting
13 11102368 6 接头 Fitting
14 A820101211945 2 管夹 Pipe Clip
15 A210434000007 3 垫圈 Washer
16 B229900000379 5 黄油嘴 Zerk, grease
17 A210434000005 2 垫圈 Washer
18 A820101216692 1 单管管卡 Clamp

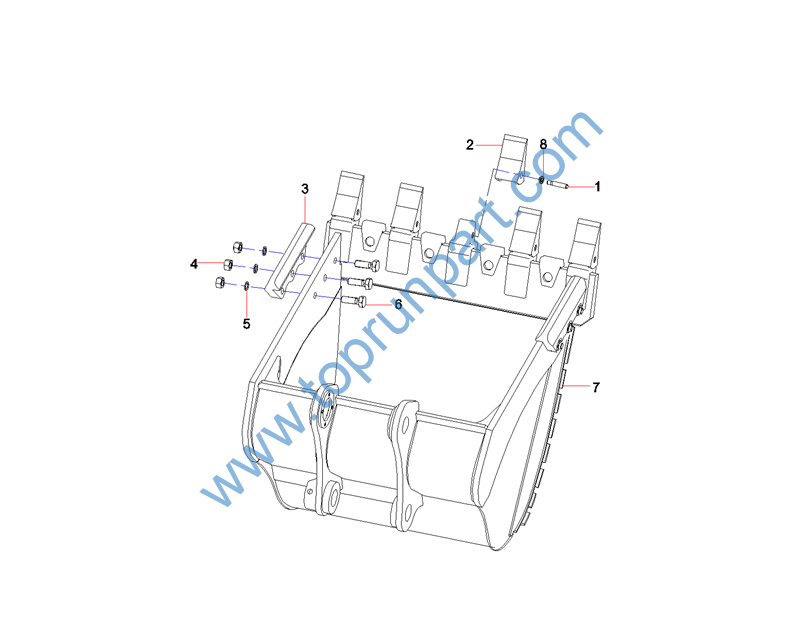

1 60116440 5 销子 Pin
2 60116437 5 斗齿 Tooth Top
3 A820403000889 2 侧齿 Shroud
4 A210307000078 6 螺母 Nut M33GB6170 Grade 10
5 A210402000048 6 垫圈 Washer
6 A210110000424 6 螺栓 Bolt M33×100GB5782 Grade 10.9
7 12002289 1 铲斗体 Bucket
8 60116439 5 卡簧 Clip
