1 60116435 5 齿座 Base of tooth

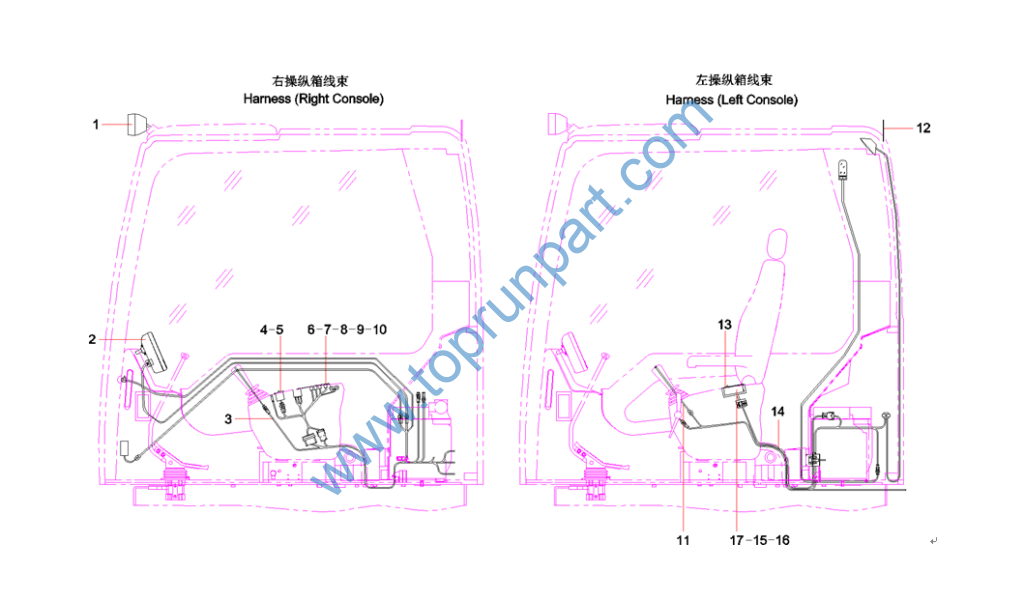

1	60012794	1	电源线	Power Supply Harness
2	60086354	9	线束固定夹	Clamp
3	13331156	1	车身线束	Vehicle Body Harness
4	24000513	11	垫圈12GB93 达克锈	Washer
5	B241000000022	1	2芯直流插座	Receptacle, power
6	A241300000059	1	熔断器盒	Fuse box-BX2022
7	60260625	1	电喇叭	Horn, electrical
8	60149356	7	椭圆线夹	Clamp, wire
9	12757095	1	动臂灯线束	Work Lamp harness
10	60114255	1	工作灯	Light, work
11	A210111000199	11	螺栓M12×20GB5783 10.9级	Bolt

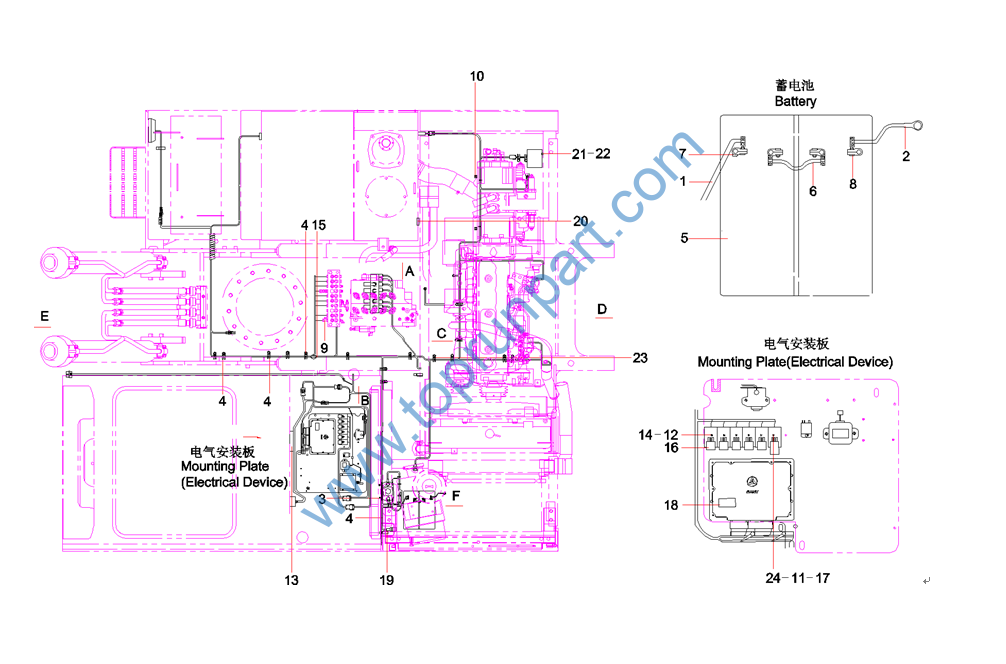

1 60203569 1 电源线 Power Supply Line
2 60203568 1 电源线 Power Supply Line
3 变更或见其他配置 2 螺栓 Bolt
4 60260292 7 尼龙扎带20×179 带φ12.5固定孔 Strap, nylon
5 60071633 2 蓄电池 Storage Battery
6 60012792 1 电源线 Power Supply Harness
7 60013322 2 A型蓄电池正极接头总成 Terminal GP, battery, positive
8 60013321 2 A型蓄电池负极接头总成 Terminal GP, battery, negative
9 变更或见其他配置 9 压力传感器 Sensor, pressure
10 变更或见其他配置 2 压力传感器 Sensor, pressure
11 变更或见其他配置 8 垫圈5GB96.1 达克锈 Washer
12 A210210000030 5 螺钉 Bolt, socket head
13 60236122 1 步进电机驱动器 Step motor driver
14 60060562 5 垫圈4GB97.1 达克锈 Washer
15 11779657 1 胶套 Grommet
16 60245361 8 中间继电器 Relay
17 24000509 4 垫圈5GB93 达克锈 Washer
18 13178574 1 三一可组态液压控制器 Sany Encourage Hydraulic Control
19 变更或见其他配置 1 垫圈8GB96.1 达克锈 Washer
20 60060301 1 温度传感器 Sensor, hydraulic oil temperature

21 60041901 2 DK金属固定夹 metal mounting bracket
22 A210111000195 6 螺栓 Bolt
23 60083322 3 线夹 Clamp
24 A210210000003 6 螺钉 Screw

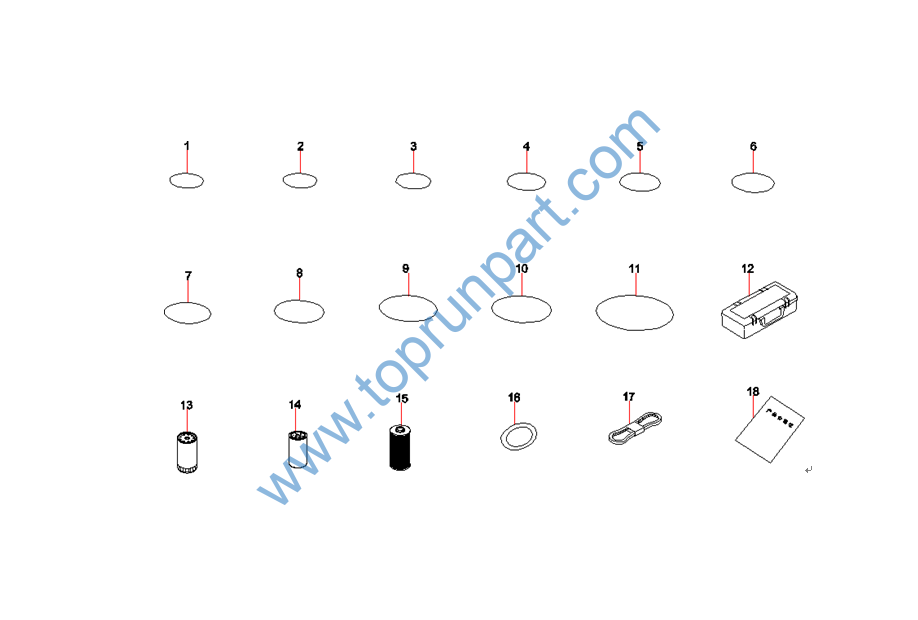

1 B230101000047 8 O形圈 O-Ring-10.8
2 A230101000247 12 O形圈 O-ring 10.9×2.3(JISB2401)
3 B230101000049 10 O形圈 O-ring
4 A230101000243 3 O形圈 O-ring 16.7×3.5(JISB2401)
5 A229900001581 2 O形圈 O-ring 21.7×3.5(JISB2401)
6 B230101000356 2 O形圈 O-Ring-23.7
7 B230101000050 5 O形圈 O-ring
8 A210609000136 2 O形圈 O-ring
9 B230101000456 4 O形圈 O-ring
10 B230101000445 2 O形圈 O-Ring-47.7×3.5JISB2401
11 A210608000108 2 O形圈 O-Ring-149.5
12 10442742 1 随机工具 Accompanying tools-SY360C.6.1
13 60201219 1 燃油精滤芯 Fuel Fine Filter Core
14 60201220 1 燃油粗滤芯 Fuel Strainer Element
15 B222100000494 1 机油滤清器 Oil filter
16 A229900005005 1 钥匙扣 Key Ring A31
17 A230106000403 1 V带 Type A Triangular Belt
18 59000039 1 产品合格证 Manufacturer Certificate

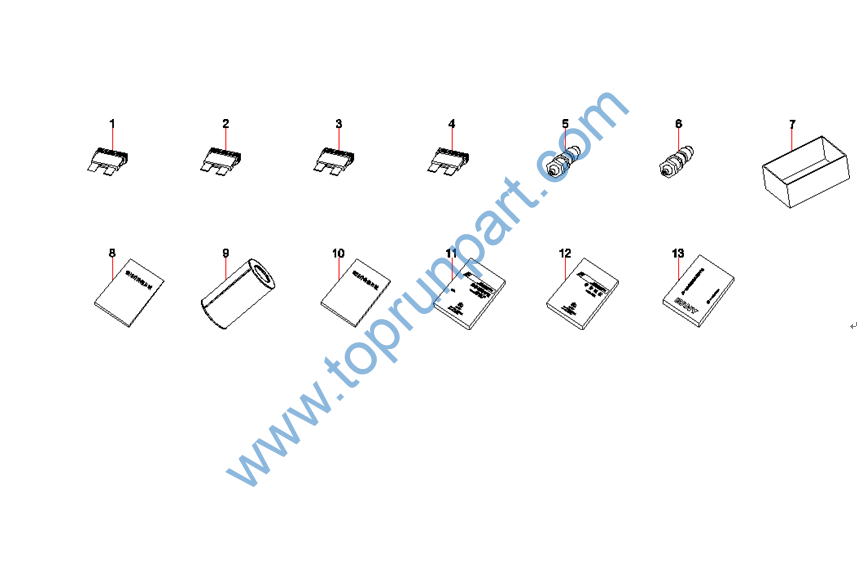

1 A241300000019 10 熔断器5-6.75A 国产 Chip fuse (Excavator) 5A
2 A241300000018 5 熔断器 Chip fuse (Excavator) 20A
3 A241300000017 5 熔断器 Chip fuse (Excavator) 15A
4 A241300000016 10 熔断器 Fuse
5 B229900000686 5 黄油嘴 Grease nipple
6 B229900000379 5 黄油嘴 Zerk, grease
7 变更或见其他配置 1 随机附件箱 Box, manuals
8 变更或见其他配置 1 三一重机常用件价格目录 Manual, parts
9 B222100000641 1 空气滤清器主滤芯 Main cartridge of air cleaner
10 变更或见其他配置 1 服务第一品牌手册
11 变更或见其他配置 1 SY305~335C9液压挖掘机操作保养 SY305~SY335C9 Hydraulic
12 12745158 1 SY335C9零部件图册 SY335C9 spare parts drawing
13 变更或见其他配置 1 三一挖掘机保养及保修手册 Manual, operation and

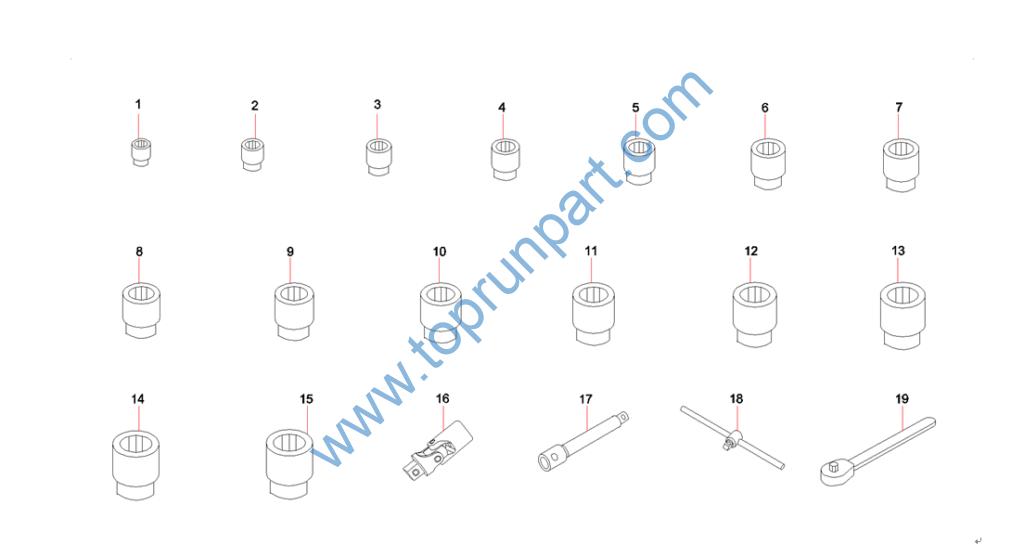

1 A260401010023 1 套筒 Socket
2 A260401010063 1 套筒 Socket
3 A260401010024 1 套筒 Socket
4 A260401010095 1 套筒 Socket
5 A260401010025 1 套筒 Socket
6 A260401010077 1 套筒 Socket
7 60001295 1 套筒 Socket
8 A260401010081 1 套筒 Socket
9 A260401010027 1 套筒 Socket
10 A260401010078 1 套筒 Socket
11 A260401010051 1 套筒 Socket
12 A260401010031 1 套筒 Socket
13 A260401010037 1 套筒 Socket
14 A260401010055 1 套筒 Socket
15 A260401010057 1 套筒 Socket
16 A229900007607 1 万向接头 Joint, universal
17 A260401010065 1 接杆 Extension
18 60001293 1 滑行头手柄 T-handle
19 A260401090010 1 可逆式棘轮扳手 Wrench, rachet
