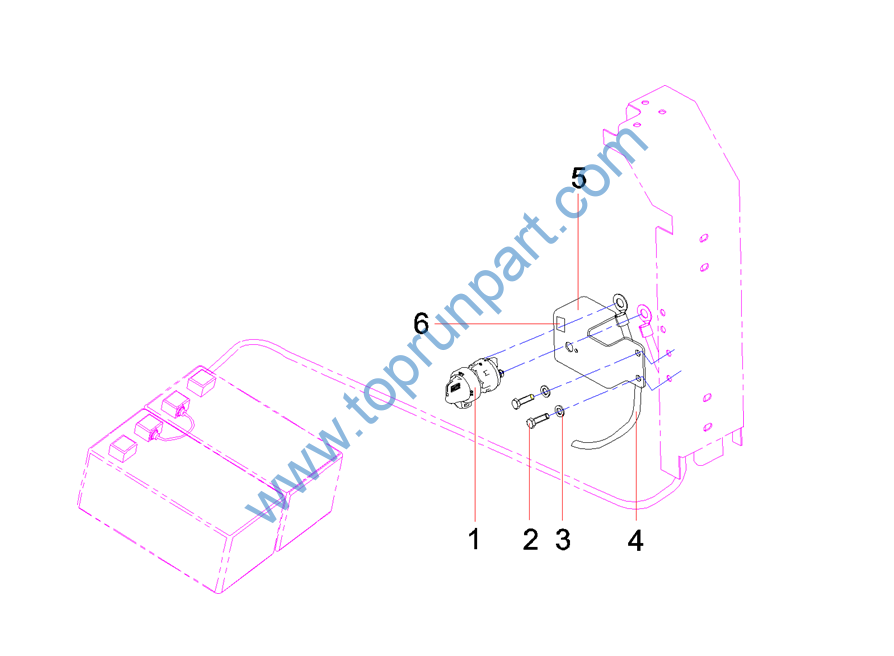

1 60125384 1 旋钮开关 Master switch of power supply
2 A210111000202 2 螺栓 Bolt
3 60060548 2 垫圈12GB96.1 达克锈 Washer
4 13654121 1 电源线 Power Supply Line
5 13774935 1 电源开关支架 Bracket of power switch
6 13336869 1 电源开关指示牌 Battery Disconnect Switch

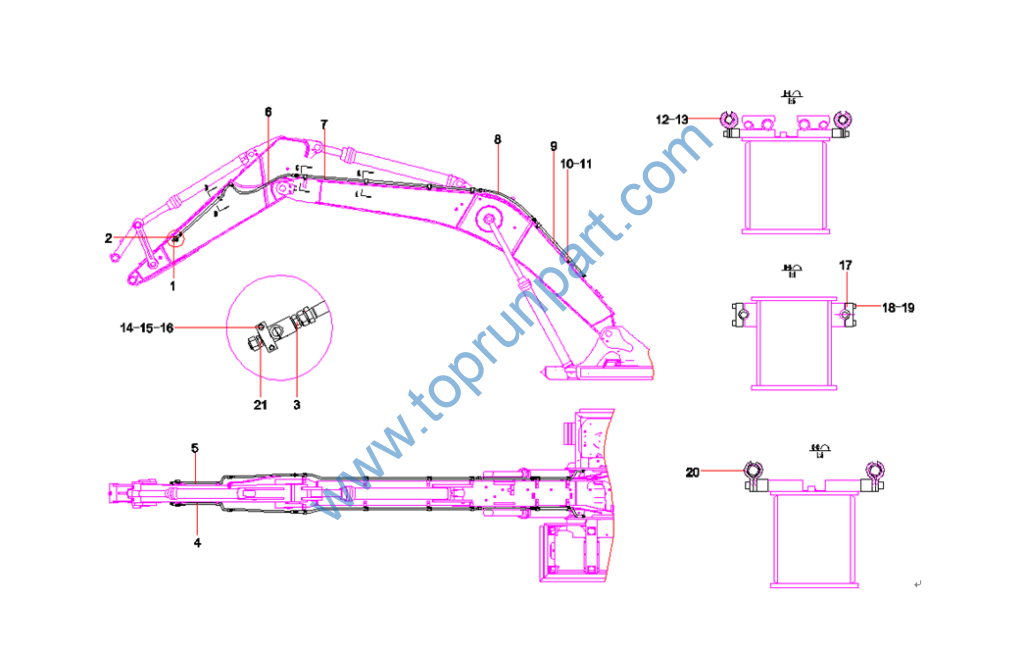

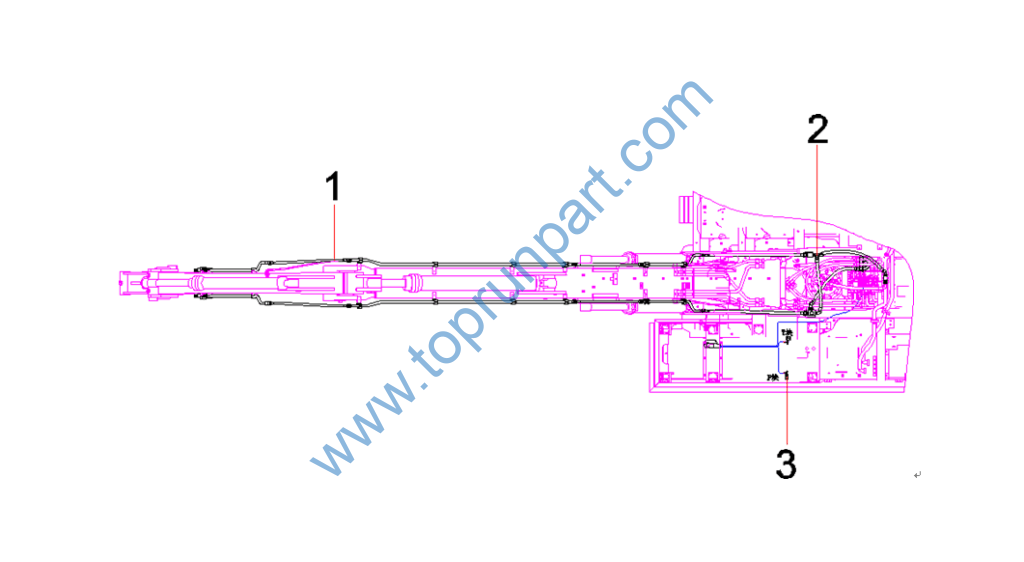

1 14191098 1 工作装置管路（斗杆 Lines GP, hydraulic, auxiliary
2 14191099 1 破碎锤平台管路 Platform piping diagram
3 14012987 1 破碎锤先导管路 hammer Pilot Pipeline

1 A229900002390 2 管堵 Tube Plug 9D-42
2 60260743 2 球阀 ball valve
3 B210780001703 2 端直通组合接头 Swivel Stud Straight Adapter with
4 13437175 1 前管(左) Front Pipe (left)
5 13437176 1 前管(右) Front Pipe(right)
6 B230103004763 2 胶管 Rubber Hose
7 12088049 2 前管 Steel Pipe
8 B230103004762 2 胶管 Rubber Hose
9 13277415 2 后管 Rear Pipe SY335.3.10L.1.1-1
10 13297746 12 垫块 Cushion
11 A210204000467 24 螺钉M14×65GB70.1 10.9级 Screw M14×65GB70.1 Grade 10.9
12 13696499 16 压板 plate
13 13696543 8 衬垫 Rubber
14 A820101332703 2 夹板 Fitting Strip
15 A210204000362 4 螺钉M12×70GB70.1 10.9级 Bolt, socket head
16 24000513 4 垫圈12GB93 达克锈 Washer
17 12055362 2 管夹 Clamp
18 A210204000356 4 螺钉 M10×50GB70.1 10.9级 Bolt
19 24000512 4 垫圈10GB93 达克锈 Washer
20 13696500 8 压板 plate

21

24001376

2

管接头                              Stud Straight Connector

1 60329989 2 胶管 Rubber hose
2 A820205001334 3 G1-M42接头 Connector
3 B230101000050 6 O形圈 O-ring
4 13812217 1 右支撑 supporting board SY335.10.2.1R-1
5 A210111000209 6 螺栓M14×45GB5783 10.9级 Bolt M14×45GB5783-00 Class
6 A210444000001 6 垫圈 Washer
7 13775658 1 过渡块 block
8 A210111000270 4 螺栓M10×90 GB5783 10.9级 Bolt M10×90GB5783 Grade 10.9
9 A210491000120 4 垫圈 washer
10 A820205002468 3 接头 Connector
11 21051021 1 三通组合L型接头 Swivel Elbow Connector-L
12 B230103004348 1 胶管 Rubber Hose 1SN25-DKOL-
13 60202198 2 管接头 Pipe connector
14 60278691 1 溢流阀DBDS20K10B压力等级 Overflow valve
15 A210110000197 2 螺栓M12×100GB5782 10.9级 Bolt
16 A210491000121 2 垫圈 Washer
17 13808741 1 左支撑 supporting board SY335.10.2.1L-1
18 B230103003924 1 胶管 Rubber Hose
19 B230103000744 1 胶管 Rubber hose
20 B210780000244 2 对开法兰 Flange, Split

21 A210204000354 8 螺钉 M10×30GB70.1 10.9级 Bolt
22 13919347 1 板 Plate SY305.1.2-7
23 A820301013877 4 U型螺栓 U type bolt
24 60060548 4 垫圈12GB96.1 达克锈 Washer
25 A210307000031 10 螺母M12GB6170 10级 Nut M12
26 B210780001225 1 管接头 Swivel Elbow Connector-T
27 B210780000071 1 对接式变径接头 Fitting, Adapter
28 13920719 1 钢管总成 steel tube assm SY335C9.1.2.4
29 B230101000456 1 O形圈 O-ring
30 60004647 1 管接头 Pipe connector

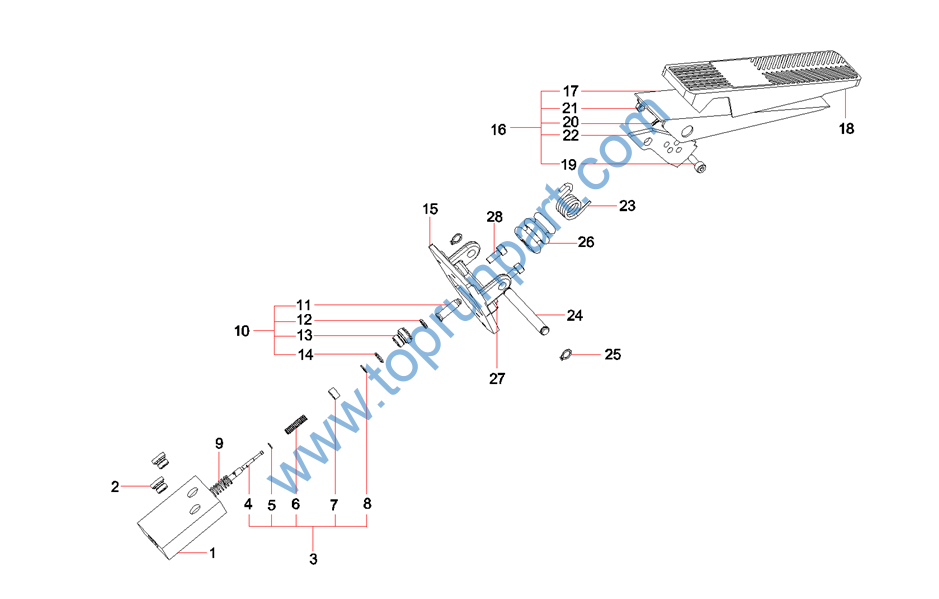

1 B220402000338 1 脚踏阀 Foot-Operated Valve JRCVP-A-1
2 A210204000132 3 螺钉 Screw
3 60060564 3 垫圈6GB93 达克锈 Washer
4 B210780000170 4 管接头 Fitting
5 B230103001359 2 胶管 Hy hose 1SN6-DKOL-DKOL90-
6 A820205000940 3 接头 Fitting
7 B230101000047 3 O形圈 O-Ring-10.8
8 B230103002658 1 胶管 Hose AS
9 A831213035000 1 胶管 Rubber hose
10 A820205000946 2 接头 Fitting
11 B230101000049 2 O形圈 O-ring
12 B210780001045 1 管接头 Fitting
13 B220400000169 1 三通梭阀 Valve, shuttle, tee
14 B230103000808 1 胶管 Tube
15 B210780000418 1 管接头 Fitting

1 60209583 1 阀体 Body, valve
2 60209584 2 堵头 Plug
3 60209585 1 阀芯组件 Spool AS, valve
4 60209586 1 阀芯 Spool, valve
5 60082153 1 弹簧座 Seat, spring
6 60209587 1 弹簧 Spring
7 60082154 1 弹簧座 Seat, spring
8 60082140 1 挡环 Ring, retaining
9 60209588 1 弹簧 Spring
10 60209589 1 插销组件 Pin GP
11 60209590 1 推杆组件 Plunger GP
12 60209591 1 油封 Seal, oil
13 60209592 1 密封圈 Ring, seal
14 60038815 1 O形圈 O-ring
15 60209593 1 板 Plate
16 60209594 1 踏板组件 Pedal GP
17 60209595 1 踏板 Pedal
18 60209596 1 踏板面 Panel, pedal
19 A210204000220 1 螺钉M8×20GB70.1 10.9级 Screw
20 A210405000007 1 垫圈 Washer

21 A210307000055 3 螺母M8GB6170 10级 Nut
22 60209597 1 连接轴 Shaft, connecting
23 60209598 1 弹簧 Spring
24 60209599 1 定位销 Dowel
25 60209600 2 卡簧 Spring, snap
26 60209601 1 波纹套 Sheath, corrugated
27 A210207000001 2 螺钉 Screw
28 23002134 2 螺钉 Screw
