1 60078249 1 油底壳总成 Pan GP, engine oil
2 60078251 1 油标尺 Gauge, engine oil level
3 B230101001223 1 密封垫 Shim
4 B229900003198 1 放油螺栓 Plug
5 60078241 1 垫 Gasket
6 B229900003078 1 油底壳垫片 Gasket, oil pan
7 60003607 9 螺栓 Bolt
8 60003552 13 螺母 Nut
9 60003497 1 固定板 Plate, fixing
10 60003496 1 固定板 Plate, fixing
11 60003574 4 螺栓 Bolt
12 60003575 2 螺栓 Bolt

1 B229900003066 1 凸轮轴 Camshaft
2 B229900003054 4 进气门 Valve, air inlet
3 B229900003055 4 排气门 Valve, exhaust
4 60003310 1 齿轮 Gear
5 60003691 1 止推片 Plate, thrust
6 60003586 2 螺栓 Bolt
7 B229900003067 1 凸轮轴键 Key, camshaft
8 60003596 1 螺栓 Bolt
9 60003388 1 垫片 Shim
10 B229900003068 1 摇臂轴 Shaft, rocker arm
11 60003289 2 塞 Plug
12 B229900004330 2 环 Ring
13 B222200000044 16 锁扣 Locker
14 B229900005807 8 气门弹簧 Spring, valve
15 B229900004479 8 座 Seat
16 60003362 8 弹簧座 Seat, spring
17 60003672 8 摇臂 Rocker arm
18 B229900003070 8 气门调整螺钉 Screw, adjusting valve
19 60003543 8 螺母 Nut
20 60003686 4 支架 Bracket

21 60003610 1 螺栓 Bolt
22 60003611 3 螺栓 Bolt
23 B229900003071 8 推杆 Pushrod
24 B229900003072 8 挺柱 Tappet
25 60003442 4 垫片 Shim
26 60003606 1 螺栓 Bolt
27 60003301 1 轴承 Bearing
28 60003696 1 轴 Shaft
29 60003694 1 轴 Shaft
30 60003320 1 锁片 Plate
31 60003311 1 齿轮 Gear
32 60003314 1 齿轮 Gear
33 60003597 2 螺栓 Bolt
34 60003354 3 弹簧 Spring

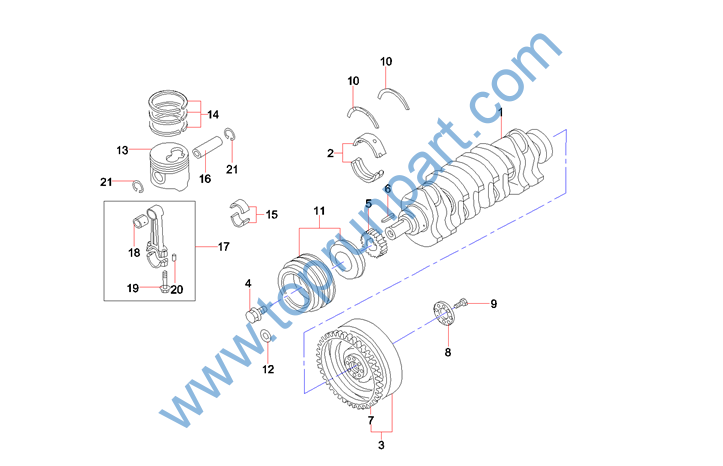

1 B229900003061 1 曲轴 Crankshaft
2 B221500000377 5 曲轴轴承 1级 Bearing, crankshaft
3 60003492 1 飞轮 Flywheel
4 60003599 1 螺栓 Bolt
5 60003309 1 齿轮 Gear
6 B229900003062 1 曲轴键 Key, crankshaft
7 60003312 1 齿轮 Gear
8 60003425 1 垫片 Gasket
9 60003616 8 螺栓 Bolt
10 B229900005810 2 止推瓦 Plate, thrust
11 60003642 1 皮带轮 Pulley
12 60003387 1 垫片 Shim
13 B229900003058 4 活塞 Piston
14 B229900003057 4 活塞环 Ring, Piston
15 B221500000282 4 连杆轴承 Bearing, connecting rod
16 B229900003059 4 活塞销 Dowel, piston
17 B229900003461 4 连杆总成 Connecting rod GP
18 60003344 4 衬套 Sleeve
19 60003615 8 螺栓 Bolt
20 60003668 8 销 Dowel

21 60003488 8 防松环 Lock, retainer

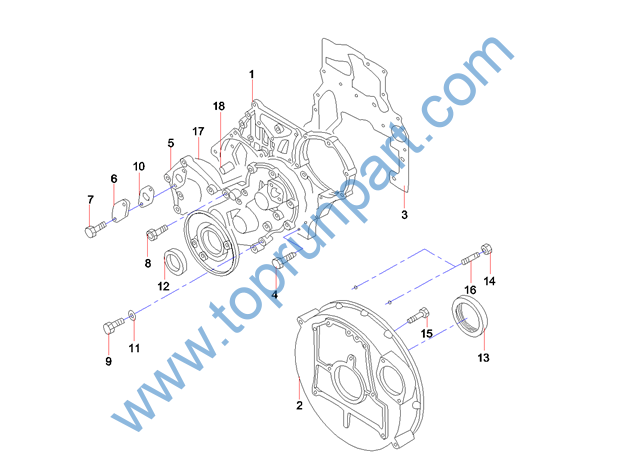

1 60003684 1 正时齿轮箱 Gearbox
2 60003493 1 飞轮室 Housing, flywheel
3 60003339 1 衬垫 Gasket
4 60003580 2 螺栓 Bolt
5 60003347 1 齿轮箱盖 Cover, front housing
6 B229900004255 2 盖 Cover
7 B229900004847 4 螺栓 Bolt
8 60003591 1 螺栓 Bolt
9 B229900004853 8 螺栓 Bolt
10 60003337 2 衬垫 Washer
11 60003441 1 垫片 Shim
12 B230101001221 1 曲轴前油封 Seal, crankshaft (front)
13 B230101001222 1 曲轴后油封 Seal, crankshaft (rear)
14 60003545 2 螺母 Nut
15 60003598 3 螺栓 Bolt
16 60003649 2 双头螺栓 Stud
17 60003333 1 衬垫 Gasket
18 60003667 2 销 Dowel

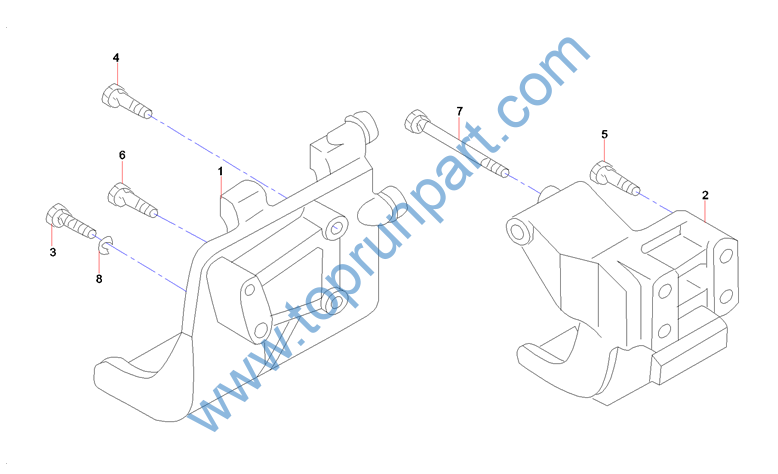

1 60003486 1 发动机支架 Bracket, engine
2 60003487 1 发动机支架 Bracket, engine
3 60003565 1 螺栓 Bolt
4 60003581 1 螺栓 Bolt
5 60003582 3 螺栓 Bolt
6 60003583 2 螺栓 Bolt
7 60003623 1 螺栓 Bolt
8 B229900004614 1 垫圈 Washer

1 60003525 1 进气歧管 Manifold, inlet
2 60003340 1 衬垫 Gasket
3 B229900004852 6 螺栓 Bolt
4 B229900004802 2 螺母 Nut
5 60115442 2 环箍固定螺栓 Bolt
6 60003523 2 气管衬垫 Gasket, tube (air inlet)
7 60333458 1 进气管 Pipe inlet
8 60003628 2 螺栓 Bolt
9 60333459 1 连接块 Plate joint

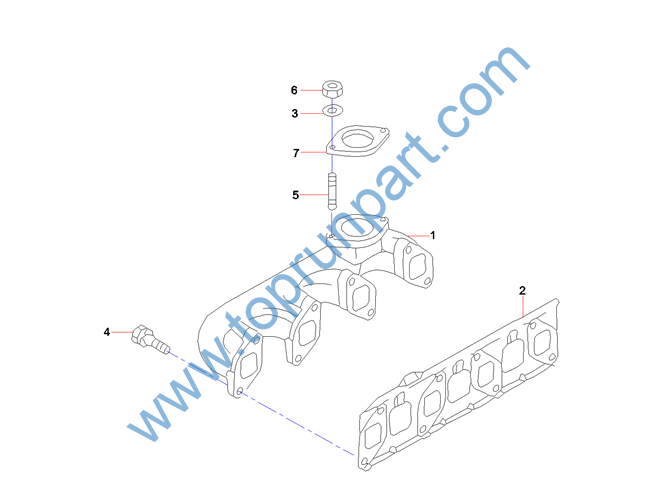

1 B229900005806 1 排气岐管 Manifold, exhaust
2 B229900003077 1 排气管垫 Gasket, exhaust manifold
3 B229900004610 2 垫圈 Washer
4 60003587 6 螺栓 Bolt
5 60003650 2 双头螺栓 Stud
6 B229900004817 2 螺母 Nut
7 B229900002784 1 排气管垫圈 Gasket
