1 60003661 1 通风口 Cover
2 60003538 4 螺钉 Bolt
3 60003714 1 软管 Hose
4 60003498 2 管夹 Clamp
5 60003369 1 导管 Tube, guide

1 B220302000008 1 水泵 Pump, water
2 B229900003074 1 水泵到气缸体垫片 Gasket
3 60011498 1 风扇皮带轮 Pulley, fan
4 B229900004927 7 螺栓 Bolt
5 60003654 2 双头螺柱 Stud
6 60003556 2 螺母 Nut

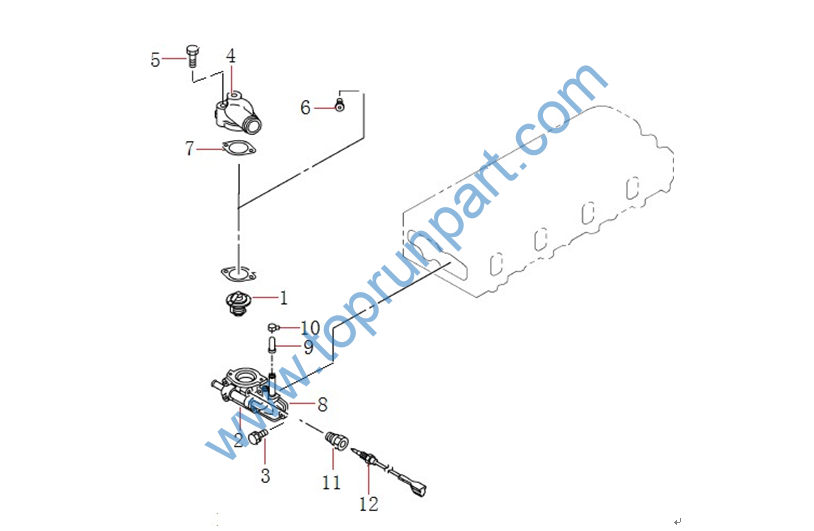

1 B249900001145 1 节温器 Thermostat
2 60003521 1 节温器壳体 Housing – Thermostat
3 60003572 5 螺栓 Bolt
4 60003348 1 出水管 Tube, water outlet
5 60003572 2 螺栓 Bolt
6 60003283 1 塞 Plug
7 B229900003458 1 出水管垫片 Gasket
8 60003635 1 密封垫 Gasket
9 60333461 2 帽 Cap
10 60003499 2 管夹 Clamp
11 60003508 1 管接头 Connector
12 B241200001055 1 开关 Sensor, water temperature

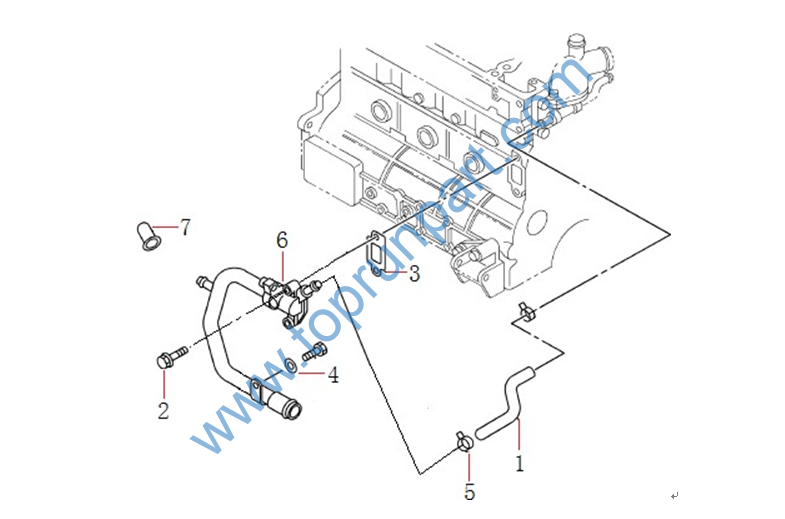

1 60333463 1 软管 Hose
2 60093241 2 螺栓028050-8450 M8×45凸缘 Bolt
3 60003335 1 衬垫 Gasket
4 60115364 1 发电机固定板垫片 Washer
5 60003499 2 管夹 Clamp
6 60333464 1 水管 Pipe
7 60115481 1 暖水管盖 Cover – Hot Pipe

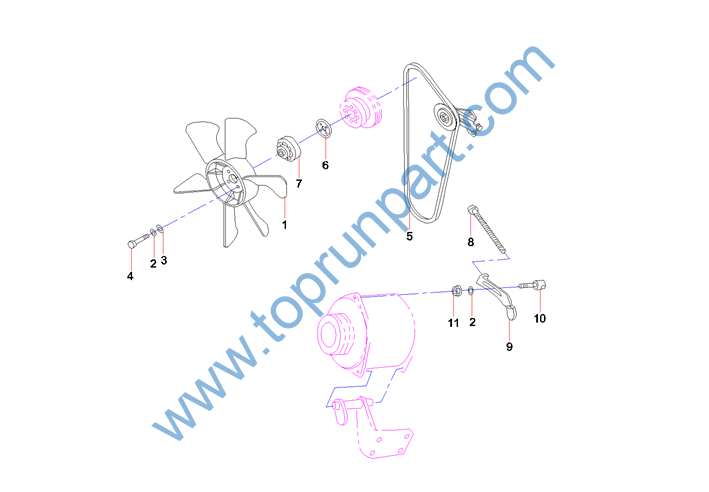

1 60011500 1 风扇总成 Fan
2 B229900004610 5 垫圈 Washer
3 60011501 4 平垫圈 Washer
4 60011494 4 风扇安装螺栓 Bolt, fan
5 60011502 1 风扇皮带 Belt, fan
6 60011495 1 风扇垫块 Spacer, fan
7 60011496 1 风扇垫块 Spacer, fan
8 60003621 1 螺栓 Bolt
9 60003478 1 调整板 Bracket, adjusting
10 60003479 1 调整螺栓 Bolt, adjusting
11 60003560 1 螺母 Nut

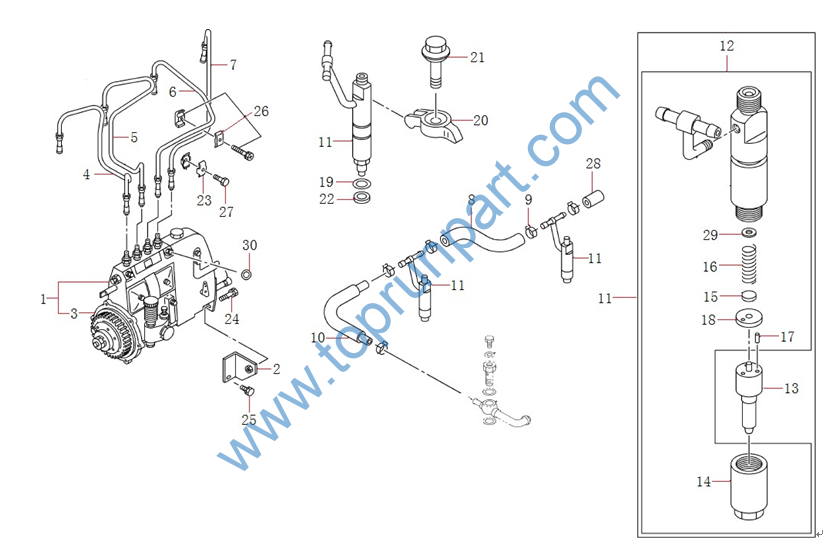

1 60333466 1 喷油泵 Pump
2 60333467 1 喷油泵支架 Bracket
3 60003306 1 联轴器 Coupler AS
4 60003290 1 喷油泵1号管 Tube, injection (cylinder )
5 60003291 1 喷油泵2号管 Tube, injection (cylinder )
6 60003292 1 喷油泵3号管 Tube, injection (cylinder )
7 60003293 1 喷油泵4号管 Tube, injection (cylinder )
8 60003710 3 燃油软管 Hose
9 60003501 9 管夹 Clamp
10 60003712 1 软管 Hose
11 B229900003075 4 喷油器 Injector
12 60093201 4 保持架总成 Retainer GP
13 B229900003076 4 喷油嘴 Nozzle
14 60003555 4 螺母 Nut
15 60003363 4 弹簧座 Seat, spring
16 60003353 4 弹簧 Spring
17 60003666 8 销 Dowel
18 60003465 4 垫圈 Washer
19 B229900003080 4 喷油器座垫片 Shim, injector seat
20 60003516 4 夹子 Clip

21 60003612 4 螺栓 Bolt
22 B229900003462 4 喷油器垫片作废用 Gasket,oil sprayer
23 60003648 1 上管夹 Clip
24 60003590 1 螺栓 Bolt
25 60003571 1 螺栓 Bolt
26 60003504 3 管夹 Clip
27 60333468 1 螺栓 Bolt
28 60003480 1 端盖 Cover
29 60003427 4 垫片 Shim
30 B229900002660 1 垫片 Gasket

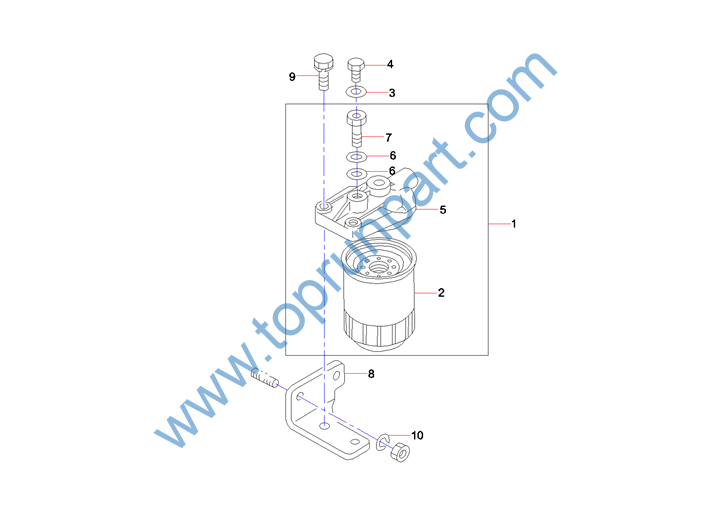

1 60113821 1 燃油滤清器总成 Filter GP, fuel
2 B222100000453 1 柴油滤清器 Filter, fuel
3 60003444 1 垫片 Shim
4 60003673 1 溢流塞 Plug, relief
5 B222100000655 1 滤清器座 Base
6 B229900002619 2 垫圈 Shim
7 B229900003209 1 柴油滤芯器放油螺栓 Bolt, Oil Drain
8 60003687 1 支架 Bracket
9 B229900004908 2 螺栓 Bolt
10 B229900004611 2 垫圈 Washer
