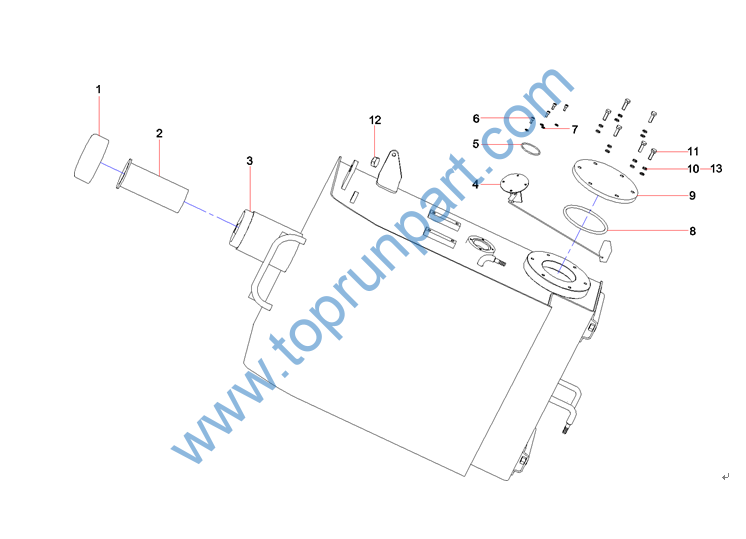

1 A290000002193 1 燃油箱锁盖 Cover, Lock, Fuel Tank
2 B222100000201 1 燃油滤清器 Strainer AS, fuel (float gauge)
3 13495471 1 燃油箱 Fuel Tank SY55C9I3R.1.3.5.1A.1
4 60029642 1 液位传感器 Sensor GP, fuel level
5 B230101000457 1 O形圈 O-ring
6 A210204000129 4 螺钉 Screw M6×12GB70.1
7 A210405000006 4 垫圈 Washer
8 A210609000352 1 O形圈 O-ring
9 11930030 1 法兰盖 Cover, flange
10 A210401000017 6 垫圈 Washer
11 A210111000090 6 螺栓 Bolt
12 10210082 1 堵头 Plug
13 A210405000007 6 垫圈 Washer

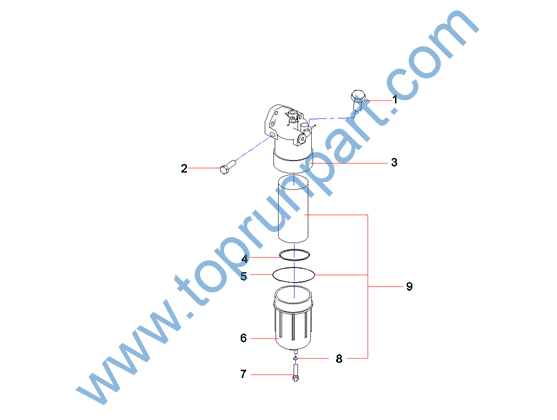

1 60078243 1 塞 Plug
2 60078245 1 塞 Plug
3 60078250 1 座 Fuel Filter Seat
4 60078242 1 浮标 Float
5 60078246 1 垫片 Washer
6 60078248 1 壳体 Housing – Filter Element
7 60078244 1 塞 Water Drain Plug
8 60078247 1 垫片 Gasket
9 60017773 1 柴油滤清器 Filter, diesel fuel

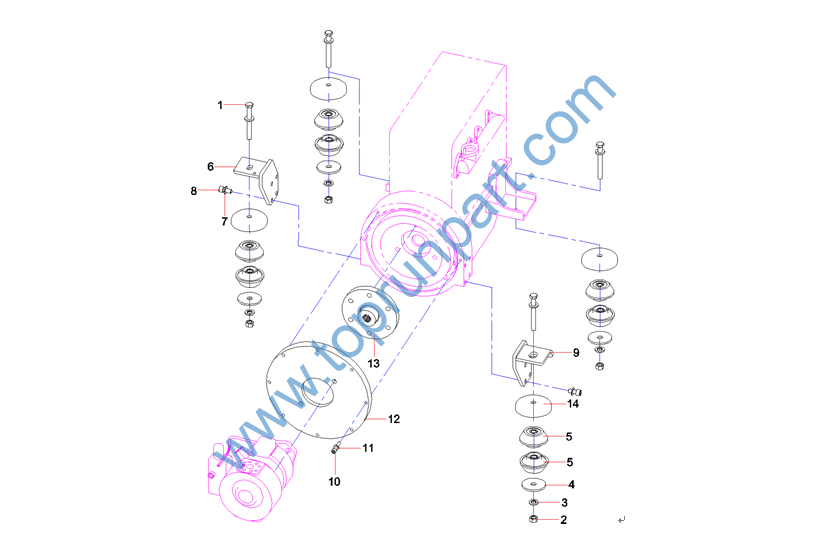

1 A210111000210 4 螺栓M16×150GB5783 10.9级 Bolt M16×150GB5783 10.9
2 A210307000028 4 螺母 Nut
3 A210491000118 8 垫圈 Washer
4 12810653 4 减震器下垫板 damper lower backup
5 60212661 8 减震垫 Damping pad
6 13428322 1 右后支腿 right rear support leg
7 A210444000001 8 垫圈 Washer 14(GB1230)
8 A210111000205 8 螺栓M14×30GB5783 10.9级 Bolt M14x30
9 13428323 1 右前支腿 right front support leg
10 A210204000335 8 螺钉M10×55GB70.1 10.9级 Bolt M10x55 Cap Screw
11 A210491000120 8 垫圈 Washer Flat M10
12 13610114 1 飞轮壳连接盘 Cover, end SY65C3S3R.1.3.1-3
13 60017431 1 法兰联轴器 Coupler,flange
14 12727958 4 上碗垫 mat SY85C1K2S.1.3.1-1

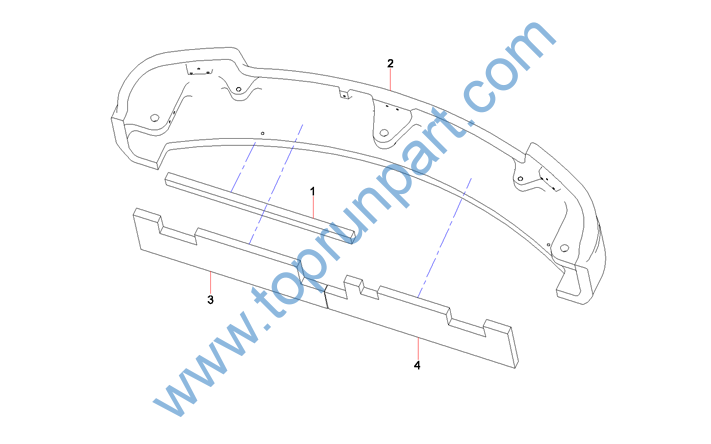

1 A820699000678 1 驾驶室底板海绵 Sponge, bottom plate, cab
2 10542510 1 配 重 Counterweight
3 10542511 1 海绵 Foam
4 10740921 1 海绵 Foam

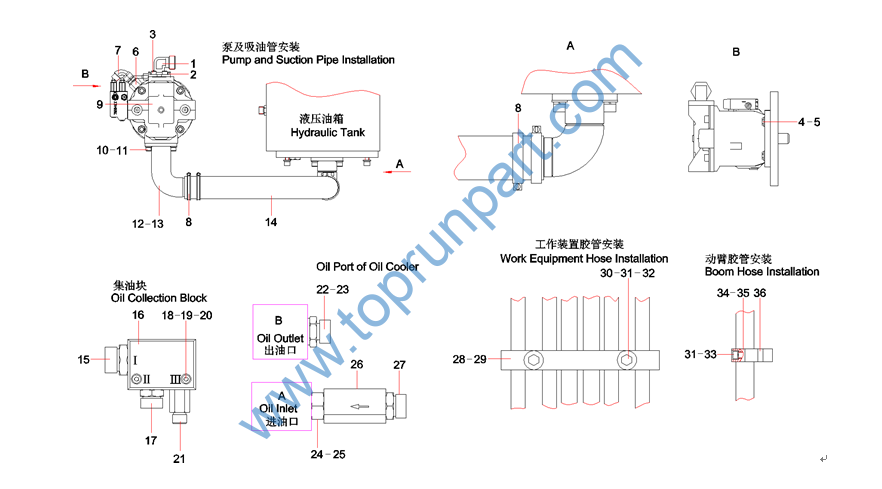

1 A229900002603 1 直角法兰接头 Fitting, Elbow
2 B210780000244 2 对开法兰 Flange, Split
3 A210204000215 7 螺钉M10×35GB70.1 10.9级 Screw
4 A210204000203 2 螺钉M16×40GB70.1 10.9级 Screw M16×40GB70.1 10.9
5 A210491000118 10 垫圈 Washer
6 B210780000041 1 管接头 Fitting 31.2×27×35.5mm
7 B210780000025 6 直角组合接头 Fitting, Elbow
8 A229900003104 4 T型抱箍 Clamp
9 60068467 1 柱塞泵 Pump, plunger
10 A210204000337 4 螺钉M12×30GB70.1 10.9级 Screw
11 24000513 12 垫圈12GB93 达克锈 Washer
12 13705863 1 吸油管 oil suction tube SY55C9I3R.1.2.6
13 B230101000366 1 O形圈 O-ring
14 11147325 1 吸油胶管 Hose, oil suction
15 24001376 1 管接头 Connector, pipe
16 11147386 1 集油块 Block, oil collection
17 B210780001347 2 管接头 Connector
18 A210108000097 2 螺栓 Bolt
19 24000511 2 垫圈8GB93 达克锈 Washer
20 24000633 2 垫圈8GB97.1 达克锈 Washer

21 11147279 6 接头 Connector
22 10620906 1 接头 Connector
23 A210609000136 2 O形圈 O-ring 29.7×3.5JISB2401
24 A820205002626 1 接头 Connector
25 B230101000050 5 O形圈 O-ring
26 变更或见其他配置 1 单向阀 Valve, check
27 A820205002468 1 接头 Connector
28 10541232 2 软管管夹 Clip, hose
29 10541233 1 压板 Plate, pressure
30 A210111000295 2 螺栓 Bolt M10×80GB5783-00 10.9
31 24000512 9 垫圈10GB93 达克锈 Washer
32 变更或见其他配置 2 垫圈10GB97.1 达克锈 Washer
33 A210204000335 4 螺钉M10×55GB70.1 10.9级 Bolt M10x55 Cap Screw
34 A820202005473 2 橡胶管夹 Clamp, pipe, rubber
35 11664307 4 安装块 Block, mounting
36 10542627 2 压板 Plate, pressure

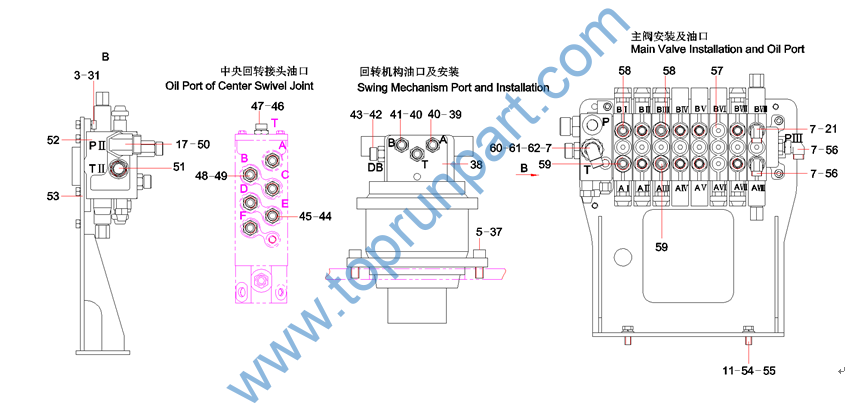

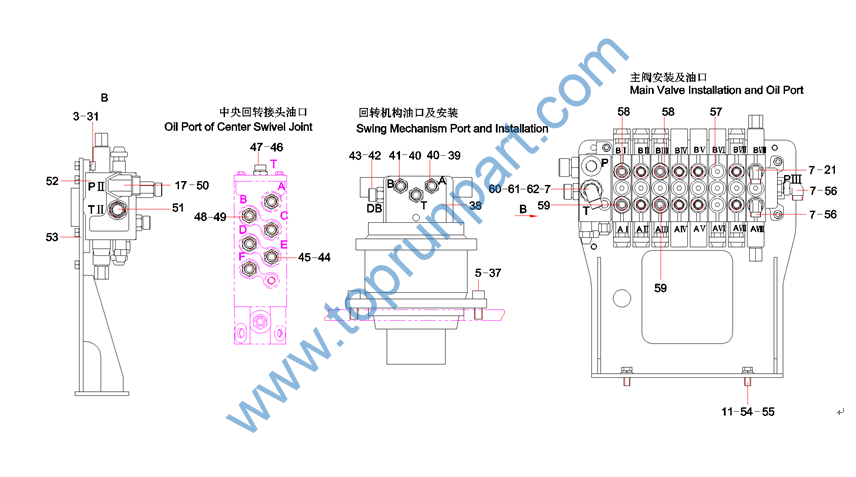

3 A210204000215 7 螺钉M10×35GB70.1 10.9级 Screw
5 A210491000118 10 垫圈 Washer
7 B210780000025 6 直角组合接头 Fitting, Elbow
11 24000513 12 垫圈12GB93 达克锈 Washer
17 B210780001347 2 管接头 Connector
21 11147279 6 接头 Connector
31 24000512 9 垫圈10GB93 达克锈 Washer
37 A210204000232 8 螺钉M16×45GB70.1 10.9级 Screw
38 变更或见其他配置 1 减速机总成 Reducer GP
39 变更或见其他配置 1 接头 Connector
40 B230101000090 5 O形圈 O-ring
41 21002822 4 管接头 Pipe connector
42 21011029 1 管接头 Pipe connector
43 B230101000049 1 O形圈 O-ring 13.8×2.4JISB2401
44 A820205002296 2 管接头 Connector
45 A230101000243 2 O形圈 O-ring 16.7×3.5JISB2401
46 A820205000894 1 接头 Connector
47 A230101000247 1 O形圈 O-ring 10.9×2.3(JISB2401)
48 A820205002388 4 接头 Connector
49 A230101000244 4 O形圈 O-ring

50 B210780000029 1 直角组合接头 Right angle combined adaptor
51 B210780000421 1 管接头 End straight adaptor
52 60167417 1 多路阀 Valve, main control
53 11147499 1 主阀安装架 Rack, mounting, main valve
54 A210111000202 4 螺栓 Bolt
55 变更或见其他配置 8 垫圈12GB97.1 达克锈 Washer
56 B210780000043 6 端直通接头 Fitting, Adapter
57 B210780001384 2 螺塞 Plug, screw
58 11147213 2 接头 Connector
59 B210780000141 2 端直通接头 Fitting, Adapter
60 B210780000626 1 端直通接头 Connector
61 21051021 1 三通组合L型接头 Fitting, Tee
62 B210780000629 1 对接式变径接头 Fitting, Adapter

7 B210780000025 6 直角组合接头 Fitting, Elbow
11 24000513 12 垫圈12GB93 达克锈 Washer
25 B230101000050 5 O形圈 O-ring
31 24000512 9 垫圈10GB93 达克锈 Washer
40 B230101000090 5 O形圈 O-ring
41 21002822 4 管接头 Pipe connector
55 变更或见其他配置 8 垫圈12GB97.1 达克锈 Washer

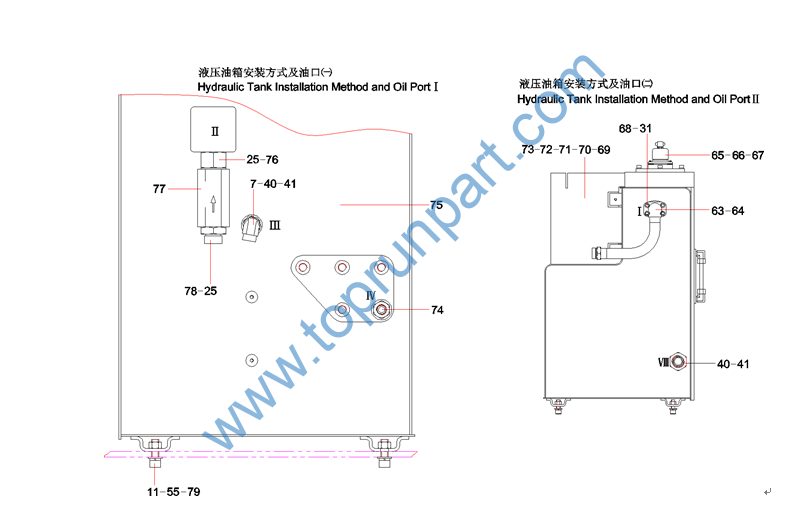

63 11147398 1 回油钢管 Pipe, oil return
64 B230101000456 1 O形圈 O-ring
65 变更或见其他配置 4 螺钉 Screw
66 24000632 4 垫圈6GB97.1 达克锈 Washer
67 60237031 1 呼吸阀 Breather valve
68 A210204000354 4 螺钉 M10×30GB70.1 10.9级 Screw
69 13149492 1 海绵 Sponge ⅠSY55C3K2R.1.2.15-1B
70 12546487 1 海绵 Sponge ⅠSY55C3I2R.1.2-10
71 12546512 1 海绵 Sponge ⅡSY55C3I2R.1.2.11
72 11148288 1 海绵 Sponge
73 12546522 1 海绵 Sponge ⅡSY55C3I2R.1.2.12
74 B210780000179 1 端直通接头 Fitting, Adapter
75 13146880 1 液压油箱总成 Hydraulic Fuel Tank Assy.
